Product Overview

Description

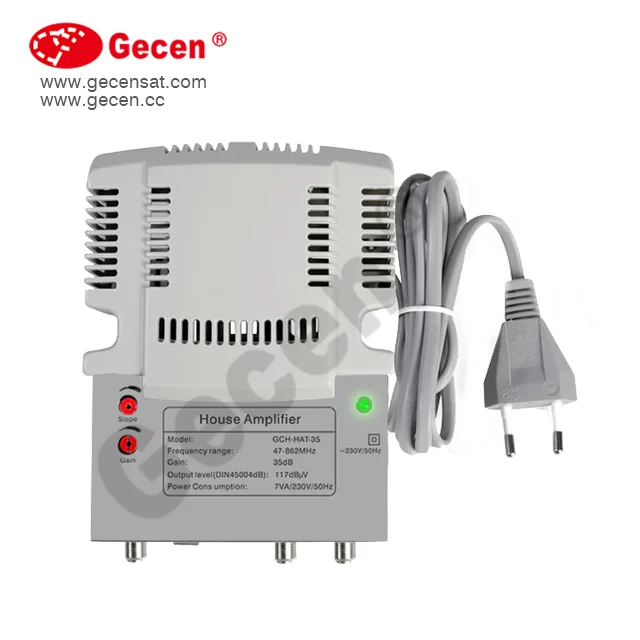

GECEN CATV Indoor signal Amplifier wtih 35dB gain GCH-HAT-35

Product Description





Features:

  • Designed for SATV+CATV
  • High Output level
  • With gain adjustable on DTT
  • Slope compensation



Specifications



Impedance

75ohm

Frequency Range

174-2150MHz

Gain(DTT)

27±2dB@174MHz

28±2dB@400MHz

29±2dB@630MHz

30±2dB@806MHz

Gain(DTH)

25±2dB@950MHz

27±2dB@1350MHz

29±2dB@1750MHz

31±2dB@2150MHz

Return loss

10dB

Adjust Gain Level

20dB@DTT

Noise Figure

6dB

Max .Output level

116dBμV

Power

90 – 240VAc @60Hz

Led Indicator

Green or Red

Connectors

F (f)

Operation Temperature

-10 to +60 ℃
