Product Overview

Description

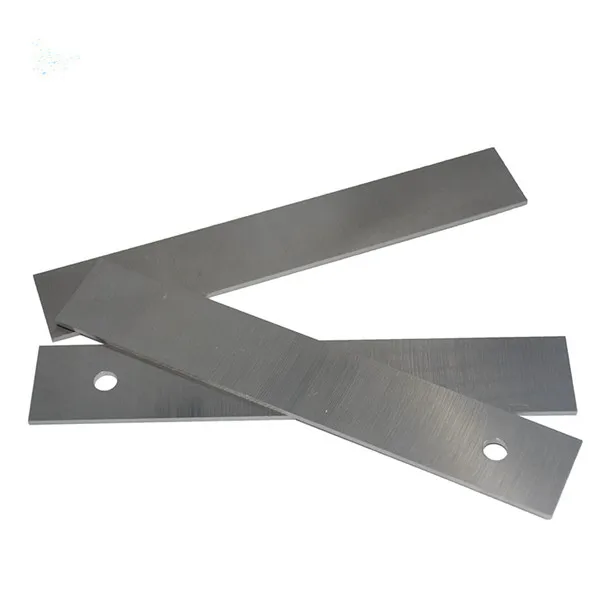

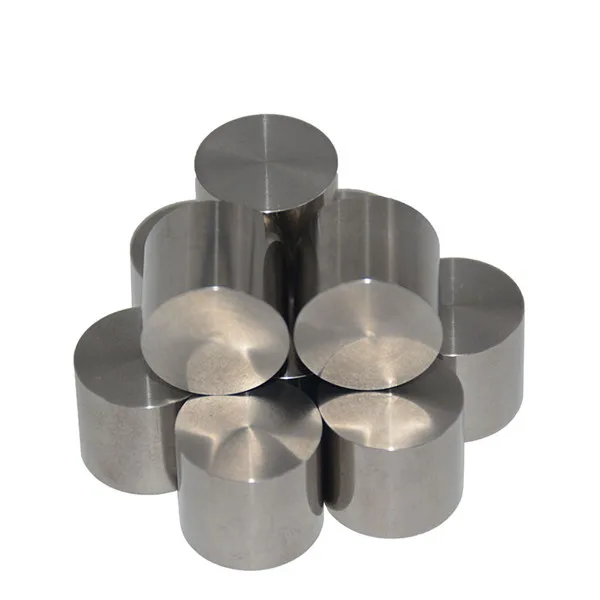

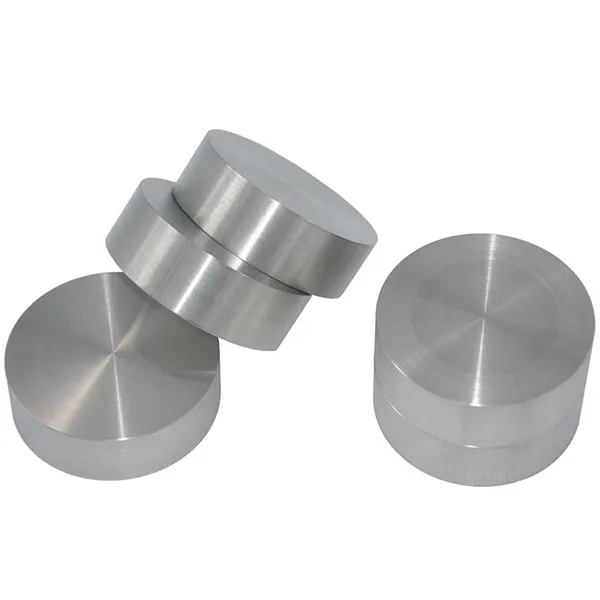

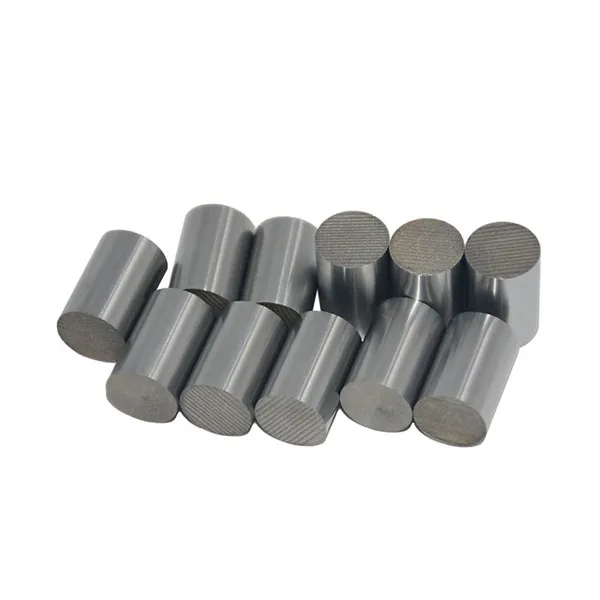

Customized High Quality TZM Molybdenum Alloy Products Price

TZM alloy has a high melting point, high strength, high elastic modulus, linear expansion coefficient, low vapor pressure, good thermal conductivity, corrosion resistance strong and good high temperature mechanical performance characteristics, thus can be widely applied in many fields.



TZM alloy (titanium zirconium molybdenum) the many advantages it broad range of applications. Their performance under high temperature and pressure out of the good mechanical properties make it more on the industrial applications, such as engines with the valve body, rocket nozzles, gas pipeline, the nozzle throat insert; Color Picture Tubes and used production line glass furnace with platinum and rhodium clad agitator spindle is to use its liquid metal corrosion resistance;

TZM Molybdenum Properties:

TZM Molybdenum Physical Properties
Density	lb/in3	0.37
	gm/cm3	10.22
Melting Point	°F	4753
	°C	2623
Thermal Conductivity	Cal/cm2/cm°C/sec	0.48
Specific Heat	Cal/gm/°C	0.073
Coefficient of Linear Thermal Expansion	micro-in/°F x 10-6	2.50
	micro-in/°C x 10-6	5.20
Electrical Resistivity	micro-ohm-cm	6.85



TZM Molybdenum Mechanical Properties
Tensile Strength	KSI (Mpa)-RT	110 (760)
Elongation	% in 1.0".	15
Hardness	DPH	220
Modules of Elasticity	KSI	46000
	Gpa	320
