Tobee Effluent Handling
$12,600
Best Design Off Grid Solar Power System Deep Well Pump Solar Borehole Pump 12v Dc centrifugal pump
- Category: >>>
- Supplier: Hangzhou Zhongyi Solar Technology Co. Ltd.
Share on (62571449457):
Product Overview
Description

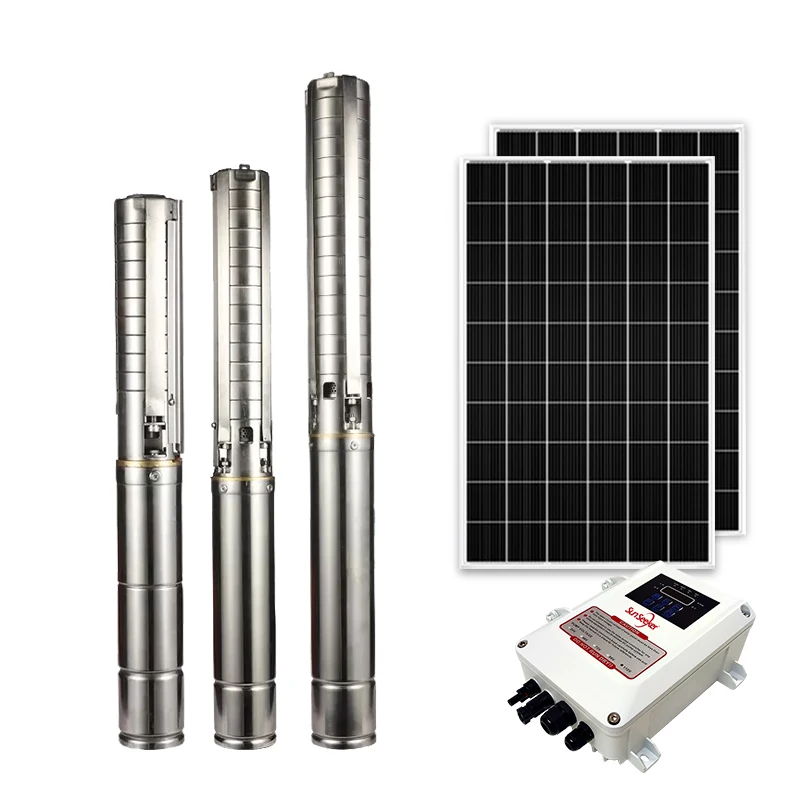

SOLAR PUMPING SYSTEM
Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
Service capabilities
1. No MOQ required, Most solar water pumps ready in stock(fast lead time)
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Manufacture more than 50000pcs per year
5. Exported more than 60 countries
2. Two Years Warranty
3. Experienced manufacturer of over 15 years
4. Manufacture more than 50000pcs per year
5. Exported more than 60 countries

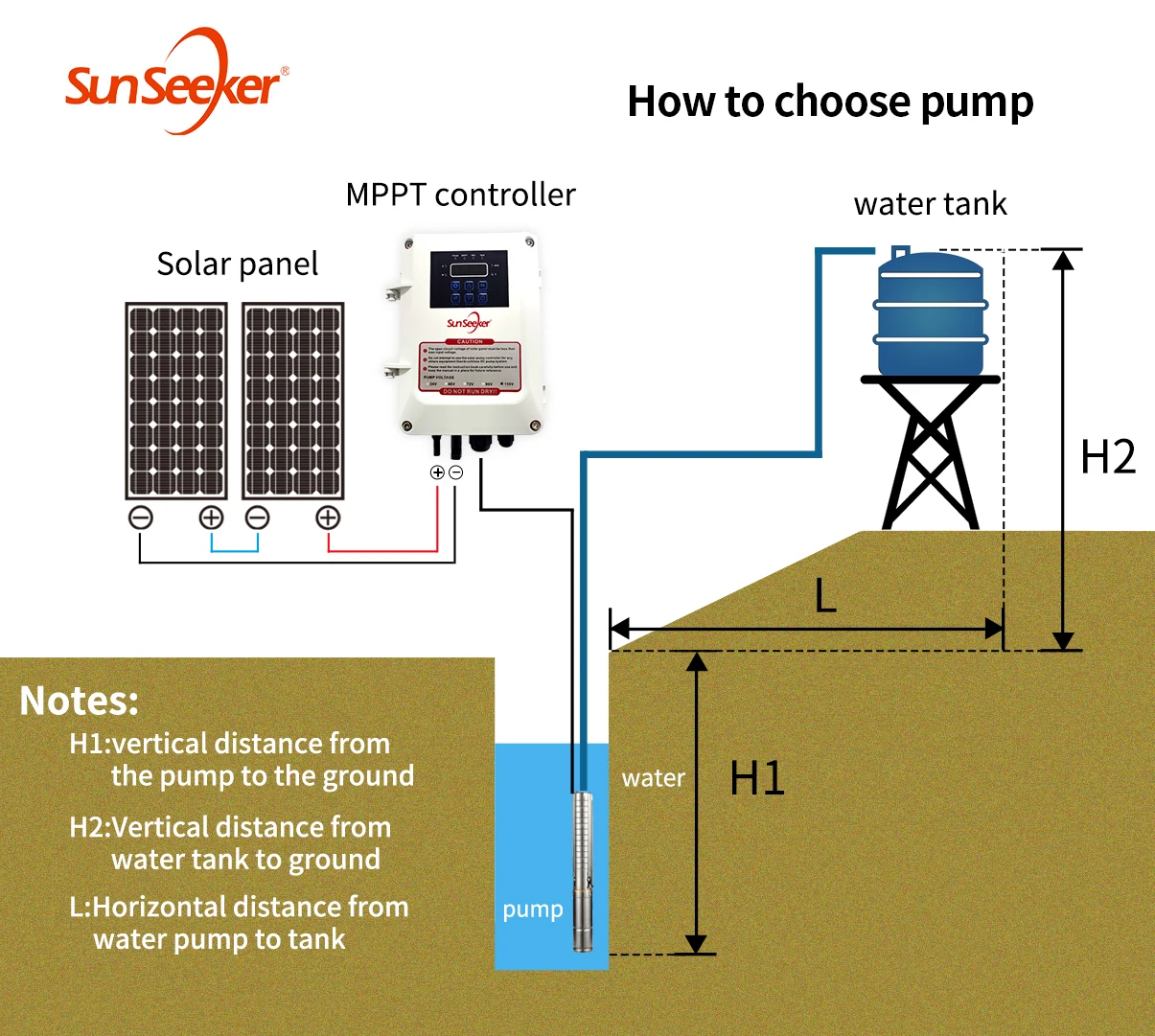

How to choose pump
How to choose pump
Calculation of pump head
1）H1:vertical distance from the pump to the ground2）H2:Vertical distance from water tank to ground
3）L:Horizontal distance from water pump to tank
3）L:Horizontal distance from water pump to tank
4） Total head = H1+H2+L*10%
Calculation of pump Flow
1）Time: 5 hours (estimated working hours of solar water pump)
2）Daily water consumption: daily water consumption of water pump (m³)
3）Actual flow: daily water consumption/time
(m³/h)
Pls select the right pump below yourself, or pls inform us below information, then we can select the right pump for you.
1. Where will the pump be used?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?
2. How much water discharge ( liters or gallon or m3) required per day or per hour?
3. Do you need a submersible pump or surface pump?
4. If you want to pump the water from borehole(deep well), the depth of borehole?
5. The pipe distance from the top of borehole or river to destination tank? Is the distance slope or horizontal?
6. The height of tank?

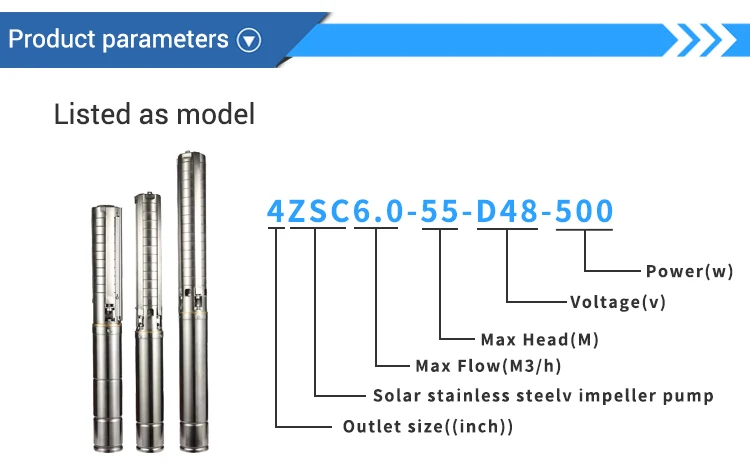

Analysis of pump parameters
Solar stainless steel impeller pump Outlet size:3 inch(76mm)/4 inch(100mm)/6 inch(150mm)
6.0:Pump Max Flow is 6.0 m3/h
55:Pump Max Head is 55m
D48:pump voltage is DC 48V
500:Pump Power is 500W(0.75HP)
Recommend Products

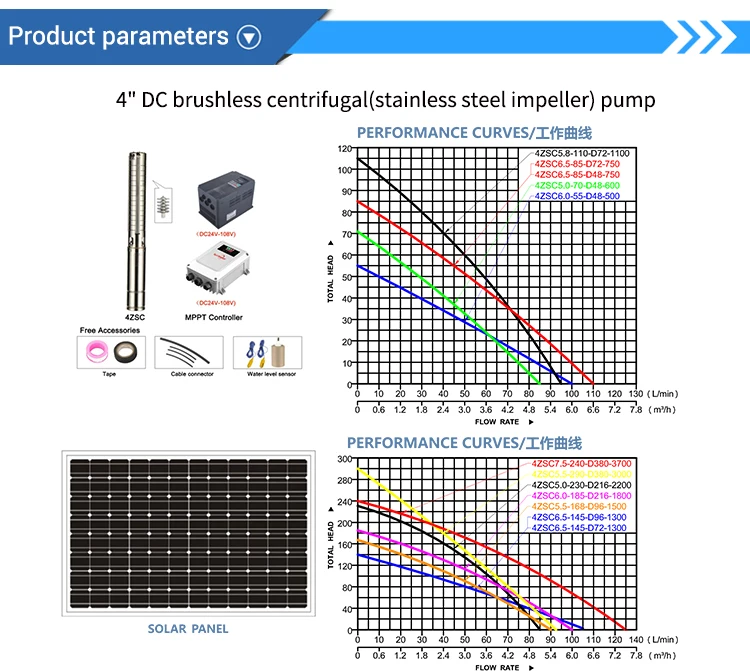

Model | Impeller | voltage | Pump Power | Max Flow | Max Head | Outlet | Pump size | Solar panel |
(V) | (W) | (m3/h) | (M) | (inch) | (mm) | (W) | ||
4ZSC6.0-55-D48-500 | SS 304 | 48 | 500 | 6.0 | 55 | 1.25" | Ø100 | 800 |
4ZSC5.0-70-D48-600 | SS 304 | 48 | 600 | 5.0 | 70 | 1.25" | Ø100 | 880 |
4ZSC6.5-85-D48-750 | SS 304 | 48 | 750 | 6.5 | 85 | 1.25" | Ø100 | 1100 |
4ZSC6.5-85-D72-750 | SS 304 | 72 | 750 | 6.5 | 85 | 1.25" | Ø100 | 1050 |
4ZSC5.8-110-D72-1100 | SS 304 | 72 | 1100 | 5.8 | 110 | 1.25" | Ø100 | 1650 |
4ZSC6.5-145-D72-1300 | SS 304 | 72 | 1300 | 6.5 | 145 | 1.25" | Ø100 | 1980 |
4ZSC6.5-145-D96-1300 | SS 304 | 96 | 1300 | 6.5 | 145 | 1.25" | Ø100 | 2200 |
4ZSC5.5-168-D96-1500 | SS 304 | 96 | 1500 | 5.5 | 168 | 1.25" | Ø100 | 2200 |
4ZSC6.0-185-D216-1800 | SS 304 | 216 | 1800 | 6.0 | 185 | 1.25" | Ø100 | 2970 |
4ZSC5.0-230-D216-2200 | SS 304 | 216 | 2200 | 5.0 | 230 | 1.25" | Ø100 | 3150 |
4ZSC5.5-290-D380-3000 | SS 304 | 380 | 3000 | 5.5 | 290 | 1.25" | Ø100 | 4950 |
4ZSC7.5-240-D380-3700 | SS 304 | 380 | 3700 | 7.5 | 240 | 1.25" | Ø100 | 6000 |
4ZSC7.5-90-D72-900 | SS 304 | 72 | 900 | 7.5 | 90 | 1.25" | Ø100 | 1200 |
4ZSC7.5-110-D72-1300 | SS 304 | 72 | 1300 | 7.5 | 110 | 1.25" | Ø100 | 1980 |
4ZSC7.5-110-D96-1300 | SS 304 | 96 | 1300 | 7.5 | 110 | 1.25" | Ø100 | 1980 |
4ZSC9-125-D96-1500 | SS 304 | 96 | 1500 | 9.0 | 125 | 1.25" | Ø100 | 2200 |
4ZSC9-158-D216-2200 | SS 304 | 216 | 2200 | 9.0 | 158 | 1.25" | Ø100 | 3150 |
4ZSC9-211-D380-3000 | SS 304 | 380 | 3000 | 9.0 | 211 | 1.25" | Ø100 | 4950 |
4ZSC9-230-D380-3700 | SS 304 | 380 | 3700 | 9.0 | 230 | 1.25" | Ø100 | 6000 |
4ZSC10-50-D48-750 | SS 304 | 48 | 750 | 10 | 50 | 1.5" | Ø100 | 1100 |
4ZSC10-50-D72-750 | SS 305 | 72 | 750 | 10 | 50 | 1.5" | Ø100 | 1050 |
4ZSC10-70-D72-1100 | SS 304 | 72 | 1100 | 10 | 70 | 1.5" | Ø100 | 1650 |
4ZSC10-90-D72-1300 | SS 304 | 72 | 1300 | 10 | 90 | 1.5" | Ø100 | 1980 |
4ZSC10-90-D96-1300 | SS 304 | 96 | 1300 | 10 | 90 | 1.5" | Ø100 | 2200 |
4ZSC13-60-D72-1300 | SS 304 | 72 | 1300 | 13 | 60 | 1.5" | Ø100 | 1980 |
4ZSC13-60-D96-1300 | SS 304 | 96 | 1300 | 13 | 60 | 1.5" | Ø100 | 2200 |
4ZSC13-95-D216-2200 | SS 304 | 216 | 2200 | 13 | 95 | 1.5" | Ø100 | 3150 |
ZSC13-110-D380-3000 | SS 304 | 380 | 3000 | 13 | 110 | 1.5" | Ø100 | 4950 |
4ZSC13-148-D380-3700 | SS 304 | 380 | 3700 | 15 | 148 | 1.5" | Ø100 | 6000 |
4ZSC15-40-D72-1100 | SS 304 | 72 | 1100 | 15 | 40 | 2" | Ø100 | 1650 |
4ZSC15-70-D72-1300 | SS 304 | 72 | 1300 | 15 | 70 | 2" | Ø100 | 1980 |
4ZSC15-70-D96-1300 | SS 304 | 96 | 1300 | 15 | 70 | 2" | Ø100 | 2200 |
4ZSC22-53-D216-1800 | SS 304 | 216 | 1800 | 22 | 53 | 2" | Ø100 | 2970 |
4ZSC22-62-D216-2200 | SS 304 | 216 | 2200 | 22 | 62 | 2" | Ø100 | 3150 |
4ZSC25-91-D380-4000 | SS 304 | 380 | 4000 | 25 | 91 | 2" | Ø100 | 6000 |
4ZSC25-125-D380-5500 | SS 304 | 380 | 5500 | 25 | 125 | 2" | Ø100 | 9900 |
4ZSC25-168-D380-7500 | SS 304 | 380 | 7500 | 25 | 168 | 2" | Ø100 | 12000 |
4ZSC20-300-D380-11000 | SS 304 | 380 | 11000 | 20 | 300 | 2" | Ø100 | 18000 |
MOTOR
- The efficiency is improved 25% by the permanent magnetism,direct current, brushless, non-sensor motor.
- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
- 100% copper wire, DW-300 cold-rolled silicon steel sheet.
- Stainless steel 304 & 316 shaft , motor body, screw.
- Adopt double plastic package for rotor and stator,motor insulation ≥300MΩ,the motor security was much improved.
- 100% copper wire, DW-300 cold-rolled silicon steel sheet.
- Stainless steel 304 & 316 shaft , motor body, screw.

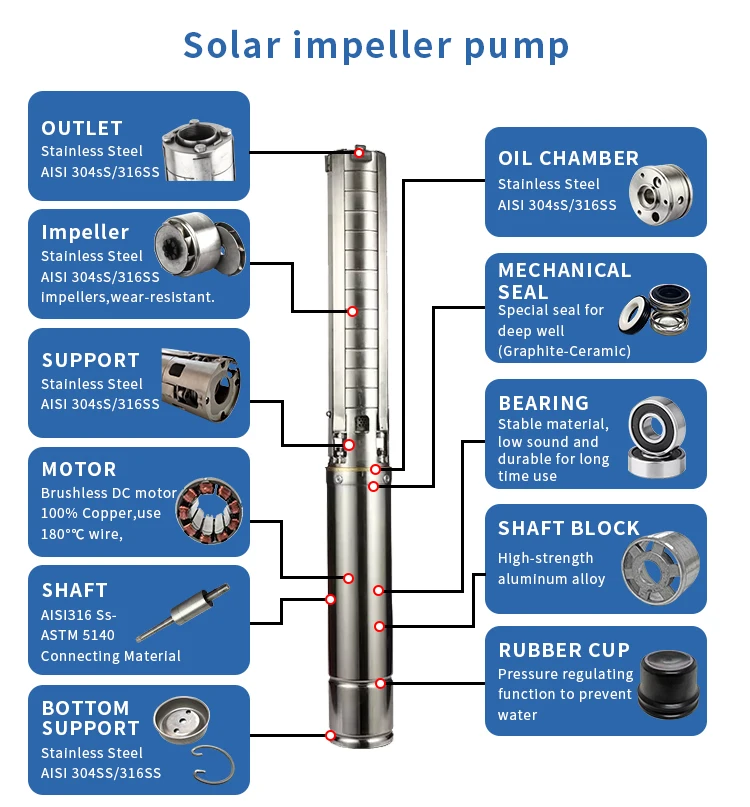

Pump material:
Outlet: stainless steel AISI 304 or AISI 316L
Pump body: stainless steel AISI 304 or AISI 316L
Motor body: stainless steel AISI 304 or AISI 316L
Motor Shaft: stainless steel AISI 304 or AISI 316L
Mechanical seal: Special seal for deep well(Graphite-Ceramic)
Bearing: C&U or NSK
Pump body: stainless steel AISI 304 or AISI 316L
Motor body: stainless steel AISI 304 or AISI 316L
Motor Shaft: stainless steel AISI 304 or AISI 316L
Mechanical seal: Special seal for deep well(Graphite-Ceramic)
Bearing: C&U or NSK
● Low-voltage protection
●Over-voltage protection
●Over-current protection
●Dry-protection protection
● Reverse connection protection
● Soft starting protection
●Over-voltage protection
●Over-current protection
●Dry-protection protection
● Reverse connection protection
● Soft starting protection
●Lack of water protection
►VOC RANGE:
●24V controller:26-50V
●48V controller:50-100V
●72V controller:76-150V
●96V controller:100-200V
●MAX input current:15A
●Ambient temperature:-15℃-70℃
Installation Diagram
Solar pumping system mainly consists of PV modules, solar pumping controller / inverter and water pumps, Solar panels convert sunlight to electrical energy which is passed to the solar pump controller, The solar controller stabilizes the voltage and output power to drive the pump motor, Even on cloudy days,it can pump 10% water flow per day. Sensors are also connected to the controller to protect the pump from running dry as well as to automatically stop the pump working when the tank is full.
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)
Solar panel collects sunlight→DC electricity energy → Solar Controller (rectification,stabilization, amplification,filtering)
→available DC electricity→(charge the batteries)→pumping water
Since the sunlight/sunshine is not the same in different countries /regions on earth, the solar panels connection will be slightly changed when installed in different place, In order to ensure the same/similar performance & efficiency,The recommended solar panels power = Pump Power * (1.2-1.5)
solar powered water pumps are mainly used in:
1. Irrigation of agriculture.
2. Drinking water and living water.
3. Remote areas, farming
4. Fountains.
5. Swimming pool circulation and filtration.
1. Irrigation of agriculture.
2. Drinking water and living water.
3. Remote areas, farming
4. Fountains.
5. Swimming pool circulation and filtration.

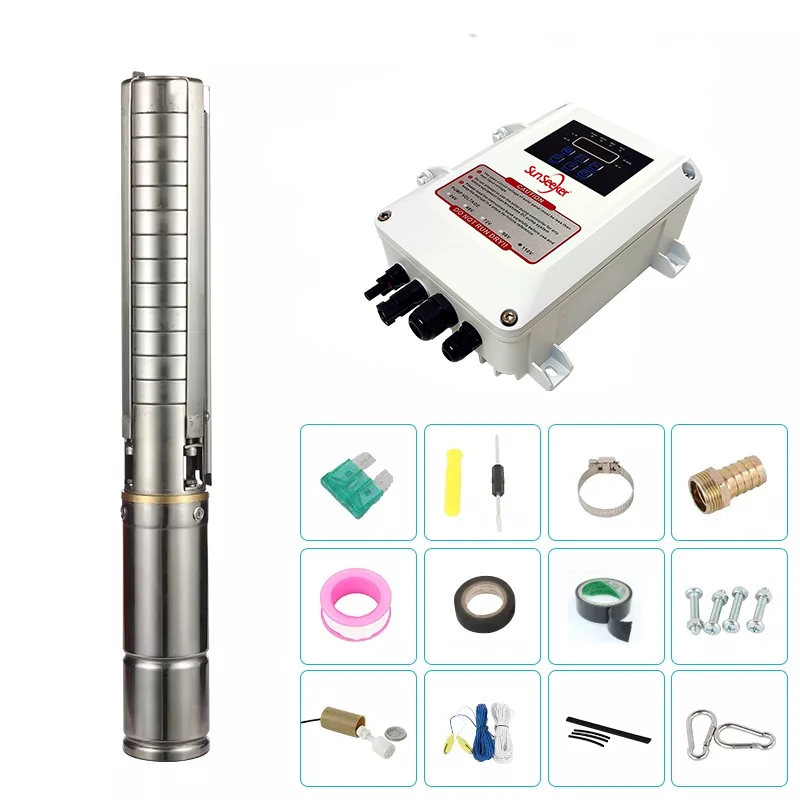

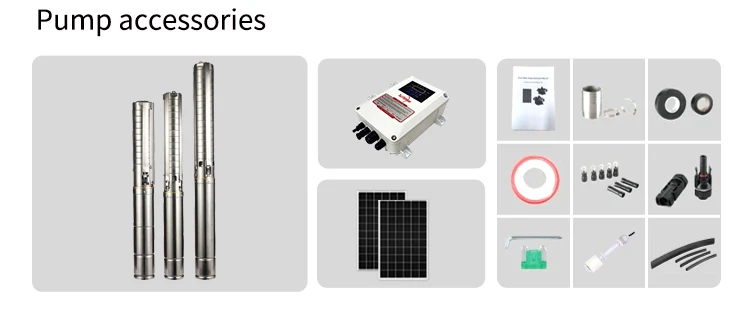

Brushless DC Pump:
1. Solar pump with 5m cable, longer cable is available if required

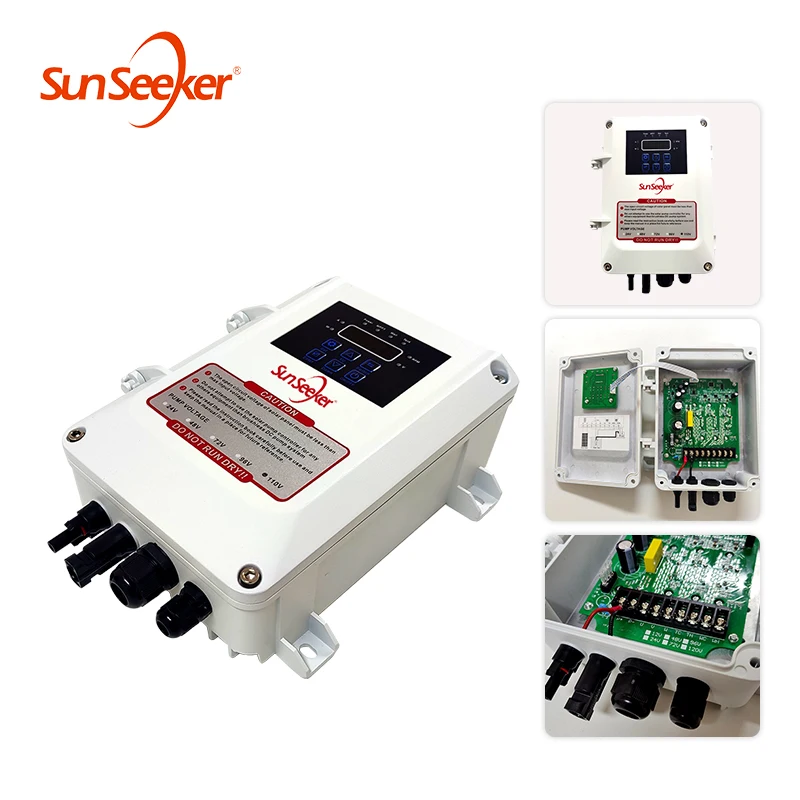

2. MPPT &DSP Controller
3. Water level sensor or float switch
4. Other Accessories: Outlet / MC4 PV Cable Connector / PTFE Tape / Electric tape / screwdriver / Pipe hoop / Water pipe connector
5. Nylon Rope to hang the pump
6. Screw or Impeller for replace
7. Installation Manual
8. Solar panels are option
1. Solar pump with 5m cable, longer cable is available if required
2. MPPT &DSP Controller
3. Water level sensor or float switch
4. Other Accessories: Outlet / MC4 PV Cable Connector / PTFE Tape / Electric tape / screwdriver / Pipe hoop / Water pipe connector
5. Nylon Rope to hang the pump
6. Screw or Impeller for replace
7. Installation Manual
8. Solar panels are option
Company Profile
Exhibition and Certifications
Customer reviews
Packing and shipping
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar Brushless DC pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar pumps?
A: We can send the pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar pump system?
A: Yes, we can supply whole solar pump system with solar panel, PV box, Panel structure and cable.
