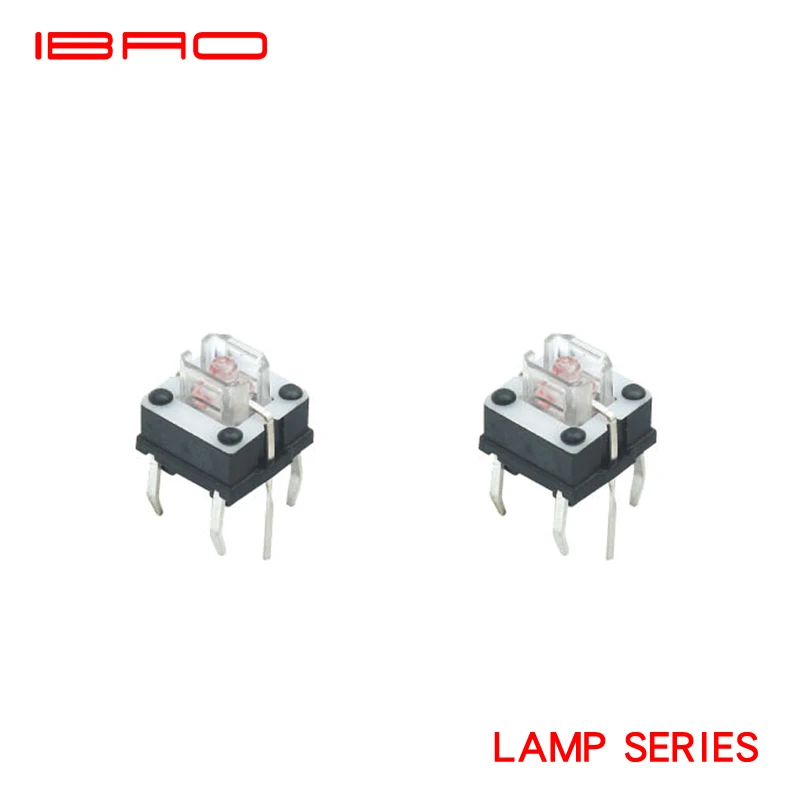

IBAO LAMP SERIES 6*6mm Led Built in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058
IBAO LAMP SERIES 6*6mm Led Built-in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058

IBAO LAMP SERIES 6*6mm Led Built in Tact Switch LS611 Switch Parts 6 Months Under Effective Storage 30V DC LS Series IEC61058

Share on (62571530933):


Price:

Quantity:


Product Overview

Description

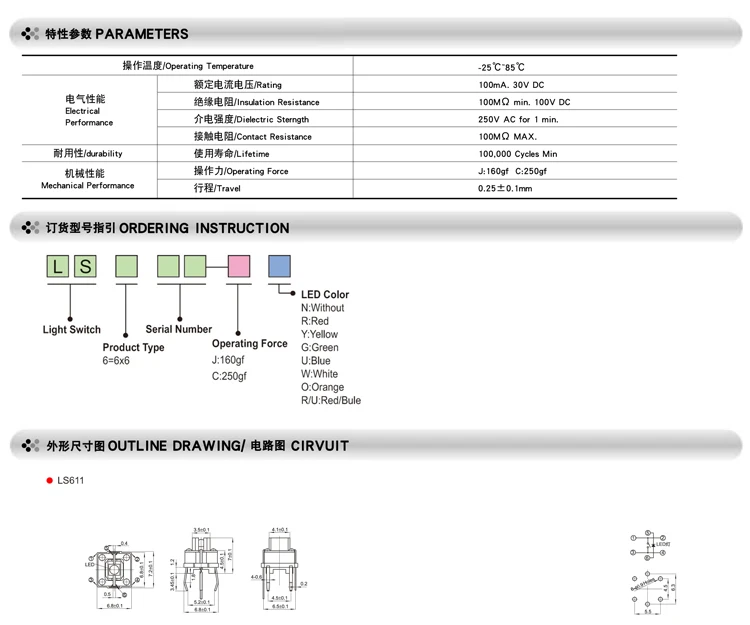

  PARAMETERS
Rating

100mA.30V DC

Insulation Resistance
100mΩ min. 100V DC
Contact Resistance
100mΩ max.
lifetime
100,000 Cycles
Operating Force
J:160gf    C:250gf
Travel
0.25±0.1mm
 Dielectric Strength
250V AC for 1 min.
Operating Temperature Range
-25℃~+85℃
