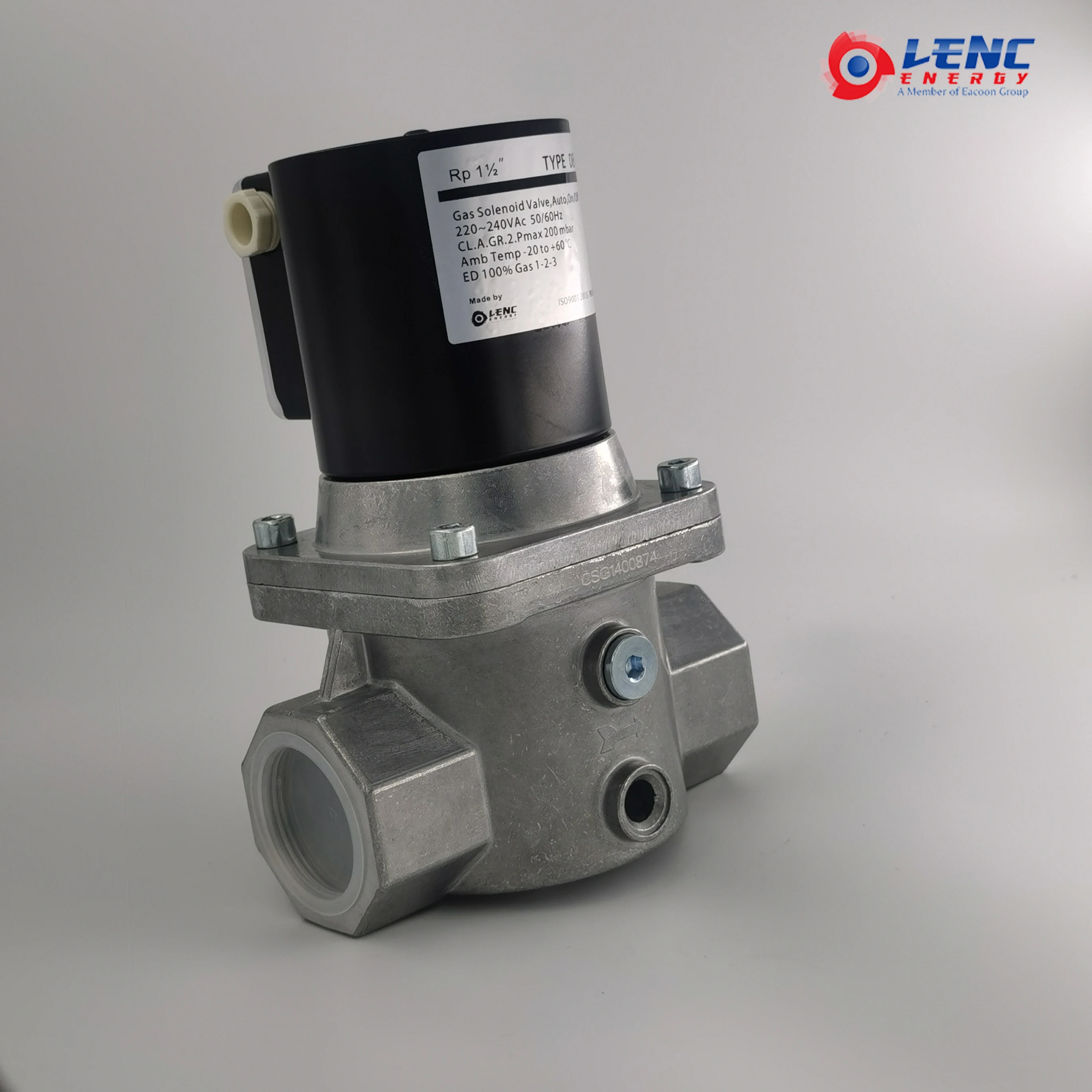

HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts
HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts
HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts
HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts
HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts
HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts

HIGH QUALITY DEVG15 1/2 inch gas solenoid valve for waste oil burner parts

Share on (62571662974):


Price:$18.60 - $20.41

Quantity:


Product Overview

Description


1.jpg2.jpg3 (1).jpg





3 (2).jpg





3 (3).jpg





3 (4).jpg





3 (5).jpg4.jpg





Operation and installation

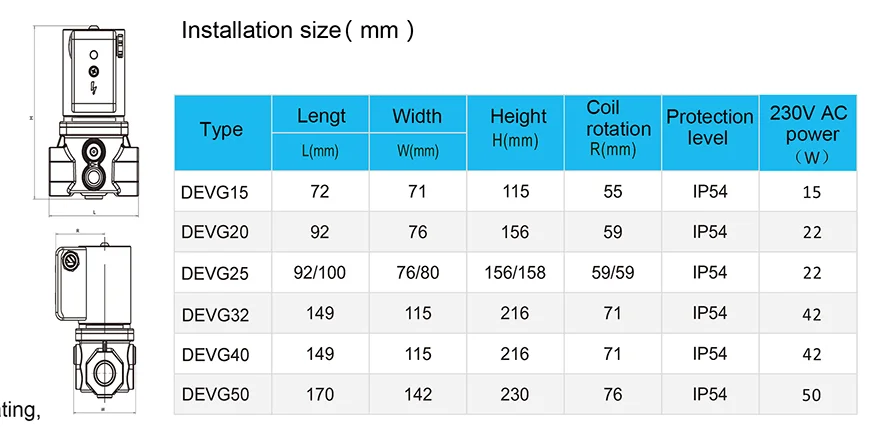

Normally closed, it will open quickly when power is on. When operatirthe blue light will go on.lt will be closed immediately when the power is off and the light will g!off. There are bypass holes with an aperture of 3G1/ 4" provided onboth sides or at the bottom of the valve body.5 (1).png5 (2).png






Opening time< 1 secondClosing time< 1 second


Maximum operating frequency:20 times/ min

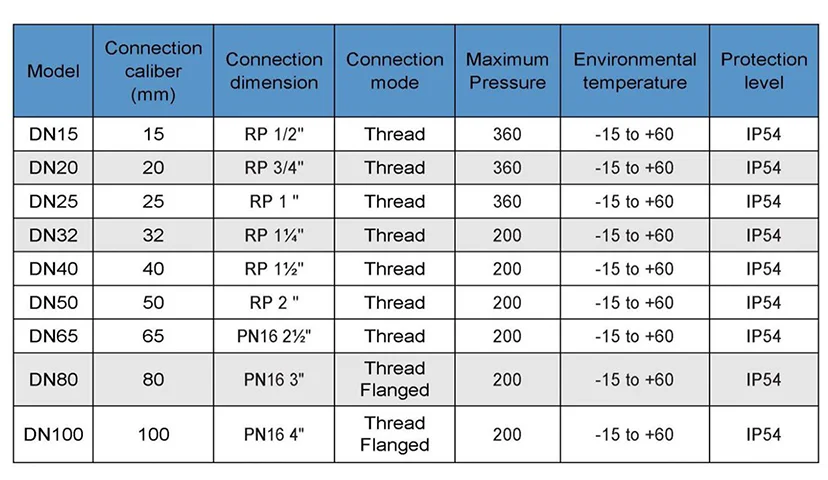

Maximum working pressure:DN10-25 360mbar;DN32 - 100 200mbar



With G1/4 aperture bypass holesBuilt-in filteringProtection level:I P54Sealing material: NBR
Body material: aluminum alloyAISI 302 steel springWorking temperature:-15C- 60CCoil temperature:65C
Rated voltage: 50/60Hz230Vac,110Vac,24VDC(And other specific)Coil level F,can be 360°rotation,can work 100%continuously for a long time.
