High Quality Wholesale Price 5L Rotary Evaporator R 1005
- Category: >>>
- Supplier: Zhengzhou ZYlab Instruments Co. Ltd.
Share on (62571821370):
Product Overview
Description

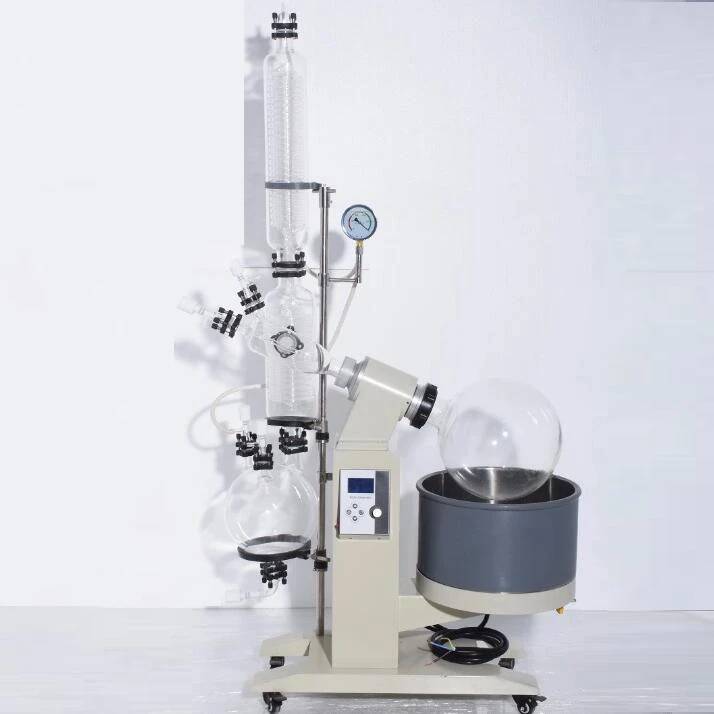

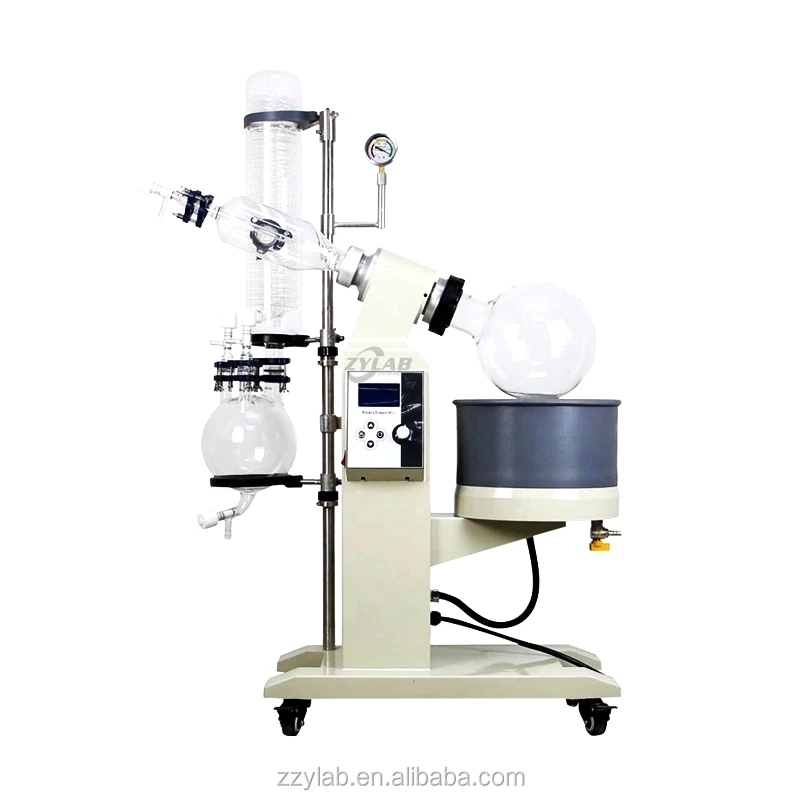

High Quality Wholesale Price 5L Rotary Evaporator R-1005
Product Description
Introduction:
5L Rotary Evaporator R-1005 is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in the research and production of medicine, chemical and biological products.
It is developed under the condition of vacuum and negative pressure, using the principle of constant temperature heating and thin film evaporation. Shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.
Adopts the high temperature resistant borosilicate glass and Teflon material.
Main Features:
1. Double sealing to ensure high vacuum degree.
2. Import advanced frequency conversion control system and PID temperature control system from foreign countries, it’s precise and reliable.
3. Vacuum transfer valve can collect continuously without affecting system vacuum and solvent distillation.
4. Motorized lifting bath, use easily.
5. PTFE discharge valve is corrosion resistant and non-pollution.
6. Heating kettle outside protective jacket prevent scalding.
Technical Data
Parameters of 5L Rotary Evaporator R-1005:
Model | ZY-R-1005 | ZY-R-1010 | ZY-R-1020 | ZY-R-1050 |
Rotary Bottle | 5L,diameter of flange opening: Φ50mm | 10L,diameter of flange opening:Φ95mm | 20L, diameter of flange opening:Φ125mm | 50L,diameter of flange opening:Φ125mm |
Collecting bottle | 3L | 5L | 10L | 20L |
Speed-regulation of main machine | Digital display, variable frequency, stepless speed-regulation | |||
Rotary speed of main Machine | 10to140r/min,digital | 10to130r/min, | 10to110r/min,digital | |
Rotaring motor(W) | Phase AD induction motor,power:40W | Phase AD induction motor,power:90W | DC motor,power:250W | |
Sealing | Double sealing | |||
Heating bath | Stainless steel | |||
Temperature control | Digital display, temperature control,0~399℃ | |||

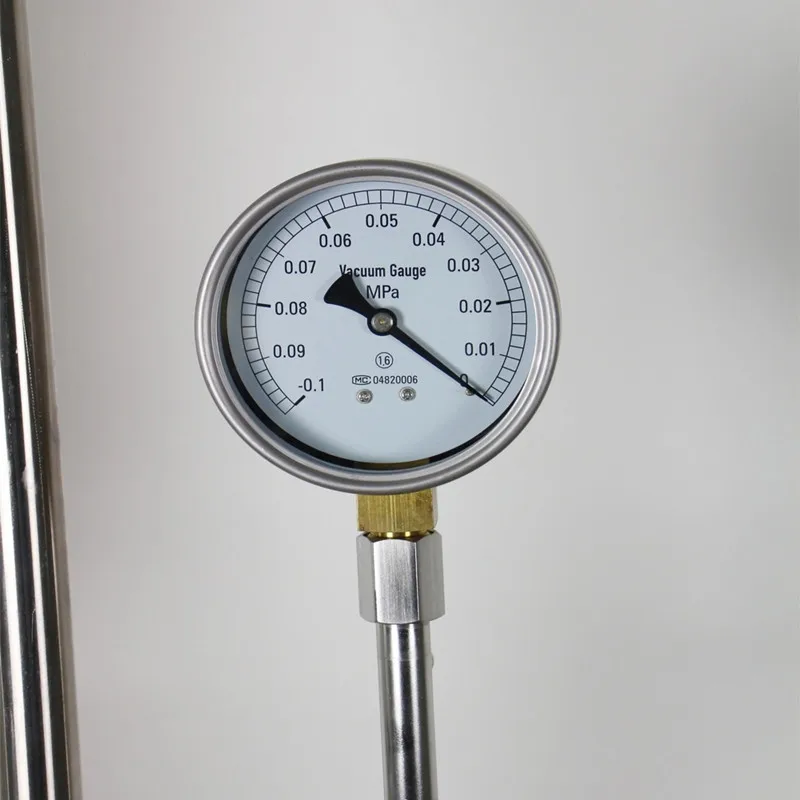

Achievable vacuum | -0.098Mpa | |||
Evaporating capability | Water≥2L/h Alcohol≥6.5L/h | Water≥3.2L/h Alcohol≥6.5L/h | Water≥5L/h Alcohol≥11L/h | Water≥9L/h Alcohol≥19L/h |
Elevating function | Motorized lifting | Motorized lifting | ||
Elevating stroke | 0~150mm | 0~160mm | 0~190mm | 0~230mm |
Rated power supply | 220V 50/60HZ | 380V/50HZ(or according to requirement) | ||
Power of power supply | 2.2KW | 4.8KW | 6.3KW | 8.3KW |
Dimensions(mm) | 765L*400W*1070H | 920L*550W*1700H | 1250L*600W*2100H | 1320L*770W*2340H |
Optional:
1. Explosion-proof system
2. Double collection bottle
The Best Solution:

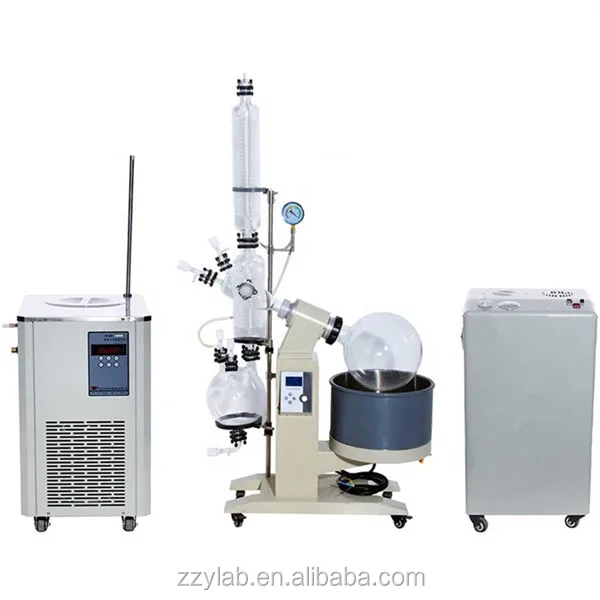

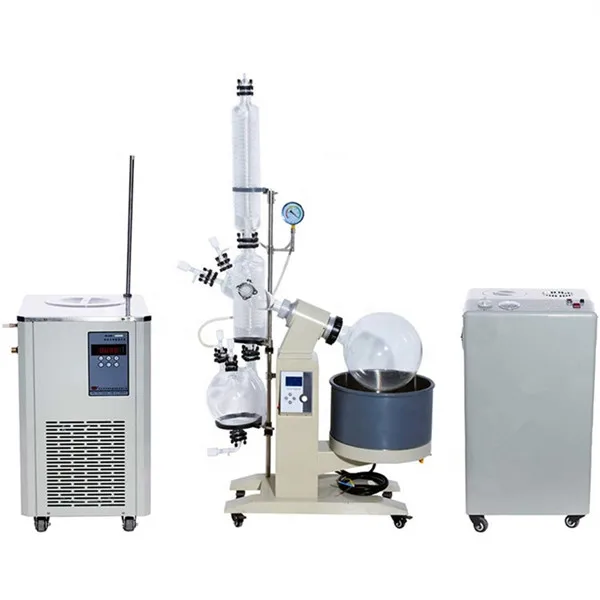

5L Rotary Evaporator R-1005 + Vacuum System(Vacuum Pump) + Low Temperature System(Chiller)
Packaging & Shipping
Packaging:
Standard wooden box with bubble bag and foam board inside.
Shipping:
By sea: big dimension or large quantity or not urgent products, low price with a little long arrive time.
Usually within 11-45 days arrive.
By air: more than 100kgs or urgent products. Usually 7-10 days arrive, direct flight can arrive within 3-5 days.
By international express: such as FedEx/UPS/DHL/TNT/EMS or others. To door service is convenient and fast.
Usually 5-7 days arrive.
Also can arrange global shipment as clients’ requirement.
Our Services
l Professional team 24 hours online for any consulting support.
l Quick response with suitable solution and detailed quotation as clients’ requirement.
l Customized design is available.
Warranty:
Our products are warranted to be free from defects in materials or workmanship for one year (12 months) from the date of purchase. Within this period, we will, at its sole options, replace any components that fail in normal use.
Note:This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
FAQ
How to buy?
Inquiry -- Negotiate -- Make Order --Products Confirmed -- Make Payment -- Start to Produce -- Production Finished -- Package -- Delivery -- After-sale Service -- Welcome to recommend and repeat order
How to contact us?
1. Chat by “Trade manager” on line.
2. Send message by below inquiry form.
3. Send email or call us directly.
Our professional service team will give you reply at the first time.
Choose us, you will get best service and perfect products!
Welcome your any inquiry and trail order!!
