Product Overview
Description
Professional factory directly supply with best price, quality & after sale service
This equipment we can design and produce as per customer"s special requirement.

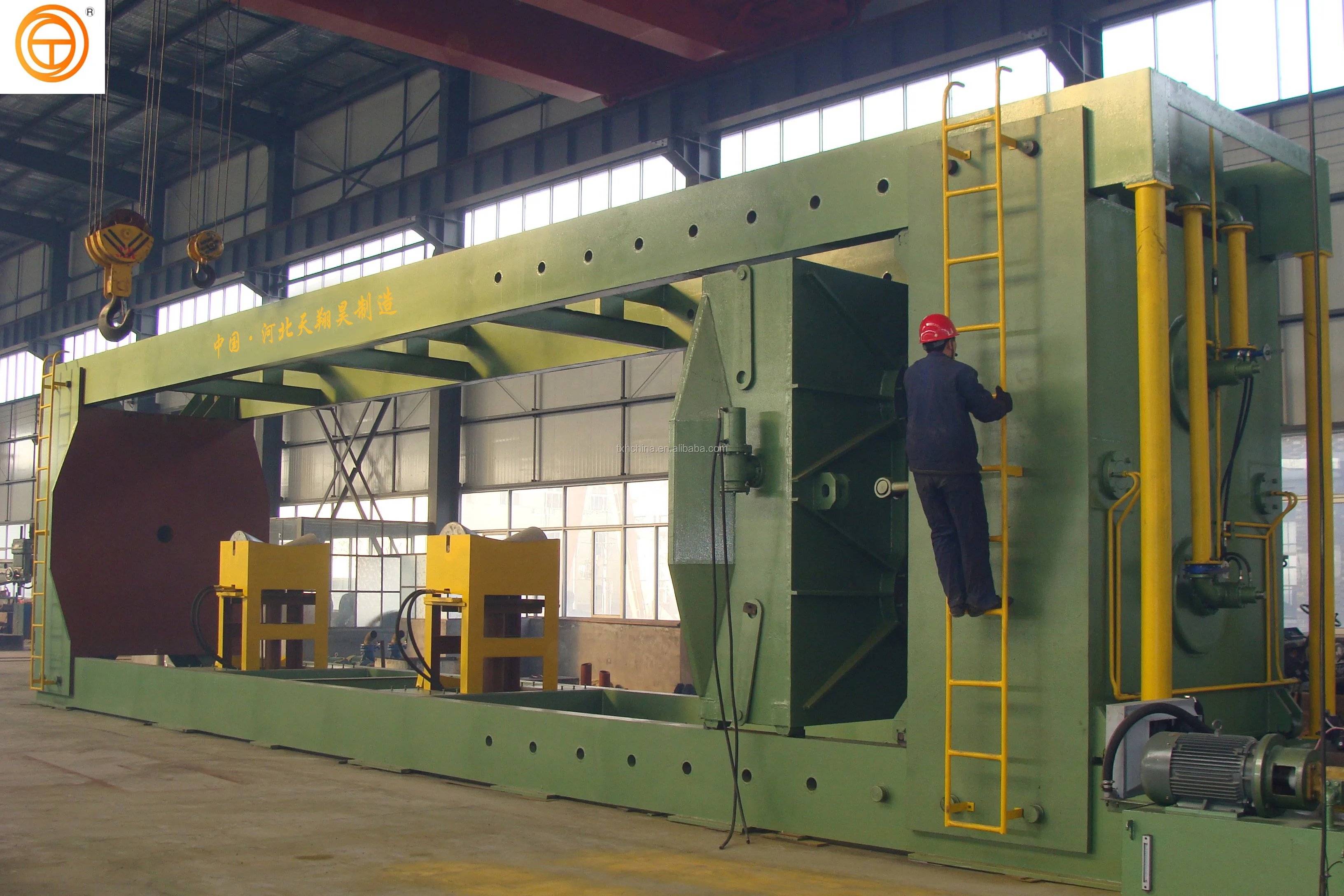

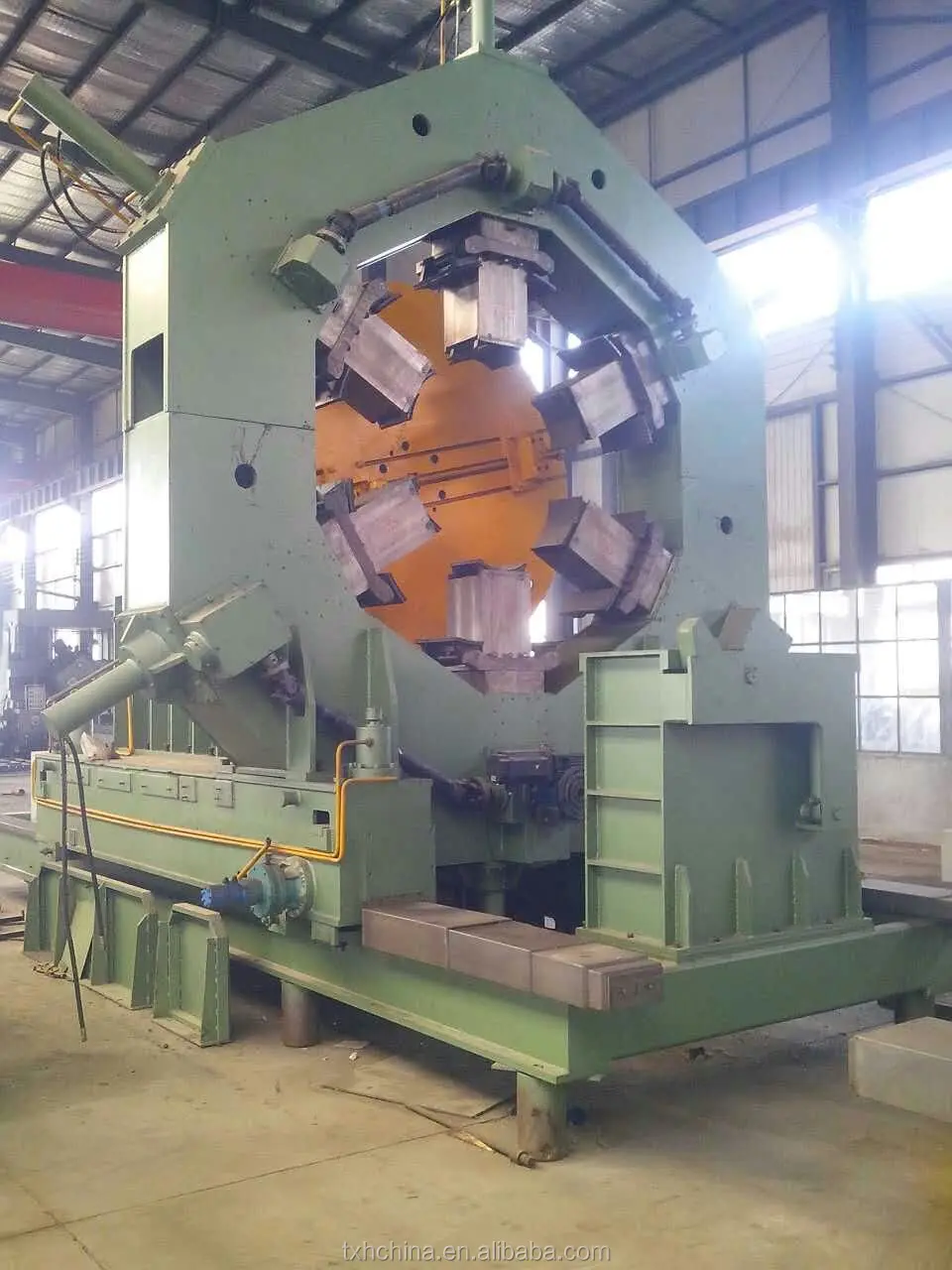

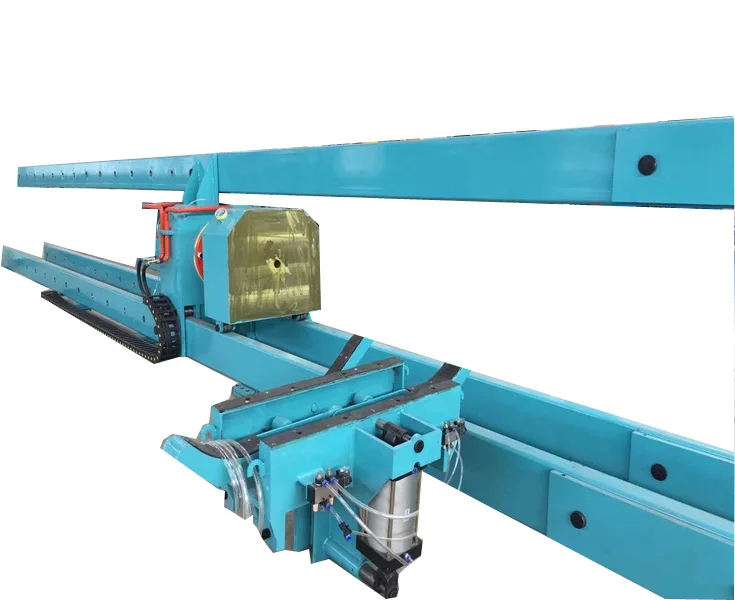

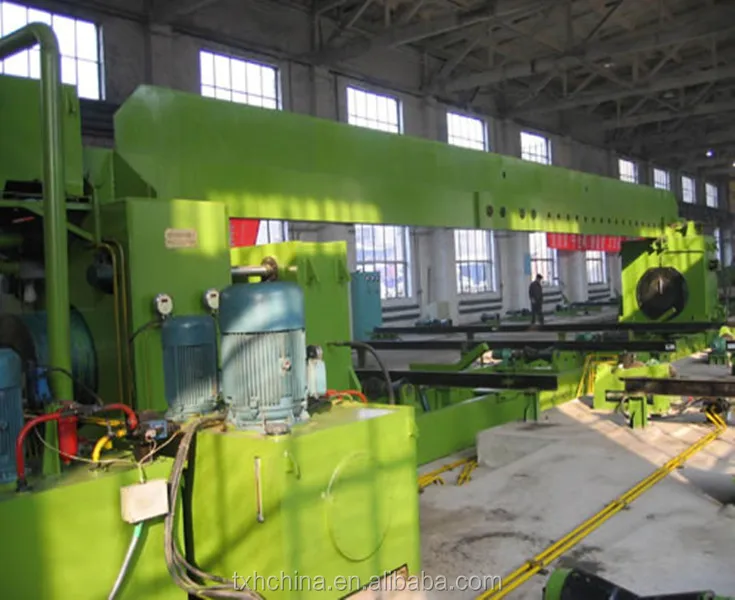

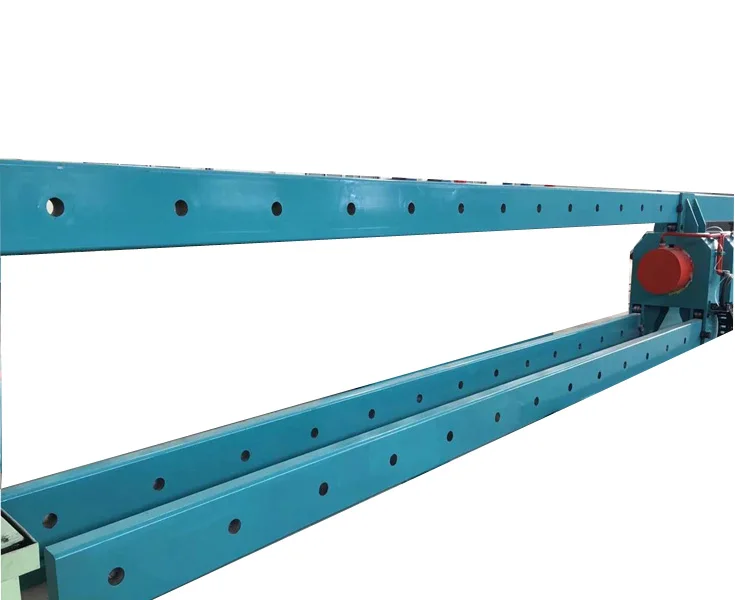

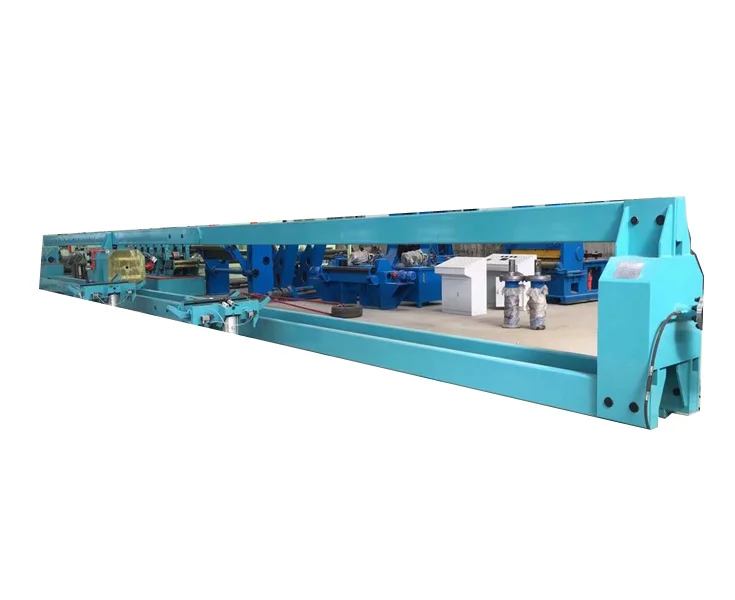

It is used for kinds of steel pipe pressure-bearing and testing . It adopts two lifted rollers to hold the tested steel pipe, using the thrust of master cylinder to press the pipe between the thrust plate and the pressure plate,so that the pipe two ends can be sealed(end face seal or radial seal). Based on high-volume low-pressure pump to complete thewater injection, and then use high-pressure pump to complete high pressure test.Hydraulic steel pipe Hydrostatic Testing Machine is one of our main products for steel pipe pressure test and eliminating the internal stress on the pipe.
Our hydrostatic testing machine products have been put to operation in many factories and have received favorable reputation andrecognition from the clients for advanced technologies and reliable performance.
Our hydrostatic testing machine products have been put to operation in many factories and have received favorable reputation andrecognition from the clients for advanced technologies and reliable performance.
Specification
1. The hydraulic test head moves forward and backward, sealing or releasing the tube.
2. Hydrostatic testing machine is controlled by PLC.
3. The test result is written down and printed automatically.
4. The machines are designed according to customer requests, with special attention to the technical specifications about tube dimensions (diameter and length), maximum pressure for the hydrostatic test and reduction of costs and processing time.
2. Hydrostatic testing machine is controlled by PLC.
3. The test result is written down and printed automatically.
4. The machines are designed according to customer requests, with special attention to the technical specifications about tube dimensions (diameter and length), maximum pressure for the hydrostatic test and reduction of costs and processing time.
5. The technical office is able to develop machines for any tube dimensions and all the auxiliary devices for improving the production.
Main testing process:
1. Adjust the moving beam according to the pipe length.
2. The pipe is measured and loaded by the loading chains.
3. The clamp device is lifted by cylinders to clamp the pipes.

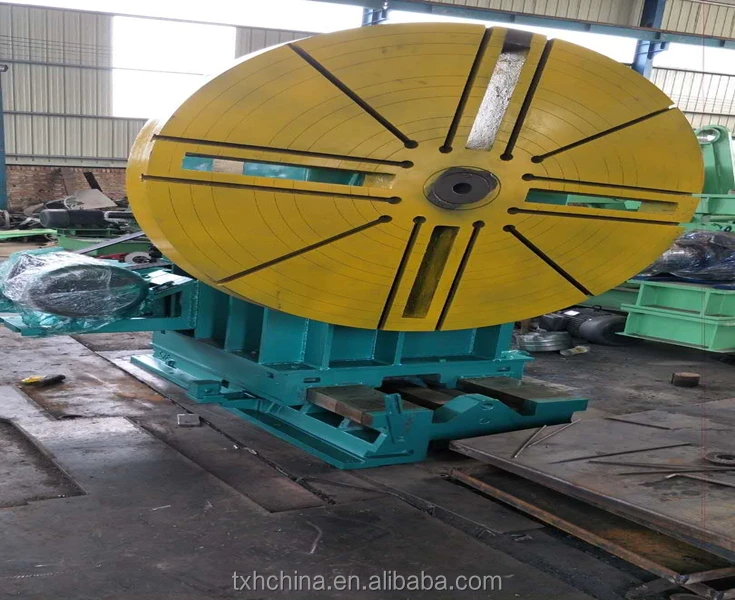

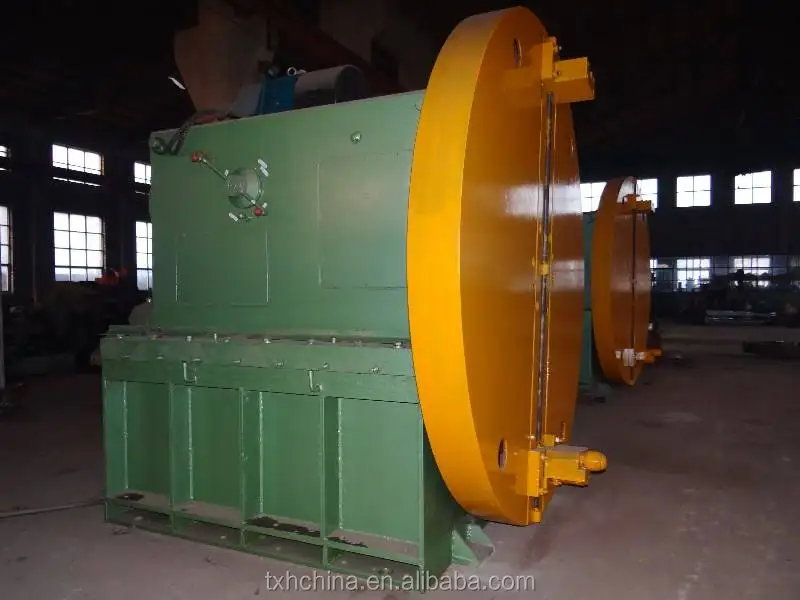

4. The double end sockets move to seal the pipes.
5. Preliminary sealed booster
6. Filling water and outlet air.
7. Air release valve is closed and pressure boosting。
8. Pressure holding。
9. Pressure relief
10. Pipe is taken out of end socket.
11. Loosen the clamping
12. Unloading
13. Length measuring and cleaning.
Main testing process:
1. Adjust the moving beam according to the pipe length.
2. The pipe is measured and loaded by the loading chains.
3. The clamp device is lifted by cylinders to clamp the pipes.
4. The double end sockets move to seal the pipes.
5. Preliminary sealed booster
6. Filling water and outlet air.
7. Air release valve is closed and pressure boosting。
8. Pressure holding。
9. Pressure relief
10. Pipe is taken out of end socket.
11. Loosen the clamping
12. Unloading
13. Length measuring and cleaning.
Product Display
Company Profie
A professional pipe machine manufacturer
A professional pipe machine manufacturer
Hebei Tianxianghao Metallurgical Equipment
Manufacturing Co., Ltd. is a comprehensive manufacturer specialize in pipe hydrotester, pipe beveling machine,spiral welded pipe mill,, we can also offer used ERW pipe production line , used slitting line .With rich experience in this field ,our company has developed into a special enterprise integrating R&D, manufacturing, overhaul, transformation, installation and commissioning.
We can design and supply as per customer’s special requirements
Manufacturing Co., Ltd. is a comprehensive manufacturer specialize in pipe hydrotester, pipe beveling machine,spiral welded pipe mill,, we can also offer used ERW pipe production line , used slitting line .With rich experience in this field ,our company has developed into a special enterprise integrating R&D, manufacturing, overhaul, transformation, installation and commissioning.
We can design and supply as per customer’s special requirements
We have a strong technical research and engineered team.According to the different requirements of different customers, we can tailor and design all kinds of spiral pipe production lines, pipe hydrotester, pipe beveling machine . Known in the industry as professional technical strength ,we have served clients from different countries so far.
Photo for one of our processing workshop
Photo for one of our processing workshop
We have advanced CNC control processing equipment which can completely meet the pipe accurcy demand of our clients
Photo for one of our assembly workshop
Photo for one of our assembly workshop
