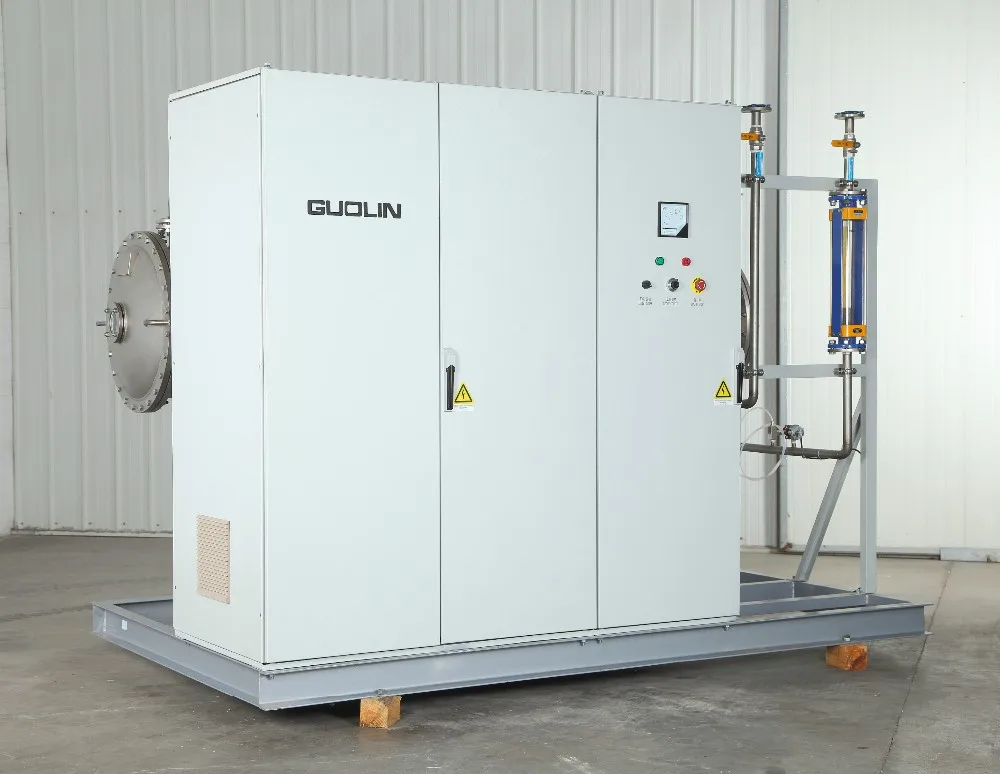

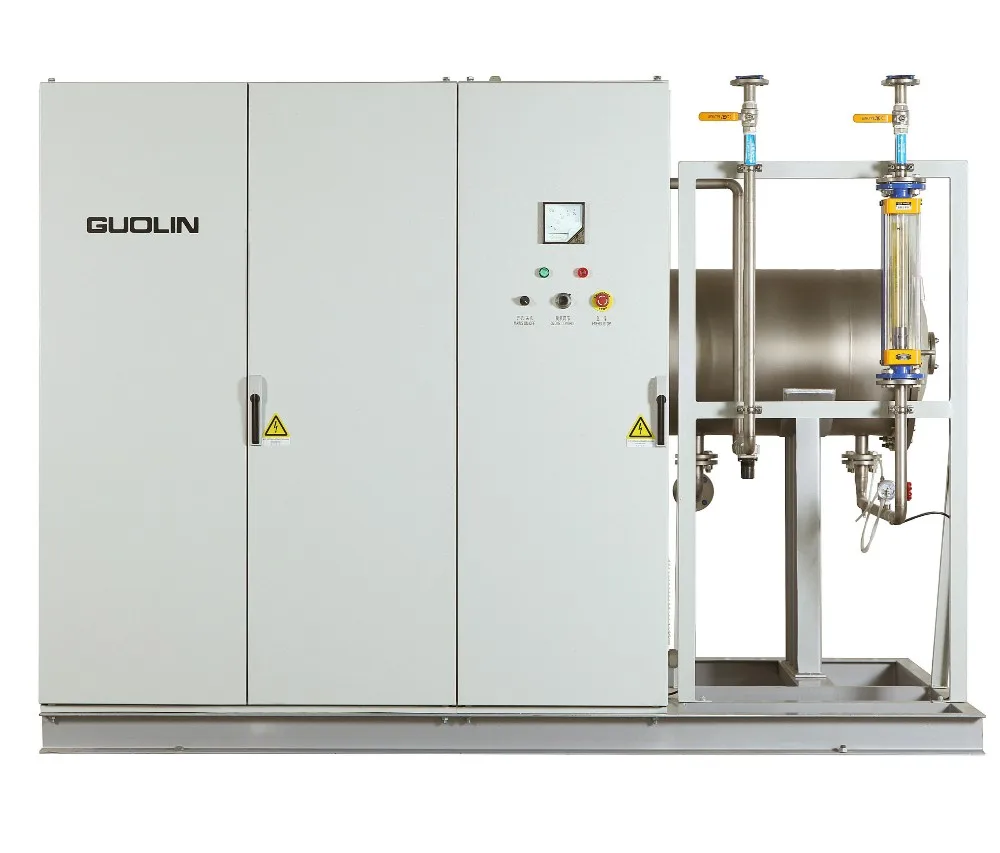

large ozone generator for water treatment China GUOLIN 10wt% High concentration 1kg 2kg 5kg 10kg ozone generator
- Category: >>>
- Supplier: Qingdao Guolin Technology Group Co. Ltd.
Share on (62572164596):
Product Overview
Description

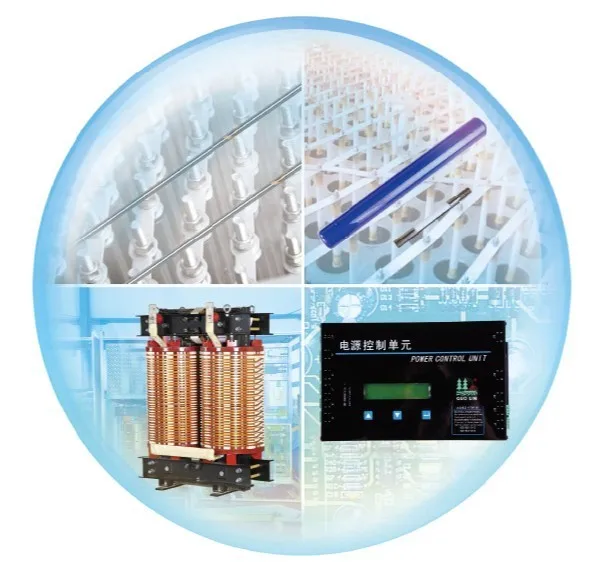

Core Technical
1. International leading glass and non-glass discharge dielectric technology.
2. Capacitive load high power inverter resonant power supply technology.
3. Capactive load high power dry type high voltage transformer technology.
4. Power control technology based on IP core and digital logic circuit.
5.Embedded on-line detection and remote monitoring technology of ozone system.
Products Description
Ozone Genenator
for Water Supply Treatment
★ Water cooling mode makes performance of ozone genenator is more stable than air cooled equipment performance and operation time is longer.
★The configuration of equipment with built-in pump, cooling water device and feed gas treatment device is more perfect
★External electrode tube is made of 316L stainless steel; imported medium coating material is used for dielectric tube
★Equipment has operation monitoring fuctions to current, voltage and temperature and protection functions
★Adjustable ozone capacity; large ozone capacity, high ozone concentraction and long service life time
★Control methord includes manual control and automatic control for option
Products Characteristics

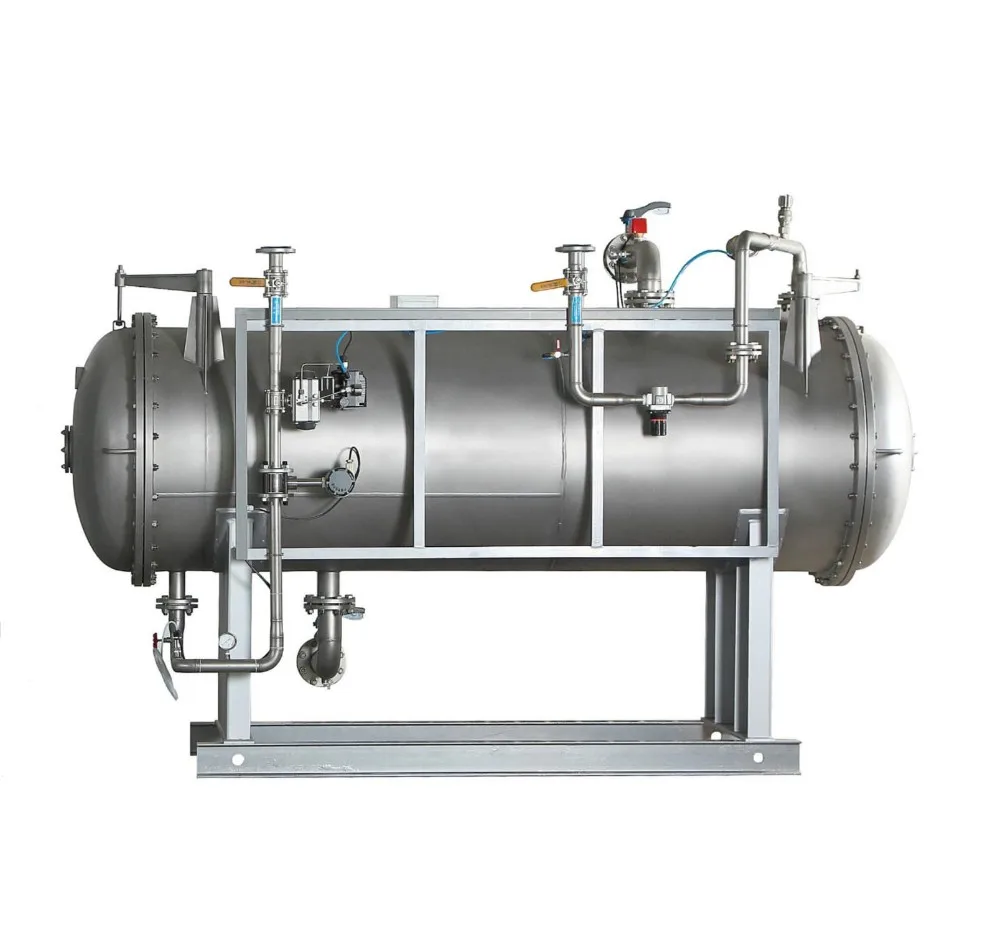

The most important part of the ozone generator is the ozone discharge tube. Guolin company adopts the international advanced proprietary ozone discharge tube. The equipment body is made of high-quality ozone resistant stainless steel material, which improves the long-term operation reliability of the system. The number of discharge tubes has a margin of 10% in the design, which can offset the efficiency reduction caused by unforeseen discharge tube pollution. The large ozone generator is installed horizontally, which can be directly placed on the ground, or installed on the foundation,
or fixed on the shelf; the horizontal installation can be easily inspected and maintained. Part of the energy that cannot produce ozone is converted into heat energy for release, which must be taken away by the cooling water in the ozone generation tank. Pipes, valves, instruments and cables for ozone generator have been installed before delivery, and all technical performance of ozone generator has been tested in the factory. The ozone generator is designed for 24hrs continuously working, and the operation cycle of the main equipment is not less than 3 years.
or fixed on the shelf; the horizontal installation can be easily inspected and maintained. Part of the energy that cannot produce ozone is converted into heat energy for release, which must be taken away by the cooling water in the ozone generation tank. Pipes, valves, instruments and cables for ozone generator have been installed before delivery, and all technical performance of ozone generator has been tested in the factory. The ozone generator is designed for 24hrs continuously working, and the operation cycle of the main equipment is not less than 3 years.
Technical Data
The core device of this series of ozone generators uses the patented technology---- connectable type non-glass dielectric tube (Patent No.: ZL 01 2 68920.3). The patented enamel dielectric tube has advantages of large ozone production and high ozone concentration. Ozone power supply adopts special independent power supply technology for more reasonable matching and better adaptability. The stability, technical indicators and application results of the equipment are better than those of domestic similar products, it’s life time is also much longer than other domestic products.

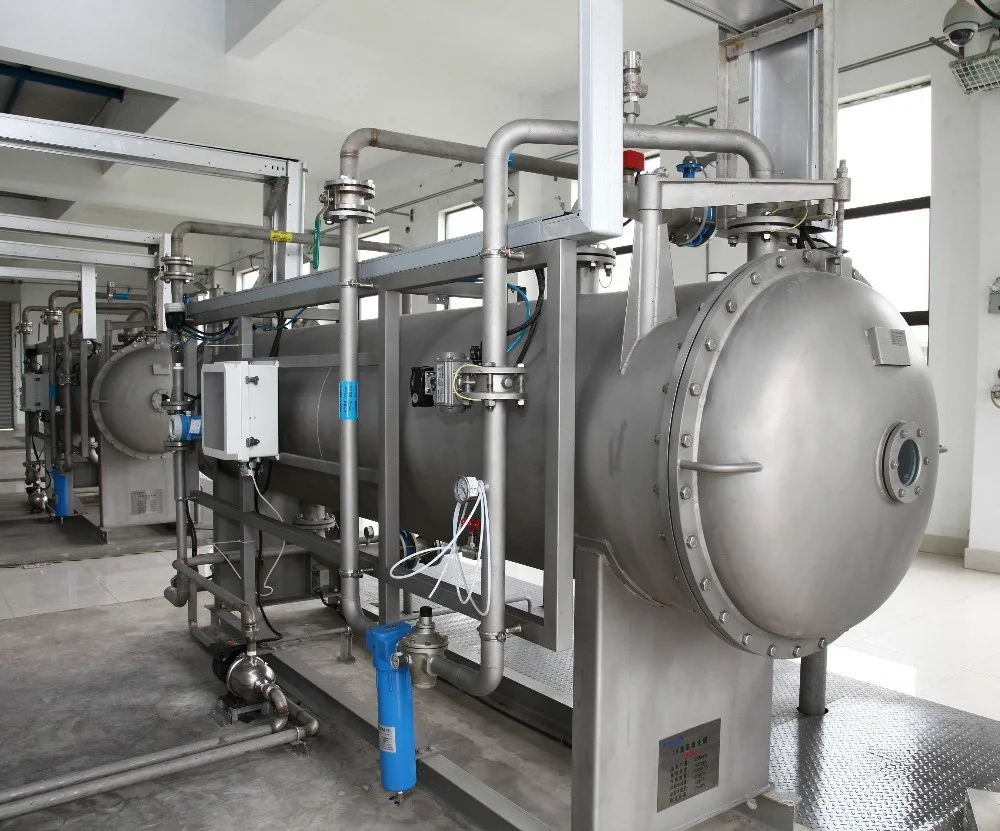

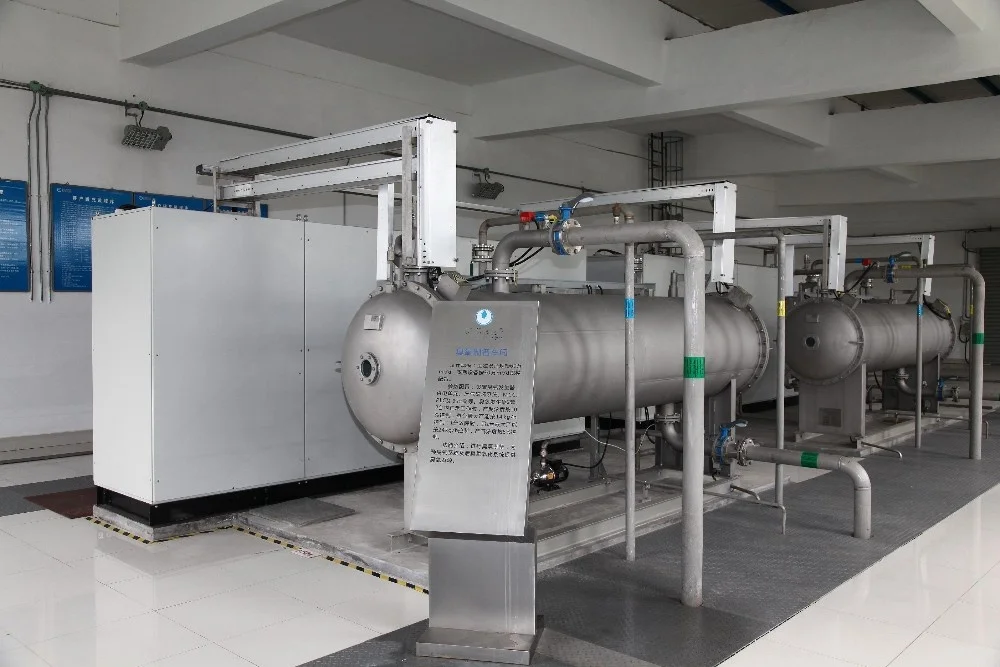

Project：KS Water Group 4th Water Plant
Treated capacity：200,000.00m3/day
Ozone capacity：2 sets of 20kg/h
Treated capacity：200,000.00m3/day
Ozone capacity：2 sets of 20kg/h
Project：Huayan Water Plant
Treated capacity：300,000.00m3/day
Ozone capacity：2 sets of 20kg/h
Treated capacity：300,000.00m3/day
Ozone capacity：2 sets of 20kg/h
Project：Shijiazhuang Qiaodong Waste Water Treatment Plant
Treated capacity：600,000.00m3/day
Ozone capacity：5 sets of 120kg/h
Treated capacity：600,000.00m3/day
Ozone capacity：5 sets of 120kg/h

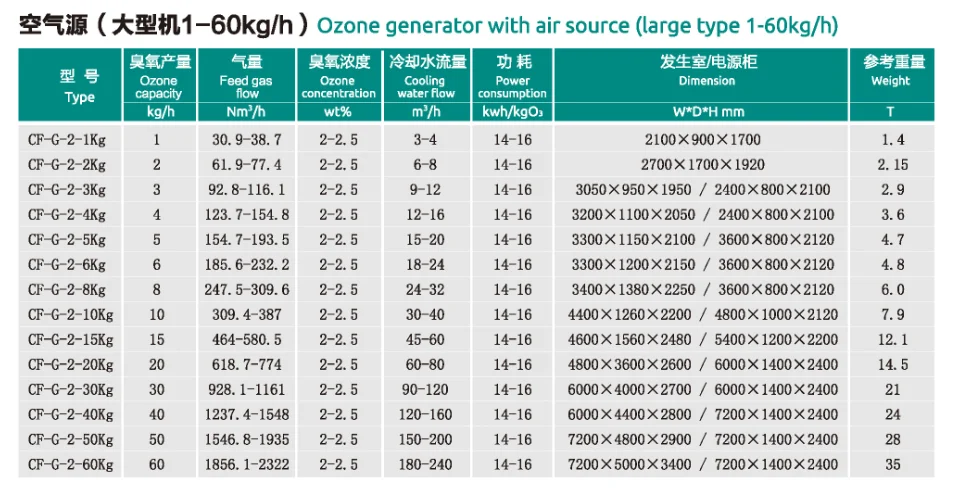

Ozone genenator with air source
