Product Overview
Description
| PRODUCT ADVANTAGE
+ A glass fabric for light ceiling that creates a space with soft light.
This material prevents overpowering brightness and creates a beautiful luxurious space.
+ High durability and designability.
It does not degrade easily and does not cause breakage or yellowing due to deterioration over time as you can see in resin molded products.
Since it is a textile material, molding is unnecessary. You can design flexibly and produce in small quantities.
+ High safety.
This cloth has high safety against disasters that take advantage of the properties of glass fiber.
| PRODUCT INTRODUCTION
It is made from 100% glass fabric material that is coated with silicone resin on both the front and back side. Stretch this fabric on a metal frame to make an illumination cover.
This woven texture diffuses bright light. When compared with resin plastic shades, this material prevents overpowering brightness and creates a beautiful luxurious space.

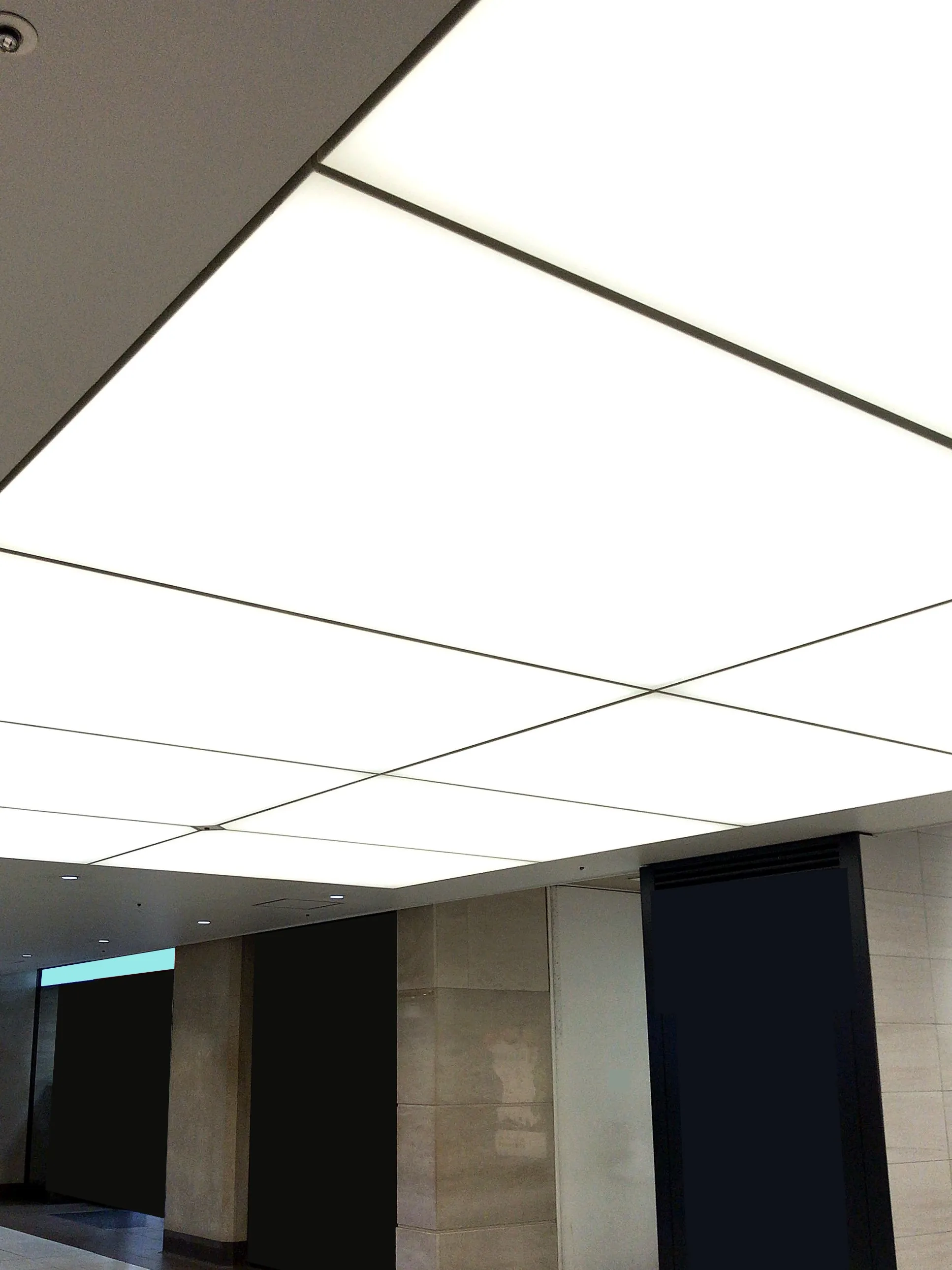

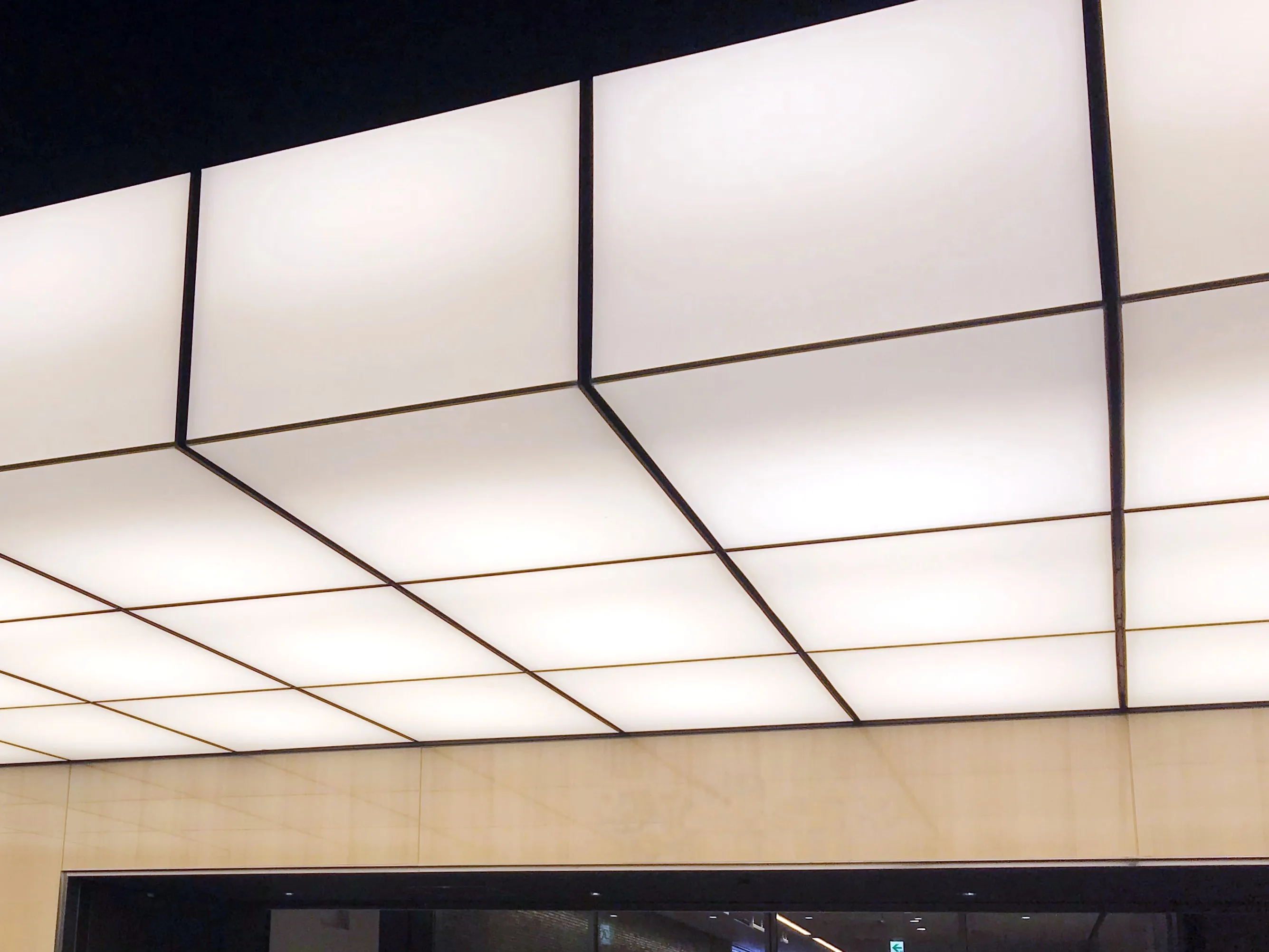

It is suitable for entrance halls, lobbies, public spaces, exhibition halls, showpieces, etc.
It will not break and crush like a glass plate or plastic in the event of a natural disaster, such as an earthquake, and cannot be melted down by fire. It is a material that boasts a high level of safety.
Furthermore, it does not degrade easily and does not cause breakage or yellowing due to deterioration over time as you can see in resin molded products.
Since it is a textile material, molding is unnecessary. You can design flexibly and produce in small quantities.
This product has been used in the following facilities.
elevator lighting, lighting in train stations, department store lighting, illumination of luxury car dealerships, waiting room lights in hospitals, meeting room lights, etc
1. Specification
| Article | H201 C2 190C |
| Woven Texture | Plain |
| Base material composition | Cloth/Glass 100% |
| Coating Resin | Silicone (Both side) |
| Width | 1,900mm |
| Thickness | 0.22mm |
| Weight | 255g/m2 |
| Tensile strength | Warp/over 400N/3cm Weft/over 240N/3cm |

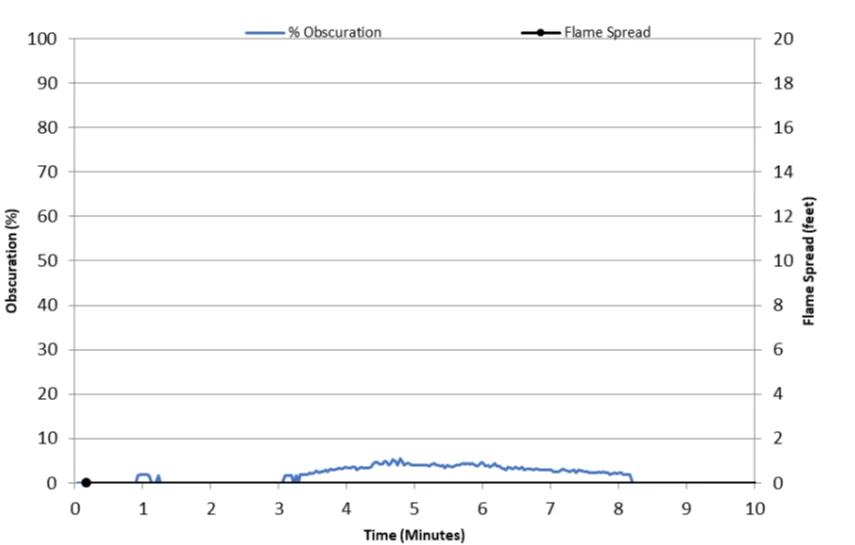

2. Surface Burning Characteristics Tests (Method: ASTM E84)
| CFS: Calculated Flame Spread | 0.00 |
| CSD: Calculated Smoke Developed | 17.6 |
Each test was conducted in accordance with Standard ANSI/UL723, Eleventh Edition, dated April 19, 2018, "Test for Surface Burning Characteristics of Building Materials", (ASTM E84).
Reference
| Typical Class Ratings | ||
| Class | Flame Spread | Smoke Developed |
| Class A | 0 - 25 | 0 - 450 |
| Class B | 26 - 75 | 0 - 450 |
| Class C | 76- 200 | 0 - 450 |
3. Optical properties
| Total light transmittance | Diffuse transmittance | Parallel light transmittance | |
| H201 C2 | 45.00% | 41.60% | 3.40% |
| Acrylic plate (2mm thickness: milky white) | 63.20% | 58.60% | 4.60% |
| Polycarbonate plate (2mm thickness: milky white) | 61.50% | 57.00% | 4.40% |
Test method: JIS K7105 Plastic optical test method (5.5 measurement method A)

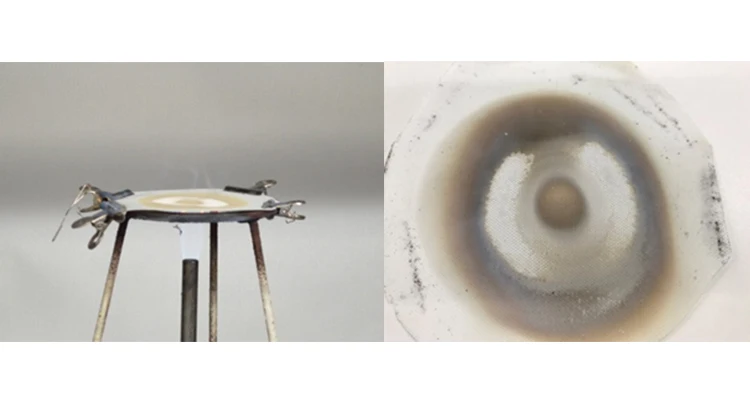

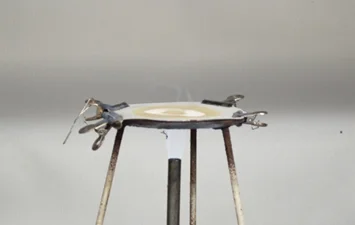

4. Non-flammability demonstration test

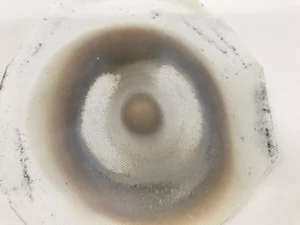

The silicon resin on the front and back of the fabric is vaporized by heat, but the fabric itself has no through-holes due to the flame.
