solid driving wheel 21X8 9 Chief Industrial Solid Tire used for 2Tforklift 7FB
- Category: >>>
- Supplier: Yantai Wonray Rubber Tire Co. Ltd.
Share on (62572226409):
Product Overview
Description
Product Description
solid driving wheel 21X8-9 Chief Industrial Solid Tire used for 2T 7FB
We have two brands with different quality, WonRay Brand (R701 pattern) and WRST Brand (R705 pattern).
Brand: | WonRay |

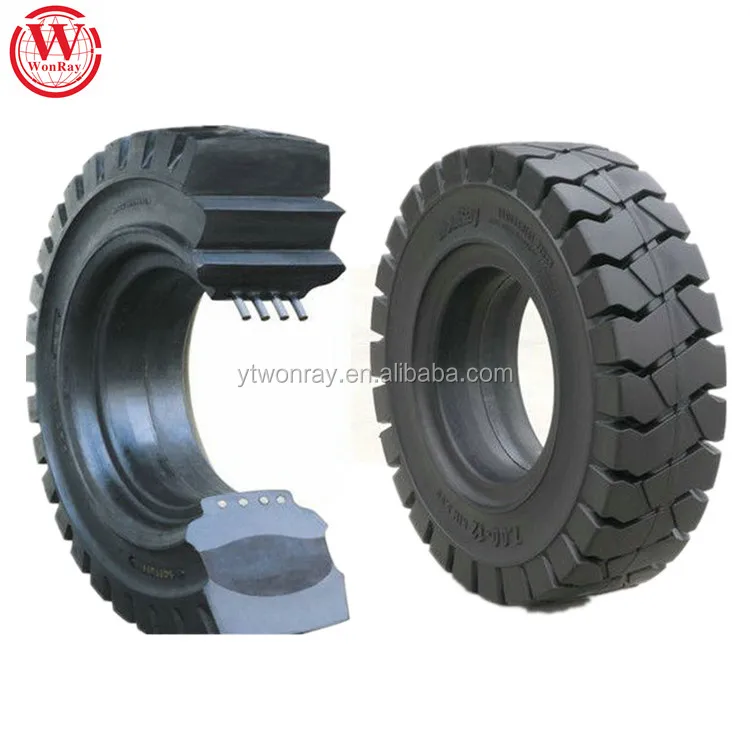

Type: | 3 compound construction |
Quality: | WonRay series is high quality with compectitive price; |
Pattern: | R701 |
Warranty: | 500hours normal working environment |
Using life: | 1500-2000 hours |
Free services: | 1. Pressing rims into tyres; 2. Provide the rim drawings. |
Brand: | WRST |
Type: | 3 compound construction |
Quality: | WRST series is our Top-end quality. |
Pattern: | R705 |
Warranty: | 500hours |
Using life: | 2500-3000hours |
Advantages: | 1. Extremely deep tread pattern and unique tread design are 2 factors which provide this series higher wear resistance than other similar brands. 2. This big tread pattern increase tire contact, reduce ground pressure, lower rolling resistance, and strengthen wear resistance. Which can be used on different kind of poor working environment. Such as garbage collection station, cement plant, construction site etc. |

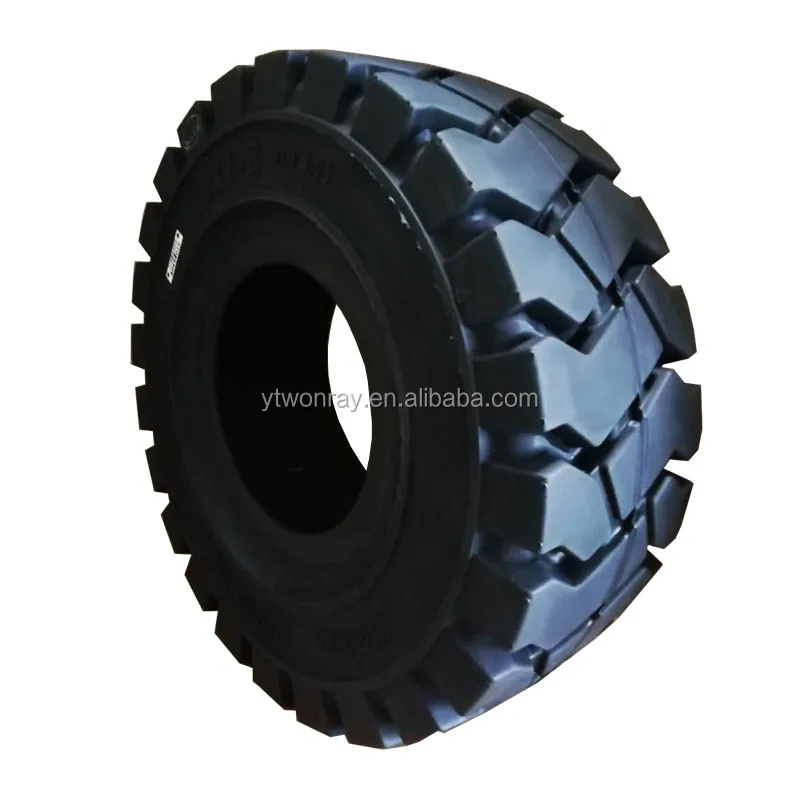

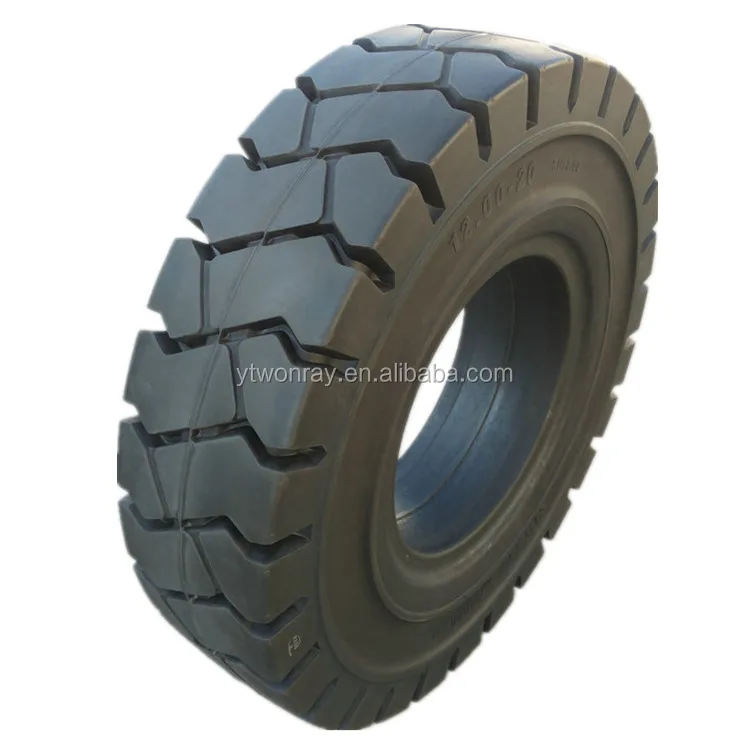

Detailed Images

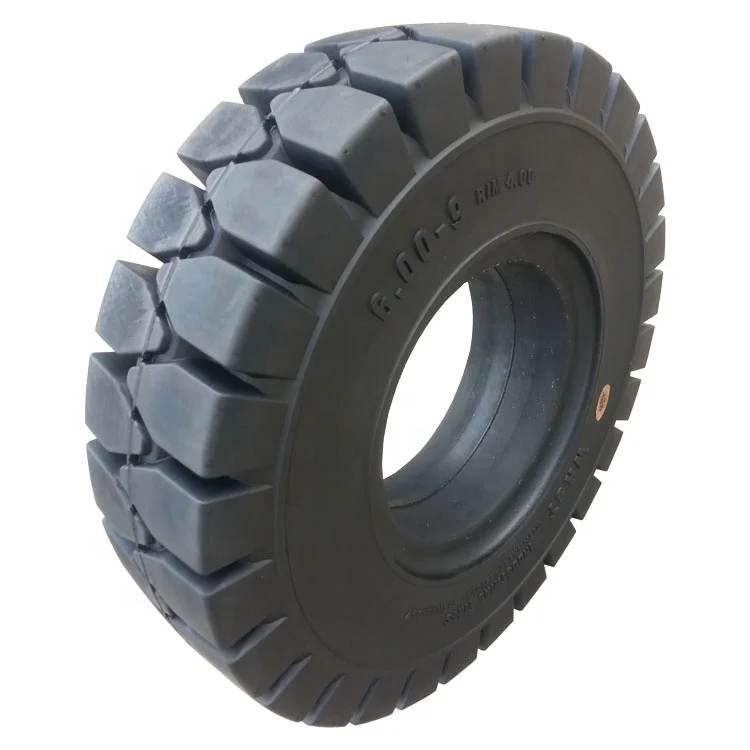

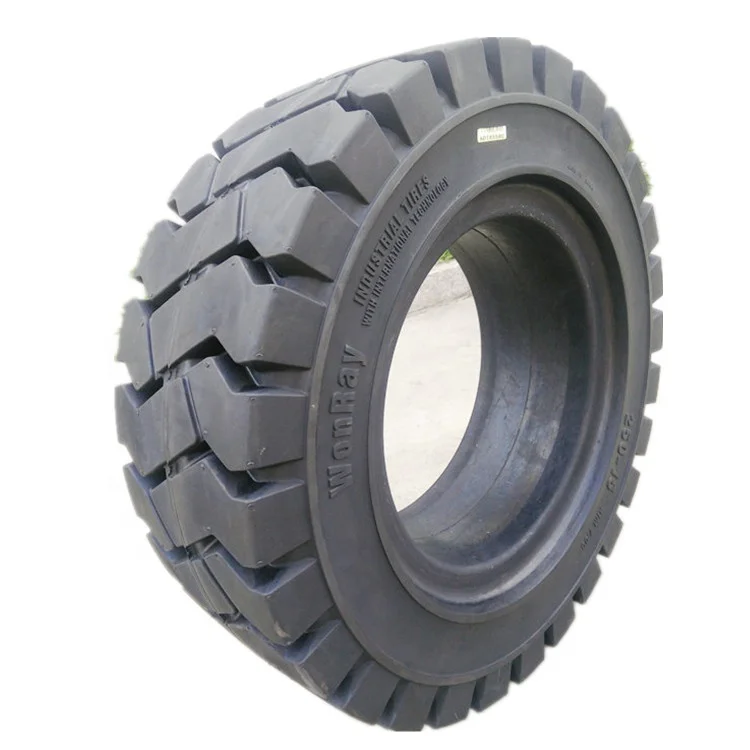

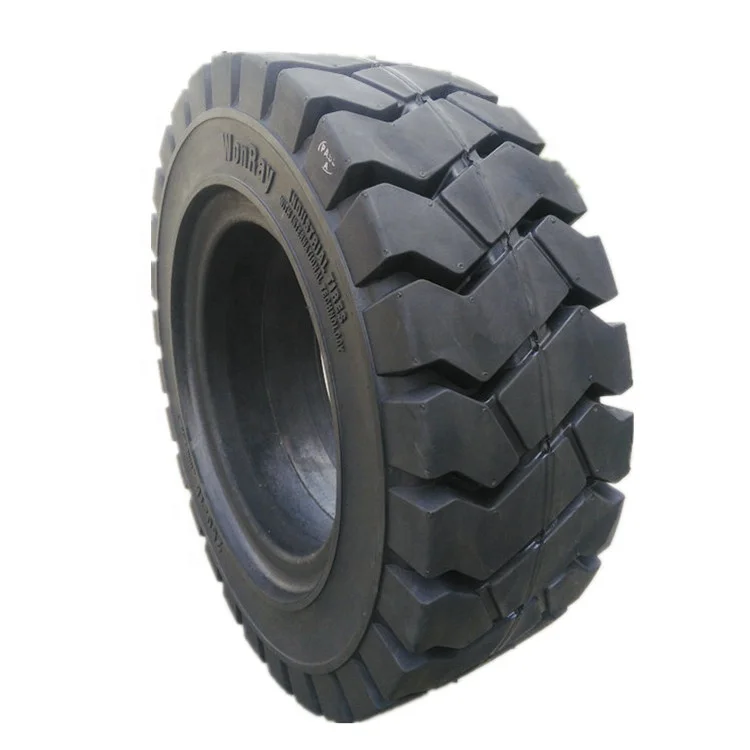

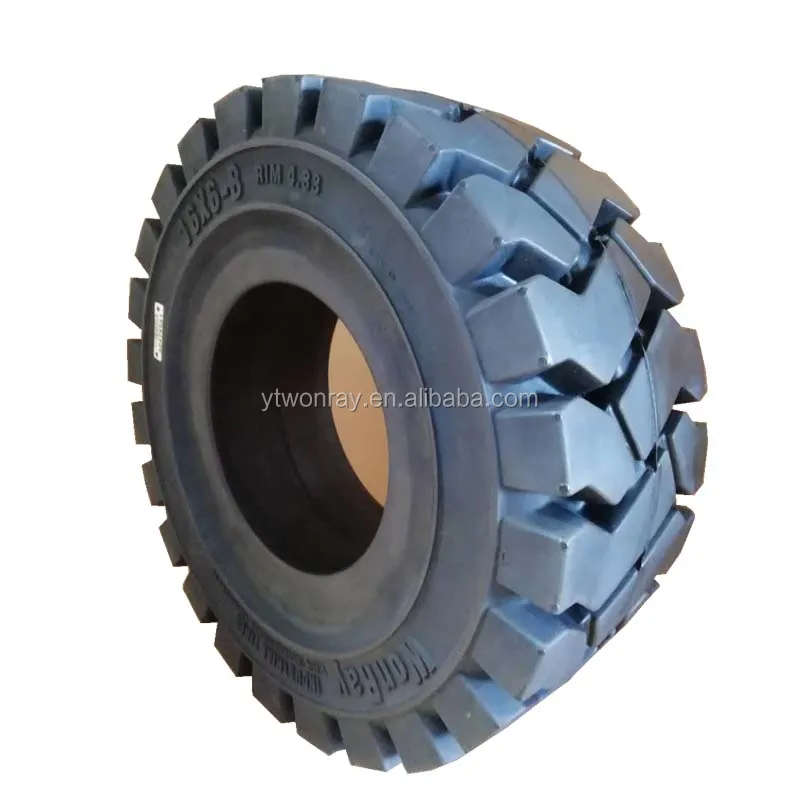

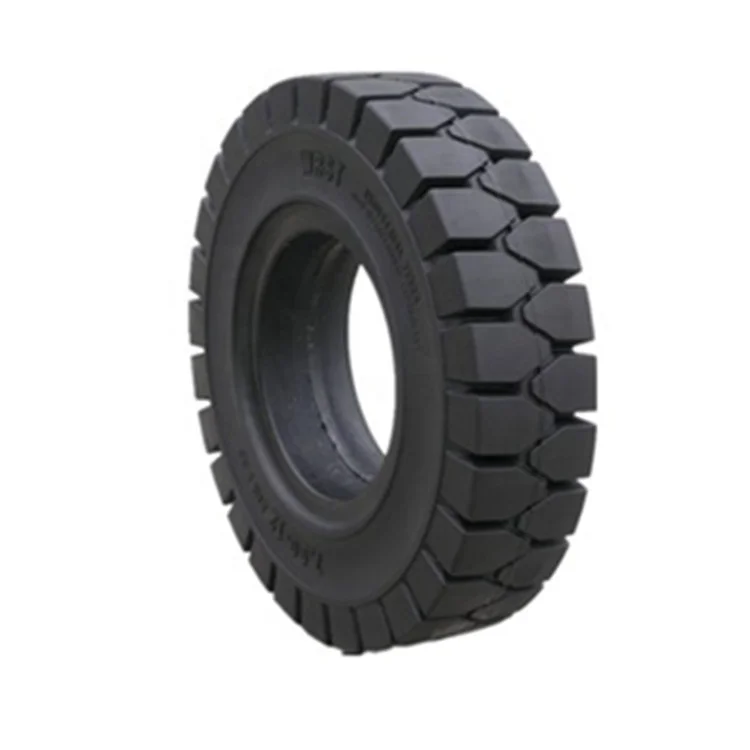

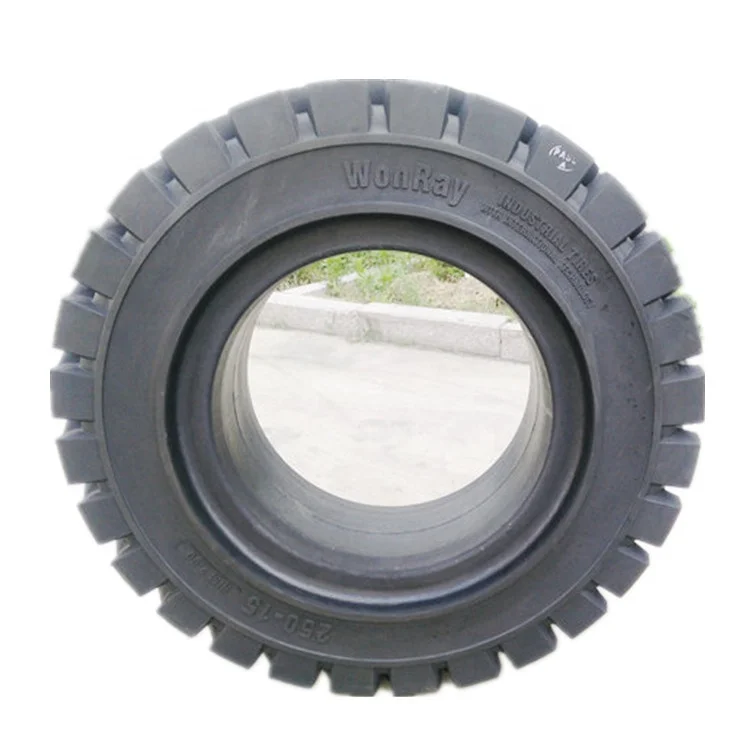

solid driving wheel 21X8-9 Chief Industrial Solid Tire used for 2T 7FB
Cases
Size Information
solid driving wheel 21X8-9 Chief Industrial Solid Tire used for 2T 7FB
Size of Tire | Rim Size | Pattern No. | O.D. | S.W. | N.W. | MAX MAX LOAD (kg) | ||||||
±5mm | ±5mm | ±1.5%kg | 10km/h | 16km/h | ||||||||
Driving | Steering | Driving | Steering | |||||||||
4.00-8 | 3.00/3.50/3.75 | R701/R706 | 423/410 | 120/115 | 14.5/ 12.2 | 910 | 700 | 830 | 640 | |||
5.00-8 | 3.00/3.50/3.75 | R701/R705/R706 | 466 | 127 | 18.40 | 1255 | 965 | 1145 | 880 | |||
5.50-15 | 4.50E | R701 | 666 | 144 | 37.00 | 2525 | 1870 | 2415 | 1790 | |||
6.00-9 | 4.00E | R701/R705 | 533 | 140 | 26.80 | 1975 | 1520 | 1805 | 1390 | |||
6.00-15 | 4.50E | R701 | 694 | 148 | 41.20 | 2830 | 2095 | 2705 | 2000 | |||
6.50-15 | 5.00F | R701/R705 | 582 | 157 | 36.00 | 2715 | 2090 | 2485 | 1910 | |||
7.00-9 | 5.00S | R701 | 550 | 164 | 34.20 | 2670 | 2055 | 2440 | 1875 | |||
7.00-12 | 5.00S | R701/R705 | 663 | 163 | 47.6 | 3105 | 2390 | 2835 | 2180 | |||
7.00-12 WIDTH | 5.00S | R705 | 663 | 188 | 52.3 | 3105 | 2390 | 2835 | 2180 | |||
7.00-15 | 5.50S/ 6.00 | R701 | 738 | 178 | 60.00 | 3700 | 2845 | 3375 | 2595 | |||
7.50-16 | 6.00 | R701 | 805 | 180 | 74.00 | 4400 | 3385 | 4025 | 3095 | |||
8.25-15 | 6.50 | R701/R705 | 829 | 202 | 90.00 | 5085 | 3910 | 4640 | 3570 | |||
15x4 1/2-8 | 3.00D | R701/R705 | 383 | 107 | 9.40 | 1005 | 775 | 915 | 705 | |||
18x7-8/ WIDTH | 4.33R | R701/R705 | 452 | 154/ 170 | 20.8/ 21.6 | 2430 | 1870 | 2215 | 1705 | |||
18x7-9 | 4.33R | R701/R705 | 452 | 155 | 19.90 | 2230 | 1780 | 2150 | 1615 | |||
21x8-9 | 6.00E | R701/R705 | 523 | 180 | 34.10 | 2890 | 2225 | 2645 | 2035 | |||
28x9-15 (815-15) | 7.00 | R701/R705 | 700 | 230 | 61.00 | 4060 | 3125 | 3710 | 2855 | |||
140/55-9 | 4.00E | R705 | 380 | 130 | 10.50 | 1380 | 1060 | 1260 | 970 | |||
200/50-10 | 6.50 | R701/R705 | 458 | 198 | 25.20 | 2910 | 2240 | 2665 | 2050 | |||
250-15 | 7.00/7.50 | R701/R705 | 726 | 235 | 73.60 | 5595 | 4305 | 5110 | 3930 | |||
300-15 | 8.00 | R701/R705 | 827 | 256 | 112.50 | 6895 | 5305 | 6300 | 4845 | |||
355/65-15 | 9.75 | R701 | 825 | 302 | 132.00 | 7800 | 5800 | 7080 | 5310 | |||
Related Products

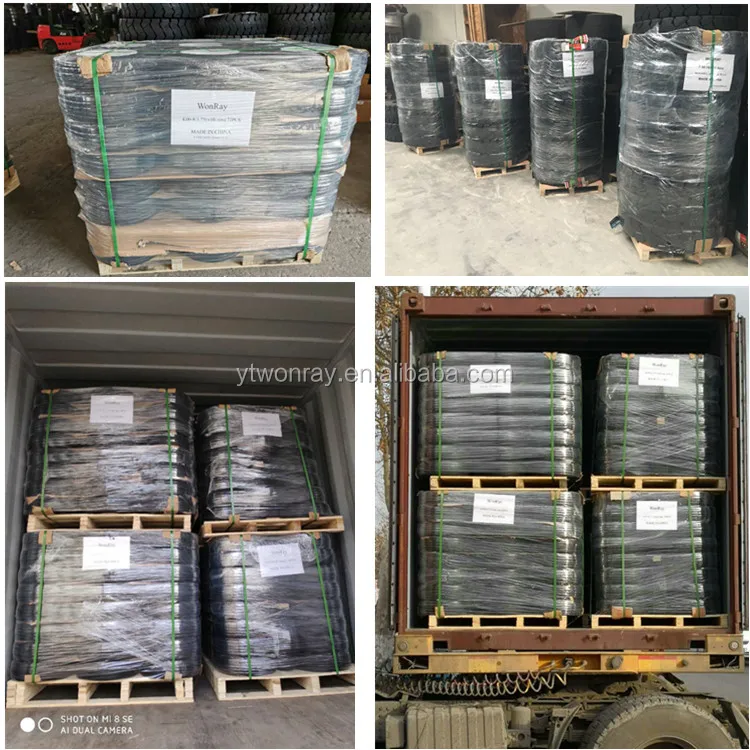

Packing&Shipping
Usually our solid tires mess goods will be packed on the standard export pallets. The pallet sizes including 1.2mx1.2m, 1.1mx1.1m, 1.0mx0.7m, 1.0mx0.6m etc.
Sure our solid tires also could be bulk into containers, then will load more quantity.
Company Introduction
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Including solid tires for forklift and small field runnung vehicles, solid OTR tires, special tires for trailers, skid steer solid tires with rims, solid tires for Sintering& Mining machines, press-on solid tires, solid tires for lifting platforms etc. As well as the Rims&Wheels, Polyurethane wheels.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.

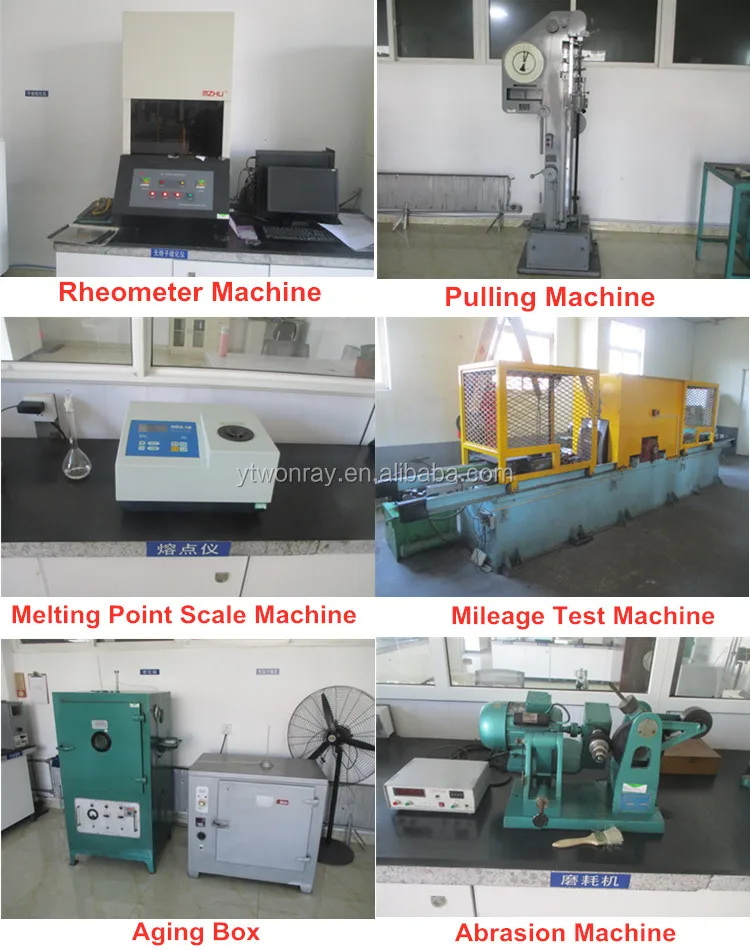

Test Equipments
We have full test equipments to ensure the materials, semi products and finished products qualified.
Mixing Process
Molding Process
Vulcanization process
Trimming process
Exhibition
CEMAT FAIR IN MOSCOW
Our Services & Strength
We have our own technical team with more than 20years' experience in solid tires.
1. We can recommend the right solid tires according to your machine working environment, and machines status;
2. We have full sizes solid tires from the smallest 2.00-8 to the largest 29.5-25;
3. We can provide the free pressing service use our own pressing machines from 80T to 400T.
4. Our technical team will provide the rim (wheels) drawings according to your rim technical data;
5. In the domestic market, Our products have been matched for Sany Heavy Industry, Carrie Heavy Industry, Liugong Machinery, Maximal, Tailift, MCC Baosteel and Haipeng Industry etc.
6. We have many exclusive agents in the world. Such as USA, Canada, South Africa, Chile, Poland, Spain, Russia and so on.
