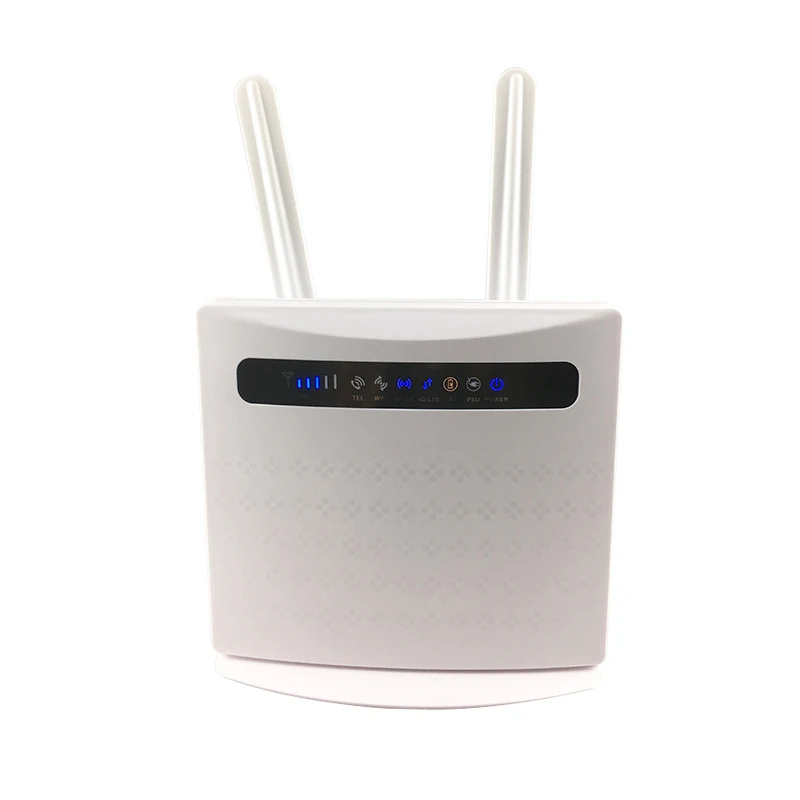

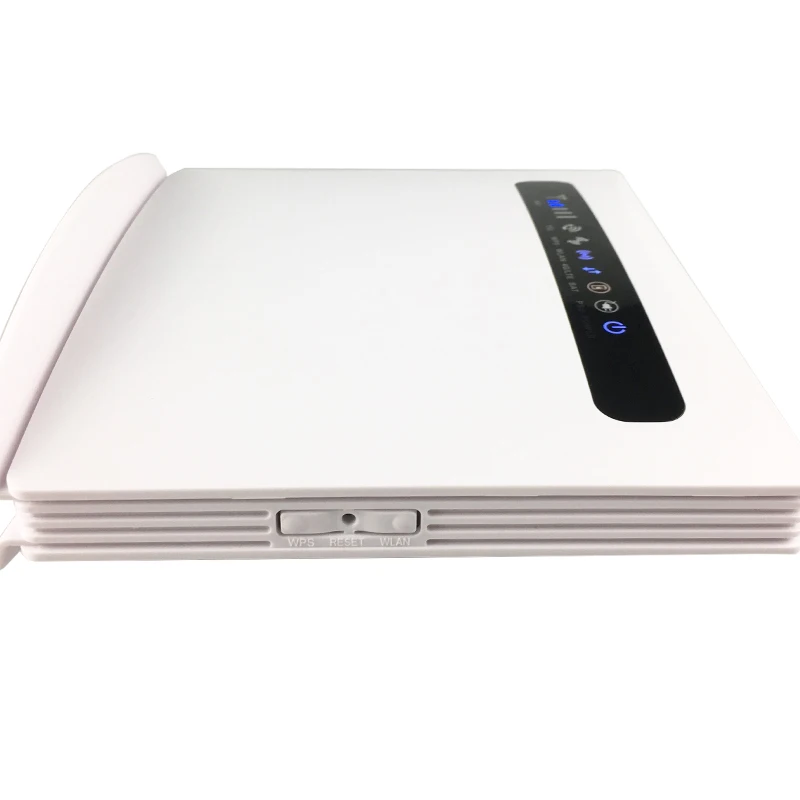

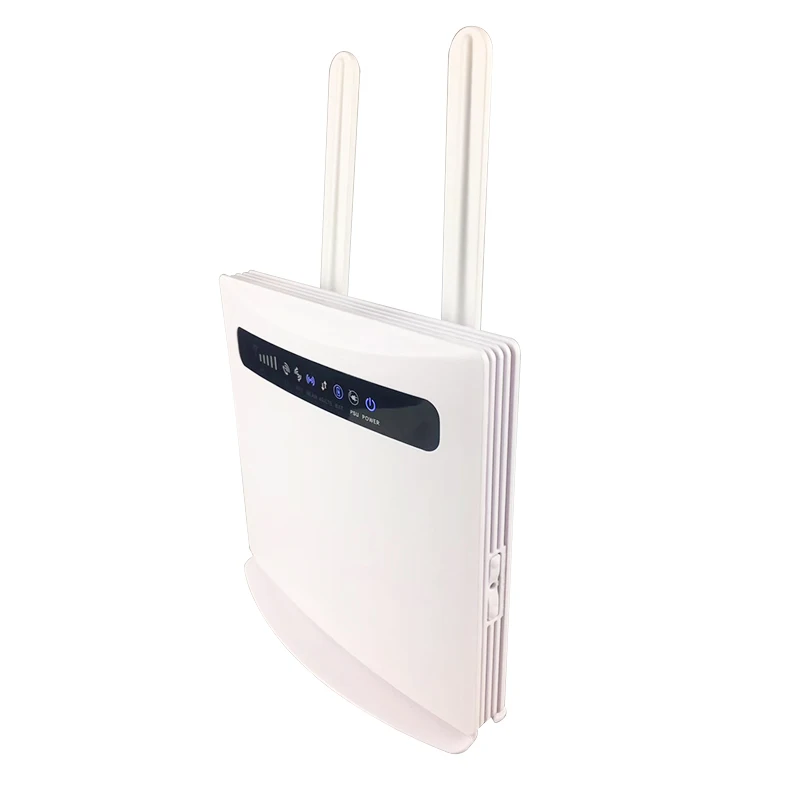

4G SIM card 4G LTE WiFi wireless router with RJ11 Port
- Category: >>>
- Supplier: Shenzhen Etross Telecom Co. Ltd.
Share on (62572334583):
Product Overview
Description
1. Overview
As a high-performance LTE CPE device with VOLTE, enables home office (SOHO) users to get access to wireless and wired networks
work in any of the following network standards:
Frequency Division Duplex (FDD) Time Division Duplex(TDD)
Dual Carrier High Speed Packet Access Plus (DC-HSPA+) High Speed Packet Access Plus (HSPA+)
High Speed Uplink Packet Access (HSUPA) High Speed Downlink Packet Access (HSDPA)
Universal Mobile Telecommunications System (UMTS) Enhanced Data Rates for Global Evolution (EDGE) General Packet Radio Service (GPRS)
Global System for Mobile Communications (GSM)
provides the following services and functions : Support 3GPP Release 8/9 compliant
Support 1TX/2RX with TX switched diversity Support UE Category 3/4
Support QoS service flow initiated by CPE
Built-in web server for web-based configuration Password protected access and configuration Support IEEE 802.3, IEEE 802.3u ,IEEE 802.11 b/g/n
USIM Slot
Support VPN pass-through Support VOLTE

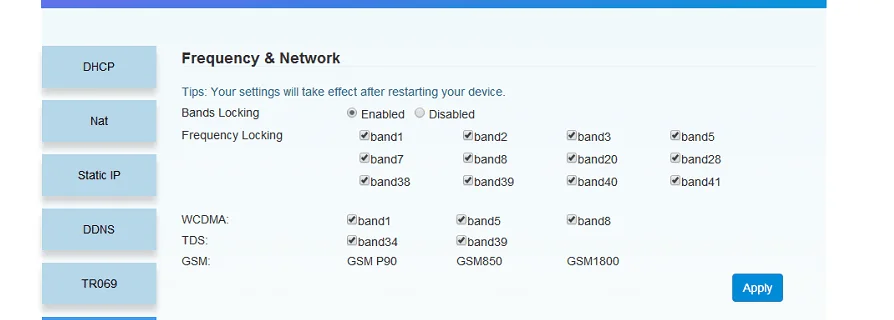

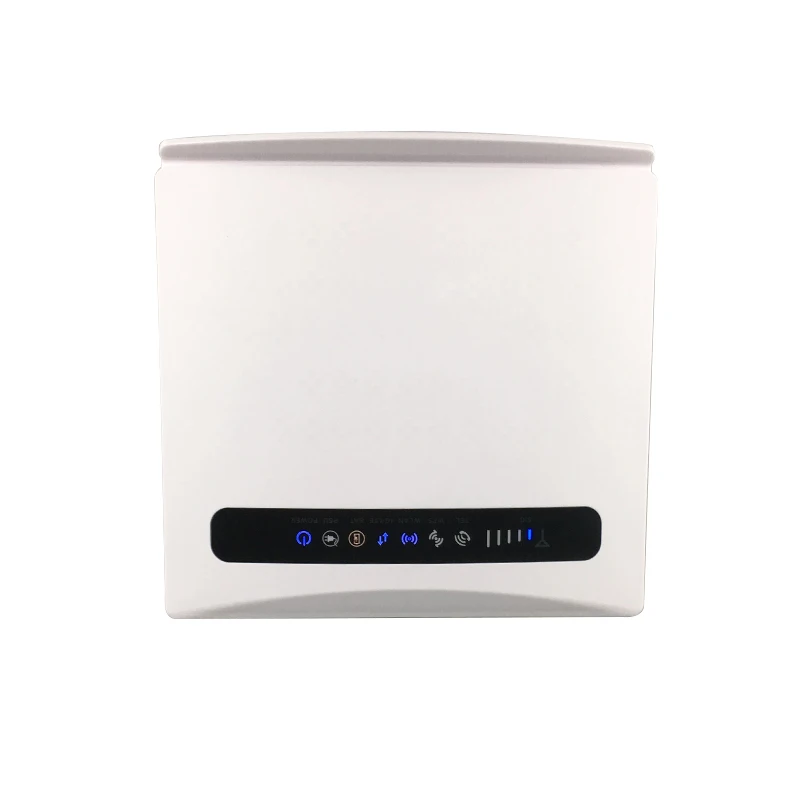

Support RJ11(Voice) Support RJ45(Ethernet) Support LED indicators Support Internal antenna Support External antenna Support Lock Network Battery
1. Main functions:
*Support 2G/3G/4G network connection
*Support voice
*Support external antenna and build-in battery(Optional)
*WLAN function, easy to expand wireless network.
*Prevent loiter network, multi wireless safety ensuring.
*IP broadband band control, ensure the speed.
*Support network traffic statistics.
*Support up to 32 WIFI devices online simultaneously.
*IEEE802.11b/g/n

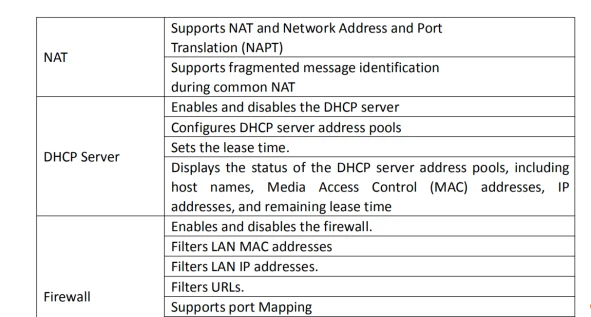

*Functioning as a Dynamic Host Configuration Protocol (DHCP) server and supporting
*Network Address Translation (NAT)
*Internet Protocol version 6 (IPv6)/Internet Protocol version 4 (IPv4) dual stack
*Security functions
* Wi-Fi protected setup (WPS)
2. Technical Specifications
3.1 Hardware specifications
Item | Description | |
Technical standards | WAN: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM | |
WLAN: 802.11b/g/n | ||
Working bands |
Standard: FDD: Band1/2/3/5/8/17/20 TDD: Band38/39/40/41 WCDMA:850/900/1900/2100Mhz GSM:850/900/1800/1900mhz
Frequencies could be customized | |
Speed | FDD - LTE Downlink:150Mbps, Uplink:50Mbps TDD-LTE: Downlink:150Mbps, Uplink:50Mbps HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) HSUPA: 5.76Mbps (upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) (it is cat4) | |
Wifi | WIFI Standard | IEEE 802.11b/g/n |
WIFI Rate | Highest rate 144Mbps | |
RF power | 17dBm(Max) in 11b mode 17dBm(Max) in 11g mode 16dBm(Max) in 11n mode/chain | |
Wifi users | Max up to 32 users | |
CSFB | Support | |
Physical Size | Size | 190x70x180(mm) |
weight | 455g | |

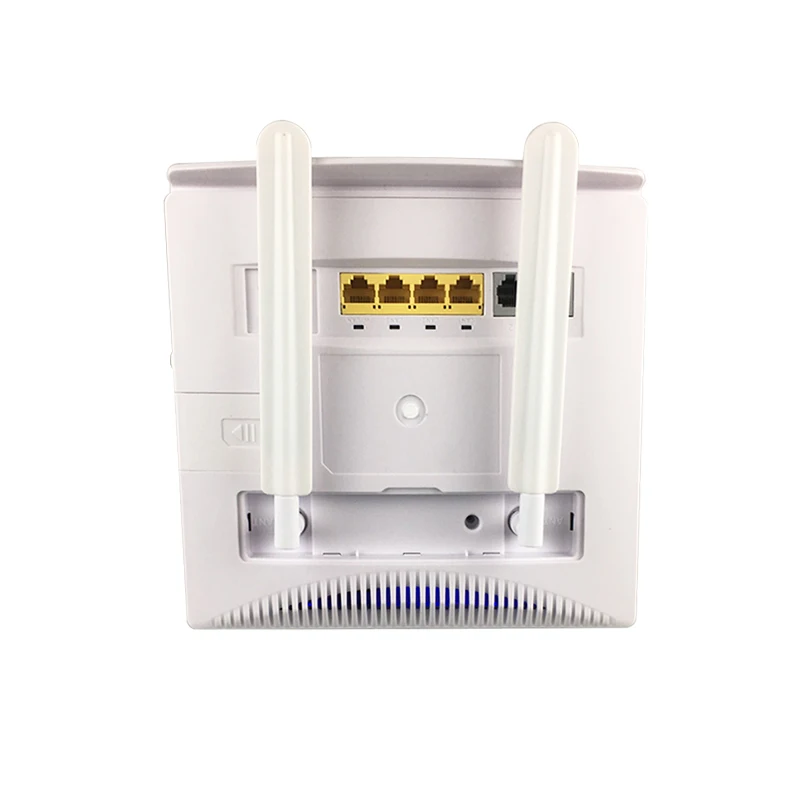

External Port | 4*RJ45 port (1*WAN, 3* Lan) | |
2*RJ-11(voice) | ||
2*SMA external antenna port | ||
1*sim card slot | ||
Buttons | One power button | |
One WPS button | ||
One reset button | ||
Antenna | External antenna,Gain>5db | |

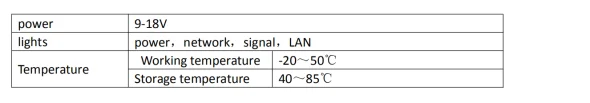

PSU | 12V/1A | |
|
| |
