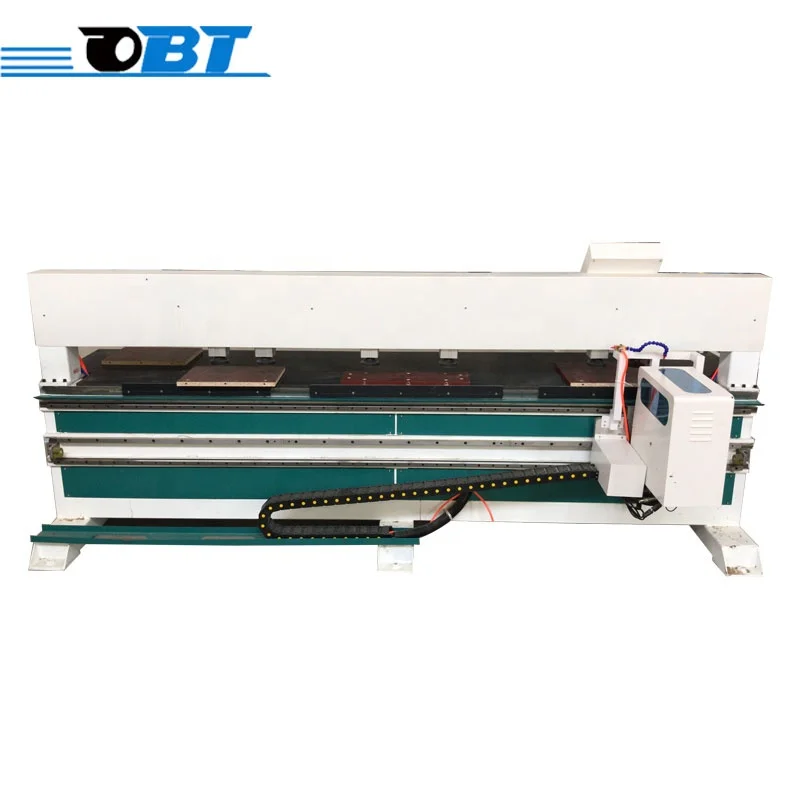

Woodworking automatic CNC laser side hole machine high speed

Product Overview

Description

 Woodworking automatic CNC laser side hole machine high speed

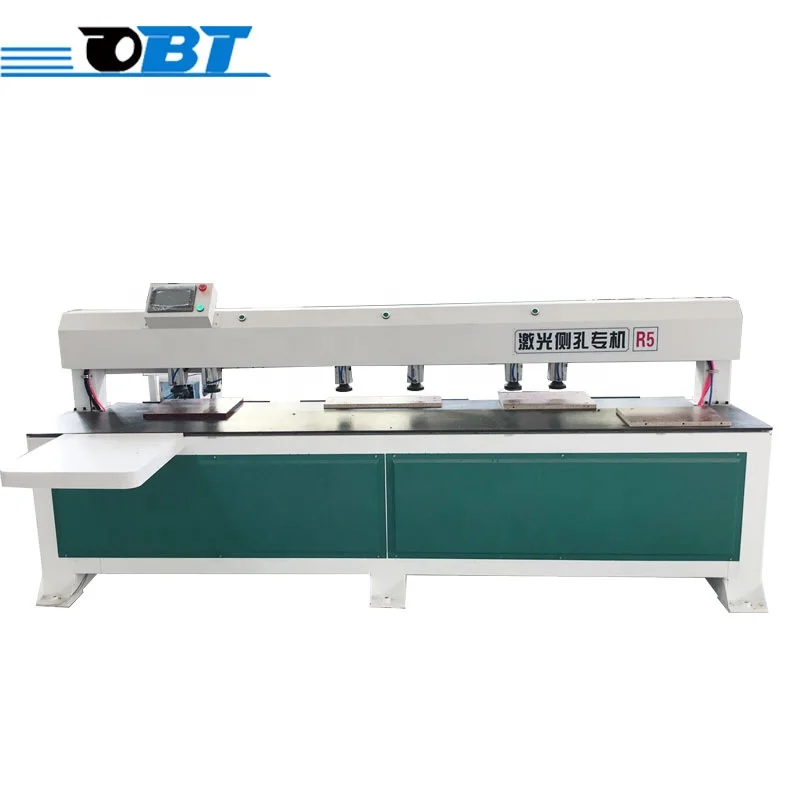

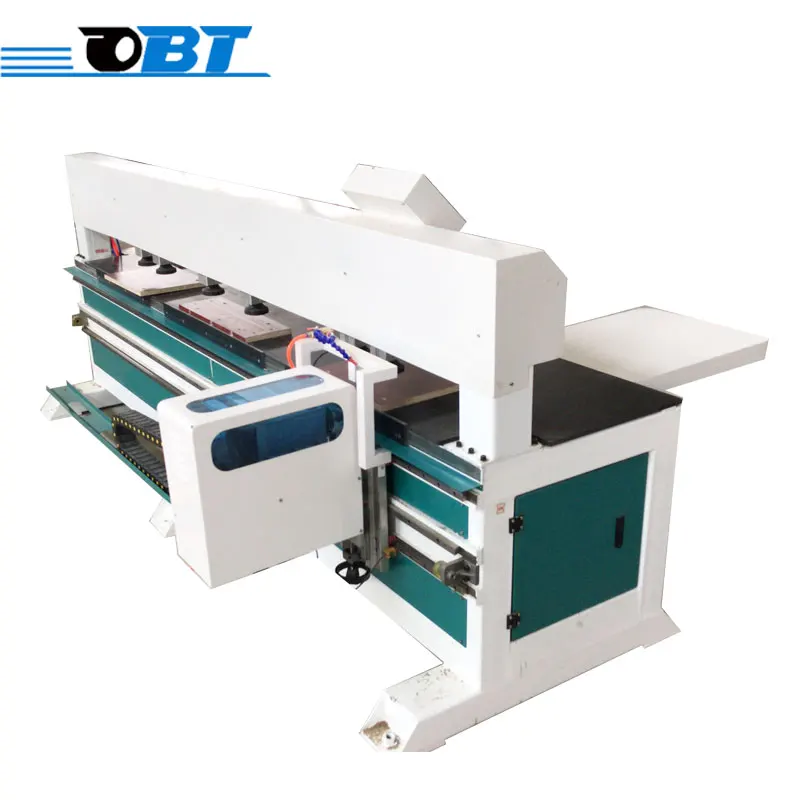

Machine show



Product description

Model	OBTR5
Workbench area	3050*1100*1400mm
Control System	Taiwan Yonghong Control System
Laser head	American Bonner imported laser head
Servo motor	Dual servo motor
Processing speed	80m/min
System resolution	±0.025mm
Spindle power	Prosperity 3.5KW air-cooled spindle
Spindle speed	6000-18000rpmMin
High altitude line speed	150m/min
Processing height	30mm
Working voltage	AC220V50Hz
Run command	G code
Workbench	pvc countertop
Working Process	Open the machine---Cylinder to good planks---A laser scanning the vertical hole--Direct side hole

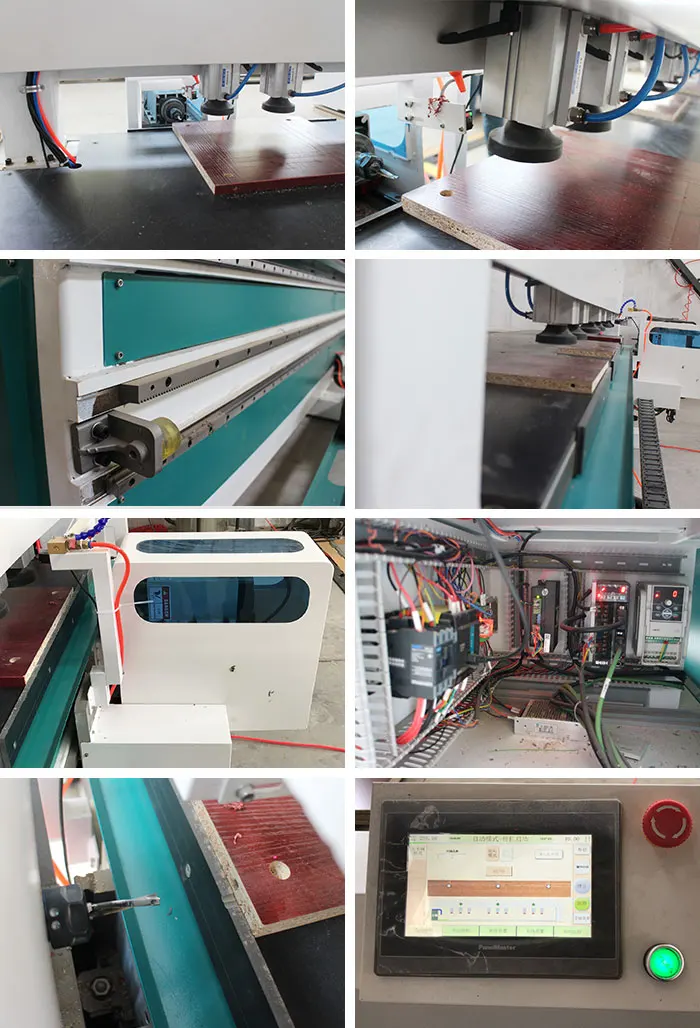

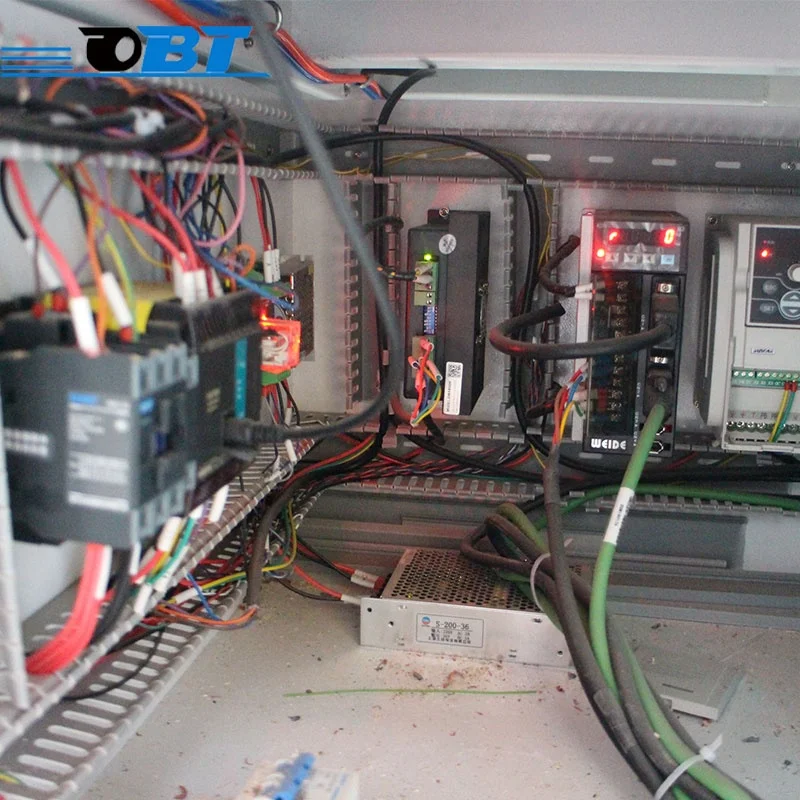

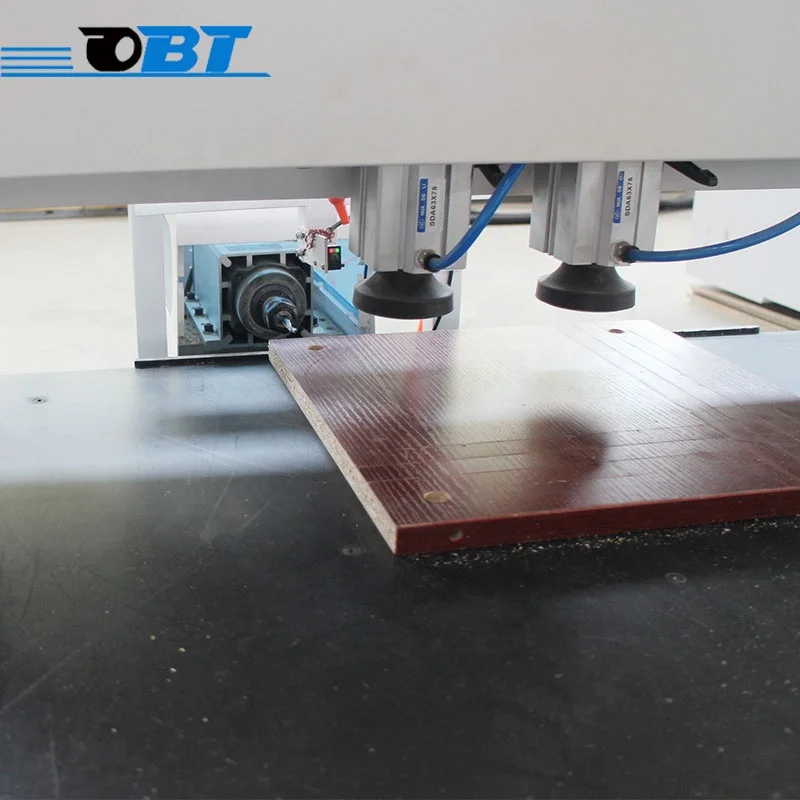

Product detail

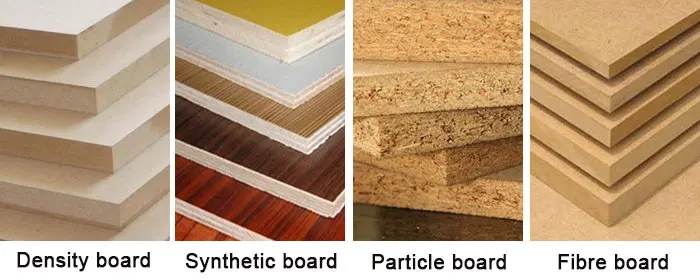

Application



Product advantage

1. laser side hole machine is an economical and practical plate type furniture horizontal hole drilling equipment, which can replace the traditional tweet saw and drill.

2, through infrared positioning can be completed production, do not need to find a special drill master. The labor cost is greatly saved.

3, perfect combination with intelligent furniture design and production software, truly realize intelligent production. The precision is high and the speed is fast.

4. The whole machine bed is made of 10mm thick walled square rail welded seamlessly.

5, imported linear guide, double guide design, small resistance, high accuracy.

6. The servo drive has stronger transmission power, the inclined rack drive, the operation is more stable and the accuracy is higher.

7, Germany imported Henry Ann rack, 1.5M high precision, durable, no deformation.

8, support long material, short material, long slot, Trinity hole processing mode.

9.side hole machine adopts servo drive system, Germany imported laser head, imported Taiwan control system, advanced configuration and stable performance.



Related products you may like, click on the picture to see↓↓↓↓

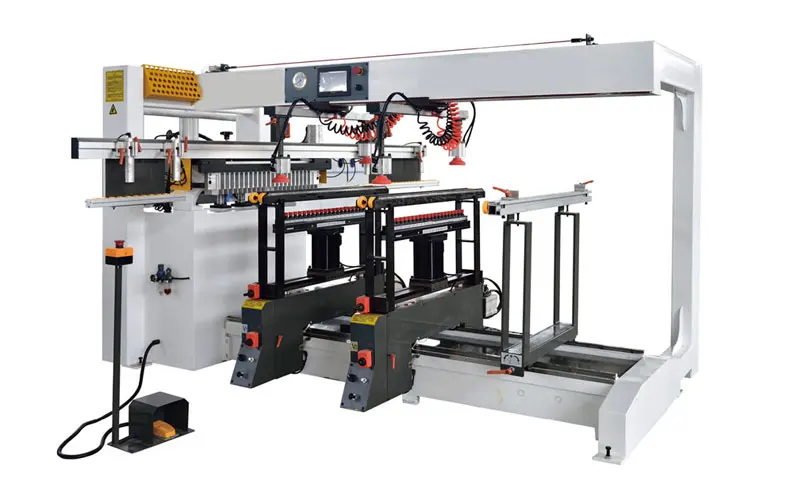

Drilling machine

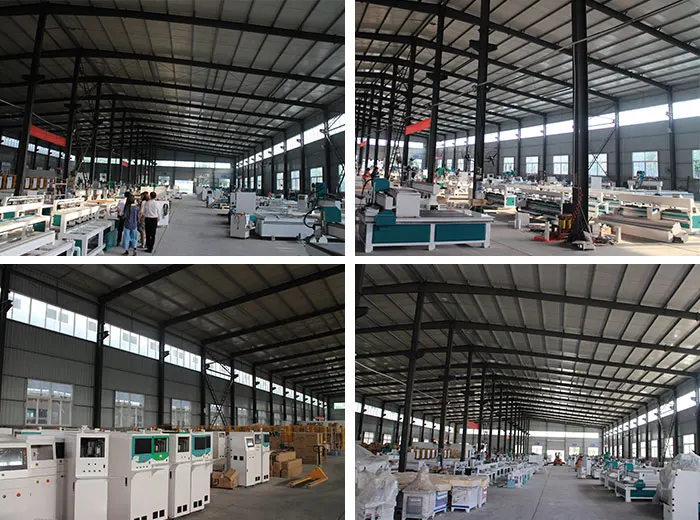

Our Company
