Module: Quectel | Quectel 4G EC-25A4G |
| EC25-E FDD LTE: B1/B3/B5/B7/B8/B20 2100/1800/850/2600/900/800MHZ TDD LTE: B38/B40/B41 2600/2300/2500MHZ WCDMA: B1/B5/B8 2100/850/900MHZ GSM:B3/B8 900/1800 |
EC25-A FDD LTE: B2/B4/B12 1900/1700/700MHZ WCDMA: B2/B4/B5 1900/1700/850MHZ |
EC25-AU FDD LTE: B1/B3/B4/B5/B7/B8/B28 2100/1800/1700/850/2600/900/700MHZ TDD LTE: B40 2300MHZ WCDMA: B1/B2/B5/B8 2100/1900/850/900MHZ GSM:B2/B3/B5/B8 1900/1800/850/900MHZ |
EC25-J LTE: B1/B3/B8/B18/B18/B19/B26 2100/1800/900/850/800/850 MHZ TDD LTE: B41 2500MHZ WCDMA: B1/B6/B19 2100/850/800MHZ GSM:B3/B8 900/1800 |
EC25-V FDD LET:B4/B13 1700/700MHZ |
Specifications | LTE LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL) DC-HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) UMTS Max 384Kbps (DL) Max 384Kbps (UL) TD-SCDMA Max 4.2Mbps (DL) Max 2.2Mbps (UL) EDGE Max 236.8Kbps (DL) Max 236.8Kbps (UL) GPRS Max 85.6Kbps (DL) Max 85.6Kbps (UL) HR, FR, EFR, AMR, AMR-WB coding schemes SMS mobile Terminate/Originate BAILING’s Smart Stack. |
Feature | LTE Version 3GPP E-UTRA Release 10 Bandwidth 1.4/3/5/10/15/20MHz Standard 3GPP AT commands TS 27.007 Output power: Class 3 @ LTE and Class 3 @ UMTS. Input voltage: 5V to 32V Current consumption (TBC): Standby: 30mA @ 12V Average in Use (3G): 250mA @ 12V Average in Use (4G): 205mA @ 12V Support 3V/1V8 U-SIM card Dimension: 74mm x 55mm x 24mm Weight: 100g approx. Operating temperature: -30C° to +85C° RoHS compliant Data |

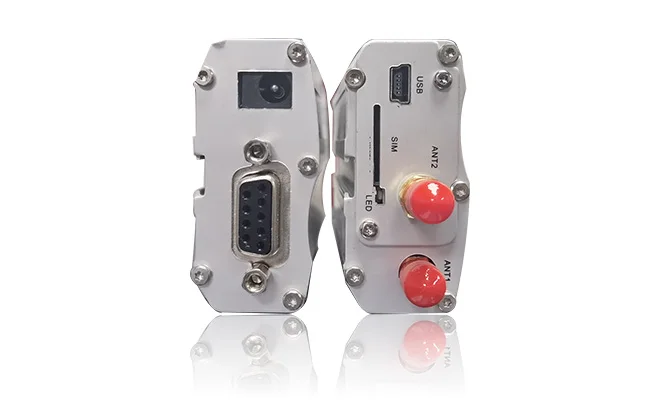

Further Features: | Serial Interface Physical: Strong lightweight Aluminum case Serial RS232 and power through DC RF connector: 2 x SMA male Small size: 66mm x 52mm x 24mm/18mm Weight: approx. 40 grams Power in: 5Vdc to 32Vdc UDP/TCP stack: BAILING Smart Stack Temperature range: -30C to +85C Sim holder accepts standard 3V/1.8V mini sim Single mode LTE operation LTE FDD bandwidth 1.4-20MHz System release 3GPP Rel 11 4G Cat 4 up to 150Mbps downlink, 50Mbps uplink 3G HSPA+ up to 42Mbps downlink, 5.76Mbps uplink SMS mobile Terminate/Originate FOTA and DOTA functions supported |
Protocols | TCP/UDP/PPP/FTP*/HTTP*/SMTP*/MMS*/NTP/ PING/DTMF*/FILE*/CMUX*/QMI |
Application | Industrial,vending machine,eletricity meter,traffic etc M2M modem |
Running environment | Windows XP, Windows Vista, Windows 7,8/8.1,10,Linux |
