Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна
Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна

Электрический укладчик Xilin 1500 кг, 1,5 фунта, 1000 тонны, 1200 кг, 1,2 фунта, 1 тонна, кг, тонна

Share on (62572601476):


Price:

Quantity:

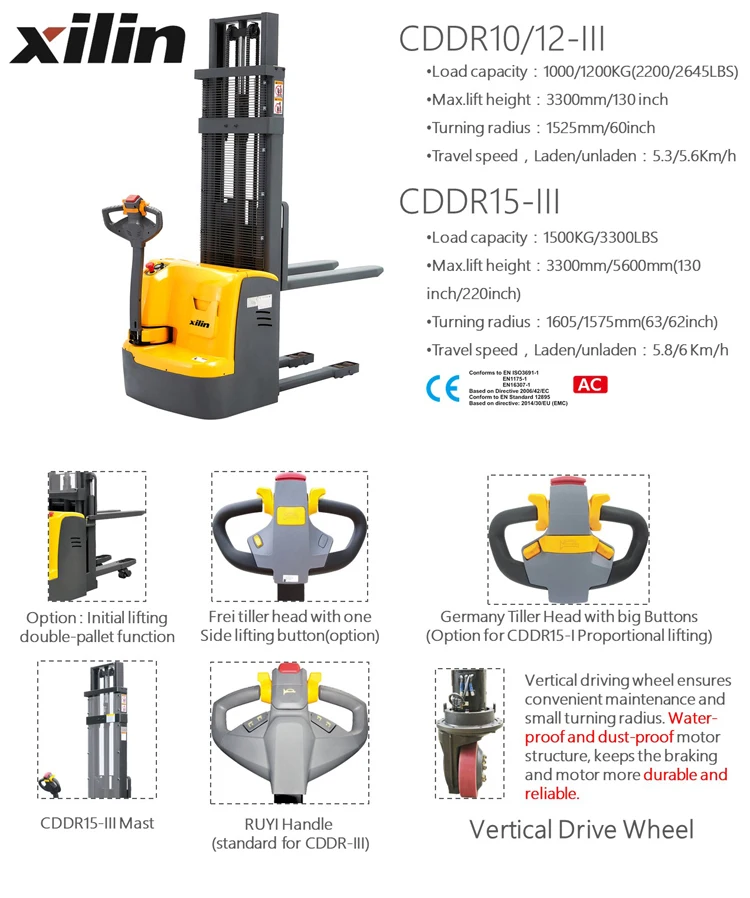

Product Overview

Description

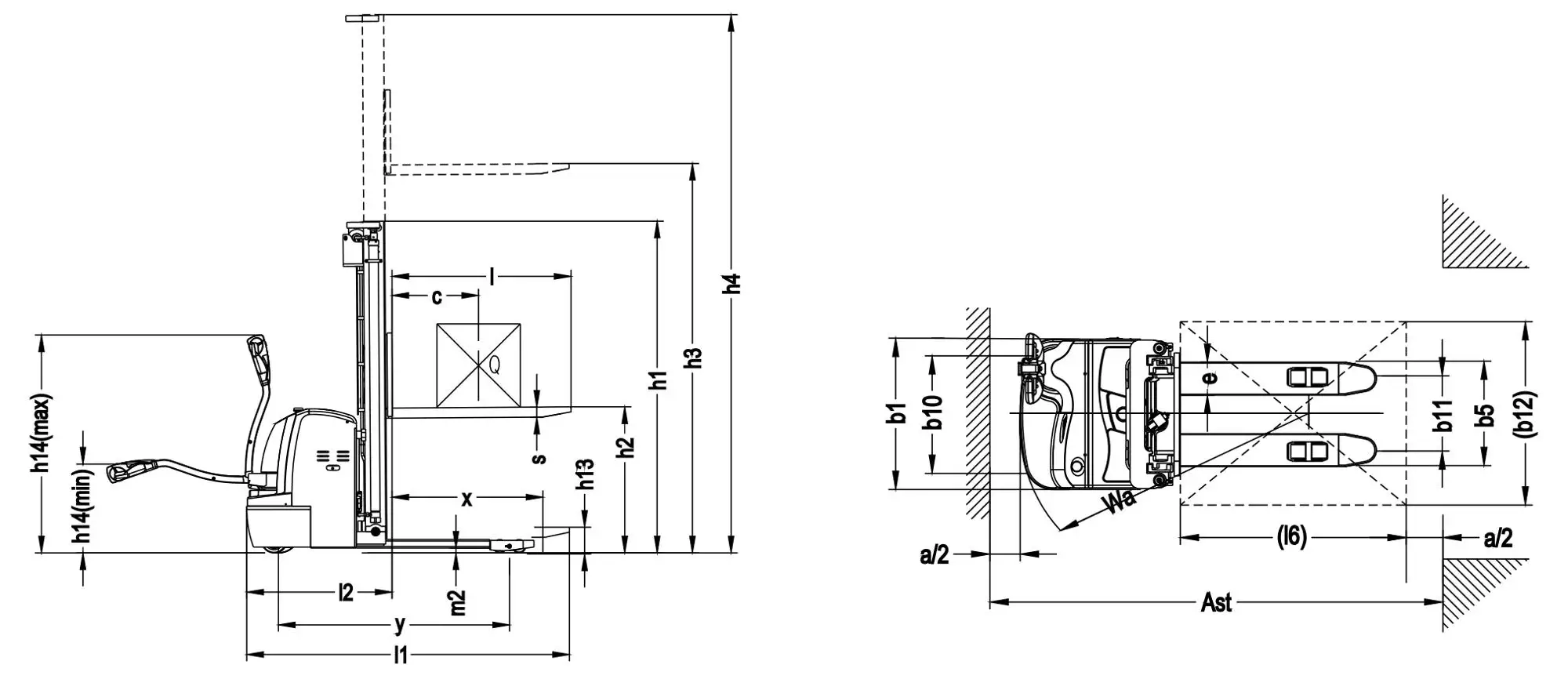

Model

CDDR10-III
CDDR12-III
CDDR15-III
CDDR15-III
Load capcacity
Q(kg)
1000
1200
1500
1500
Load centre distance
c(mm)
500
500
600
600
Load distance,centre of drive axle to fork
x(mm)
697
697
697
667
Fork height,lowered
h13(mm)
90
90
90
90
Height,mast lowerd
h1(mm)
2087/1837/2087/2237
2054/2214/2414
Max.lift height
h3(mm)
1600/2500/3000/3300
4500/5000/5600
Height,mast extended
h4(mm)
2087/3087/3587/3887
5030/5510/6110
Height of tiller in drive position min./max.
h14(mm)
670/1300
670/1300
Length to face of forks
l2(mm)
792
792
878
905
Overall width
b1(mm)
820
820
820
820
Overall length
l1(mm)
1965
1965
2045
1975/2055
Fork dimensions
S/e/l(mm)
60*170*1070(1150)
60*180*1070(1150)
Width overall forks
b5(mm)
570/695
570/695
Aisle width for pallets 800*1200 lengthways
Ast(mm)
2370
2370
2450
2450
Turning radius
Wa(mm)
1525
1525
1605
1575
Travel speed,laden/unladen
Km/h
5.3/5.6
5.3/5.6
5.8/6
5.8/6
Battery voltage,nominal capacity K5
V/Ah
24/120
24/120
24/200
24/200
Service weight(with battery)
kg
730/750/770/795
750/770/790/815
760/810/835/860
1185/1205/1225














Q1:Are you a factory?
A1: Of course.Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique
combination of scientific research,development, production, sale and service. Moreover, the trademark of Xilin has been registered in 68 countries and regions around the world and its products sell well in more than 100 countries and regions until this year.
Q2: Do you have agent or representative abroad?
A2: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q3: What's the specification of the chargers?
A3: Xilin have all kinds of the chargers and welcome the customers to custom-made.
Q4: Warranty for the product?
Q4：We do offer one year warranty which would cover the failure not caused by miss-usage like over loading or misplacing the item.And There is no warranty for wearing parts such as wheel and fuse.
Q5: How about the delivery time?
A5: Usually Xilin producing time is 15-20 working days after we receive the advanced payment. For some standard products,we have most in stock and could delivery immediately.
Q6:What is your payment term?
A6: T/T or L/C,if you want any other way,please contact us.
Q7: What can I get from cooperating with Xilin?
A7: 1. Unique products, with customized service.2. Timely production and delivery, time is money. 3. Market protection service, long term business strategy.
