Foundry high pressure sand casting molding machine

Product Overview

Description

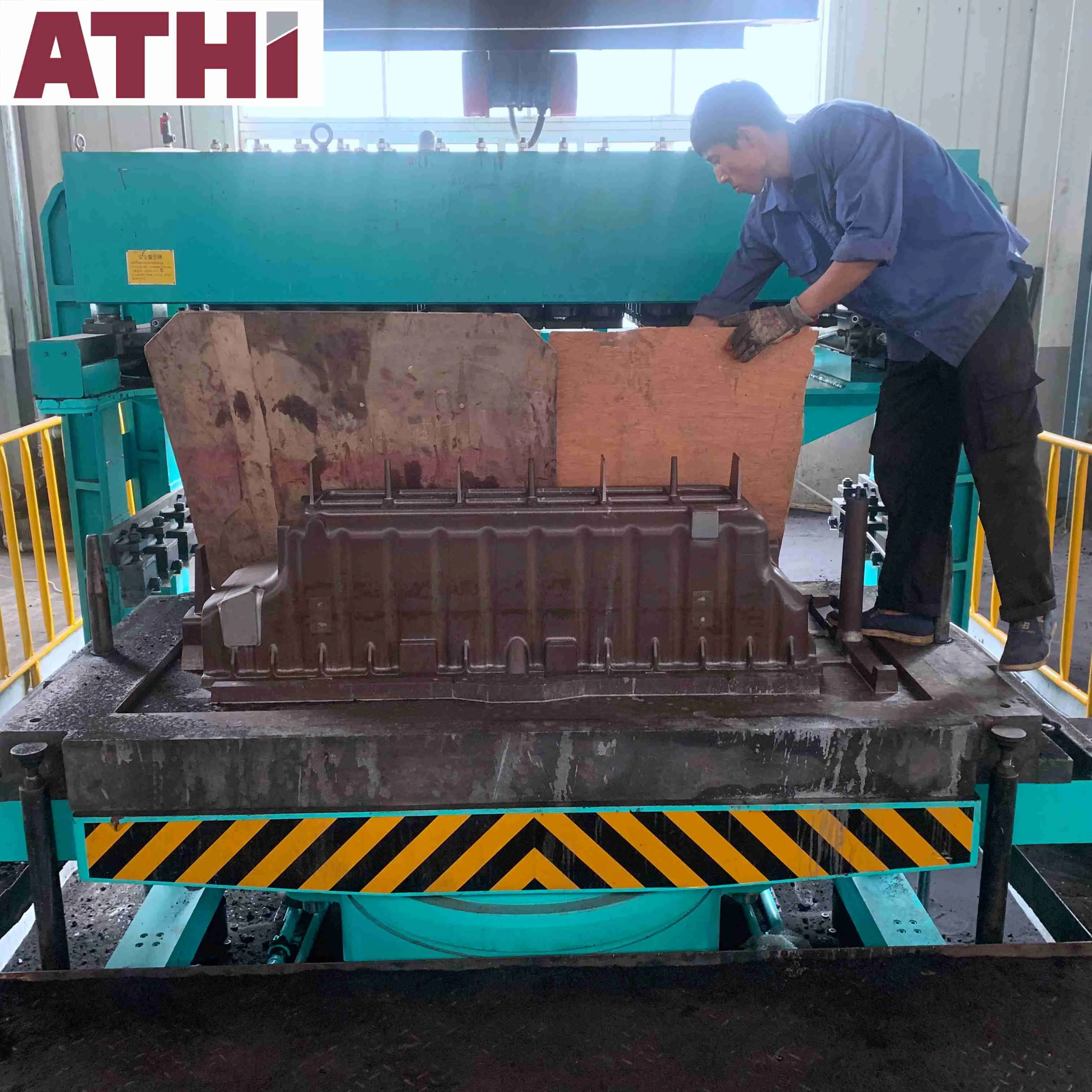

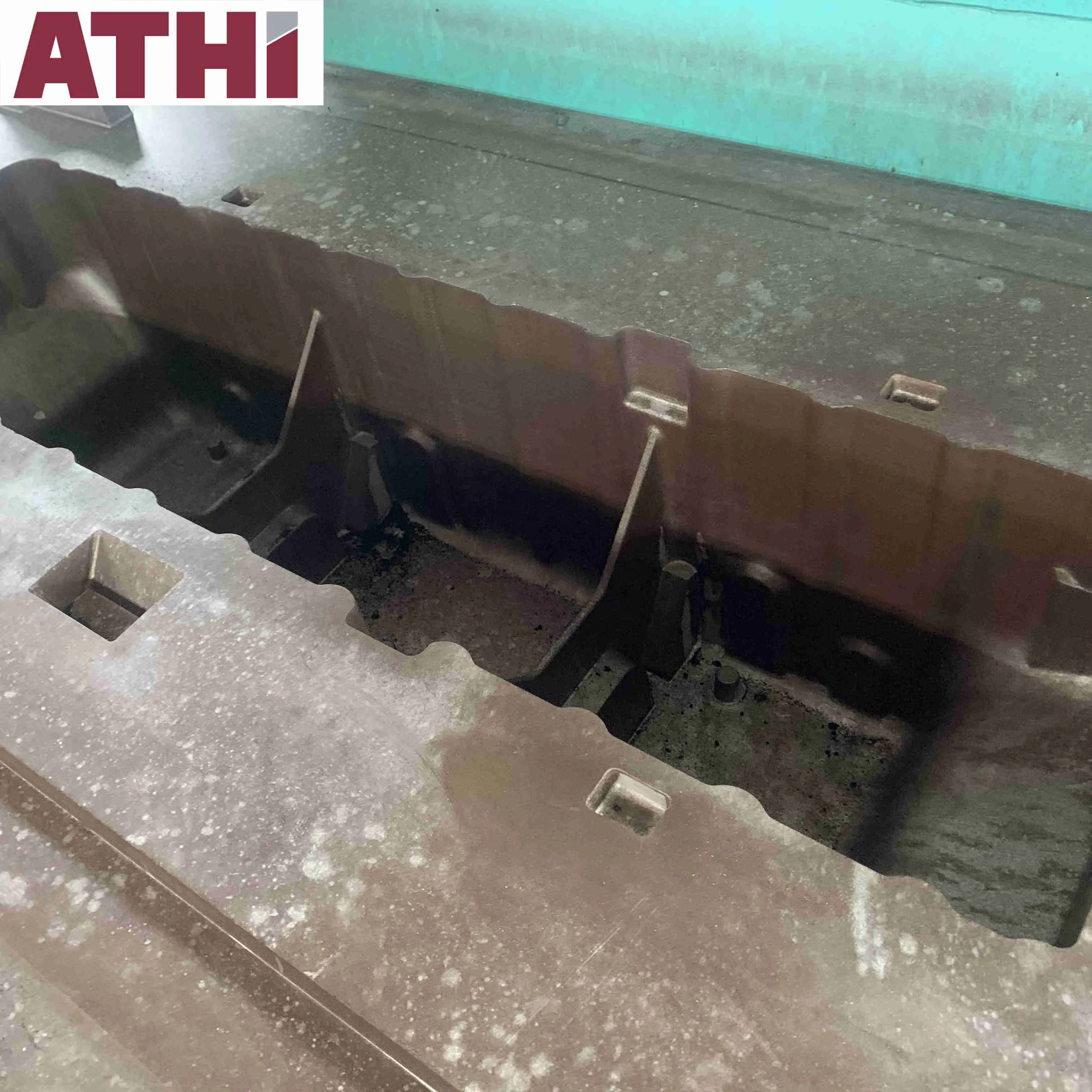

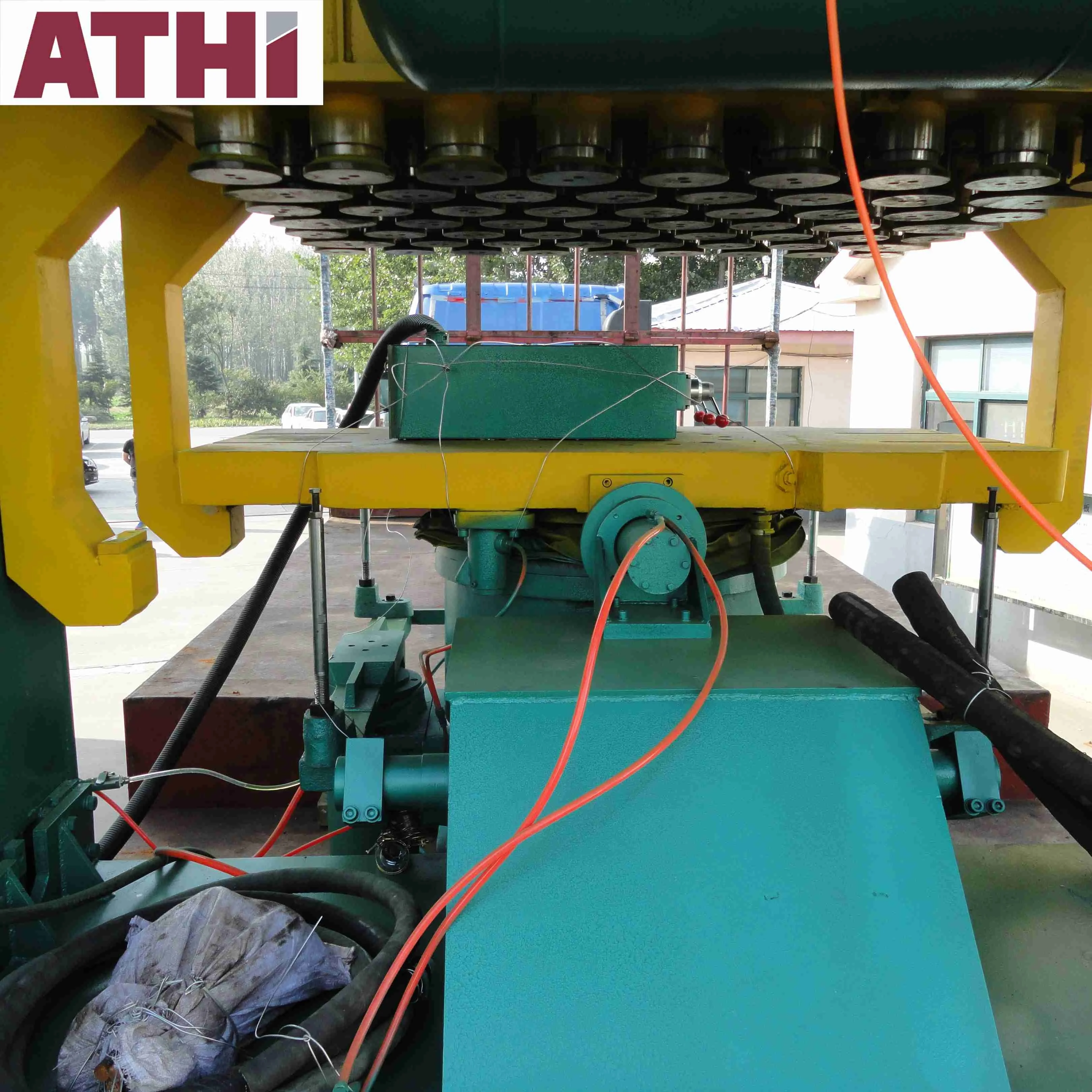

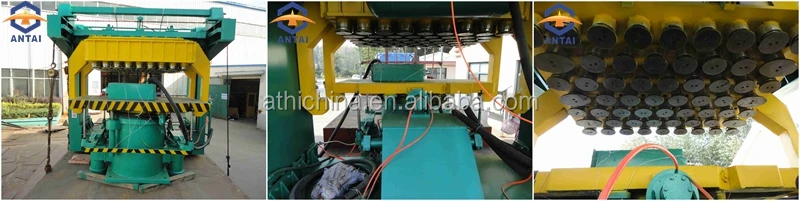

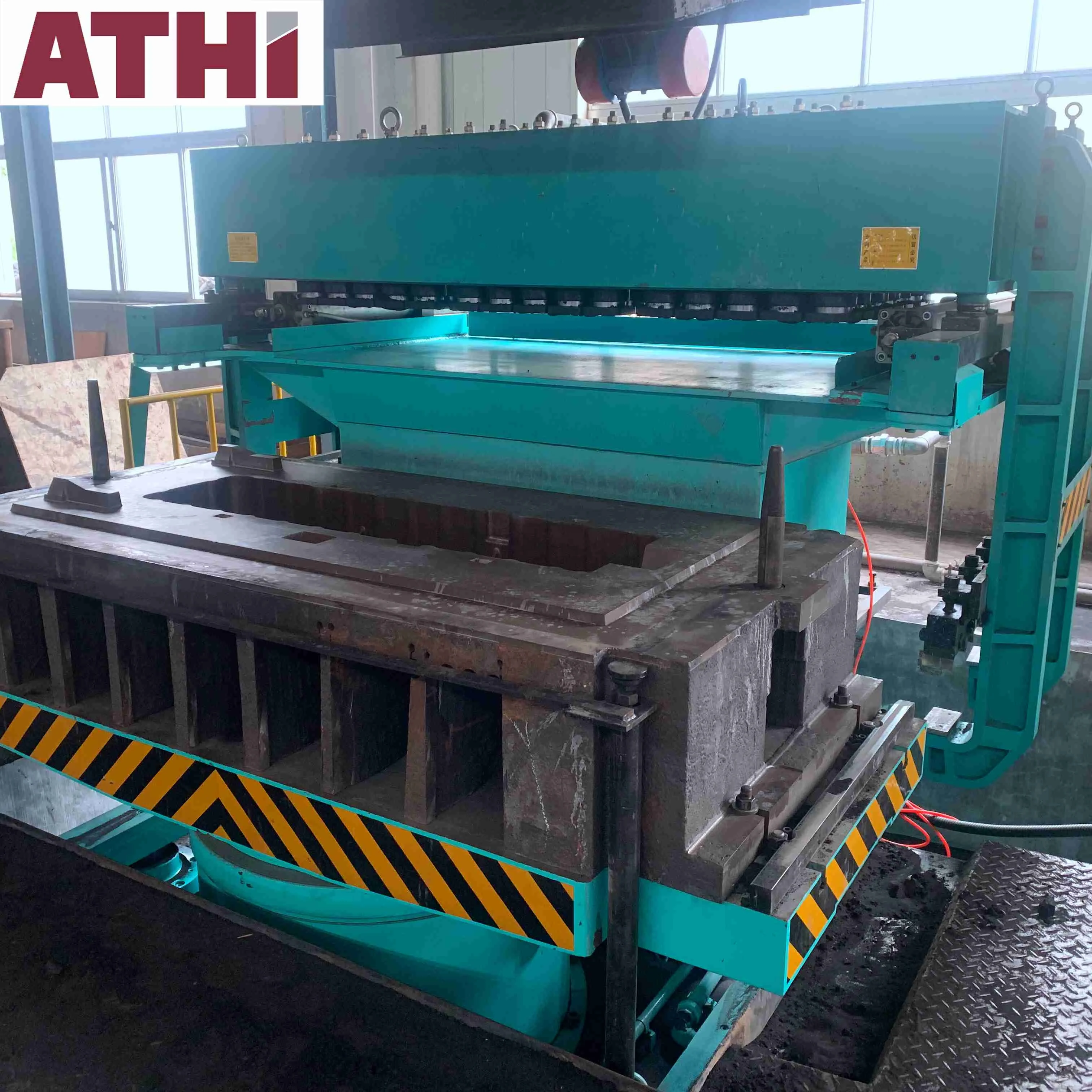

Foundry high pressure sand casting molding machine

Product description

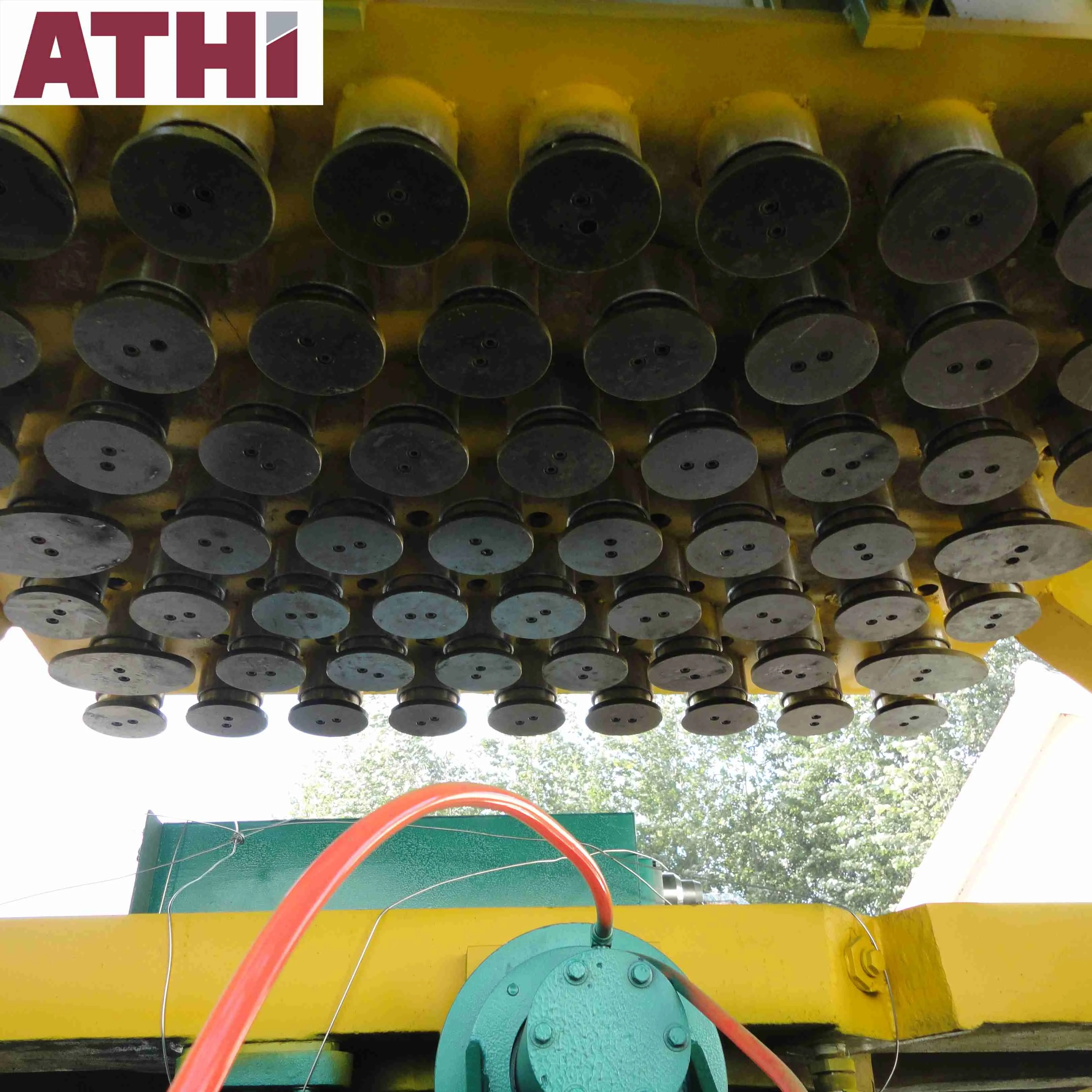

High pressure multiple contacts moulding machine is suitable for mass production of single molding plate or single molding box of medium and small sized castings, which can produce cope or drag. The machine adopts micro vibration compaction mechanism, large shock force and compaction strength. So it can meet simple or complex molding requirements withour pre-shock.  It is one of the indispensable tools for mechanized molding and has gradually replaced traditional manual moldling.

This machine consisits of machine body, pattern stripping mechanism, jolting compaction mechanism, rocker arm pressure head part and pneumatic piping system.

Technical Specifications

Item	ZD0806	ZD1008	ZD1206	ZD1409	ZD1907
Internal size of sand box(mm)	800×630×300	1000×800×300	1200×630×300	1400×900×300	1520×1200×190
Worktable size(mm)	950×730	1150×850	1500×900	1500×900	1980×1080
Working pressure (Mpa)	0.58	≥0.55	≥0.55	≥0.55	≥0.55
Multi contacts compaction stroke(mm)	200	200	200	260	250
Compaction ratio pressure(0.58Mpa)	4.0kg/m2	3.8kg/m2	4.1kg/m2	4.5kg/m2	4.2kg/m2
Jolt load(kg)	350	750	2000	2500	1000
Molding cyliner stroke(mm)	300	350	350	350	350
Max distance from worktable to contacts lower plane(mm)	435	535	560	560	435
Productivity (half box/hour)	35~40	35~40	35~40	35~40	35~40
Free air consumption	2.5m3/half box	2.5m3/half box	2.5m3/half box	3.0m3/half box	3.0m3/half box
Overall dimension (mm)	2175×1600×2380	2480×1980×2440	2410×2538×2632	2450×2978×2795	2740×2100×2900

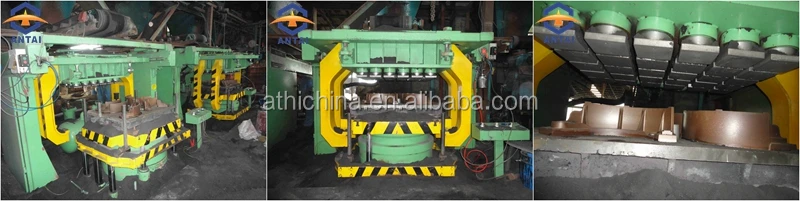

ZD0806 High Pressure sand Casting Molding Machine

ZD1206 High Pressure sand Casting Molding Machine

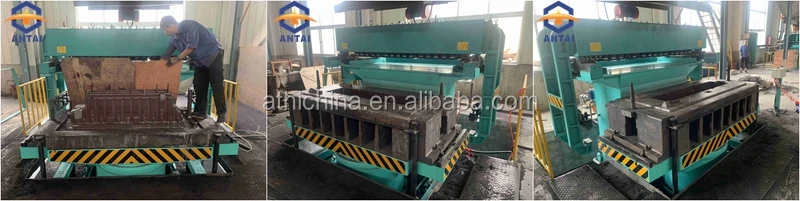

ZD1907 High Pressure sand Casting Molding Machine
