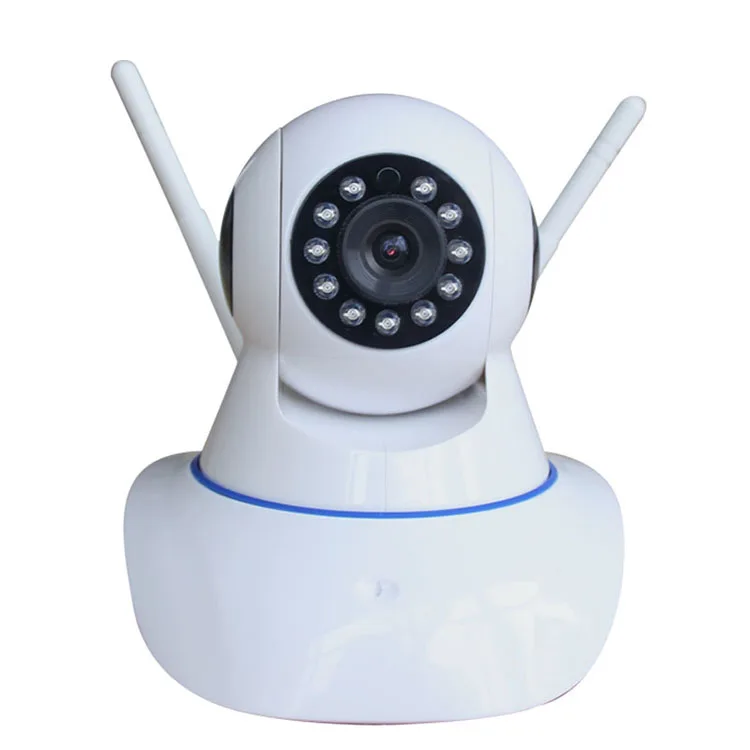

New Vision Pan/Tilt/Zoom Mini Camera WiFi Home Security Surveillance Indoor CCTV Wireless IP Camera

Product Overview

Description

New Vision Pan/Tilt/Zoom Mini Camera WiFi Home Security Surveillance Indoor CCTV Wireless IP Camera



Features:

1.Use P2P cloud technology, plug and play, without complex settings, can penetrate a variety of broadband networks.

2.Equipped with the cloud ID, realize one-touch remote control.

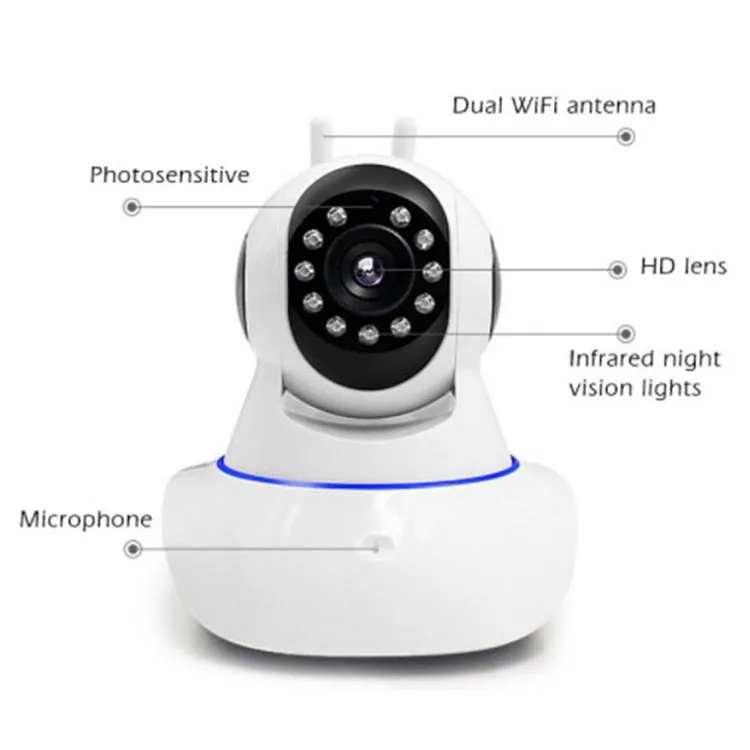

3.Support remote video and sound monitoring on mobile phone and computer at the same time. Built with microphone & speaker, support two way audio.

4.With built-in WIFI antenna, no complex wiring.

5.Support the iOS / Android system and support multilingual languages.

6.Support motion detection alarm : can set motion detection alarm, will send alarm and picture or video to specified email.

7.Computer client CMS software, can centrally manage and monitor a number of equipment, multi screen monitoring and recording video.

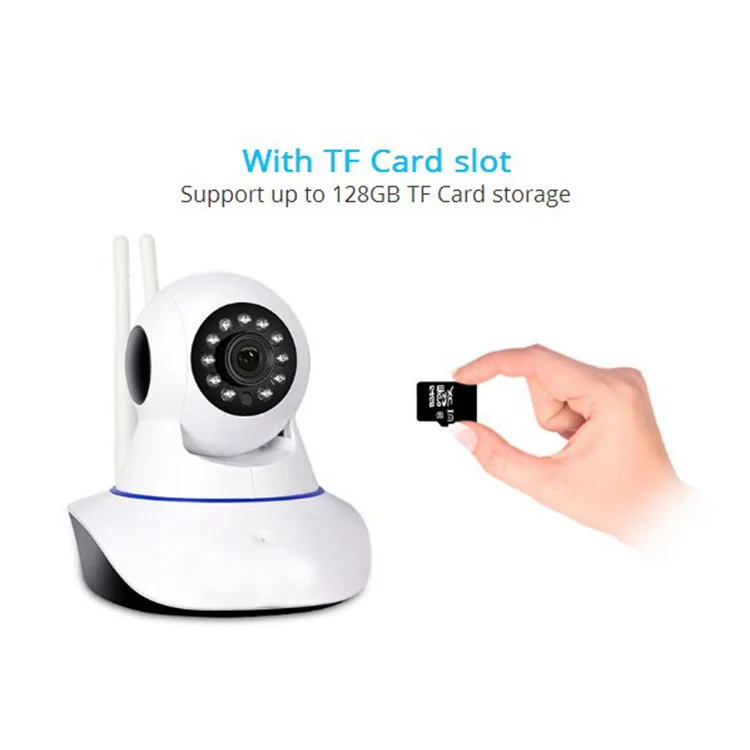

8.Support TF card storage, maximum storage: 128GB

9.Support unlimited users online, at the same time the number of people online up to 5 people



Camera
Sensor	SC1245        SC1235         SC2235
CPU	GK7102S
System	Embedded LINUX  OS
Pixel	720P             960P          1080P
Resolution	1280*720    1280*960        1920*1080
Dynamic range	52dB
Noise reduction	3D DNR
Electronic shutter	1s~1/100000s
Minimum illuminance	Colour: 0.1 Lux(F1.2,AGC ON)
	BW: 0.05 Lux(F1.2,AGC ON); 0 Lux with IR
Color turn Black	Internal/External synchronization,Clour/BW Setting
Lens
Focal length	3.6mm
Horizontal view	78°
Interface type	φ12
Night vision
Infrared distance	10m
Infrared LED	11pcs LED light

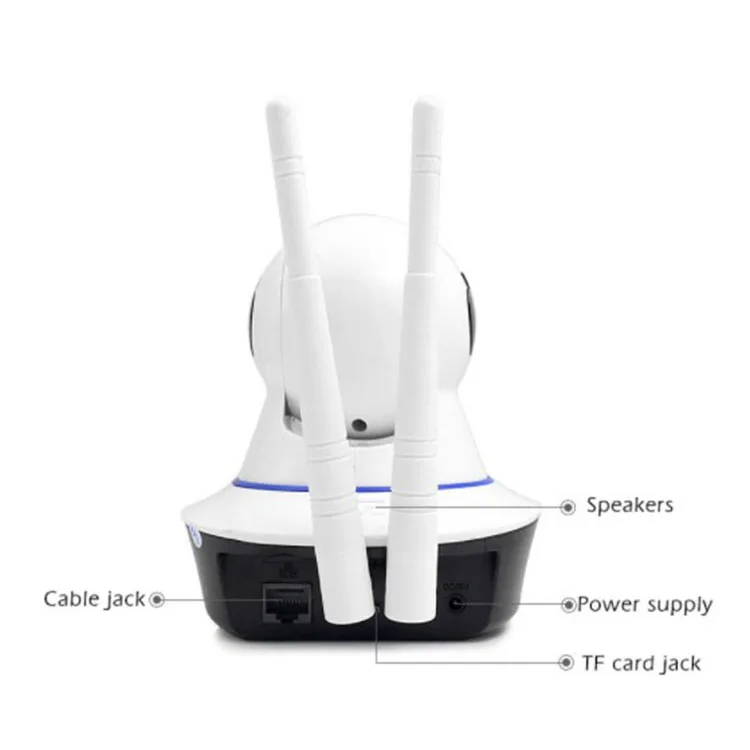

Interface performance
Audio	Built-in microphone and speaker, two way audio
Memory Card	Support
Network	WIFI
Rotation

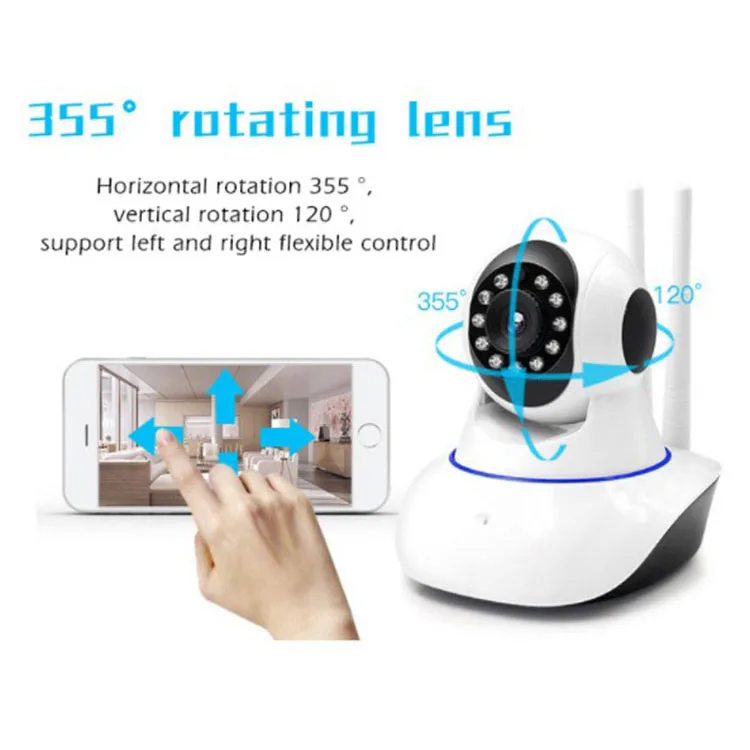

Angle	Pan 355° ,tilt 120°
Speed	10-30°/S
Coding type
Video compression		H.264/M-JPEG
Audio compression		G.711A/G.711U/ADPCM
Coding type		BaseLine Profile/Main Profile/High Profile
Video stream		32K~2Mbps
Audio stream		8Kbps,32Kbps,48Kbps
Transmission mode		Dual stream
Other functions
Local storage	Micro SD Max Support 128GB
Network protocol	TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE
	DDNS/NFS/FTP/NTP/RTP/RTSP/SNMP/SMTP
IP address	Support static and dynamic IP addresses
System permission	Username and password custom
System clock	Built-in clock,External synchronization,NTP,Time zone
Remote management	Remote update and Setting
Smart alarm	Motion detection
General specification
Levels of protection		lightning protection ,surging protection
Temperature		-20℃~60℃
Humidity		0~95%(No condensation)
Power supply		DC5V
Power consumption		<7.5W
Product size		110mm*140mm*130mm



















Shenzhen Jeas-union Industrial co.,ltd, as the top 3 biggest manufacturer on wifi cameras in shenzhen,china, we have plentiful experience and resources to meet the demands from different markets around the global. We've grown into a fully automated manufacturer providing fast and high-quality OEM/ODM services.

Our products include: wifi camera,wireless security camera,smart ip camera,pan&tilt camera, indoor ip camera,waterproof outdoor camera,care home camera,panoramic camera,VR camera,hidden light bulb cameras .smart cloud cameras totally are hundreds of models.

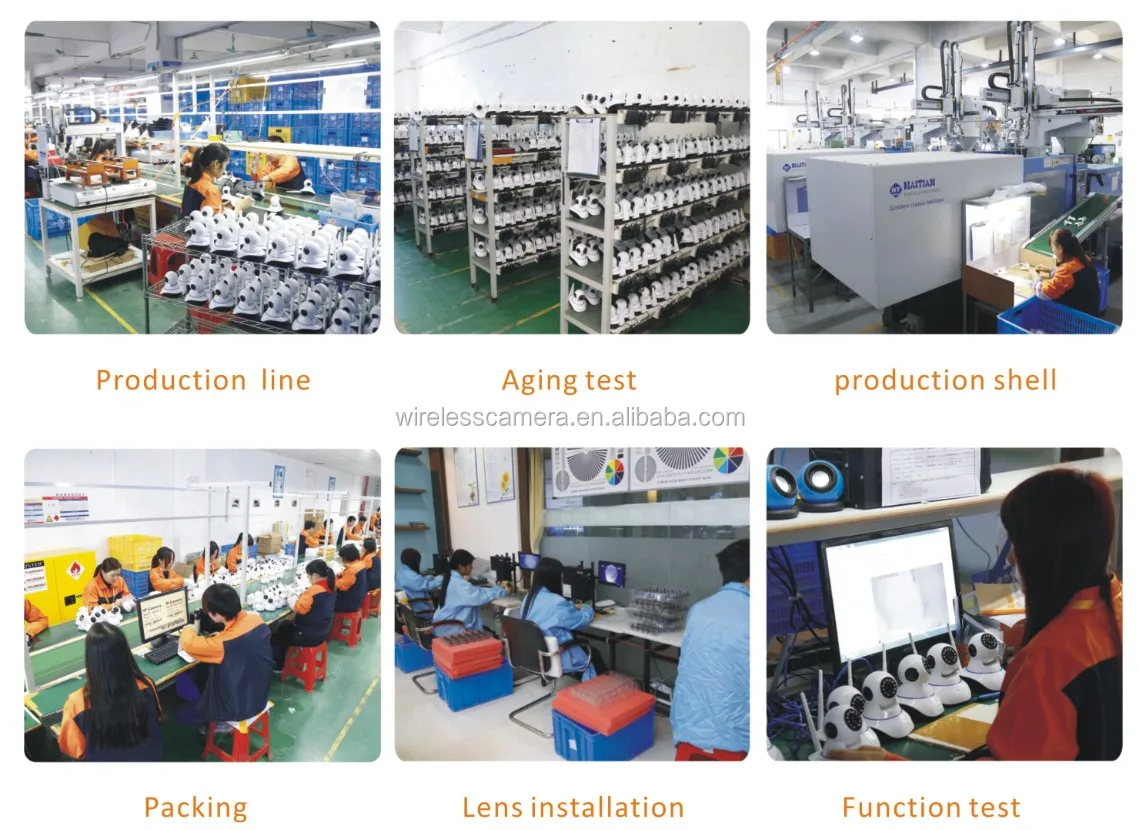

We have more than 4000m2 factory area and 500 workers,40 qualified engineers,35 R&D technicians and monthly capacity 400,000pcs and more than 45 salesman elite team.

Plus, we take advantages of world-class export and transportation infrastructure to guarantee tight delivery schedules. For speed, accuracy, and consistency on your next order,we always have new products to the market in 1-2 months ,and we have special team work for amazon seller ,can make sure high quality product OEM/ODM service,can supply SDK to do customized service,and professional after sale service supporting.

Email us today now ,welcome send inquiry to our company, we will be glad to establish friendly business relationships with your esteemed company!
