Good care ptfe coated mesh belt
- Category: >>>
- Supplier: Taixing Kaixin Composite Materials Co. Ltd.
Share on (62572764422):
Product Overview
Description
Product Description

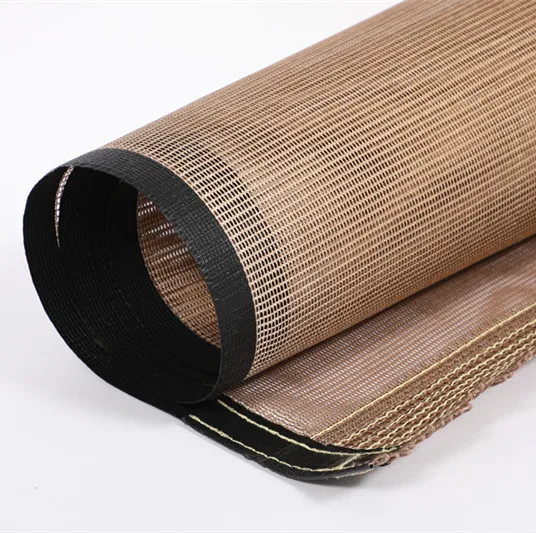

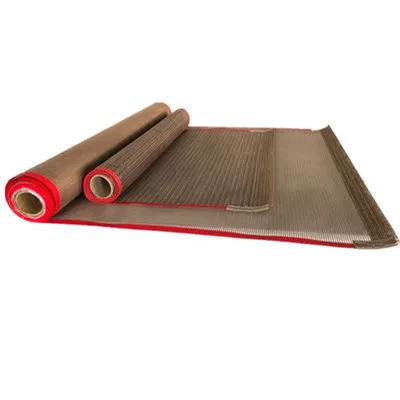

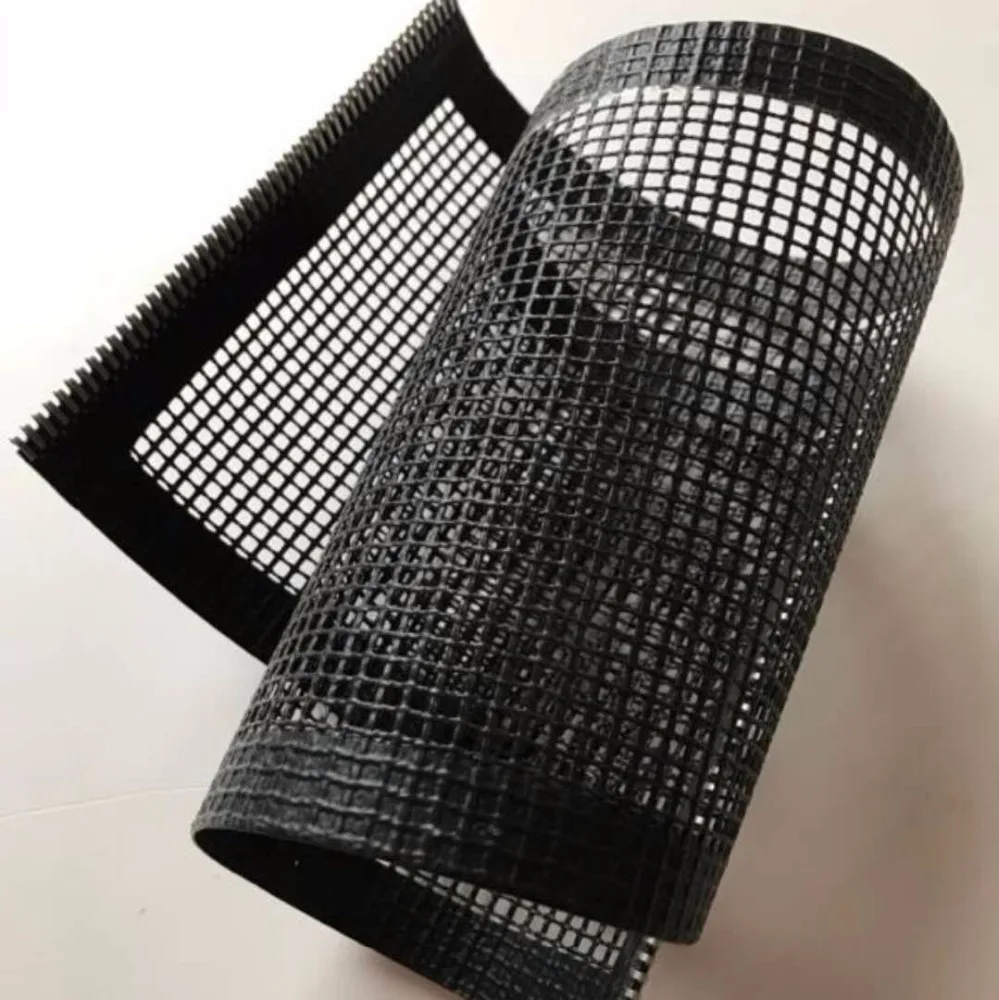

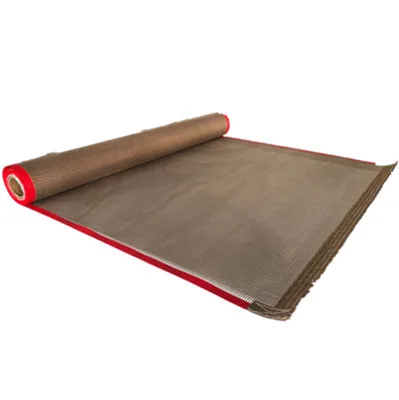

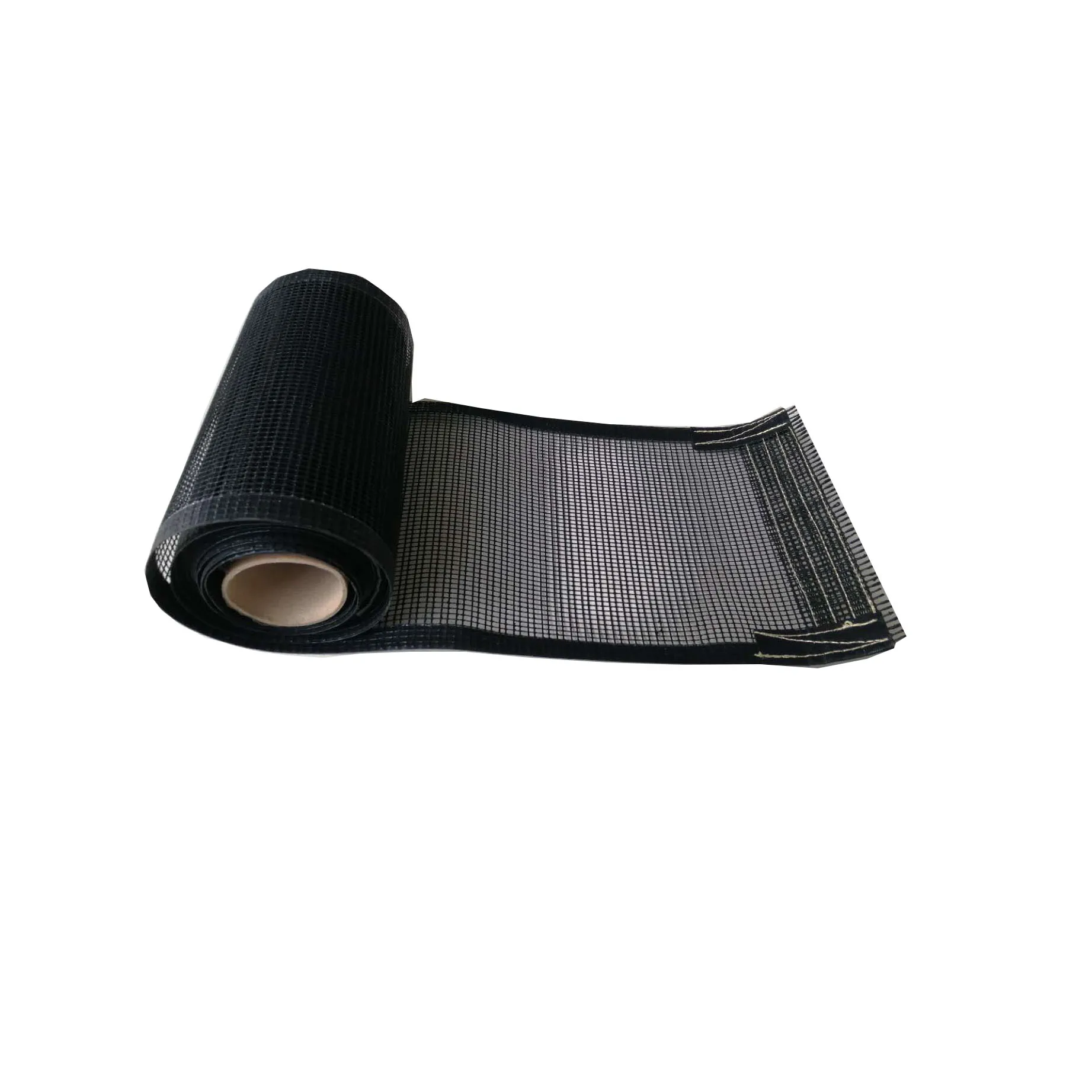

Good care ptfe coated mesh belt
Open mesh belts are constructedwith PTFE impreganated coated fiberglass, aramid(or both) and polyester mesh materials that are
both durable and food safe. A wide selection of splice, edge and tracking options ensures that belts are constructed in the best
way of their intended purpose.
Belts are available in any length , and widths of up to 4000mm.
both durable and food safe. A wide selection of splice, edge and tracking options ensures that belts are constructed in the best
way of their intended purpose.
Belts are available in any length , and widths of up to 4000mm.
Features
1. Non-stick surface;
2.Chemical resistance, anti corrion for the resins on the surface;
3.Exceptional strength and dimensional stability;
4. high temperature resistance -70 to 260℃ (-100 ℉ to +550 ℉) perfect for many drying application.
2.Chemical resistance, anti corrion for the resins on the surface;
3.Exceptional strength and dimensional stability;
4. high temperature resistance -70 to 260℃ (-100 ℉ to +550 ℉) perfect for many drying application.
Application
1.Silk screen dryer;shrink tunner; UV dryer; rotary printing machine;
2.Drying textiles and non-woven materials;
3.Side and base sealing auto pack machines;
4.Re-soldering and ink drying cable braiding;
5.Food drying and so on
2.Drying textiles and non-woven materials;
3.Side and base sealing auto pack machines;
4.Re-soldering and ink drying cable braiding;
5.Food drying and so on
To enhance belt strngth and performance for different application and machinery , belts are fabricated based on end-user and OEM

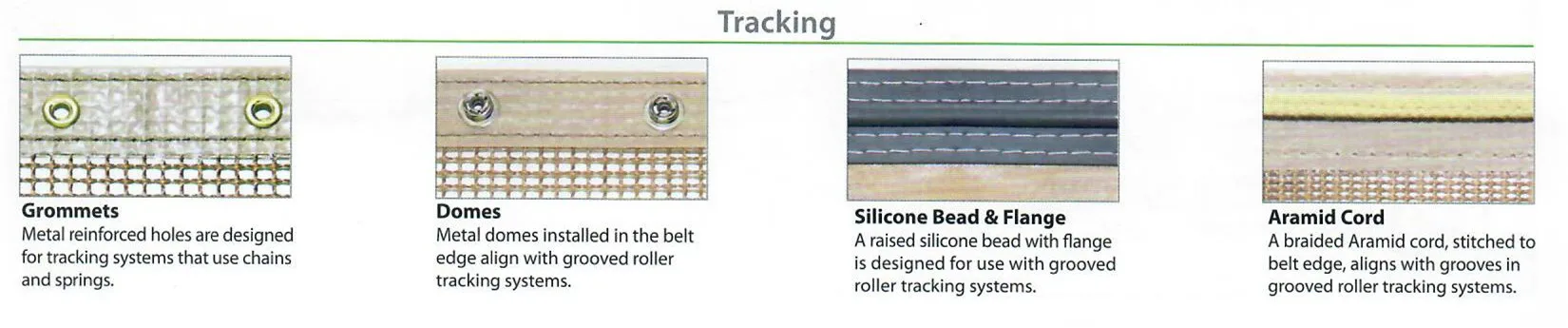

specification with various Edge, Joint and Guiding(tracking) options
specification with various Edge, Joint and Guiding(tracking) options

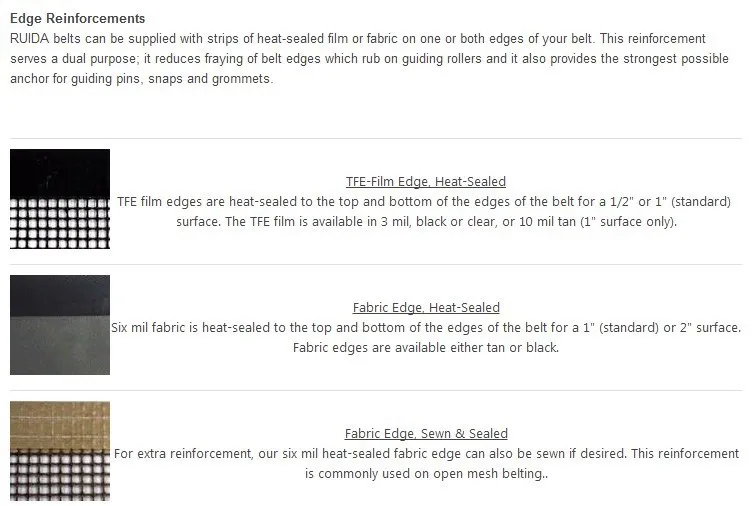

Different covered edge
All depend on customers need. For the film will have three colors : white , red, black .And for the fabric edge, we usually have brown, black and white colors.

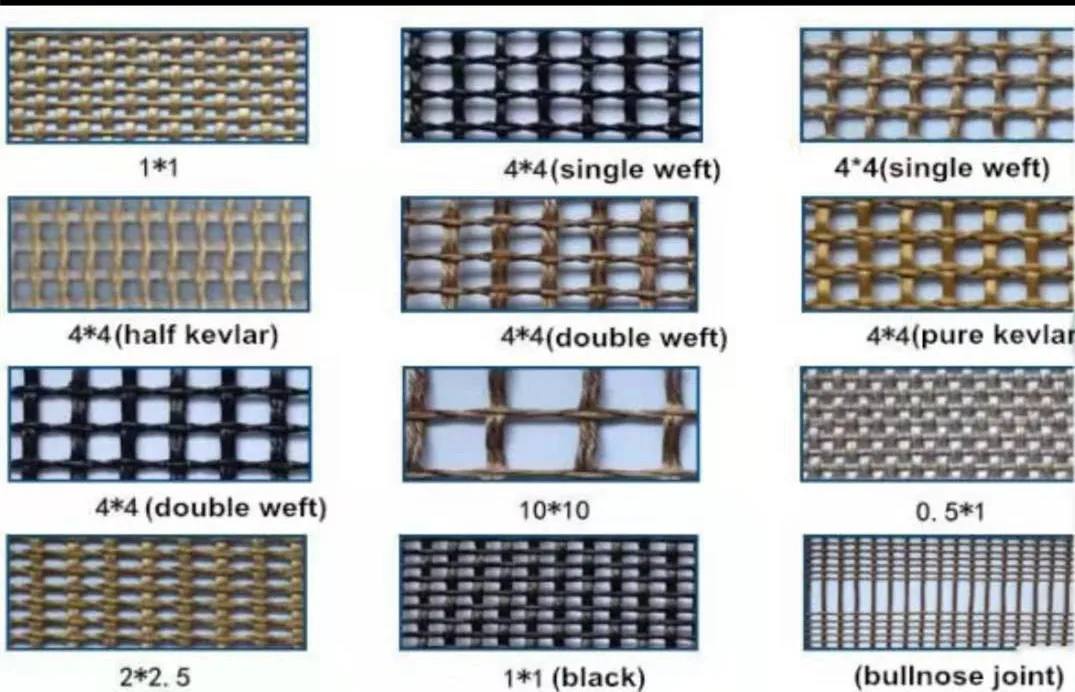

Item No | Mesh size | Basic materials | Nominal Weight | Res. Temperature | Max. Width | Tensile strength |
KW001 | 1x1mm | PTFE+glass | 410g/m² | -70-260℃ | 3000mm | 1600/1500N/5cm |
KW001B | 1x1mm | PTFE+glass | 410g/m² | -70-260℃ | 3000mm | 1600/1500N/5cm |
KW004 | 4x4mm | PTFE+glass | 460g/m² | -70-260℃ | 4000mm | 2100/1500N/5cm |
KW004B | 4x4mm | PTFE+glass | 460g/m² | -70-260℃ | 4000mm | 2100/1500N/5cm |
kW004D | 4x4mm | PTFE+glass | 480g/m² | -70-260℃ | 4000mm | 2800/1580N/5cm |
KW004DB | 4x4mm | PTFE+glass | 480g/m² | -70-260℃ | 4000mm | 2800/1580N/5cm |
KW004FK | 4x4mm | PTFE+glass | 550g/m² | -70-260℃ | 4000mm | 3500/3300N/5cm |
KW10 | 10x10mm | PTFE+glass | 540g/m² | -70-260℃ | 3000mm | 1100/1000N/5cm |
KW051 | 0.5x1mm | PTFE+glass | 440g/m² | -70-260℃ | 3000mm | 2200/1500N/5cm |
KW225 | 2x2.5mm | PTFE+glass | 520g/m² | -70-260℃ | 3000mm | 2200/1500N/5cm |

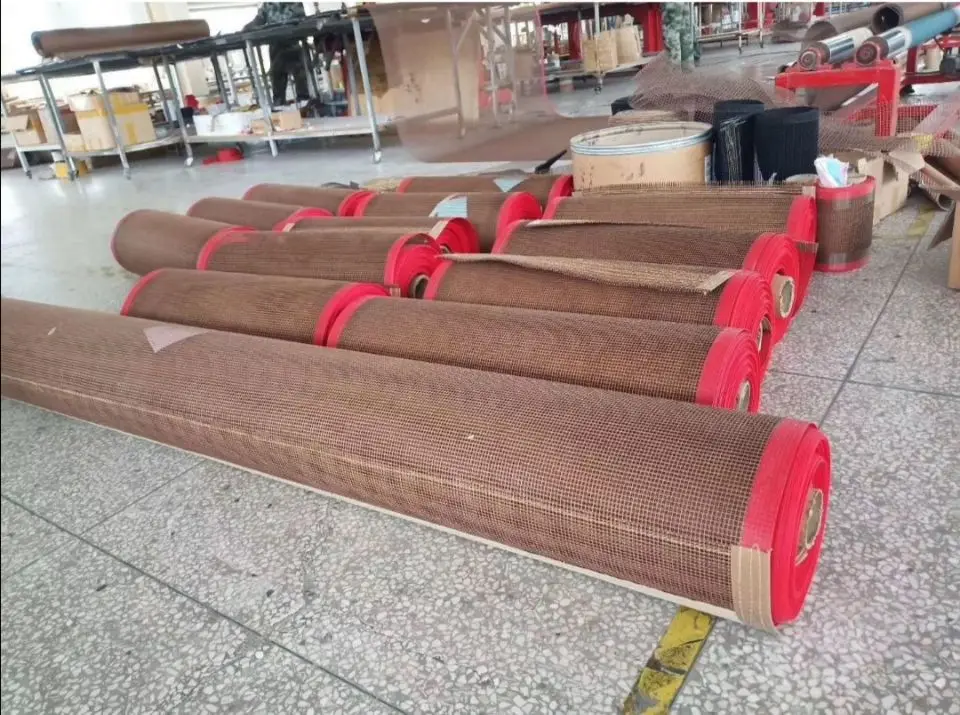

Packing & Delivery
We packed in rolls in differents pallets, such as wooden pallets and iron pallets depend on the length of rolls.
We delivery the products by express, by air, by train ,by truck and by sea depend on customers' need, the quantity of products.
Our Company
This is Taixing k-fab Technology & Materials Co., Ltd who specialized in producing and selling various of high performance industrial composite materials, mainly products include: PTFE-Teflon coated fiberglass fabric, conveyor belt , silicone coated fiberglass fabric , food grade PTFE-Teflon and silicone baking liner, mat and other relative heat resistant PTFE and silicone materials. Our company have a professional team with good experience on thermal materials, the company applies strict quality control system and service system, contribute to those customers and market where need high performance composite materials from textile, dyeing, printing, food drying, petroleum, steel, chemical, medicine industries etc., the company's product has covered all over China and sold to many foreign countries with good reputation.
Certifications
FAQ
How to adjust Teflon mesh conveyor belt when it’s deviated?
If the Teflon mesh belt deviation range is relatively small, we can install aligning roller in the conveyor belt deviation; If the
Teflon mesh conveyor belt suddenly left and right and the deviation is uncertain, maybe the Teflon mesh conveyor belt is loose, we
can make appropriate adjustments to tighten the device to eliminate deviation. If the Teflon mesh conveyor belt has remained to
the side of the deviation, a number of vertical rolls can be installed within this range, So that the Teflon mesh conveyor belt to
restore the original location, If the deviation of the largest position in the joints, we can correct the Teflon mesh conveyor
belt joints and conveyor belt center line vertical to eliminate the deviation; If the Teflon mesh conveyor belt deviation in the
roller, maybe there is some problem in roller, to adjust the roller to the horizontal position to rotate and the deviation can be
solved. If the direction and distance of the Teflon mesh conveyor belt deviation are certain, we can pad a number of high roller
in the direction of the opposite side of the run to eliminate the deviation; If the direction of the deviation does not change,
maybe the middle of the roller and the Teflon mesh conveyor belt is not in the same vertical line, checking and adjusting the
roller to eliminate the deviation; if deviation point unchanged, some appendages found while checking trailer and roller, the
deviation can be eliminated after removing the appendages; If the direction and location of the deviation does not change, but the
deviation is very serious, it may be that the scaffold level and verticality are incorrect and can be adjusted to the correct
position.
Teflon mesh conveyor belt suddenly left and right and the deviation is uncertain, maybe the Teflon mesh conveyor belt is loose, we
can make appropriate adjustments to tighten the device to eliminate deviation. If the Teflon mesh conveyor belt has remained to
the side of the deviation, a number of vertical rolls can be installed within this range, So that the Teflon mesh conveyor belt to
restore the original location, If the deviation of the largest position in the joints, we can correct the Teflon mesh conveyor
belt joints and conveyor belt center line vertical to eliminate the deviation; If the Teflon mesh conveyor belt deviation in the
roller, maybe there is some problem in roller, to adjust the roller to the horizontal position to rotate and the deviation can be
solved. If the direction and distance of the Teflon mesh conveyor belt deviation are certain, we can pad a number of high roller
in the direction of the opposite side of the run to eliminate the deviation; If the direction of the deviation does not change,
maybe the middle of the roller and the Teflon mesh conveyor belt is not in the same vertical line, checking and adjusting the
roller to eliminate the deviation; if deviation point unchanged, some appendages found while checking trailer and roller, the
deviation can be eliminated after removing the appendages; If the direction and location of the deviation does not change, but the
deviation is very serious, it may be that the scaffold level and verticality are incorrect and can be adjusted to the correct
position.
