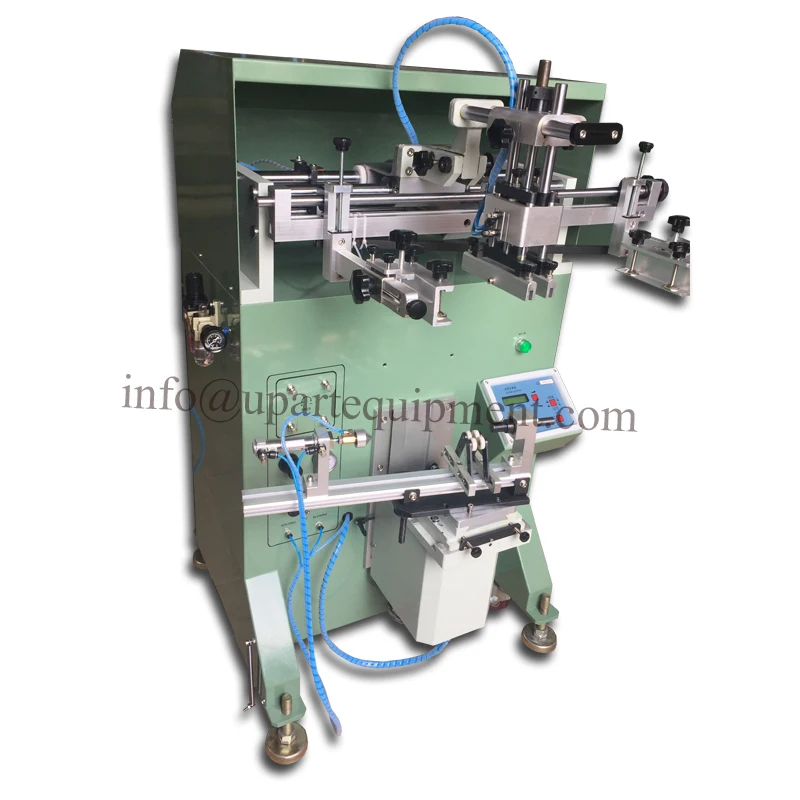

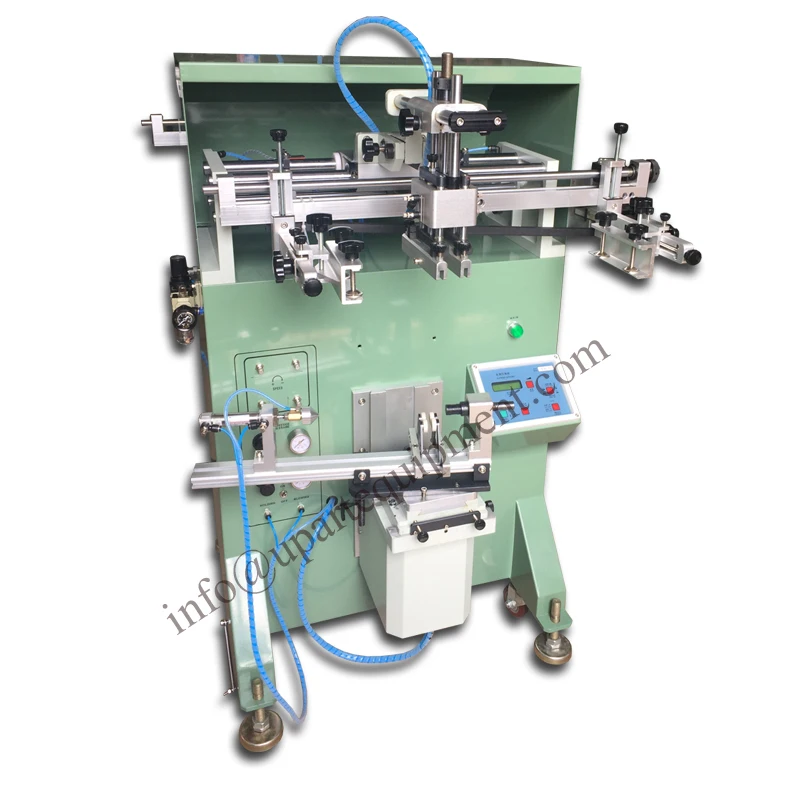

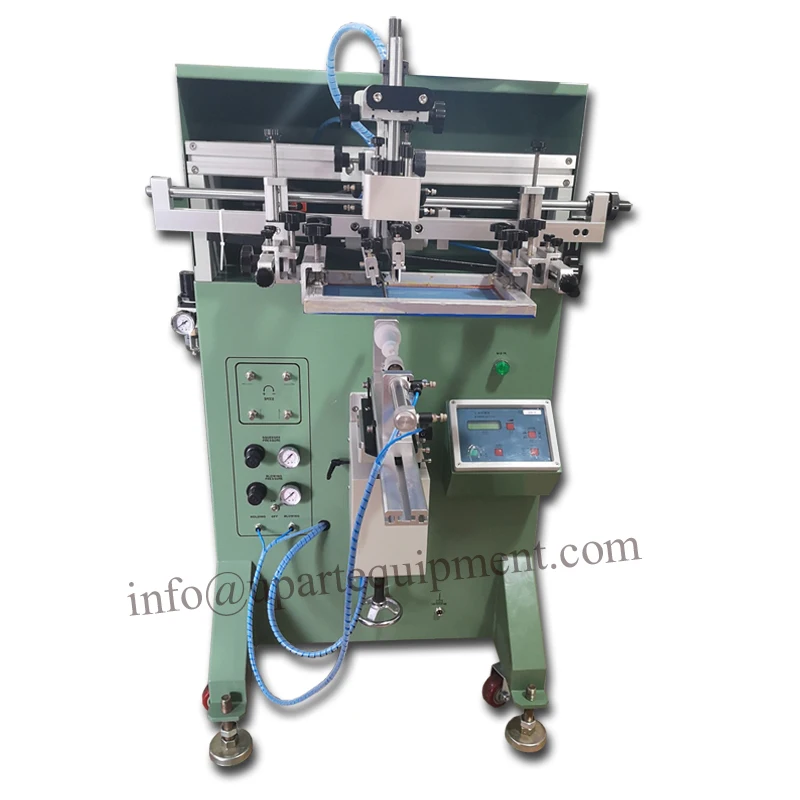

Cheap Tube Screen Printers Curved Stencil Machine Silk screen Printing Equipment For Pipes

 Application:

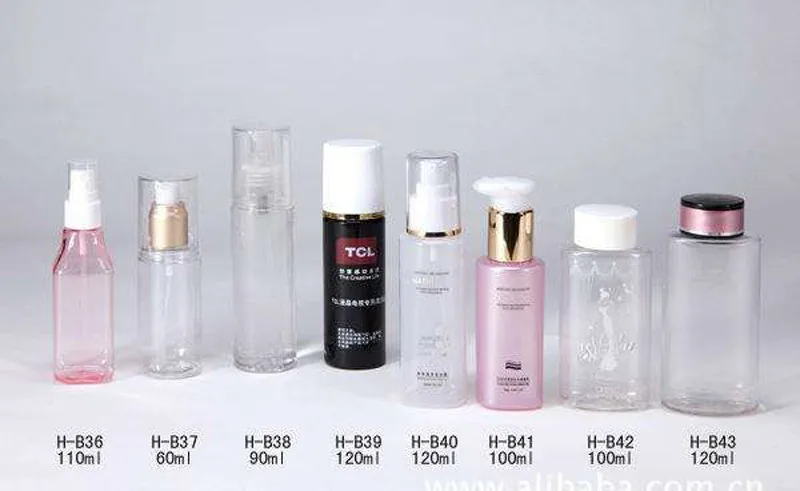

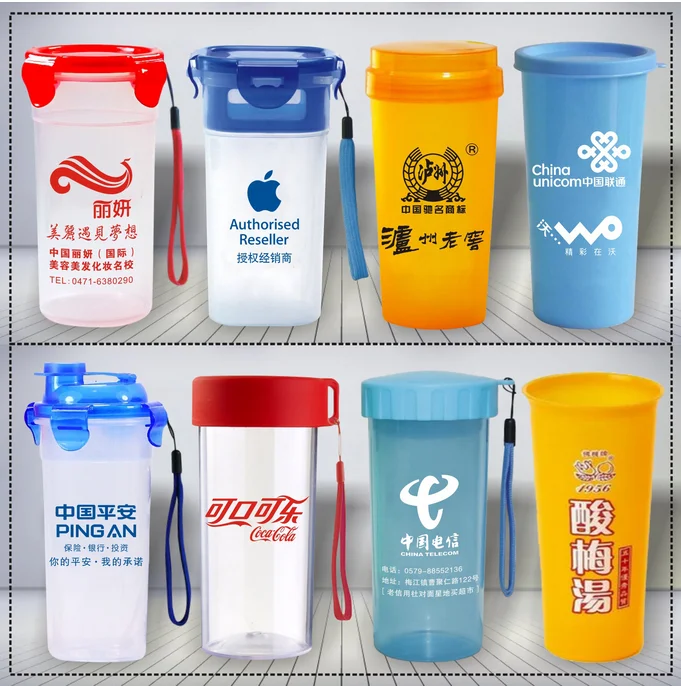

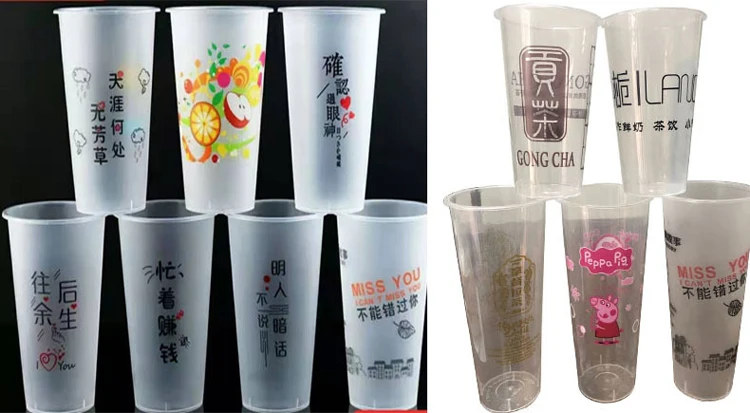

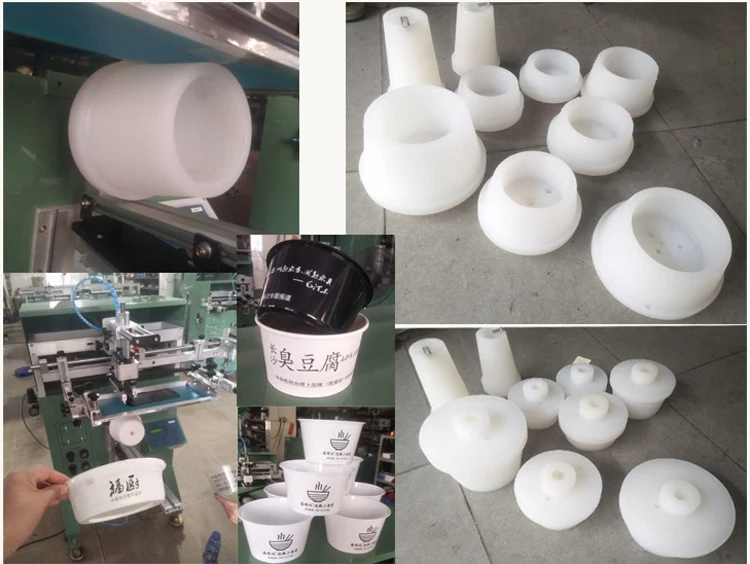

This style screen printing machine is suitable to printing on cylinders, ovals, flat products made of round, curved materials such as ceramic, plastic, glass, wood, metal, etc. , Cups, filters, cans, toys, paint buckets, buckets, mineral water buckets, etc .;

High-precision printing of surface patterns and characters for packaging containers for daily necessities, medicines, foods, etc., electronic devices, toys, tools, etc.

Cheap Tube Screen Printers Curved Stencil Machine Silk screen Printing Equipment For Pipes  Feature:

1 Microcomputer control each function with high automation and easy operation;

2 Equipped with four-digit auto counter;

3 It has a round face, cone, plane and other printing functions;

4 Printing stroke and speed is adjustable for meet different printing request.

5 Workbench up/down, left/right is adjustable. High printing accuracy, easy adjust.

6 Pneumatic control printing head with micro computer adjust system.

7 Stable and reliable microcomputer system controller;

8 With foot pedal, easy operate.
9 High quality alloy die-casting parts and wear sleeve bearings;

10 Inverter motor control enables more accurate stopping position;
11 Independent printing and ink cover.
12.Rail structure around slide printing, printing smoother, more accurate

Cheap Tube Screen Printers Curved Stencil Machine Silk screen Printing Equipment For Pipes  Parameter:

Start mold: Panel/ foot pedal

Up/Down drive way: pneumatic

Left/ Right drive way: pneumatic

Up/down stroke: 100mm

Left/ right stroke: 300mm

Max Screen Frame: 500x 400mm

Max printing area: 280mm ( L) x 200mm ( W)

Max printing diameter scope: dia 5-80mm

Max printing length: 280mm

Max printing speed: 1200-1800pcs/hour

Voltage: 220V 50/60HZ 50w

Air pressure: 5-7 bar

Machine dimension: 700x 850x 1250mm

Weight: 120KG

Remark:

1 Package: standard export plywood case

2 Delivery Time: 5 to 7 days when get your payment.

3 Warranty: 1 year
