Greenpedel 36v 48v 350w 500w 750w waterproof electric e bike bicycle battery hub motor conversion kit
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.
Share on (62572843892):
Product Overview
Description

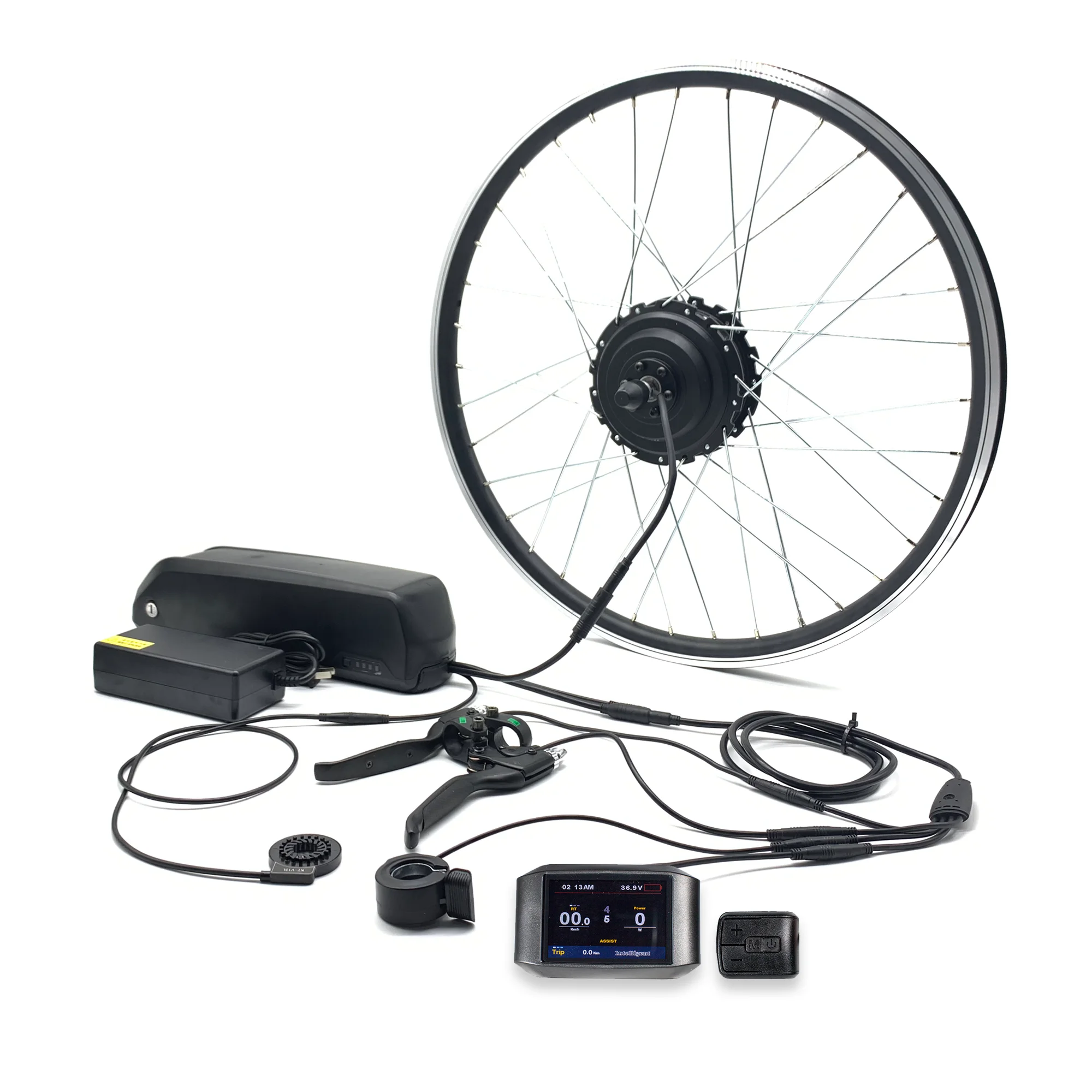

Whole Set Picture
Products Description
Motor | 36v 250w geared brushless hub motor |
Rim | Aluminium double wall rim 1.95-2.25 |
Spokes | 12G/13G |
controller | Controller building inside battery case waterproof |
PAS | V12L PAS |
Ebrake | Wuxing high quality electric brake 115PDD |
throttle | 130X thumb throttle |
Display | LCD/LED |
Battery | 36V/48V 8.8AH to 24.5AH battery |
Charger | 36V/48V 2A charger |
Wiring | Waterproof cable |
Details Images

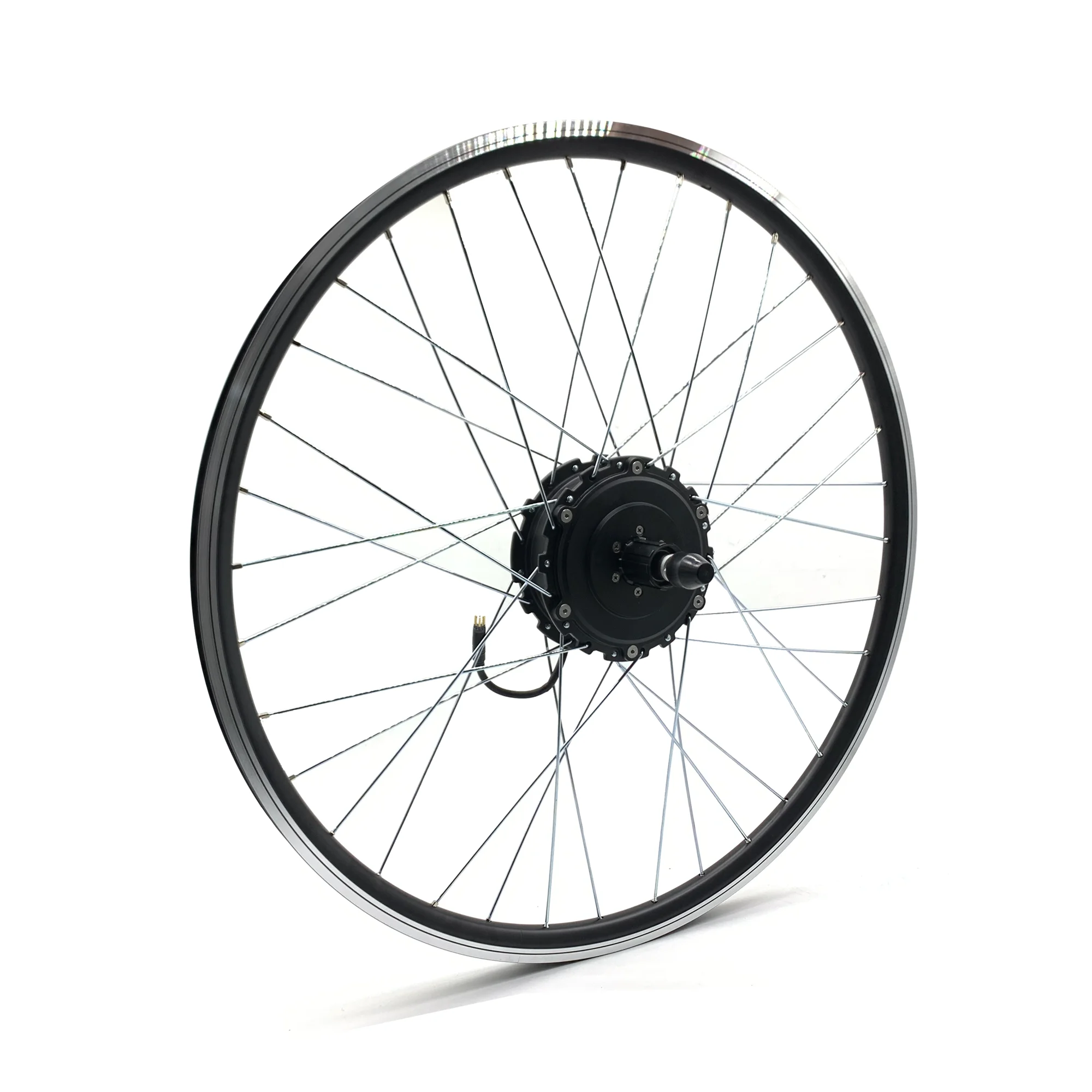

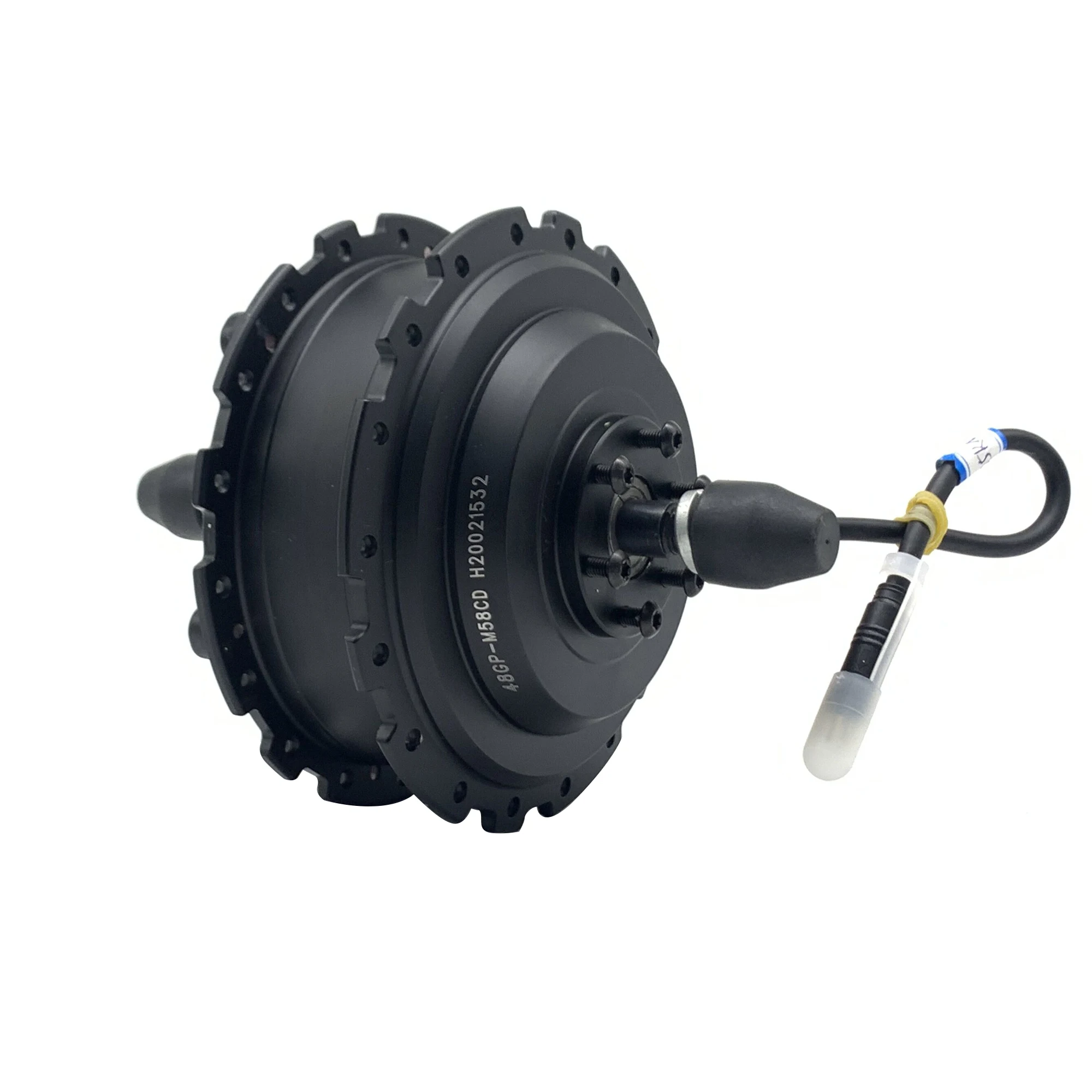

Motor
1) Installation Width:
Front=100mm Rear=135-142mm
2) We have black and silver motors to choose from.
3) The max speed of the motor will be 25KPH-32KPH.(To meet the standard of the EU and North America).
4) The size of the rim is 20",24",26" or 700C(28inch) .Please confirm the size in advance.
2) We have black and silver motors to choose from.
3) The max speed of the motor will be 25KPH-32KPH.(To meet the standard of the EU and North America).
4) The size of the rim is 20",24",26" or 700C(28inch) .Please confirm the size in advance.

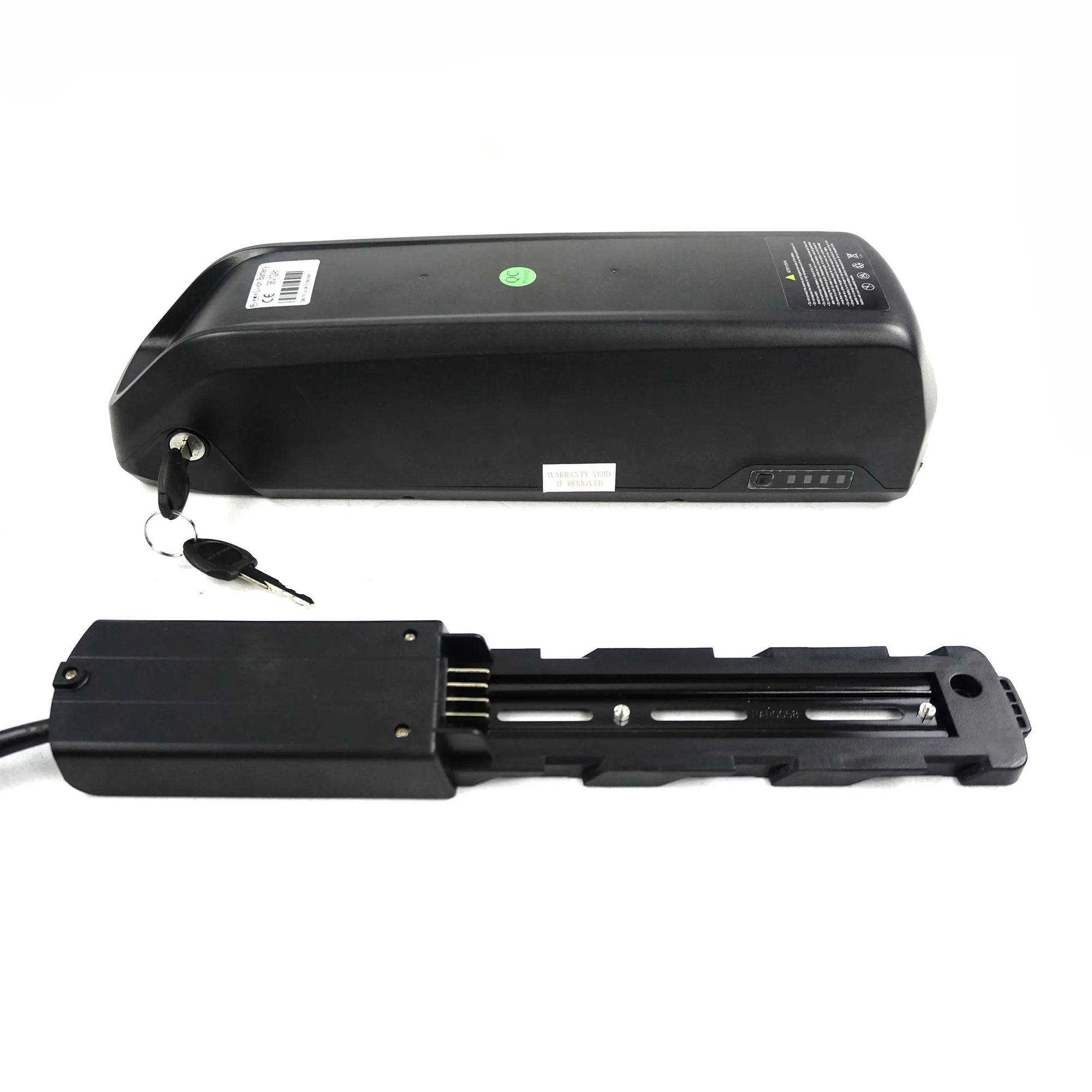

Battery
1) Controller building inside battery case
2)Our lithium battery capacity is from 8.8AH to 24.5AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option
2)Our lithium battery capacity is from 8.8AH to 24.5AH
3) We have Chinese cell, Samsung cell, Panasonic cell and LG cell for option

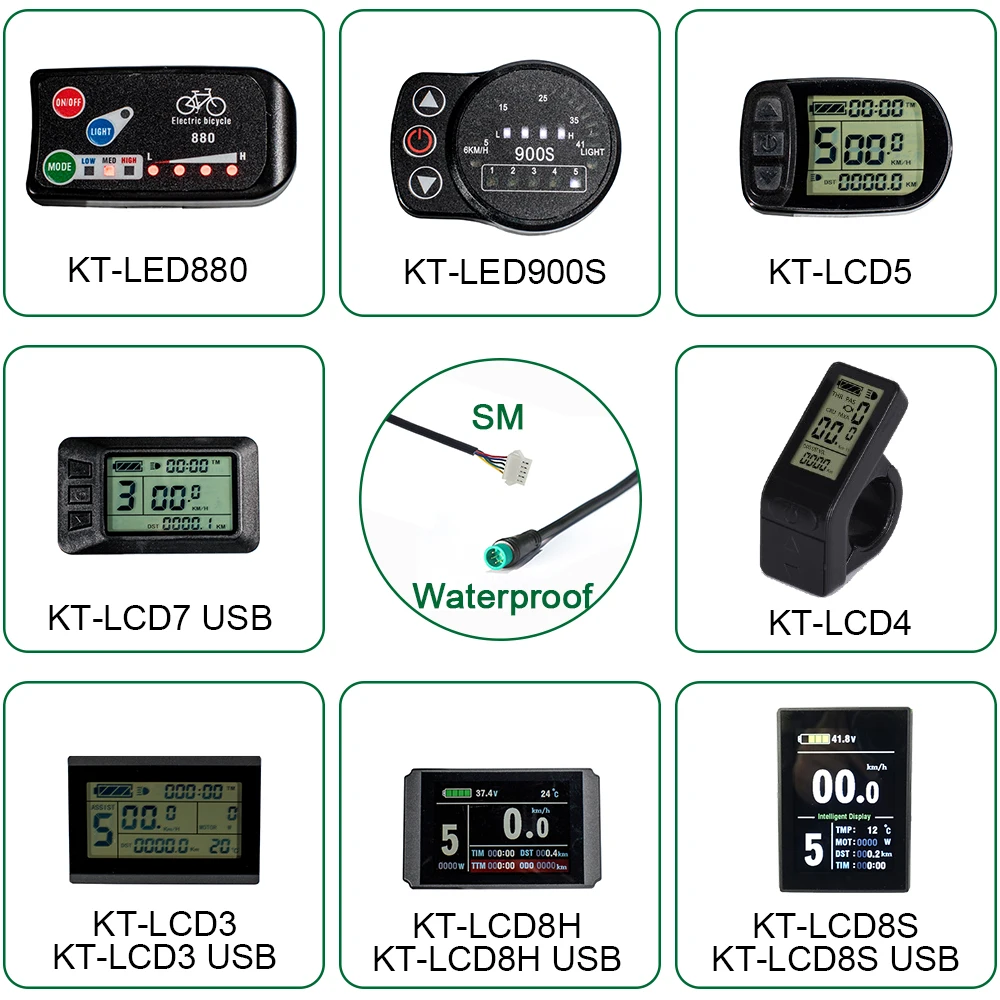

Display
1) Single trip time(TM)+total trip time(TTM) Real time km/h or MPH display
2) Single Max speed(MXS)+single Average Speed(AVS)
3) Single trip distance(DST)+Total Trip distance(ODO)
4)6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5) torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6)24V,36V,48V compatiable.
7) Controller can be reprogrammed by Parameter setting.
8) Data clear+parameter copy+Fault code Disply.
2) Single Max speed(MXS)+single Average Speed(AVS)
3) Single trip distance(DST)+Total Trip distance(ODO)
4)6km/h push funtion,Cruise function.head ligth,back lights, switching opitonal,brake status showing
5) torque sensor imulation speed sensor 0-5 level+ battery capcity showing
6)24V,36V,48V compatiable.
7) Controller can be reprogrammed by Parameter setting.
8) Data clear+parameter copy+Fault code Disply.
E-brake
1)We have high quality e brake and hydraulic brake sensor for option
Throttle
1) We have thumb throttle, half twist throttle and twist throttle for option

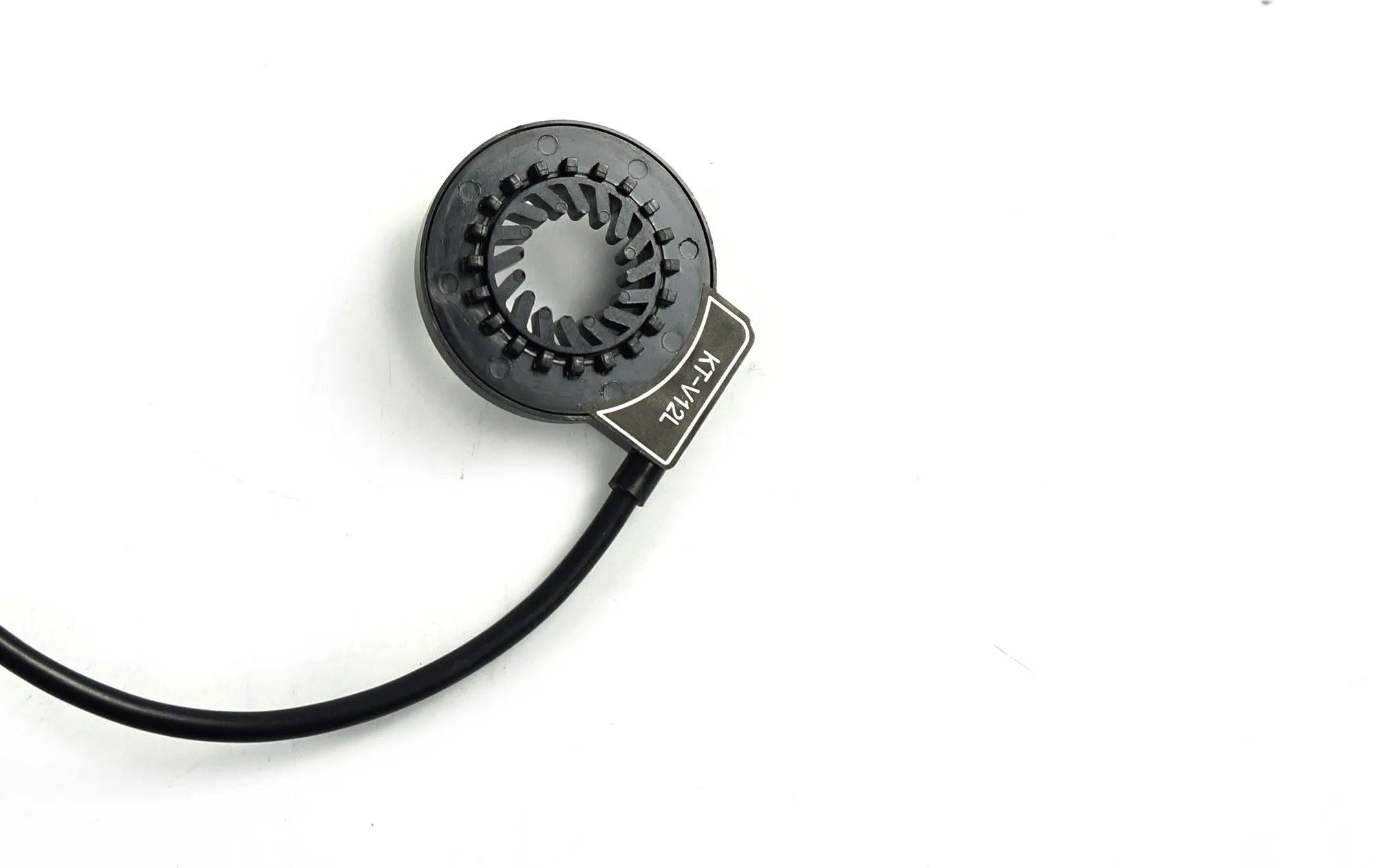

PAS
1)We have 8 magnent PAS, 12 magnent PAS for option
