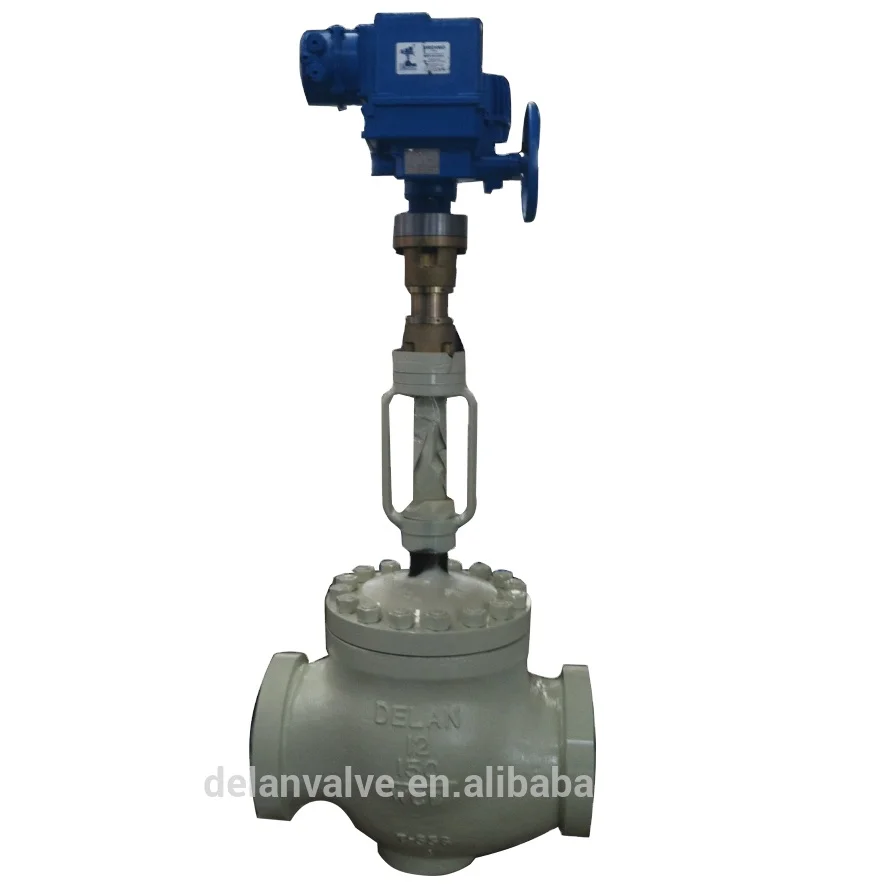

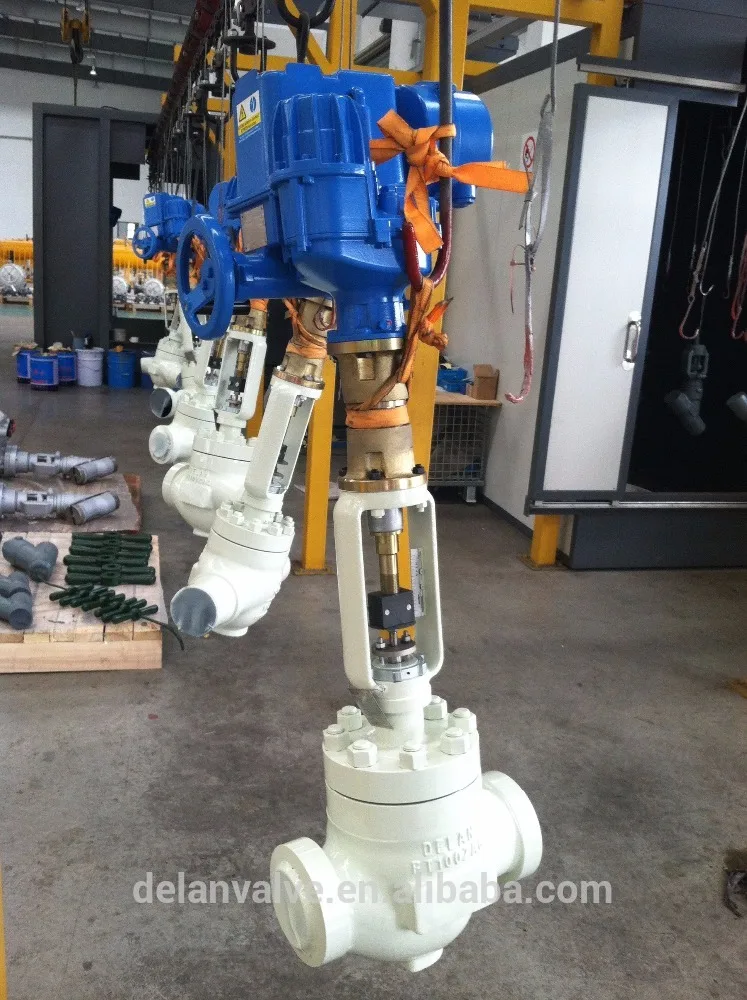

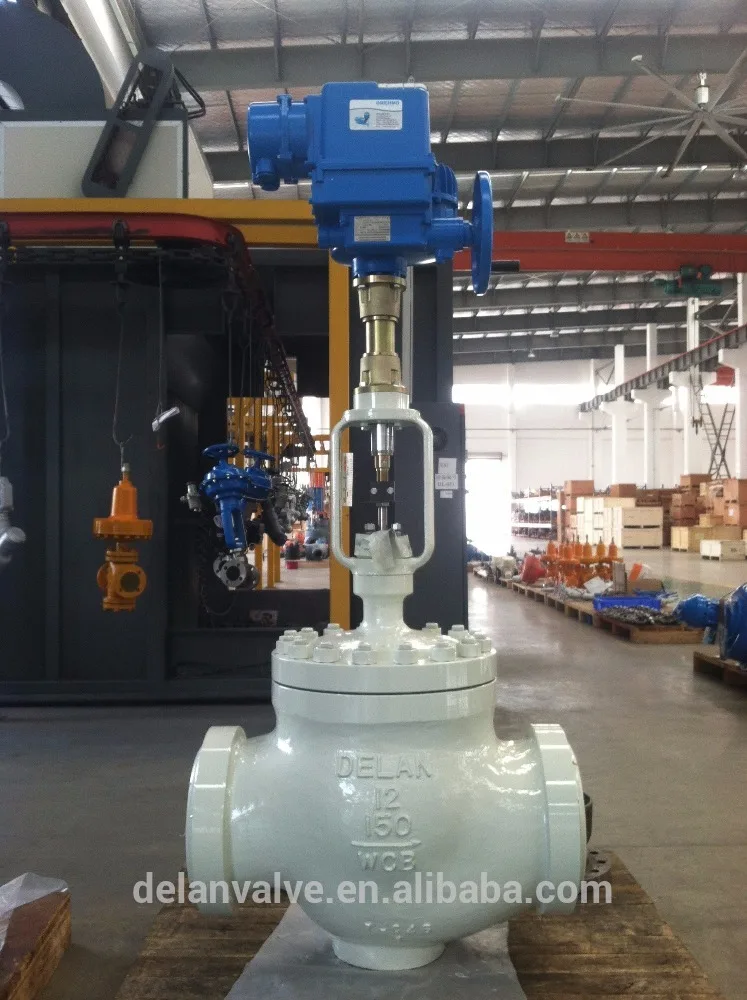

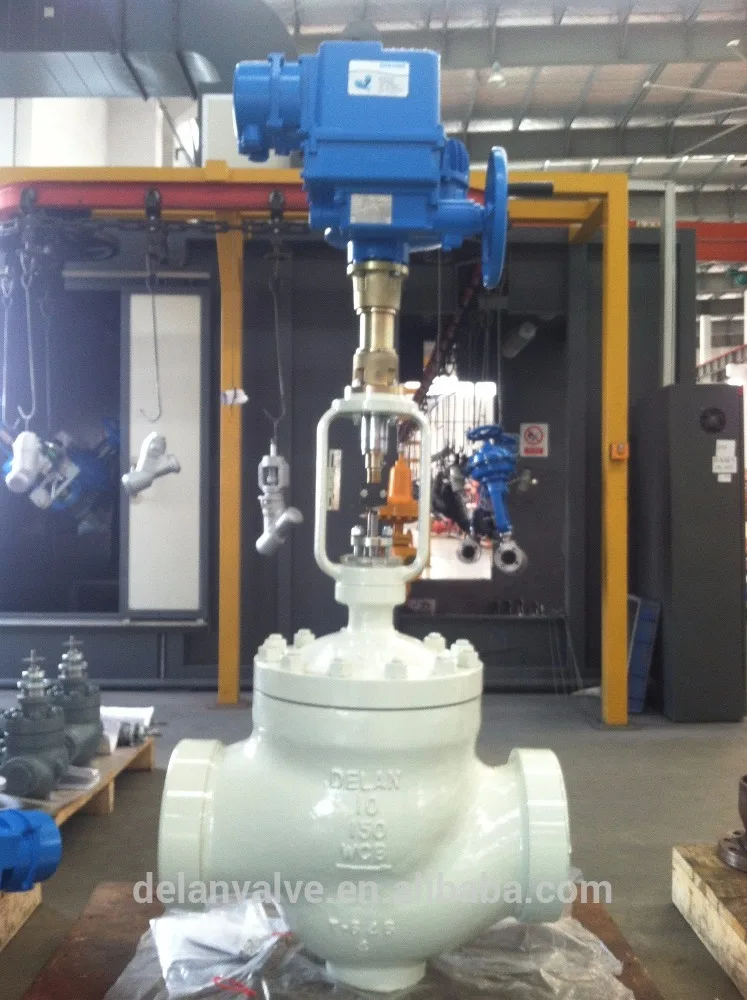

Globe Control Valve Steam Pressure With Electric Actuator Globe Control Valve
- Category: Valves >>>
- Supplier: Suzhou Delan Energy Science & Technology Co. Ltd.
Share on (62572912975):
Product Overview
Description
Products Description
DELAN Valves Characteristics
1. Valve plug has good stability. Rugged cage guiding provides excellent plug stability, which reduces vibration and noise;
2. Larger Flow Capacity. Streamlined flow channel with low flow resistance, provides excellent flow capacity;
3. Balanced Valve Plug Structure. Plug and cage composes of pressure-balanced structure, high precision & wide adjustable range, also suitable for high differential pressure condition. In case of small flow with large differential pressure, the needle valve plug is adopted, which has a large adjustable range and high adjustment accuracy.
4. High-Temperature Capacity with class IV or class V shutoff. Our company adopts Balanced structure, which can realize Class V shutoff at temperatures up to 300 degrees; Using of C -ring metal trim, which can realize Class V shutoff at temperatures up to 593 degrees;

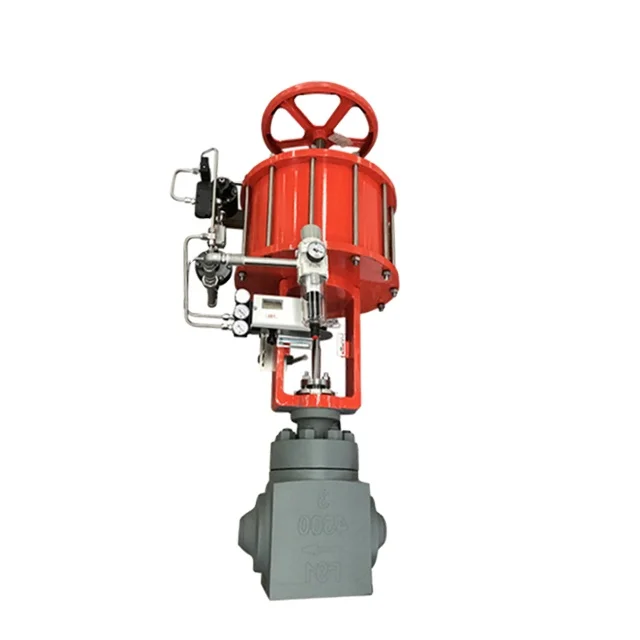

5. Diaphragm actuator & piston actuator, compact structure ,large output pressure; 6. Stainless steel trim after standard
treatment increased wear resistance and longer life.
6. Stainless steel trim after standard treatment increased wear resistance and longer life.
Product Paramenters
Item | Size | Operation Temperature | Structure Type | Pressure Class | Body Material | Operation | Leakage Level |
Control Valve | 1/2"-24" | -29℃-628℃ | Globe/Angle | 150LB-4500LB | WCB/WC9/CF8/CF8M | Manual/ Pneumatic/ Electric/ Hydraulic | IV/V/VI |
Attemperator Spray Control Valve | 1/2"-6" | -29℃-425℃ | Globe/Angle | 150LB-4500LB | WB36/A105/F22 | Manual/ Pneumatic/ Electric/ Hydraulic | V |
Feedpump Recirculation Valve | 1"-12" | -29℃-425℃ | Globe/Angle | 150LB-4500LB | WB36/A105/F22 | Manual/ Pneumatic/ Electric/ Hydraulic | MSS-SP61 |
Globe Valve | 3/8‘’-4'' | -29℃-680℃ | Globe/ Y-type | 150LB-4500LB | CF8C/CF8M/316H/347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Check Valve | 3/8‘’-4'' | -29℃-680℃ | Globe/ Y-type | 150LB-4500LB | CF8C/CF8M/316H/347H | Manual/ Pneumatic/ Electric/ Hydraulic | |
Forged Steel Gate Valves | 1/2"-30" | -29℃-628℃ | Parallel double gate | 150LB-4500LB | WB36/A105/F22/F91/F92 | Manual/ Pneumatic/ Electric/ Hydraulic |
Installation Instructions
Installation site view
Our valves are always used in Steam power system such as Power plant, Petrochemical plant, Steam turbine and ship etc.
Pneumatic control valve in Indonesian chemical plant
Feedpump Recirculation Valve in Power plant(2*660MW)
Contact Us Now
Warmly welcome to call or write to consult and negotiate details.
Packing & Delivery

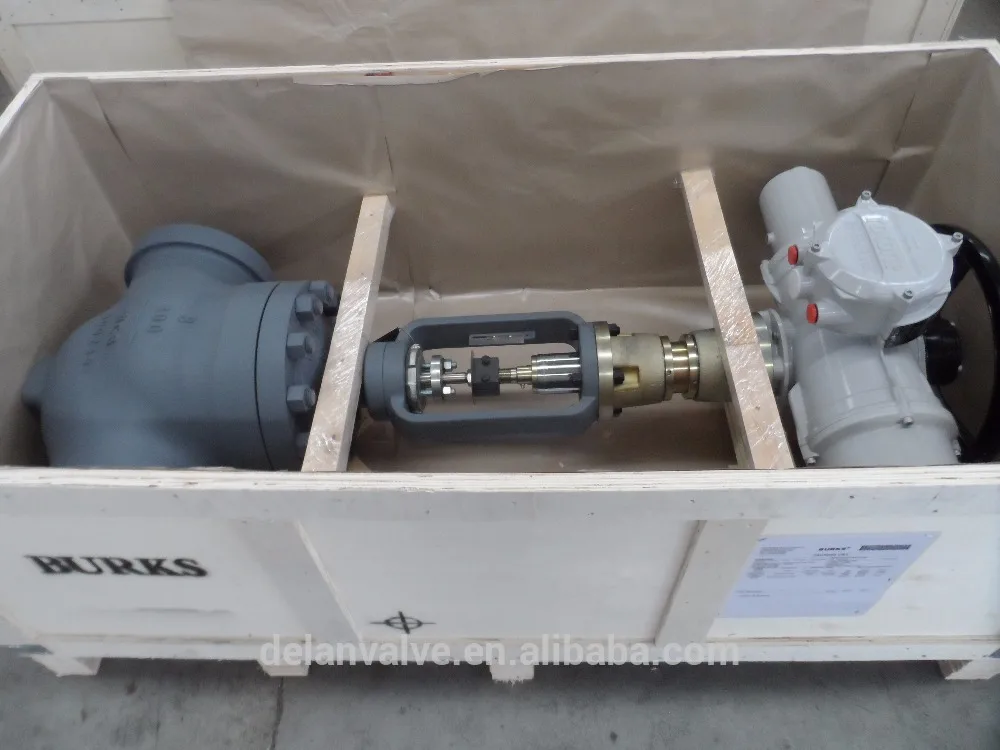

Generally packed in export wooden boxes ,and also can be packed according to customer's requirements .
Company Profile
Suzhou Delan Energy Technology Co., Ltd. is a professional valve manufacturer. Its main products include regulating valves, pneumatic high-pressure traps, and forged steel globe valves. It is widely used in power plant, petrochemical, steel, chemical, gas and other industries.
Our company's cyclic convection multi-stage pressure reduction patent has been widely used in cavitation, flashing and noise and other high pressure differential and harsh working conditions.The company established a joint laboratory with East China University of Science and Technology. Our company has valve flow test center, noise test, chemical composition analysis, mechanical performance test and other equipment, and has passed ISO9001, ISO14001, ISO45001, PED and TS national special equipment and other system certifications, escorting product quality.
CUSTOMERS REFERENCE LIST | ||||||
Valve Names | Customers | Unit | Valves Specifications | |||
Minimum Flow Recirculation Valve | Huadian Linwu Power Generation Co.,Ltd | 2X1060MW Ultra Supercritical | 6",3000LB，WB36 | |||
Electric Control Valve | China Resources Hunan Power Co.,Ltd | 2X600MW Supercritical | 6",2500LB，WCB | |||
HP Critical Drain Valve | Datang Guizhou Faer Power Co.,Ltd | 600MW Supercritical | 4",6", 600LB,WC9 | |||
Spray Water Control Control Valve | China Resources Nanjing Thermal Power Co.,Ltd | 2X330MW Subcritical | 1",900LB,A105 | |||
Boiler Soot Blowing Valve | Guodian Jiujiang Generating Co.,Ltd | 600MW Supercritical | 2",2500LB，F22 | |||
Boiler Blowdown Control Valve | Huaneng Ningxia Dam Power Generation Co.,Ltd | 300MW Subcritical | 1.5",2500LB，A105 | |||
Pneumatic Drain Valve | Datang Harbin Thermal Power Plant | 300MW Subcritical | 2",4500LB，F22 | |||
FAQ
Q1: Are you a factory or trading company?
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
A1: We are a family business integrating manufacturing and trading, and our headquarters are in Suzhou, China
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q2: How long is your product warranty?
A2: All valves from DELAN are covered with a 12 Months warranty from the date of installation or 18 Months warranty from the shipment date.
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; final Inspection before shipment;
A3: Always a pre-production sample before mass production; final Inspection before shipment;
Q4: What is your hot items?
A4: The most popular are globe type control valves. We provide confidential production agreements for many brands and distributors, which can replace the valves on-site FISHER, FLOWSERVE, KOSO, MASONEILAN and other international brands.
Q5: How about the shipping method?
A5: By sea by air or express all possible. DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q6: How about the label and the logo?
A6: DELAN provides customized branding services, and the specific cost is based on different order quantities.
Q7: Why should you buy from us not from other suppliers?
A7: DELAN created the original circulation convection structure to control valve, and this structure is of cavitation resistance, erosion resistance, and can meet the requirements of low noise.
