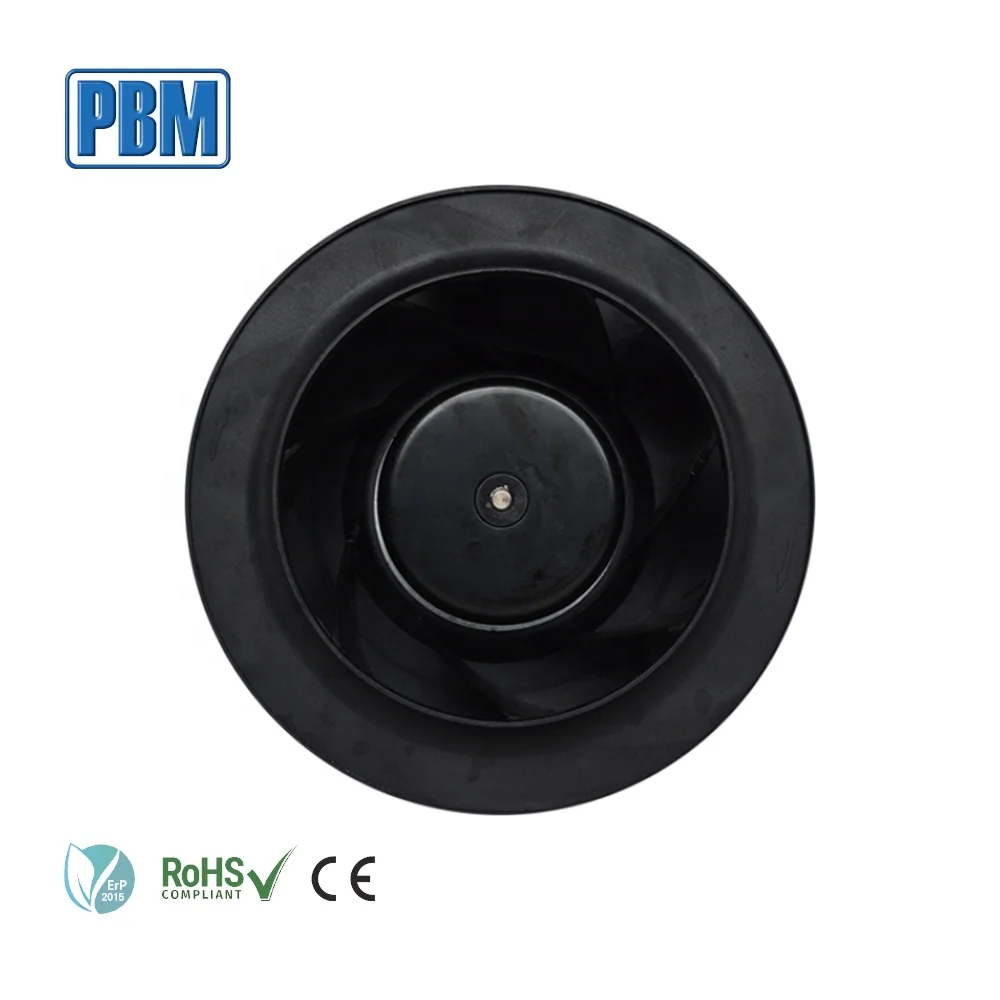

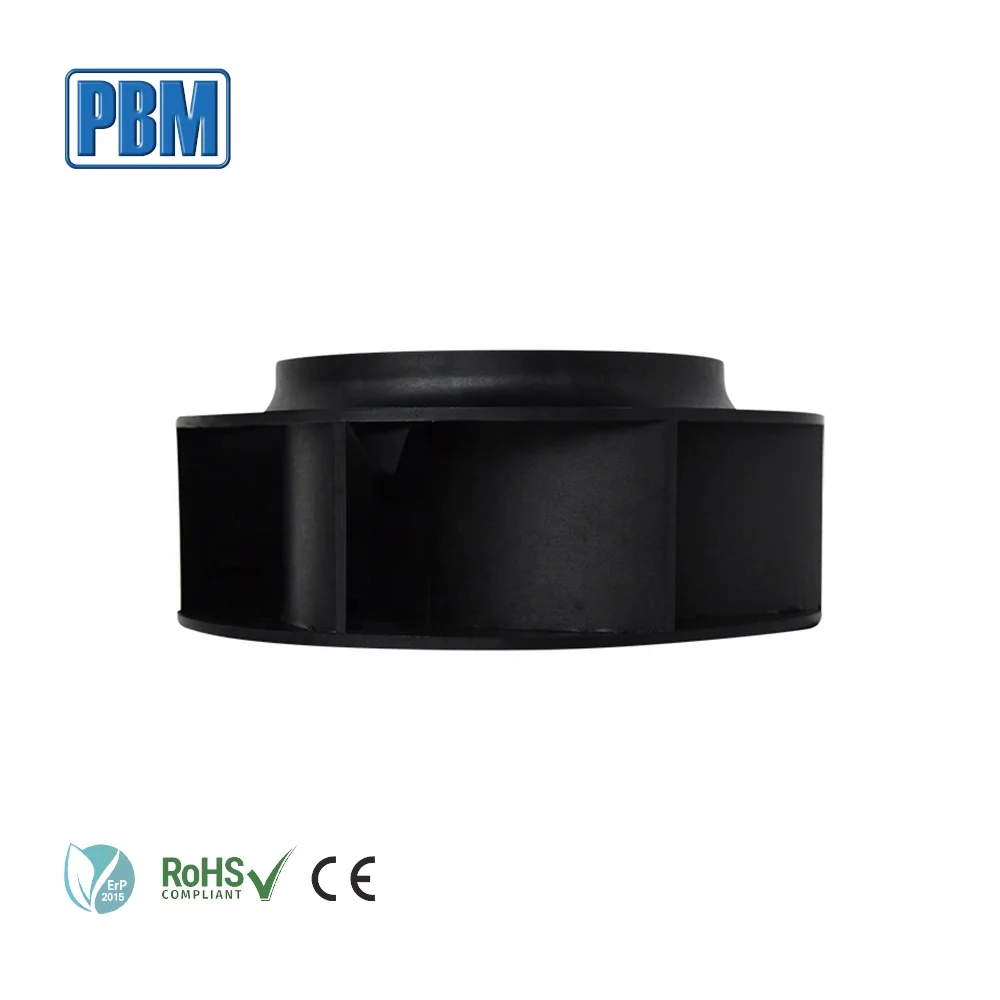

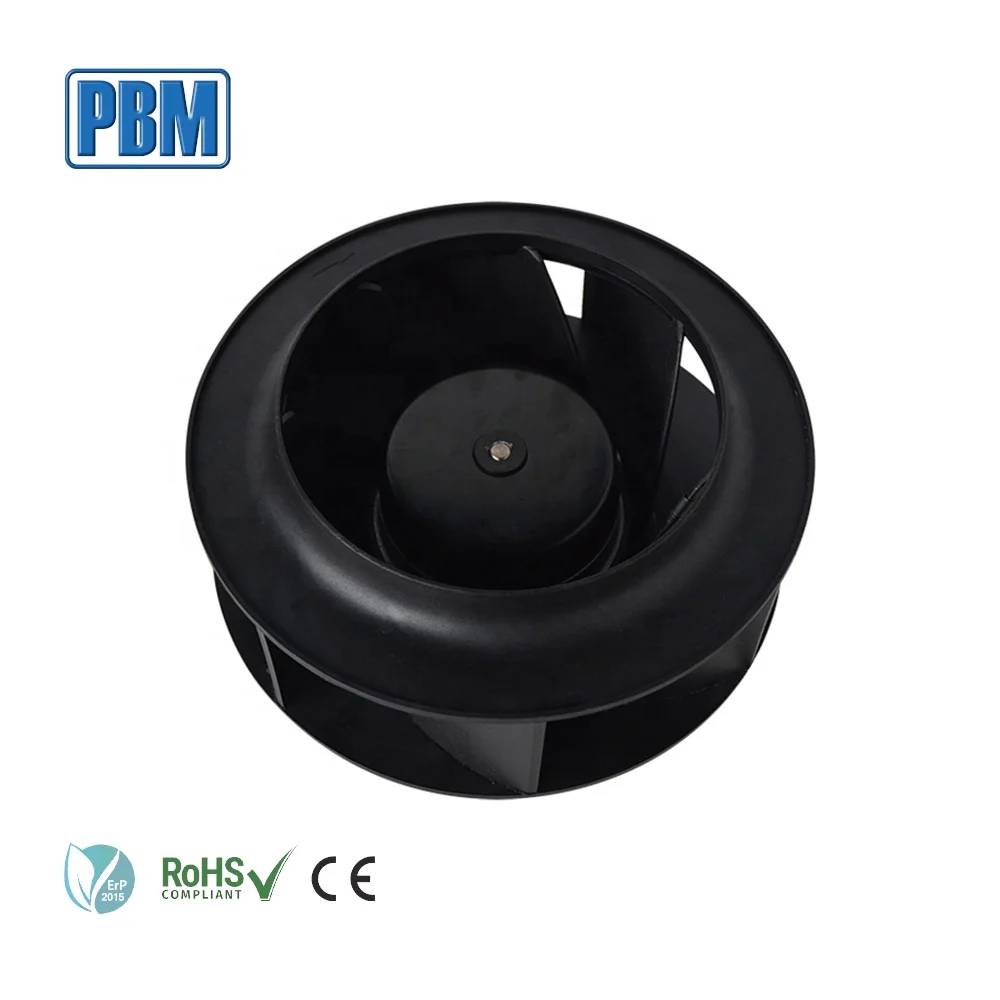

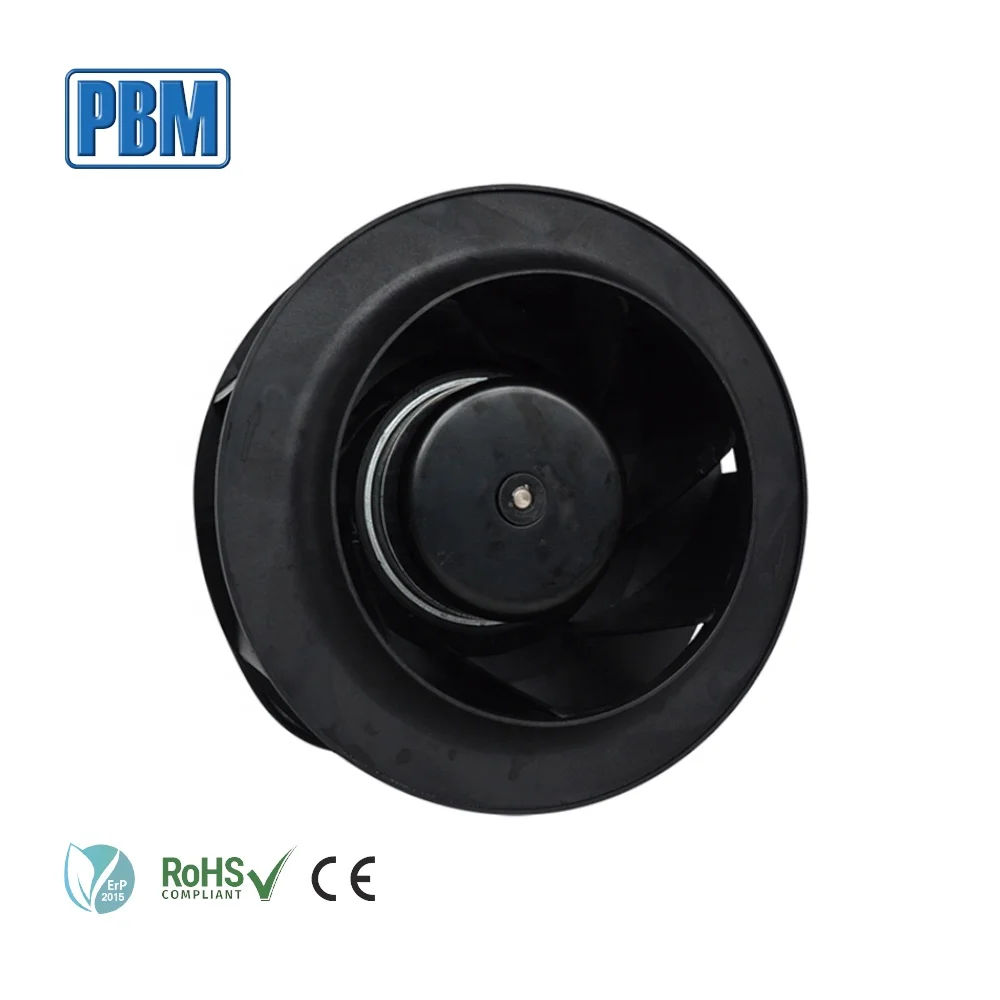

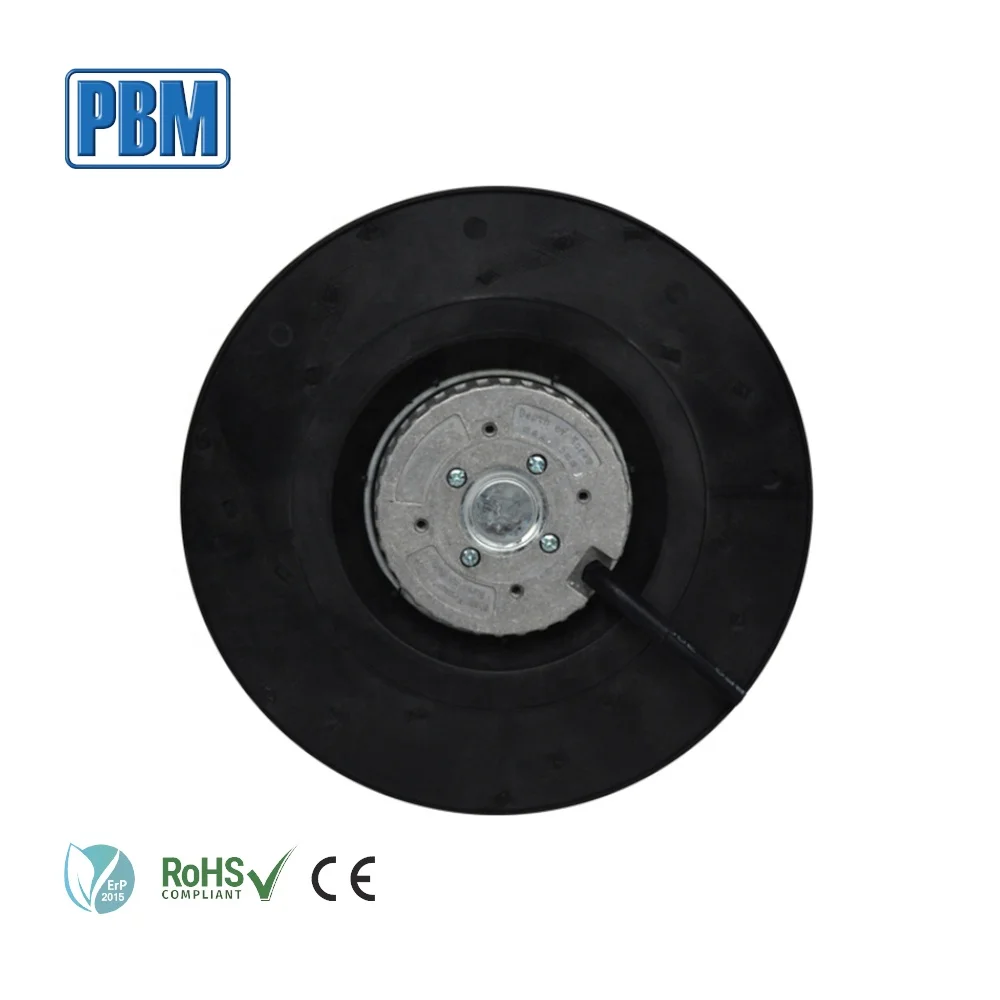

190mm DC 24V EC Motor Ceiling Centrifugal Fan with Plastic Backward Impeller
- Category: >>>
- Supplier: Pbm Motor And Fan (suzhou) Co. Ltd.
Share on (62572968275):
Product Overview
Description
Products Description
Higher Air Performance with Less Power Consumption
PBM centrifugal fans with backward curved aerodynamic impeller blades designed as freewheels fans that could be installed at any directions by extremely compact size, and optimized output air performance without scroll housing necessary to have.
Product Specification
1. General Characters
Model | PB3N190B24M |
Rated Voltage | 24 VDC |
Operating Voltage | 16~28 VDC |
Rated Speed | 2950 RPM |
Input Current | 2.13 A |
Input Power | 51 W |
Air Flow | 365CFM / 620m³/H |
Static Pressure | 1.89inH2O /473Pa |
Sound Level | 68 dB(A) |
Protection Type | IP44 |
2. Mechanical
Dimension | Ø190mm X 68.5mm (see dimension drawing) |
Material of Impeller | Propylene with glass-fiber reinforced |
Number of Blades | 7 |
Mounting Position | Injection-moulded round sheet-metal plate |
Surface of Rotor | Coated in black |
Bearing System | NMB ball bearing |
Lead Wire | AWG20# |
Weight | 1000g |
Package | Standard |
3. Electrical Protection
Locked-rotor Protection | Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage. |
under Locked Rotor | A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
Reverse Polarity Protection | No damage if the positive and negative leads are reversed under maximum operation voltage conditions. |
Over Voltage Protection | The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below. |
Soft Start | In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above. |

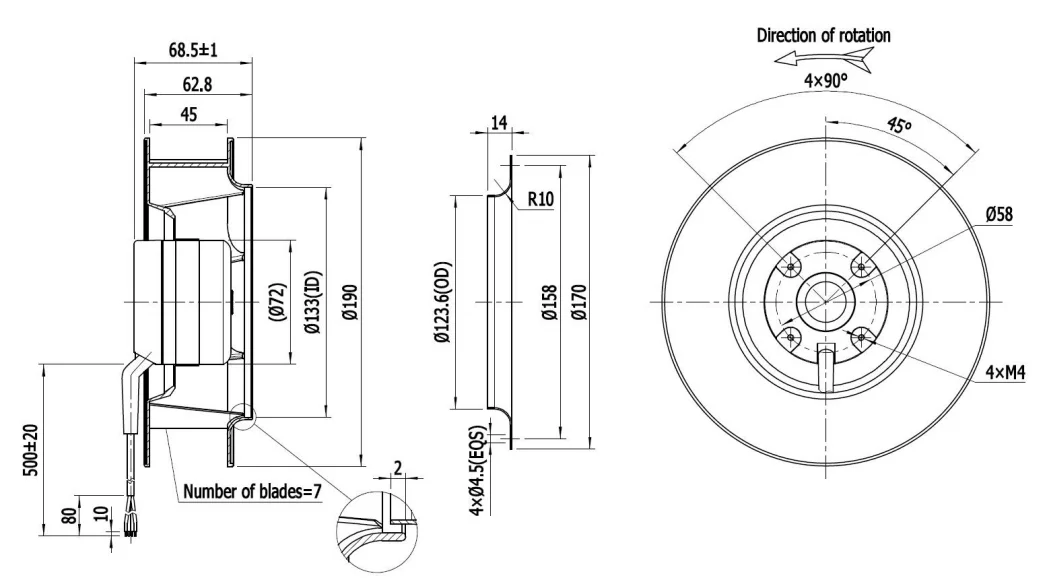

4. Outline Drawing

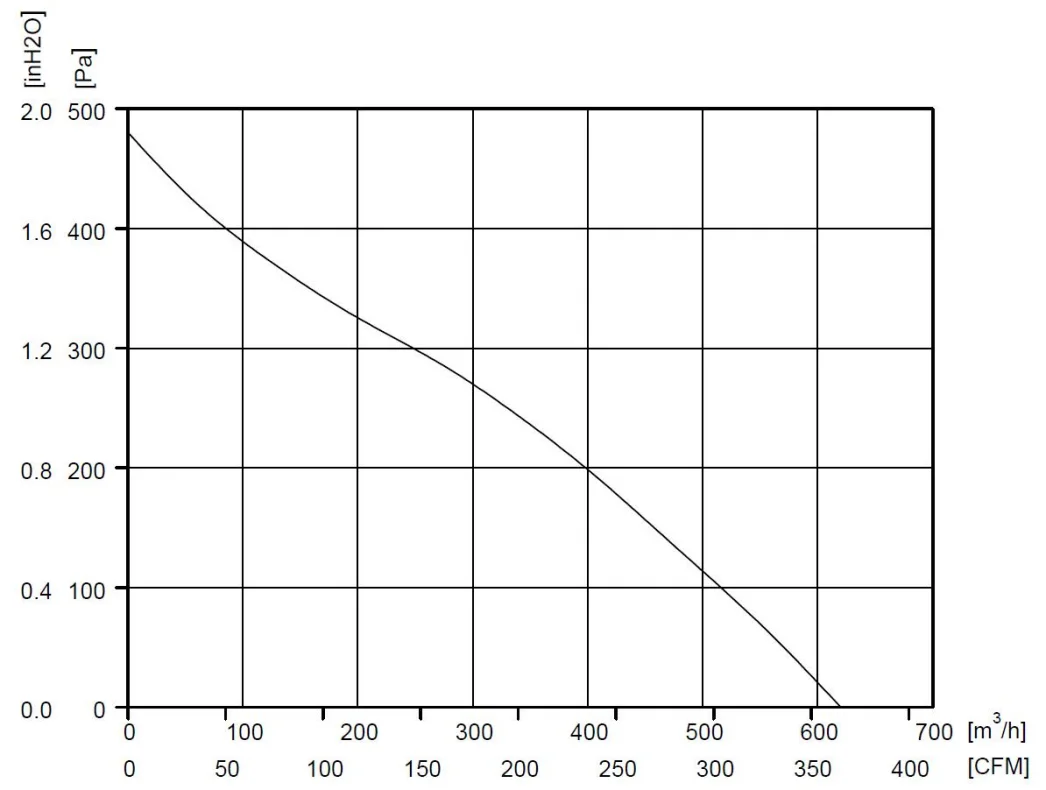

5. Performance Curve
Application
Company Profile
222
PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.
Focus on EC fan only and protecting our world with intelligent energy efficient motor and fan solutions are our goal in an attempt to make tomorrow a greener & Healthier world.
