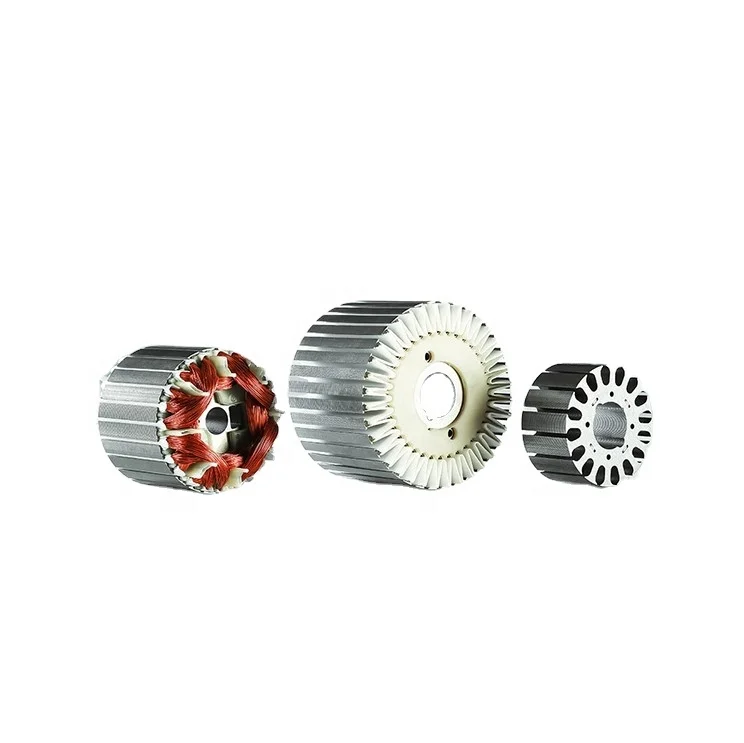

Factory Direct Sale Customized Motor Stator Rotor PM Motor Magnetic Rotor and Stator Assembly
- Category: Other Motor Parts >>>
- Supplier: Ningbo Newland Magnet Industry Corporation Limited
Share on (62573032987):
Product Overview
Description
Product Description
China Supply Customized Free Energy Magnet Generator
Magnetic Rotor Stator Motor Wind Generator
Introduction：
We mainly produce magnetic components in the field of permanent magnet motors, especially NdFeB PM motor accessories, which can match various small and medium PM motors.
In addition, in order to reduce the damage of electromagnetic eddy current to the magnet, we have manufactured multiple splicing magnets.
We have modern magnetic assembly line and first-class processing equipment, including CNC lathe, internal grinder, surface grinder, milling machine, etc.
Modern testing technology and strict quality management system ensure that we provide you with high-quality products. We will provide you with complete motor parts or magnetic couplings for fine machining. It is a cost-saving MAGNETIC solution for customers.

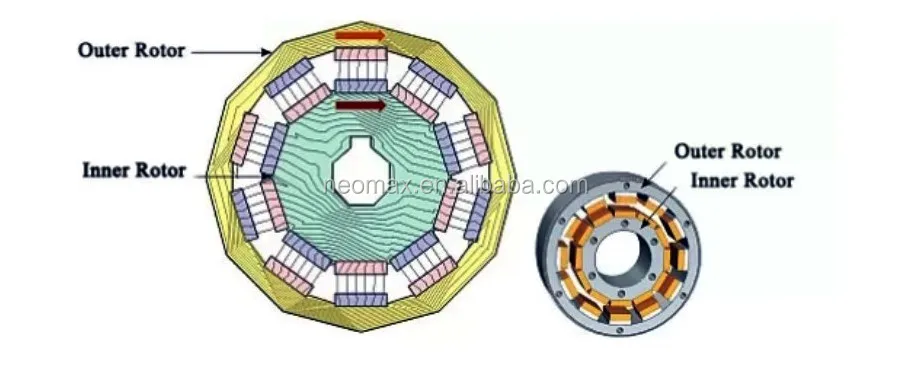

Item | Description | ||||
1 | Outer rotor | ||||
2 | Magnet | ||||
3 | Inner rotor | ||||
4 | Gasket cover | ||||
Materials | 1) Magnet: neodymium magnet; 2) Sleeve: Austenitic stainless steel, such as SS304, SS316 3) Main components: 20 # steel, martensitic stainless steel | ||||||
Advantages | 1) Magnetic torque transmission, clean and efficient; 2) Large transmission torque and small size; 3) Stable performance, no wear and long service life | ||||||
Application | 1) Permanent magnet motor; 2) Brushless DC motor; 3) Permanent magnet synchronous motor; 4) DC motor, etc. | ||||||
Customized service | For magnetic coupling, there is no standard product, we can make any customized products, but you need detailed product information. | ||||||

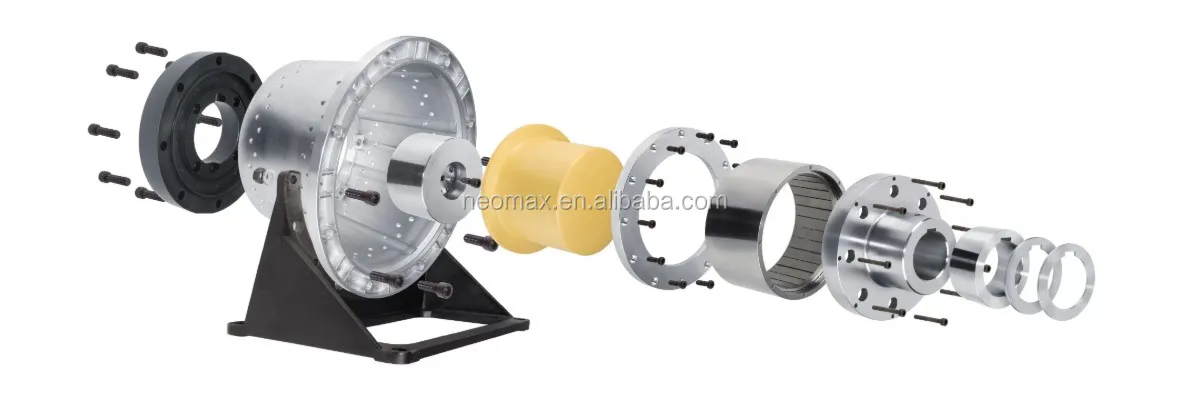

How does the magnetic coupling work?
Halbach Array is a new type of permanent magnet arrangement. The permanent magnets with different magnetization directions are arranged in a certain order, so that the magnetic field on one side of the array is significantly enhanced, while the other side is significantly weakened. It's main forms are linear array and circular array.
Name | Halbach Array, a new permanent magnet arrangement | ||||||
Material | Magnet: sintered neodymium magnet Hardware: 20 # steel, martensitic stainless steel | ||||||
Advantage | High power density Fixed rotor no longer, requires chute Rotor can use non-core, material High permanent magnet, utilization Can use, centralized winding | ||||||
Application | Brushless AC motor, voice coil, Torsion pendulum magnet of particle accelerator, free electron laser,Permanent magnetic coupling and high magnetic field cylinder | ||||||
Halbach linear array:
The Halbach linear array combines the radial and parallel arrangement of magnets to form a one-sided magnetic field (one-sided field), which is a significant feature of Halbach. This characteristic indicates that Halbach magnets have very good application value in linear motors (linear motors).
Halbach circular array:
The Halbach circular array is generally used in brushless AC motors and magnetic couplings to enhance the unidirectional magnetic force, and can obtain a nearly perfect sinusoidal magnetic force release. Because it is a unidirectional magnetic force release, non-ferromagnetic materials can be used as the central axis (such as aluminum), which can greatly reduce the overall weight and improve efficiency.
It should be noted that the assembly of the Halbach array is extremely difficult, specifically the following points:
-Magnets need to be assembled in a magnetized state, so we must know how to grasp the mutually repelling forces between magnets.
-The magnets in the Halbach array are easier to demagnetize.
-How to design and produce assembly fixtures? It requires a good understanding of the magnetic circuit, and years of experience in assembly of magnetic components.
-Newland Magnetics has many years of industry experience in designing and assembling various magnetic component products by itself. If you have similar problems, please contact us to discuss them.
