Best Price Diamond Mining Equipment Diamond Wash Trommel
- Category: >>>
- Supplier: Ganzhou Li Ang Machinery Co. Ltd.
Share on (62573098217):
Product Overview
Description

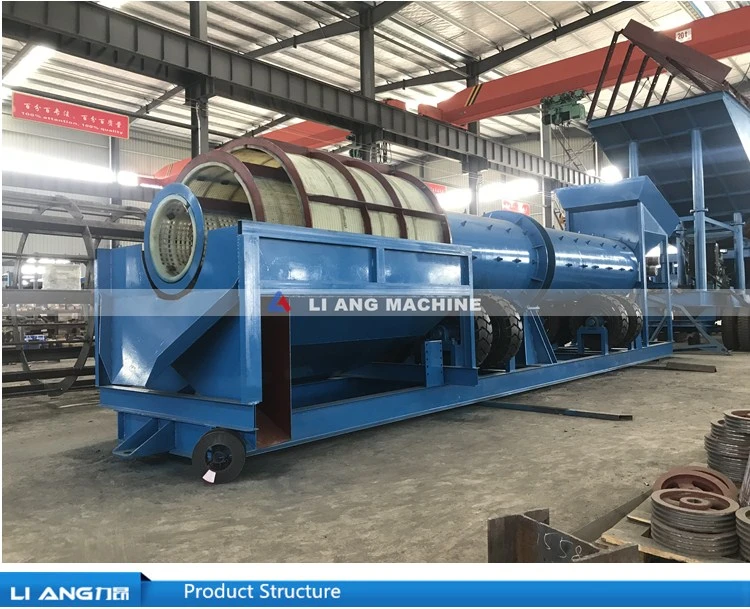

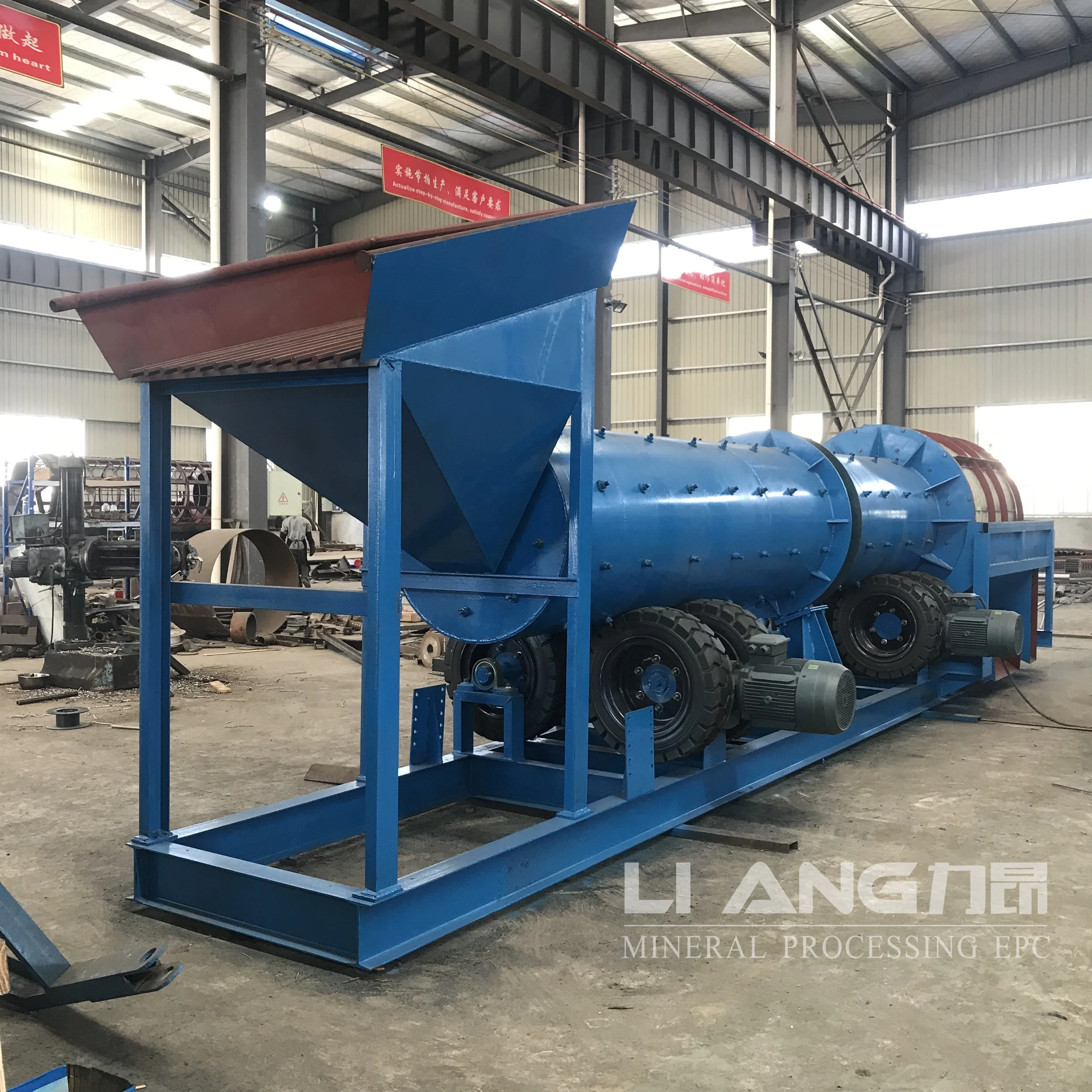

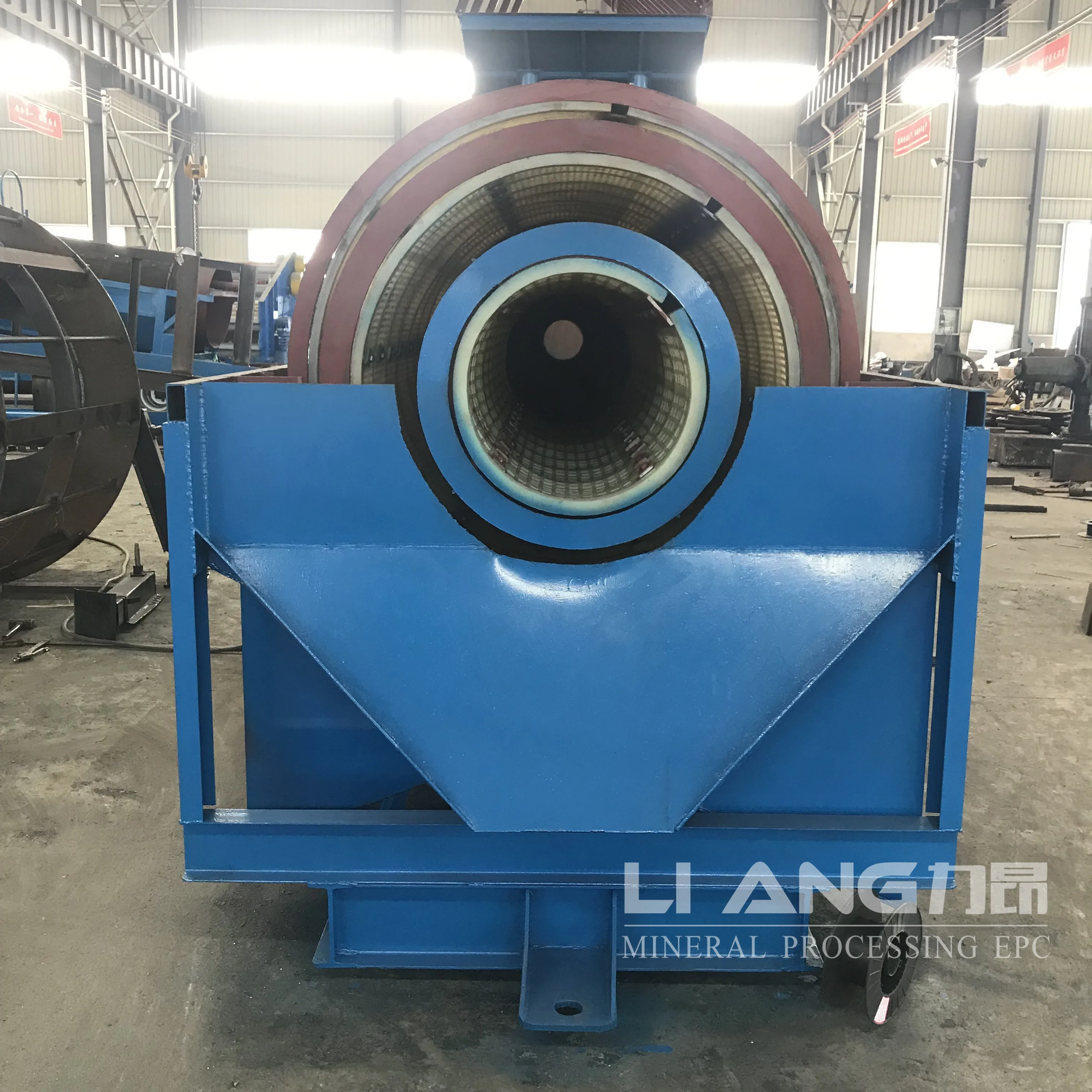

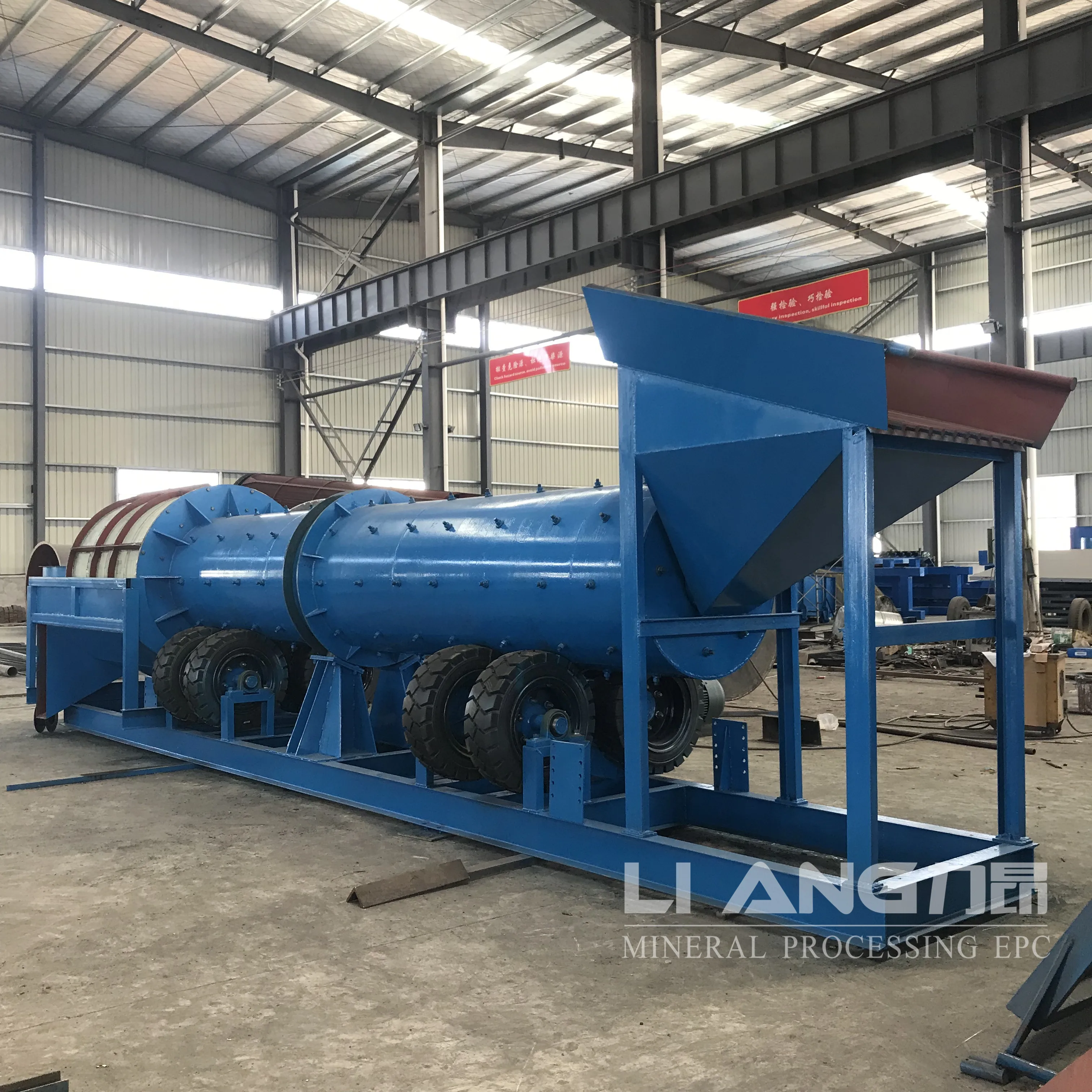

Trommel Scrubber Washer Machine
Trommel scrubber washer machine is main washing equipment in the mining industry, widely used for washing alluvial type/sand type ores and stones, that with much sticky clay, with much good washing effect for clay.

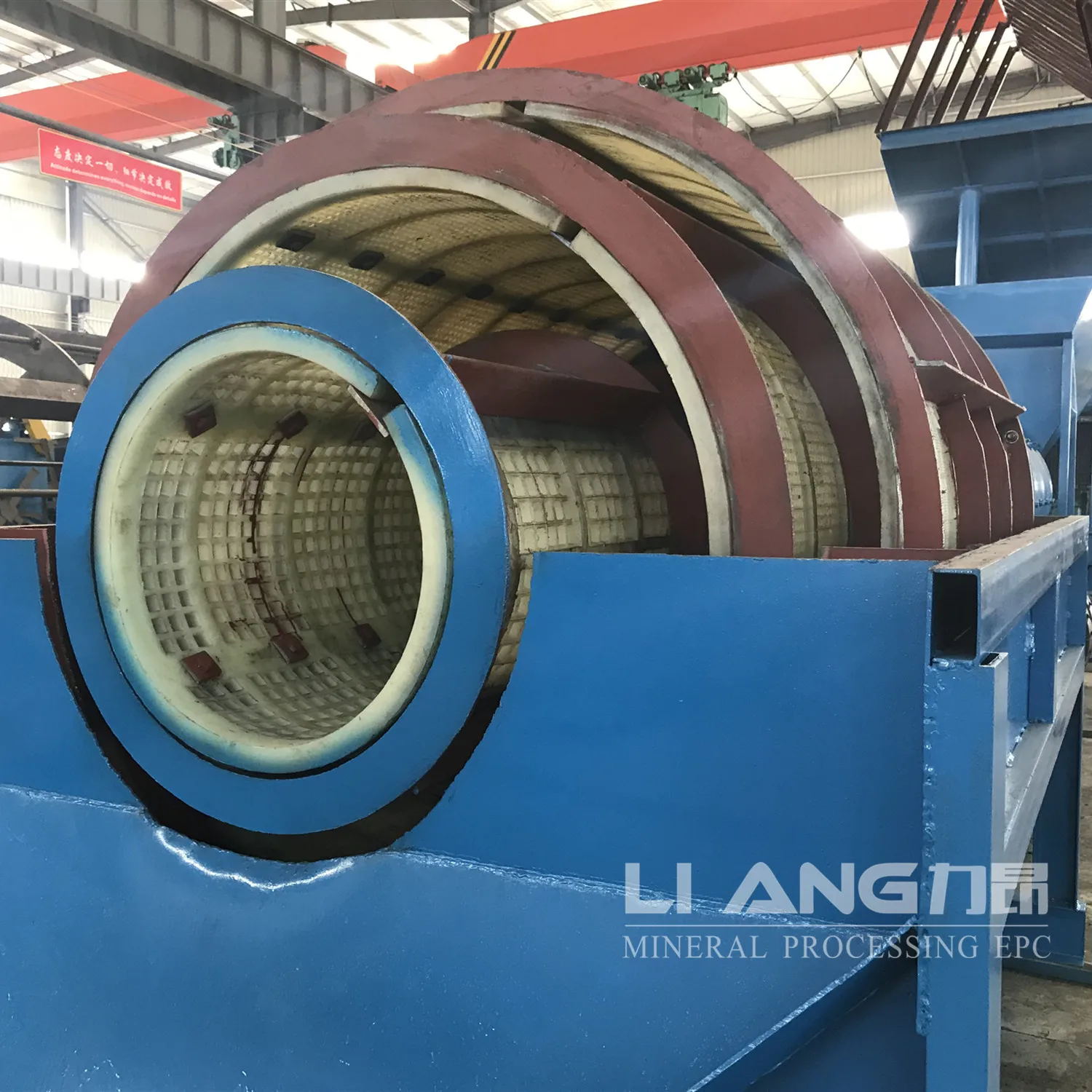

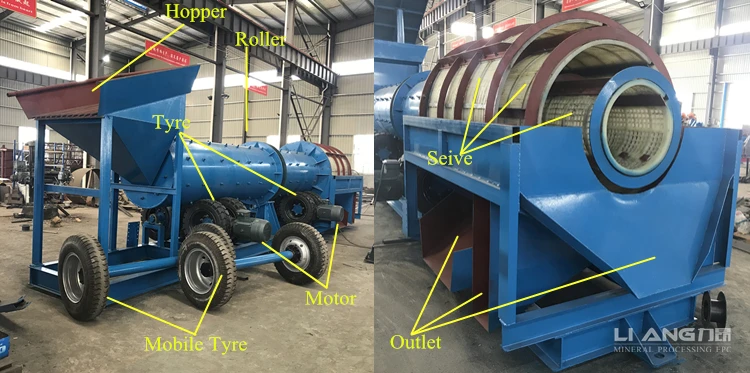

Trommel scrubber washer machine with two parts: drum scrubber and screen. The drum scrubber is for washing ore, the screen is for sieving different size particles after washing.
The Features of Trommel Scrubber Washer Machine.
1. Designed to break up alluvial gravels, clays and sand;
2. High capacity and high scrubbing power;
3. The long drum of the scrubber retains material for longer, more vigorous washing for complete separation;
4. Thickening type steel plate for the drum;
5. Heavy duty bearing, gear and roller;
6. Wearable screen at the exit of drum for screening;
7. One high output electrical motor driving a gear system providing efficient torque;
8. Adjustable rotary speed;
9. The water with high pressure flushed the inwall of drum;
10. Can accept material up to 230mm.
2. High capacity and high scrubbing power;
3. The long drum of the scrubber retains material for longer, more vigorous washing for complete separation;
4. Thickening type steel plate for the drum;
5. Heavy duty bearing, gear and roller;
6. Wearable screen at the exit of drum for screening;
7. One high output electrical motor driving a gear system providing efficient torque;
8. Adjustable rotary speed;
9. The water with high pressure flushed the inwall of drum;
10. Can accept material up to 230mm.

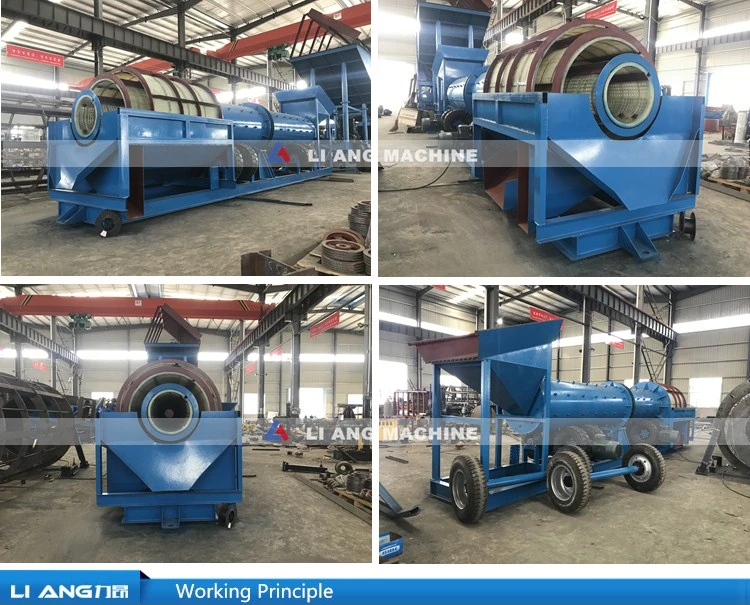

Work Principle of Trommel Scrubber Washer Machine
The rotary scrubber is an autogenous rotating drum scrubber, utilizing pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides. The scrubber spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist's and rock. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end. Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal concentrator, spiral chute, jig etc.
Different configuration of Trommel Scrubber Washer Machine can be customized :
1.Feeding hopper / grizzely hopper is available.
2. The washing drum, screening section diameter and length can be customized.
3.Drum inner lining material is both rubber liners & spiral steel plates available.

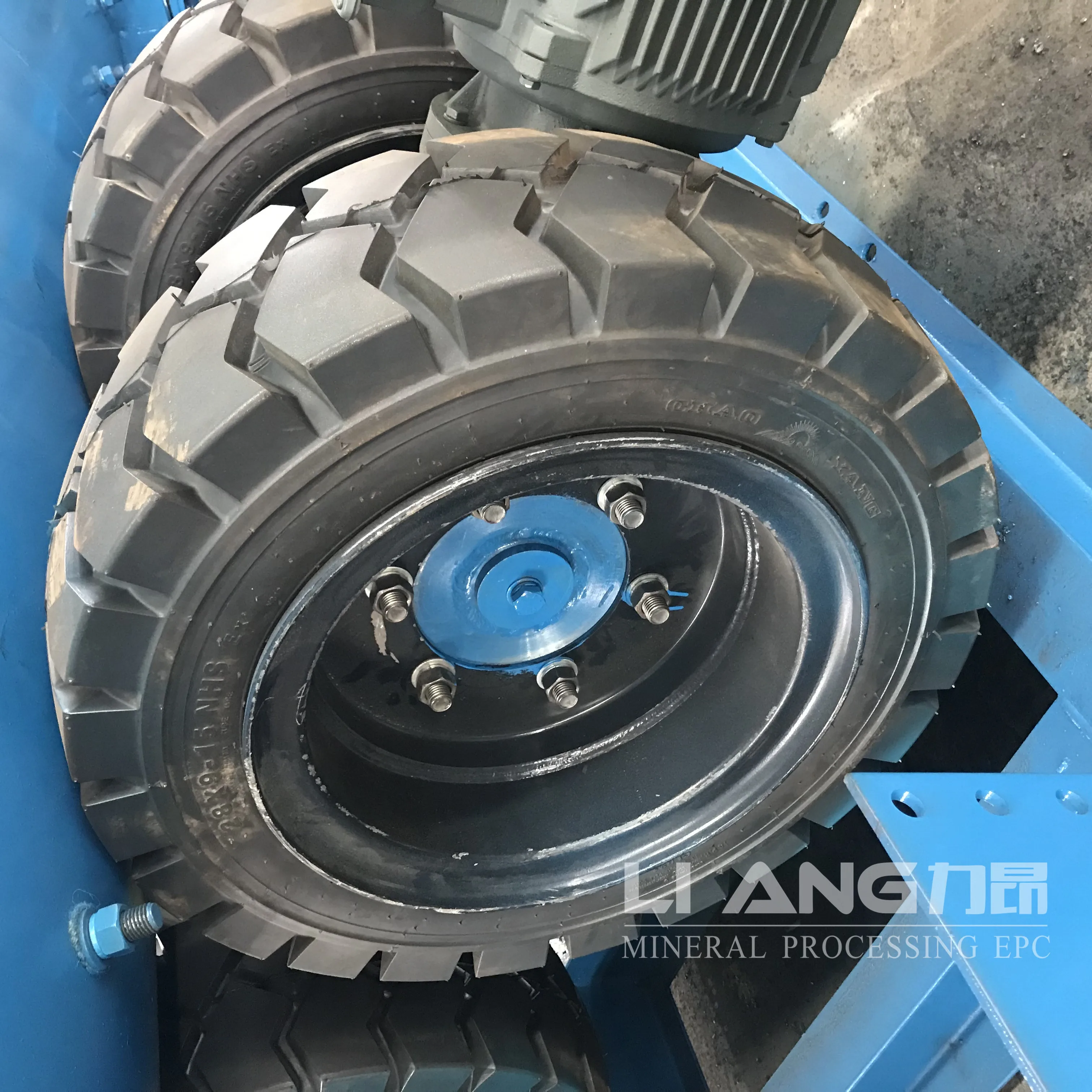

4.Driving system equip with durable rubber wheels.
5. The trommel can be fixed type, mobile type with rubber wheels, or skid mounted mobile type.
6. Water pump, water spray pipe, water distributor, diesel engine or generator available.

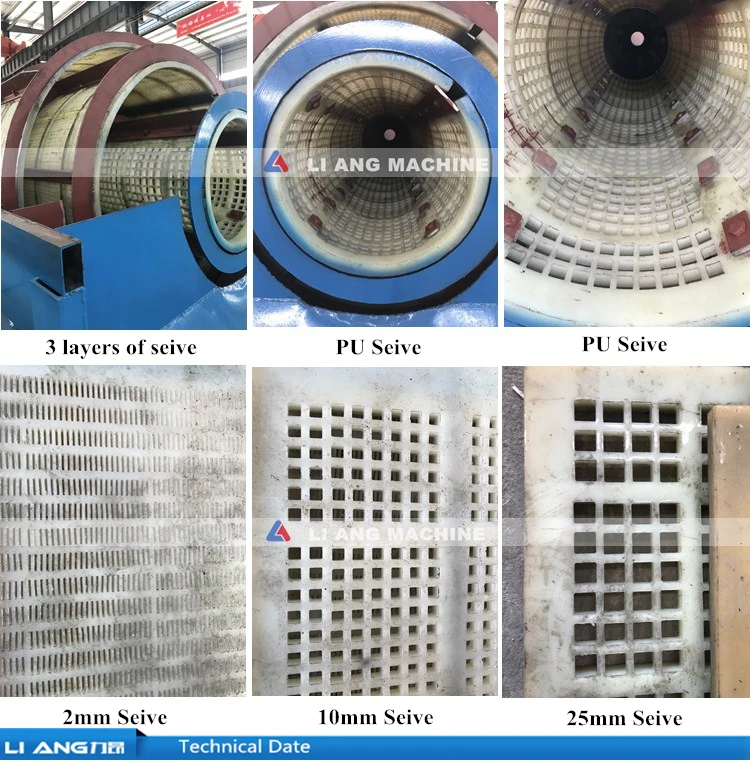

7. The screen sieve material can be high hardness manganese steel, stainless steel, or PU screen.
8.The screen layers can be 1, 2, or 3 layers.
2. The washing drum, screening section diameter and length can be customized.
3.Drum inner lining material is both rubber liners & spiral steel plates available.
4.Driving system equip with durable rubber wheels.
5. The trommel can be fixed type, mobile type with rubber wheels, or skid mounted mobile type.
6. Water pump, water spray pipe, water distributor, diesel engine or generator available.
7. The screen sieve material can be high hardness manganese steel, stainless steel, or PU screen.
8.The screen layers can be 1, 2, or 3 layers.
Note: All the parts material are high end quality materials, the steel board is from Baosteel Group,
the electric motor with IP56 water proof standard, the speed reducer from world famous brand K series.
the electric motor with IP56 water proof standard, the speed reducer from world famous brand K series.
Model | Screen Size (MM) | Rotation Speed(R/Min) | Feeding size (mm) | Angle of inclination (degree) | Capacity (T/H) | Power (KW) |
RTX400 | ≤20 | 27.9 | ≤80 | ≤10 | 1-5 | 3 |
RTX600 | ≤25 | 27.6 | ≤80 | ≤10 | 5-10 | 5 |
RTX750 | ≤25 | 27.6 | ≤100 | ≤10 | 10-30 | 7.5 |
RTX900 | ≤25 | 27.6 | ≤100 | ≤10 | 30-50 | 11 |
RTX1200 | ≤25 | 17 | ≤160 | ≤10 | 50-70 | 15 |
RTX1500 | ≤50 | 16 | ≤230 | ≤10 | 70-100 | 30 |
RTX1800 | ≤50 | 16 | ≤230 | ≤10 | 100-150 | 37 |
RTX2100 | ≤50 | 16 | ≤230 | ≤10 | 150-180 | 45 |
RTX2400 | ≤50 | 16 | ≤230 | ≤10 | 180-250 | 66 |
The Application of Trommel Scrubber Washer Machine.
Trommel Scrubber Washer Machine is applicable to iron, manganese, limestone, tin ore with more mud content of ore cleaning sand, can be the mineral agitation, washing, separation, desliming. It is also suitable for stone cleaning of buildings, power stations, etc. The flushing water pressure is 147-196kpa. Trommel scrubber is the use of water buoyancy, dust and impurities in the sand separation. Through the agitation, to filter water to impurities, promote the purpose of transmission. And in the lifting process, also carried out mixing work. Sand is to achieve a uniform mixing, no fine, coarse sand points.

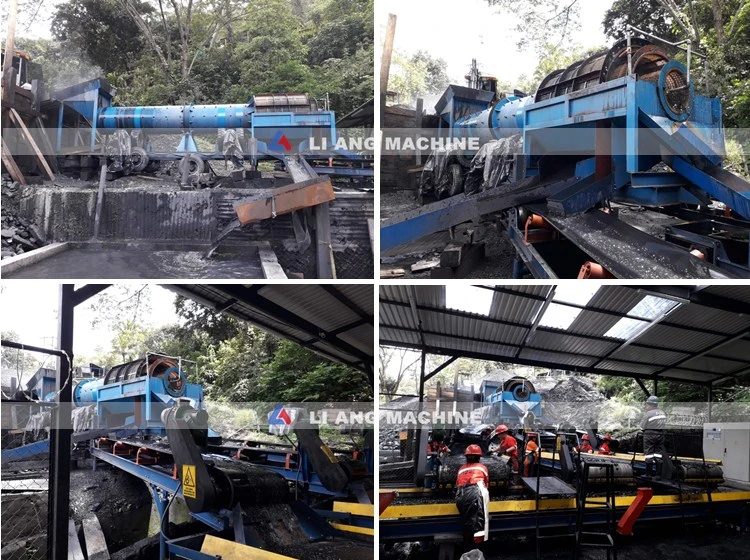

One of Our Successful Cooperated Case as the above pictures. | ||
1.Customer’s nationality | Australia | |
2.Their interested model | Diamond Wash Plant | |
3.Application of the machine | After washing by trommel scrubber, they want to get diamond. | |
4.Main requirements | (1) capacity: 10 ton per hr (2) drum dia: 900m, length 7m( 5m wash + 2m screen) (3) feed screen size at the hopper to be 60mm (4) 3 layer pu screen, sieve mesh:25mm，10mm,2 mm Rubber liner (5) transmission by rubber tire (6) with hopper and grizzly bar (7) with water spray system (8) with slurry tank fixed screen | |

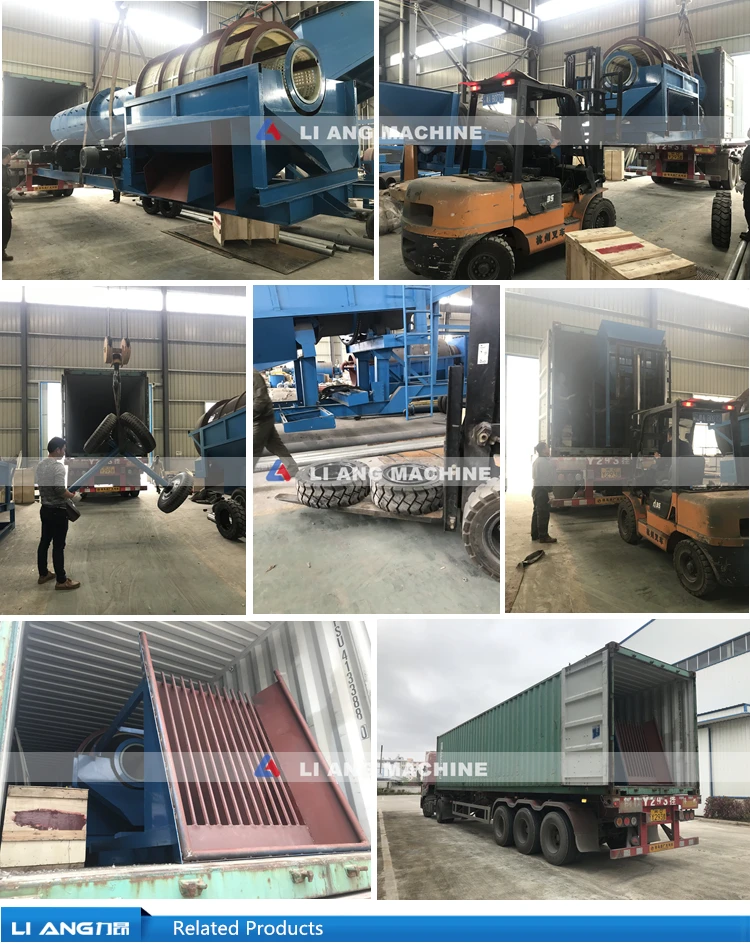

Due to the big size , We load the equipment in 20 Feet Container Or 40 HQ according the model of trommel.
The package and delivery of ourTrommel Scrubber Washer Machine as below.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Ganzhou Li Ang Machinery Co.,Ltd. is specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!
Pre-Sales Service：
1.We can help you select equipment model and design resonable and complete production line flow according to clients’s requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients’ requests.
4.We can supply the technical parameters of the equipment.
After-Sales Service：
1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.
3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.
5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.
Q1: For providing you the suitable quotation we need to know the following information:
1.What is the raw material to handle ? Minerals eg: gold,coltan,diamond,tin, etc
2. What is the capacity per hour you required? 5tph,50tph,100 tph
3. What is the maximum input size of the raw material? 130mm,200mm,50mm
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.
Q3. What warranty do you give for your machine?
A:---We can supply spare parts .
---The quality assurance date we give is one year for the main parts after commissioning.
---We provide lifelong maintainence and technical support.
Q4.What is your Payment Terms?
A: We usually use the following payment terms.
Q5：What’s your means of transportation?
A:We have these means of transportation as below.
Q6. What is your delivery time?
A:Please find the answers as below.
Product | Lead time | |
shaking table | <=10days | |
laboratory mining equipment | <=10days | |
large mining equipment | 30-40 days. | |
customized machine | 30-40 days. | |
Tip: Exact delivery shall be confirmed when placing the order. | ||
