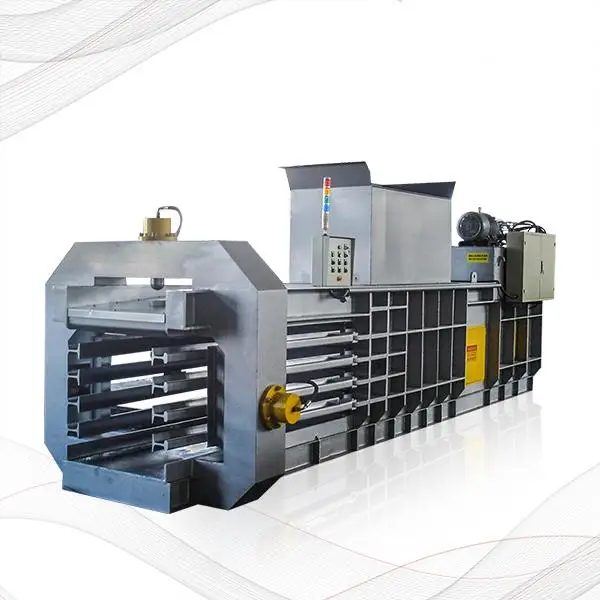

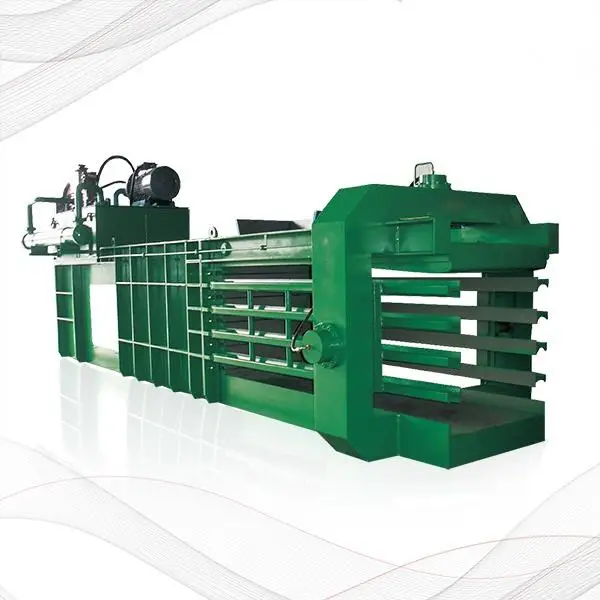

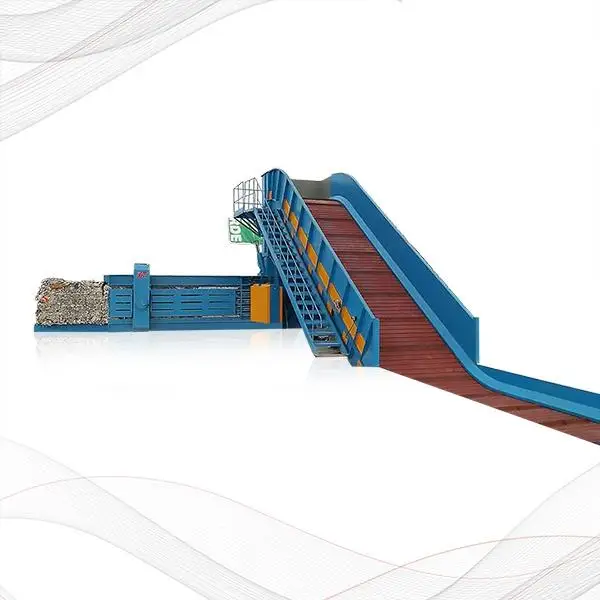

Densen customized Full Automatic Balers Waste paper packer Cans horizontal baler Semi automatic baler machine

Product Overview

Description

 Densen customized Full Automatic Balers Waste paper packer Cans  horizontal baler Semi-automatic baler machine



Usage of Small-sized Full Automatic Balers with Cyclone for Packaging Plants



Specially used for recycling waste paper, cartons/cardboards trims/scraps etc. which are popular in packaging/corrugation industrial, paper/ printing plants etc.



Features of Small-sized Full Automatic Balers with Cyclone for Packaging Plants



·Powerful cyclone is optional for rapid sucking trims/scraps from the corrugation production line.

·Photoelectric switch activates baler when charge box is full.
·Unique double-cutting design of cutters  improves the cutting efficiency and lengthens the lifespan of the cutters.
·Particular anti-slide design of the machine makes nicer bales.
·Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals.
·Equipped with rapid automatic tying system, easy for cleaning and maintaining.
·Use differential technique for the hydraulic system, makes shorter cycle time so that improve the working efficiency and save electricity.
·Automatic tension system ensures “brick-like” bales on all loose materials.
·Adjustable bales length and bales quantity accumulating function make the operation of the machine more convenient.
·Automatically detect and show the errors of the machine which improve the machine inspection efficiency.
·International standard electric circuit layout, graphic operation instruction and detailed parts marks makes the operation been more easily understanding and improves the maintenance efficiency.
·The press heads are specially processed by planomiller, ensures the precise running of the ram.
·Use high quality hydraulic system from Taiwan, ensures the stable running of the machine.
·Theheavy duty machine body makes sure only flat ground is required by the installation.



Model	XTY-200W5050-15	XTY-400W7575-20 XTY-400W7575L-20	XTY-400W7280-20	XTY-600W7585-25
Pressure	20tons	40tons	40tons	60tons
Main Motor Power	11kw	15kw	15kw	18.5kw
Cooling System	air cooler /water cooler	air cooler /water cooler	air cooler /water cooler	air cooler /water cooler
Cycle Time (unload)	19s	17s/24s	20s	16s
Oil Reservoir	280L	540L	540L	600L
Number of Belting	3lines	3lines/4lines for both models	4lines	4lines
Wire Size	Ø2.4-3.2	Ø2.4-3.2	Ø2.4-3.2	Ø2.4-3.2
Feed Opening Size (L*W)	625*480mm	1200*720mm    1600*720mm	1200*690mm	1200*720mm
Chamber Size (L*W*H)	900*500*500mm	1600*750*750mm 2100*750*750mm	1600*720*800mm	1600*750*850mm
Bale Size (L*W*H, L can be adjustable)	L*500*500mm	L*750*750mm	L*720*800mm	L*750*850mm
Bale Density(OCC)	350-450kgs/m3	350-450kgs/m3	350-450kgs/m3	380-480kgs/m3
Throughput (30-60kgs/m3)	1-1.5tons/h	1.5-3tons/h 2-3.5tons/h	1.5-3tons/h	2.5-5tons/h
Machine Weight	3tons	7tons/8tons	7tons	8tons
Machine Overall Dimension	3600*2500*1650mm	5950*3200*2500mm  7000*3200*2500mm	5950*3200*2500mm	6100*3250*2500mm
Feeding Device(Optional)	Cyclone / conveyor	Cyclone / conveyor	Cyclone / conveyor	Cyclone / conveyor

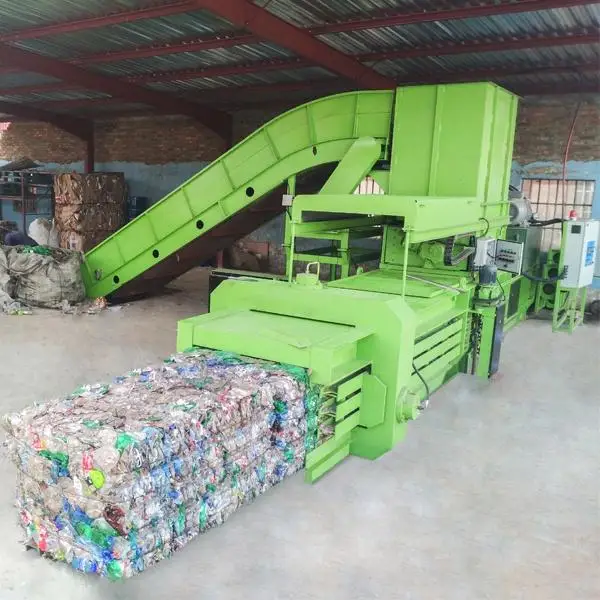

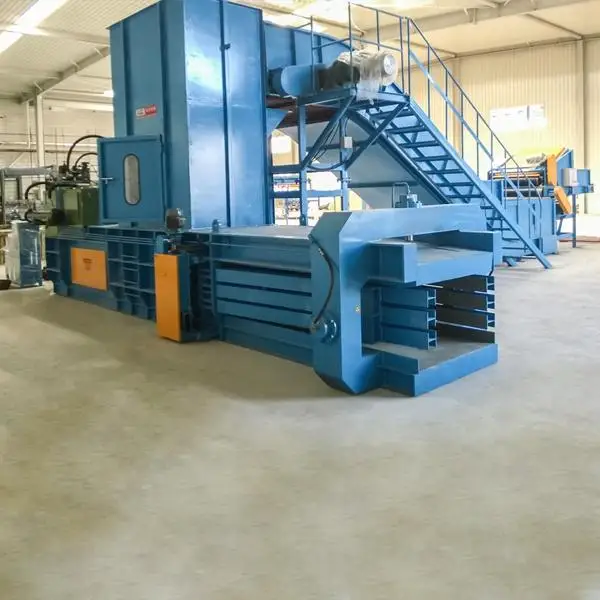

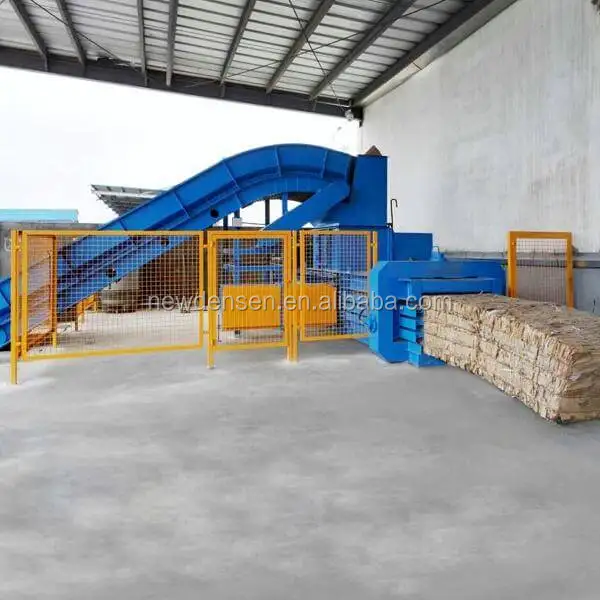

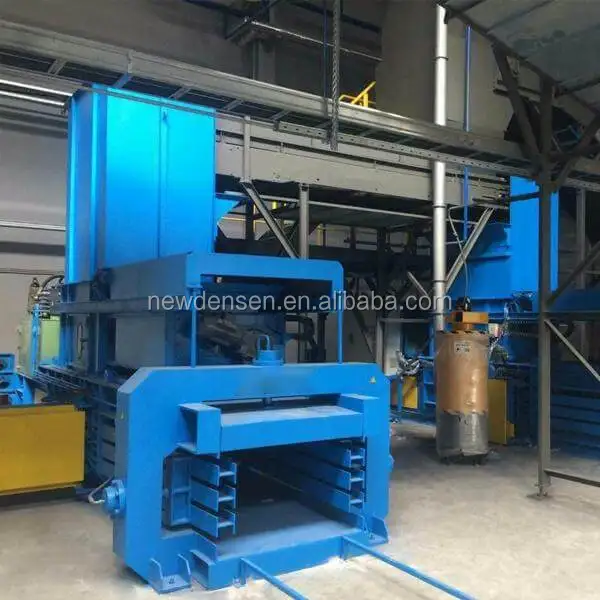

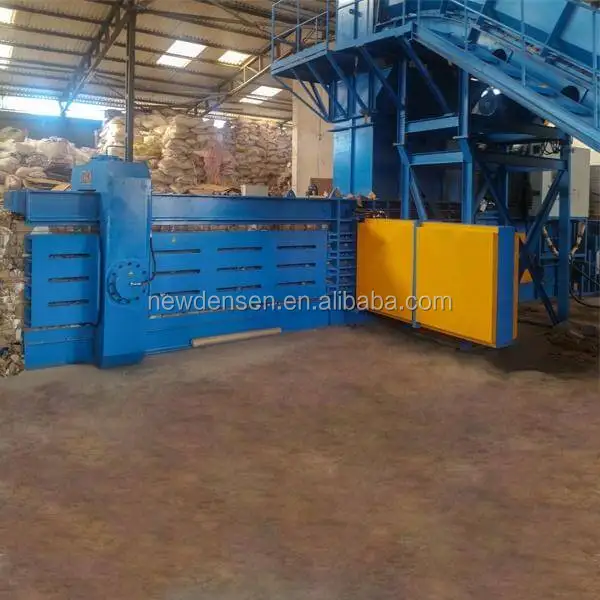

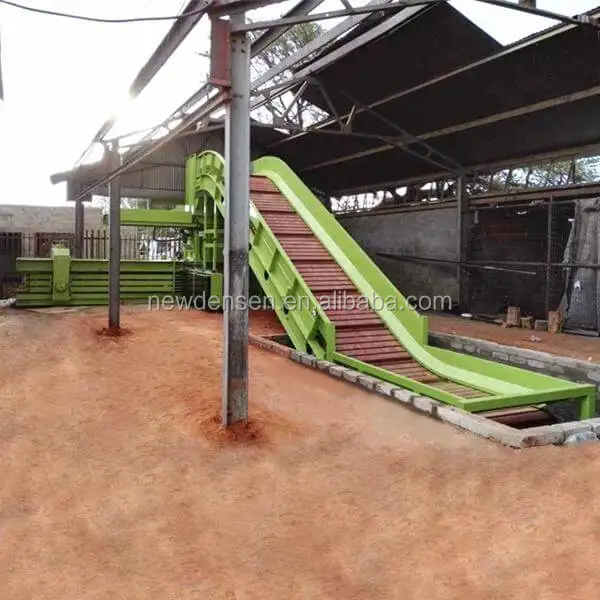

Working Scene:





Application:
