Used Sinotruk Howo 371hp Euro 2 Tractor Truck Head
- Category: Tractor Trucks >>>
- Supplier: Liangshan Changhong Special Purpose Vehicle Manufacturing Co. Ltd.
Share on (62573306949):
Product Overview
Description
Product Description

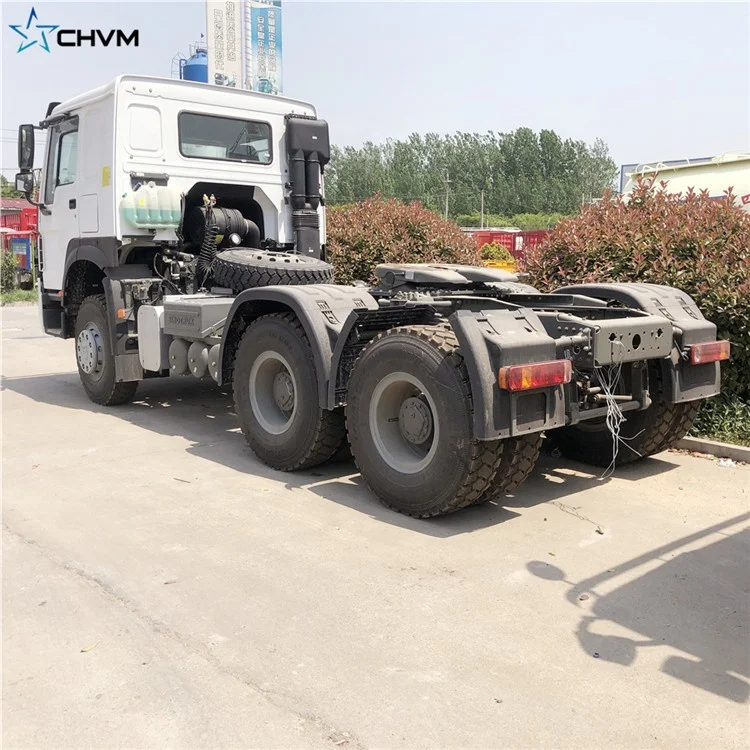

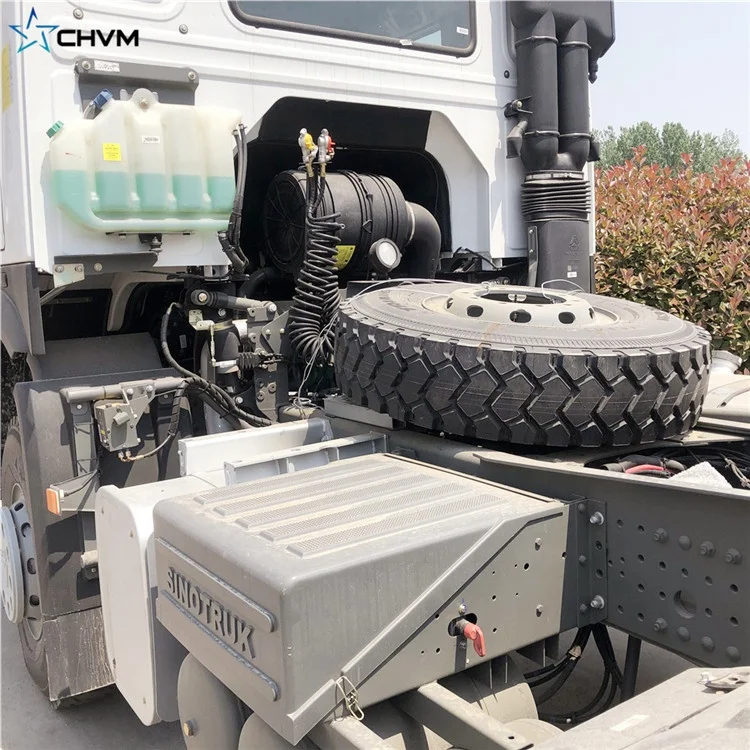

Used Sinotruk Howo 371hp Euro 2 Tractor Truck Head
Vehicle series | HOWO 6x4 420 hp tractor truck | ||||
cab | HW76 | ||||

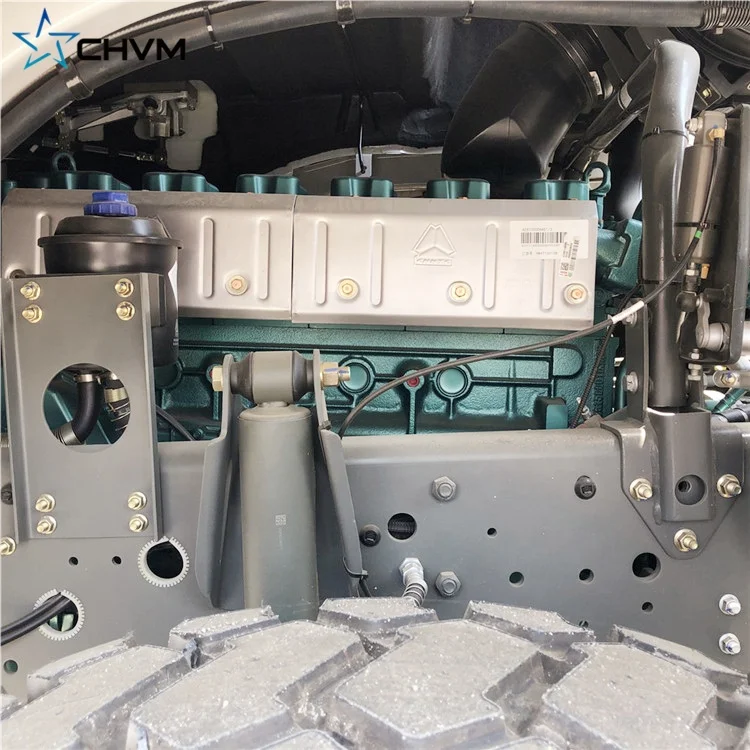

Engine | Model | Euro 4:WD615/D12 | |||
Power(Ps/rpm) | (213-273)/2200 309/2000 | ||||
Maximum torque(Nm/rpm) | (1160-1500)/1100-1600,1820/1100-1500 | ||||
Displacement(L) | 9.726/11.596 | ||||
Transmission | SINOTRUK HW series 10 gears Transmission, main and auxiliary transmission structure, main transmission with double counter shaft ,auxiliary transmission with planetary reduction. WD615.87standardHW15710,WD615.69,WD615.47,D12.38 and D12.42standardHW19710 | ||||
Clutch | Φ430diaphragm spring Clutch,Hydraulic control air assisted. WD615.47,D12.38 and D12.42Engine standard430A,WD615.69standard430B , WD615.87standard430C | ||||
Front axle | HF7,rated load of 7t, drum-type;heavy load truck with HF9 drum-type, rated load of 9t | ||||
Rear axle | ST16 double reduction, speed ratio:3.93,4.42,4.8;heavy load truck with HC16 double reduction, speed ratio:4.8, 5.73 | ||||
Steering gear | ZF8098 steering gear, ZF steering oil pump, system pressure 18MPa | ||||
Suspension | Steer Axle | front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer | |||
Drive Axle | front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer. | ||||
Braking system | Service brake | dual-circuit air pressure brake | |||
Parking brake | spring storage energy without air | ||||
Auxiliary brake | Engine exhaust braking;standardABS,Engine EVB is Optional and optional auto clearance adjusting arm | ||||
Electric system | Voltage | 24v | |||
Generator | 1540w | ||||
Batteries | 12v/165Ah,2pieces | ||||
Starter Power | 24v.7.5kw | ||||

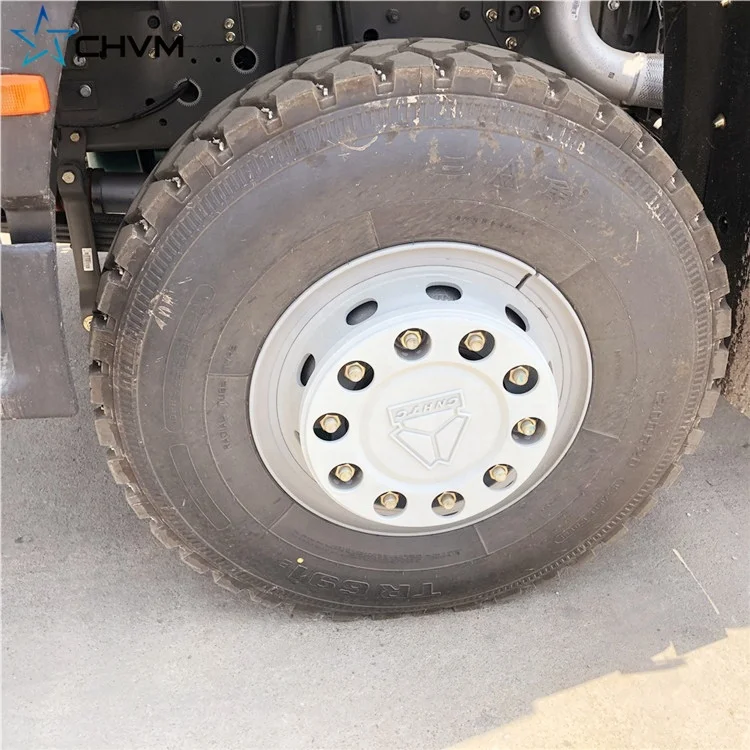

Wheels & Tyres | Tyres | 315/80R22.5 | |||
Optional | 12.00R20; 12R22.5 | ||||
Fuel Tank | Capacity | 400 Liter 260L auxiliary fuel tank can be added | |||
weight(kg) | Curb weight | 9180/9230 | |||
Gross Vehicle weight | 25000 | ||||

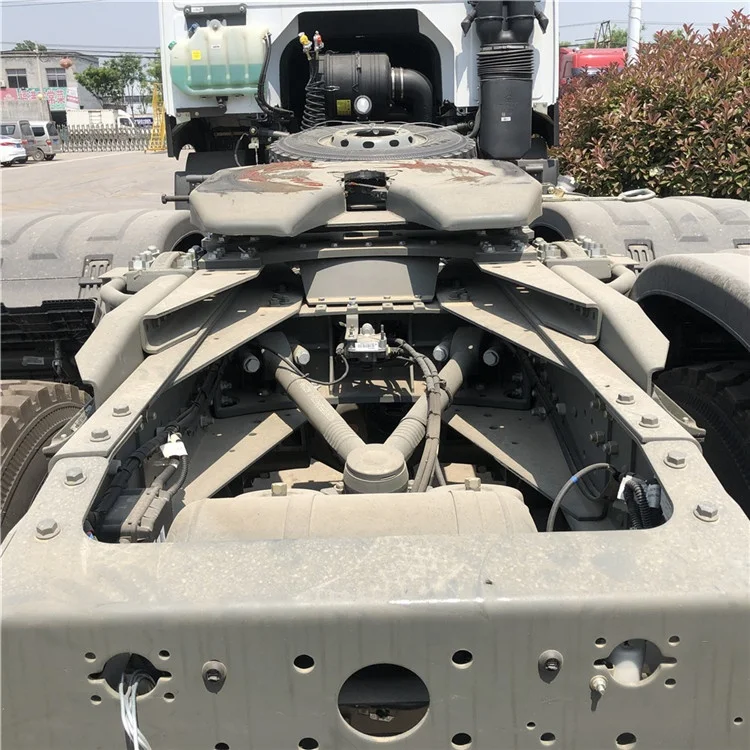

Design loading capacity at fifth wheel | 15640-15690 | ||||
Vehicle Dimensions (mm) | L*H*W | 6800×2496×2958 | |||
Wheelbase | 3200+1350 | ||||
Front overhang/Rear overhang | 1500/725 | ||||
Wheel track of front axle | 2022 | ||||
Wheel track of rear axle | 1850 | ||||
Performance | Maximum speed(km/h) | 92/102 | |||
Maximum gradeability(%) | 20 | ||||
Minimum turning diameter(m) | 15 | ||||
Customer Photos
FAQ
Why choose our products?
Q1: Qualification
We are authorized sales agent of Sinotruk Howo in China.
Q2: Whats the warranty?
2 years after delivery.
Q3: What's your MOQ?
A3: One unit vehicle.
Q4:About logistics.
A4: Roro, Framework, or Bulk Cargo Vessel. We possess long -term cooperation with ship agency which charge lowest shipping fee.
