Road Milling Machine smooth Solid Tyre 26x10 (660x250x480) for Wirtgen W1000f 125782 Tire
- Category: >>>
- Supplier: Yantai Wonray Rubber Tire Co. Ltd.
Share on (62573328103):
Product Overview
Description
Product Description

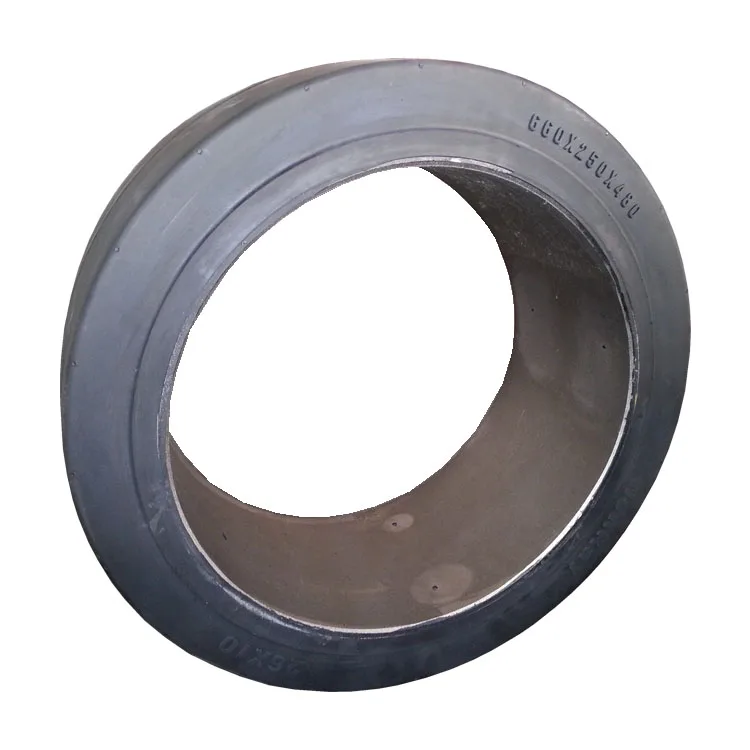

Road Milling Machine smooth Solid Tyre 26x10 (660x250x480) for Wirtgen W1000f 125782 Tire
APPLICATIONS: Forklifts; Ports; Roll on Roll off trailers; Ground Support Equipment; Access Equipment and Rotary Plant
MAIN FEATURES:
Press On Band Forklift Tires: Press On or Band tires are designed from high tensile abrasive rubber compounds, bonded to high quality steel bands which gives maximum performance. It also provides excellent rolling resistance to maintain a higher battery life on electric forklifts. Whilst providing extreme resistance to chipping and chucking, these tires have a high stability for safety and performance. Standard Black cushion tires Designed to provide maximum comfort, wear, and energy efficiency, and provides a comfortable ride, great traction and easier steering.
They are recommended for interiors and flat and flat floors.
Detailed Images

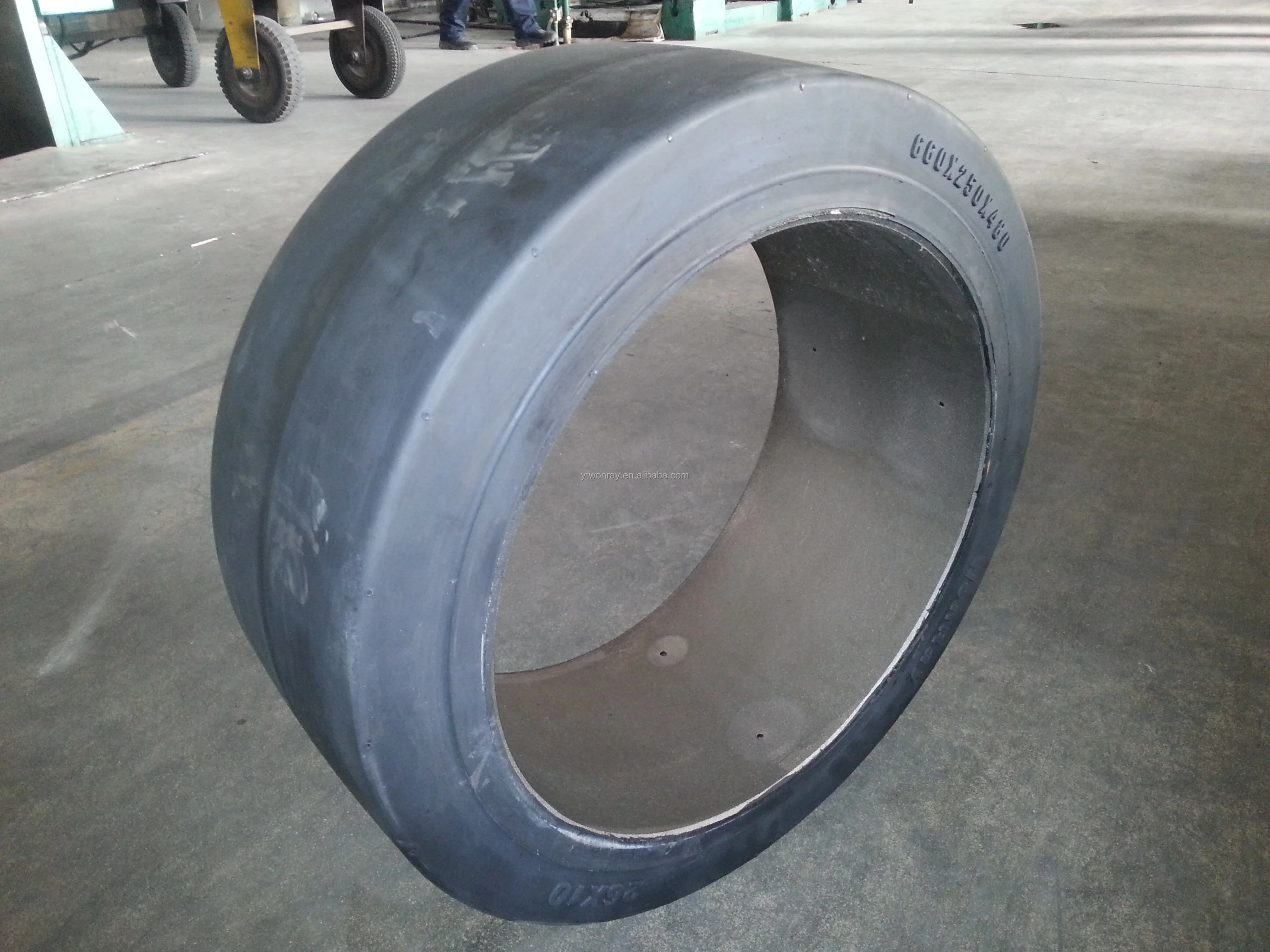

Road Milling Machine smooth Solid Tyre 26x10 (660x250x480) for Wirtgen W1000f 125782 Tire

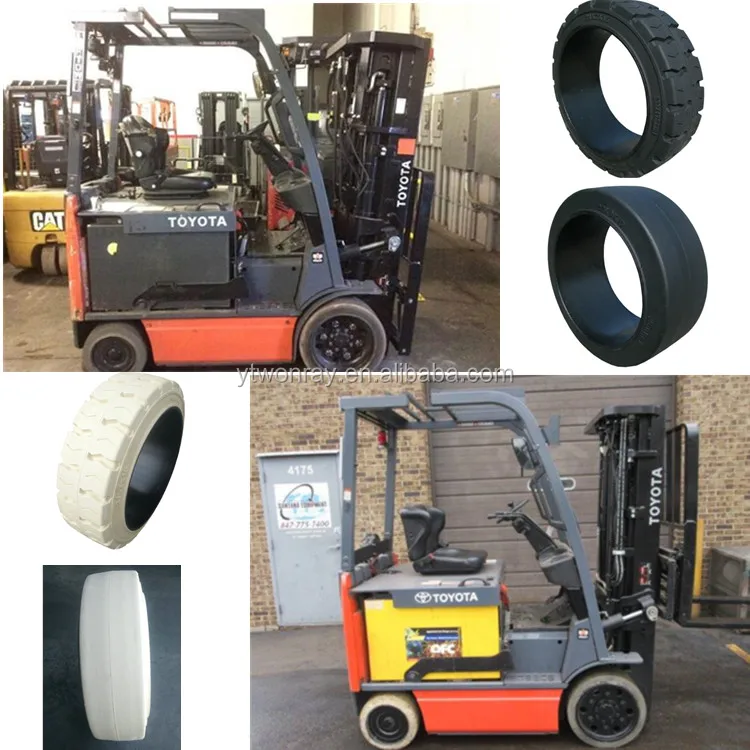

Our Press-On Bands (POB) cushion tire with two patterns Smooth (R700) & TR (R710). And POB with steel base. Its design offers excellent durability and high efficiency, for small commercial vehicle applications, forklifts, aerial platforms, trailers, airport machines, etc.All size solid tires can produce into non marking tires.

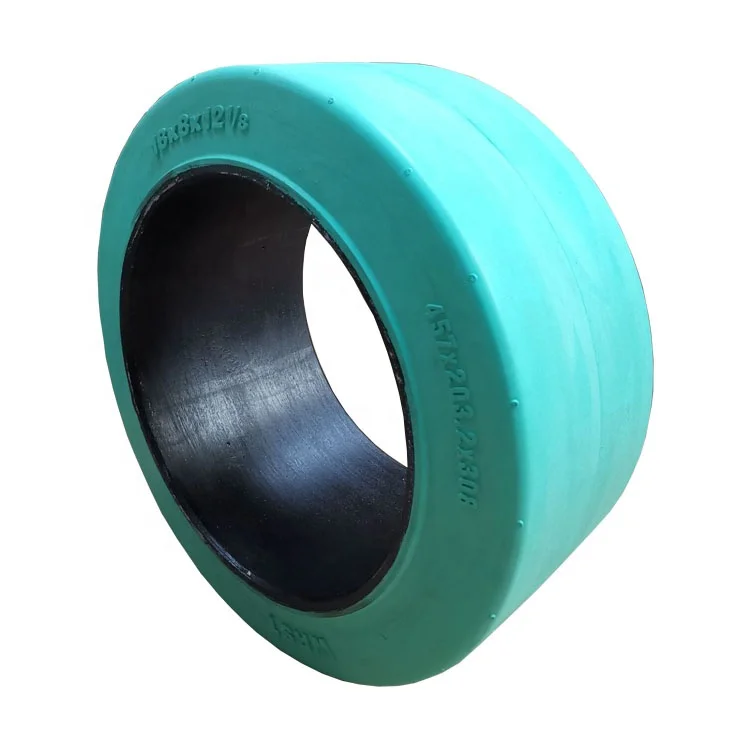

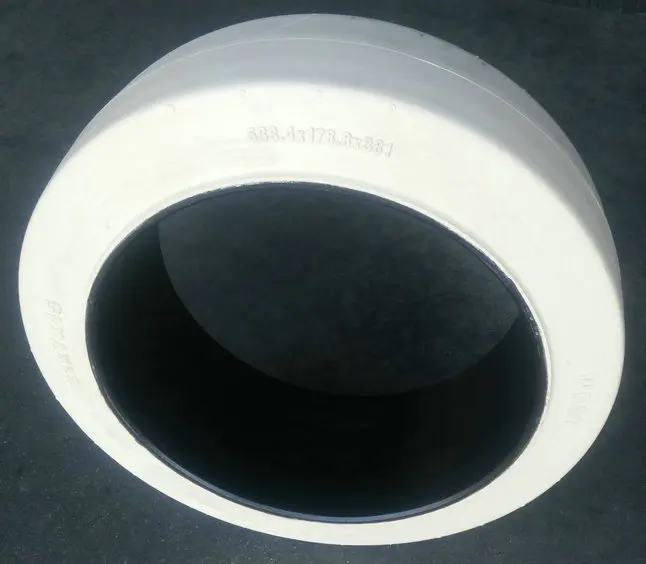

The most Popular color of the non marking tires are White , Grey ,and Green . High performance non marking tires with light color or other colorful rubber compound are designed to operate where clean floors are a priority , no mark is left on the ground when
it is running or braking , especially suitable for the application of the enterprises where contamination is strictly prohibited. Such as the pharmacy , catering trade , textile, electron ,aviation ,etc.
The most Popular color of the non marking tires are White , Grey ,and Green . High performance non marking tires with light color or other colorful rubber compound are designed to operate where clean floors are a priority , no mark is left on the ground when
it is running or braking , especially suitable for the application of the enterprises where contamination is strictly prohibited. Such as the pharmacy , catering trade , textile, electron ,aviation ,etc.
1, Heavy load;
2, Lower energy consumption;
3, Lower Maintenance cost;
4, Tire base is made to combine with steel wheel very tightly so as to avoid peeling off between them;

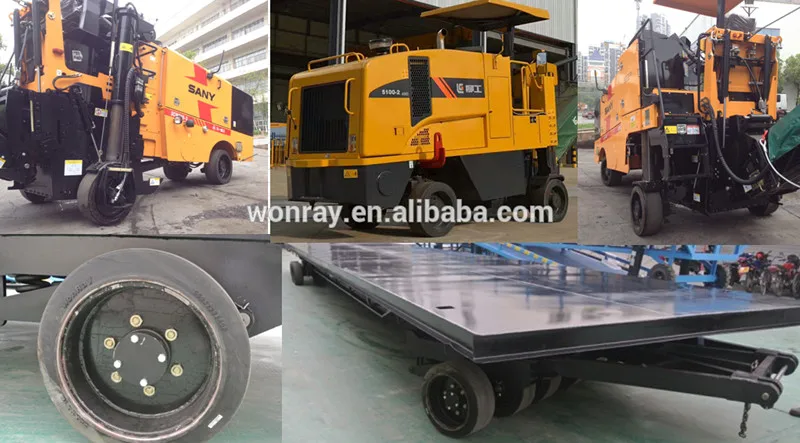

Cases
Size Information
Size of Tire | Types of Pattern | Net Weight | Max Load (kg) 10km/h | Max Load (kg) 10km/h | |||
Inch | mm | kg | Driving wheel | Steering wheel | |||
21x7x15 | 533x178x381 | SM/TR | 30.3 | 2665 | 2370 | ||
12x4 1/2x8 | 305x114.3x203.2 | SM | 8.6 | 970 | 865 | ||
12x5x8 | 305x127x203.2 | SM | 10.00 | 1050 | 970 | ||
13 1/2x5 1/2x8 | 343x139.7x203.2 | SM | 13 | 1400 | 1245 | ||
13 1/2x7 1/2x8 | 343x190.5x203.2 | SM | 20.00 | 2065 | 1835 | ||
14x4 1/2x8 | 355.6x114.3x203.2 | SM/TR | 11.10 | 1085 | 965 | ||
15x5x11 1/4 | 381x127x285.8 | SM/TR | 13.50 | 1290 | 1150 | ||
15x6x11 1/4 | 381x152.4x285.8 | SM | 15.00 | 1300 | 1170 | ||
16 x 5 x 10-1/2 | 406.4x127x266.7 | SM/TR | 15 | 1400 | 1245 | ||
16 x 6 x 10-1/2 | 406.4x152.4x266.7 | SM/TR | 18.00 | 1775 | 1580 | ||
16x7x10 1/2 | 406.4x178.8x266.7 | SM/TR | 21.40 | 2155 | 1915 | ||
16 1/4x5x11 1/4 | 413x127x285 | SM/TR | 15.10 | 1415 | 1260 | ||
16 1/4x6x11 1/4 | 413x152x285 | SM/TR | 18.50 | 1780 | 1585 | ||
16 1/4x7x11 1/4 | 413x178x285 | SM/TR | 21.70 | 2150 | 1915 | ||
18X6X12-1/8 | 457x152x308 | SM/TR | 21.80 | 1945 | 1735 | ||
18X7X12-1/8 | 457x178x308 | SM/TR | 26.20 | 2370 | 2110 | ||
18X8X12-1/8 | 457x203.2x308 | SM/TR | 29.80 | 2790 | 2485 | ||
18X9X12-1/8 | 457x229x308 | SM/TR | 33.70 | 3215 | 2860 | ||
21x8x15 | 533.4x203.2x381 | SM/TR | 35.2 | 3140 | 2795 | ||
21x9x15 | 533.4x228.6x381 | SM/TR | 40.1 | 3620 | 3220 | ||
22x8x16 | 558.8x203.2x406.4 | SM | 37.4 | 3255 | 2895 | ||
22x9x16 | 559x229x406 | SM/TR | 43.00 | 3745 | 3335 | ||
22x10x16 | 559x254x406 | SM | 48.1 | 4000 | 3600 | ||
22x12x16 | 559x305x406 | SM | 57.00 | 5230 | 4655 | ||
22x14x16 | 559x355.6x406 | SM | 69.00 | 6220 | 5535 | ||
22x16x16 | 559x406x406 | SM | 79.00 | 7205 | 6415 | ||
26x10 | 660x250x480 | SM | 68.00 | 4845 | 4310 | ||
620x250x480 | 620x250x480 | SM | 59.00 | 4520 | 4070 | ||
28x12x22 | 711x304x558.8 | SM | 77.00 | 6265 | 5575 | ||
28x14x22 | 711x355.6x558.8 | SM | 95.00 | 7450 | 6630 | ||
28x16x22 | 711x406.4x558.8 | SM | 110.00 | 8635 | 7685 | ||
Certifications
Related Products
Packing&Shipping
Company Introduction
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Including solid tires for forklift and small field runnung vehicles, solid OTR tires, special tires for trailers, skid steer solid tires with rims, solid tires for Sintering& Mining machines, press-on solid tires, solid tires for lifting platforms etc. As well as the Rims&Wheels, Polyurethane wheels.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Mixing Process
Molding Process
Vulcanization process
Trimming process
Exhibition:
Our Advantages:
* Technical team with 26 years' experiences;
* Provide the rim/wheel drawings according to your technical data to confirm; And provide the free pressing service for all customers;
* Our products already covered most industrial area applications: forklift tires, press on tires, OTR tires for heavy load machines. Trailers tires and lift platforms tires are all available;
* Self-developed Brand;

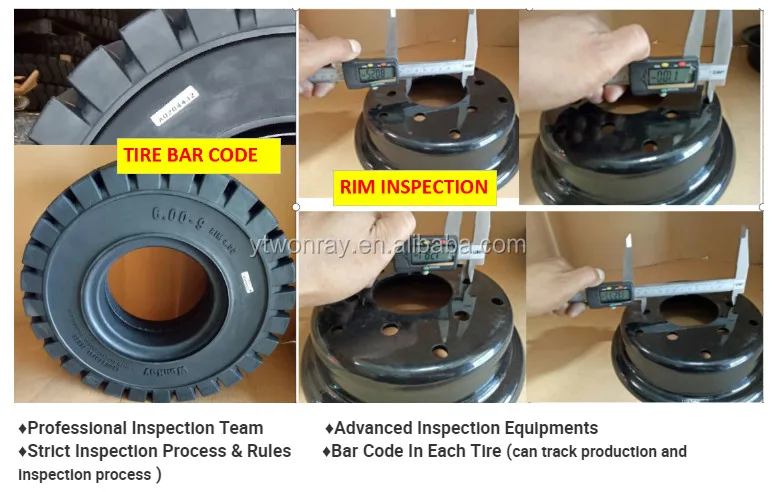

* Professional Inspection Team;
* Advanced Inspection Equipments;
* Strict Inspection Process & Rules;
* Bar Code In Each Tire (can track production and inspection process )
* Provide the rim/wheel drawings according to your technical data to confirm; And provide the free pressing service for all customers;
* Our products already covered most industrial area applications: forklift tires, press on tires, OTR tires for heavy load machines. Trailers tires and lift platforms tires are all available;
* Self-developed Brand;
* Professional Inspection Team;
* Advanced Inspection Equipments;
* Strict Inspection Process & Rules;
* Bar Code In Each Tire (can track production and inspection process )
* Kinds of types of solid tires can be provided. Such as
solid tire for trailer, forklift solid tire, pneumatic forklift tire, skid steer loader tire, solid industrial tire, otr tire, Tires solid,wheel loader solid tire, tire 10.00-20, tire 255x50, 14.00-24 tires, 12.00-20 tire. 14.00-20 tire, tyre forklift solid, scissor lift solid tire, 14-17.5 bobcat skid steer tire, lift tyre, military tires, tire 323x100, loader tire 26.5-25, genie boom lift tire 385/65-24, komatsu tire, run flat tire, linde forklift solid tyres, crane tire and reach stacker tire 18.00-25 etc.
solid tire for trailer, forklift solid tire, pneumatic forklift tire, skid steer loader tire, solid industrial tire, otr tire, Tires solid,wheel loader solid tire, tire 10.00-20, tire 255x50, 14.00-24 tires, 12.00-20 tire. 14.00-20 tire, tyre forklift solid, scissor lift solid tire, 14-17.5 bobcat skid steer tire, lift tyre, military tires, tire 323x100, loader tire 26.5-25, genie boom lift tire 385/65-24, komatsu tire, run flat tire, linde forklift solid tyres, crane tire and reach stacker tire 18.00-25 etc.
Welcome to inquiry and visit our factory!
