  • Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition

Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition

Share on (62573379012):


Price:$628.00 - $685.00

Quantity:


Product Overview

Description


Product Description
Product Name
Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition
Material
Indusrtial standard material
Main Function
Temperature testing & Face Recognition
Interface
1 USB OTG, 1 USB HOST standard A port, 1 RS232 serial port, 1 door open signal output, One Wiegand 26/34 output,Support Uboot upgrade button, 1 RJ45 Ethernet socket(optional one DC-12V, one Wiegand 26/34 input)
Installation
Wall mount, Stand mount

  • Thermal Camera RK3288 7.1.2 Tablet With Temperature Sensor Face Recognition:

SIBO 8 inch Pass management terminal has temperature testing & Facing recognition, using for access control. The terminal use industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
Details Images
* Supports accurate face recognition and comparison while wearing a mask.
* The measurement error is plus or minus 0.5 ℃.
* It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.


Specification
Model
SW-1081D
SW-1081D




Camera
Resolution
2 million pixels
Type
Binocular wide dynamic camera
Aperture
F2.4
Focusing distance
50-150cm
White balance
auto
Photo flood light
LED and IR dual photo flood light

Screen
Size
8.0 inch IPS LCD screen
Resolution
800×1280
Touch
Not supported (optional support)

Processor
CPU
RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Storage
EMMC 8G





Interface
Network module
Ethernet and wireless (WIFI)
Audio
2.5W / 4R speakers
USB
1 USB OTG, 1 USB HOST standard A port
Serial communication
1 RS232 serial port
Relay output
1 door open signal output
Wiegand
One Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade button
Support Uboot upgrade button
Wired network
1 RJ45 Ethernet socket









Function
Face Detection
Supports detection and tracking of multiple people at the same time
Face library
Up to 30,000
1: N face recognition
Support
1: 1 face comparison
Support
Stranger detection
Support
Identify distance configuration
Support
UI interface configuration
Support
Upgrade remotely
Support
Interface
Interfaces include device management, personnel / photo management, record query, etc.
Deployment method
Support public cloud deployment, privatized deployment, LAN use, stand-alone use







Infrared thermal imaging module
Temperature detection
Support
Temperature detection distance
1 meter (optimal distance 0.5 meter)
Temperature measurement accuracy
≤ ±0.5℃
Temperature measurement range
10℃~42℃
Thermal field of view
32 X 32℃
Visitors' temperature is normal and released directly
Support
Abnormal temperature alarm
Support (temperature alarm value can be set)




General parameters
Power
DC12V（±10%）
Operating temperature
0℃~60℃
Storage temperature
-20℃~60℃
Power consumption
13.5W（Max）
Installation method
Screwed by wall mount bracket
Size
Standard：274.24*128*21.48（mm）
IC card / ID card：296.18*132.88*25（mm）
Packing list
Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1

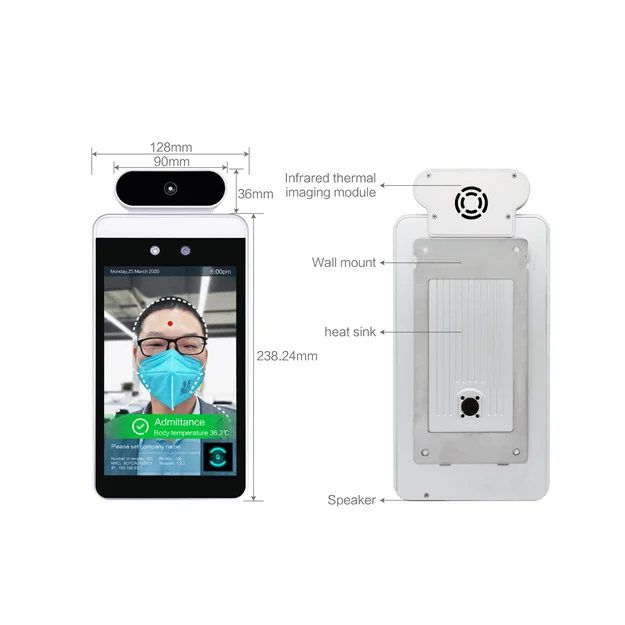

Appearance And Size

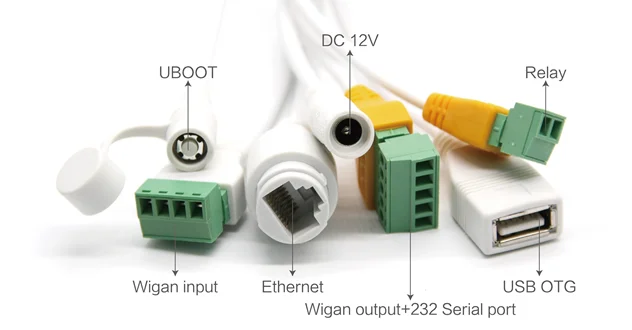

Wire Interface
7 Wire Interface:
Installation Instructions

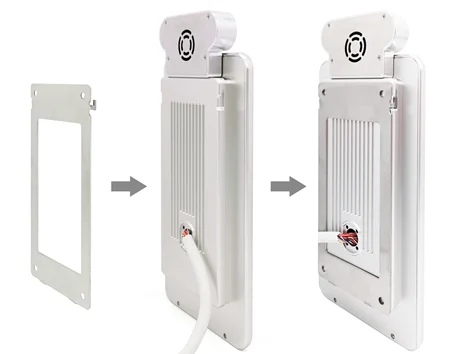

Wall mount：

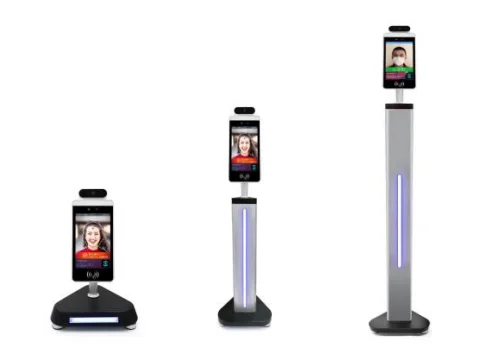

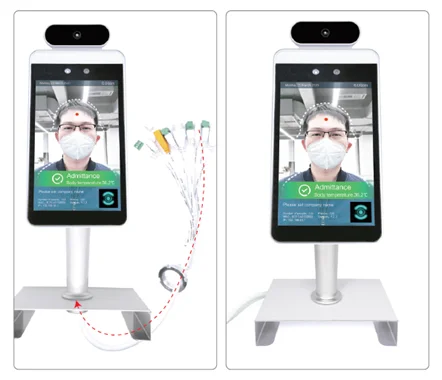

Stand mount:
Company Introduction
About us:
Shenzhen Sibo Industrial & Development Company limited, established in 2001. own all plastic moulds of our tablets, has strongability on plastic casing design and pcb board development with in house engineers. SIBO produces according to the standard of ISO9001, and execute strict raw material and final product inspection. SIBO tablets have passed CE, FCC, ROHS test. All production data are uploaded to our server for history tracking, this data will be stored for 3 years.
Our Services & Strength
* 18 Years Experiences in Tablet PC for Automation
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery
FAQ
Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.

Question: What is your company mainly products?
Answer: Our mainly products are 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital
signage, access & security control, home automation, industrial control, energy & power management...

Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.

Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)

Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT
to enable our customers to get their goods rapidly.

Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.

Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.

Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)

Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we
repair you without labor charge collection.

Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
