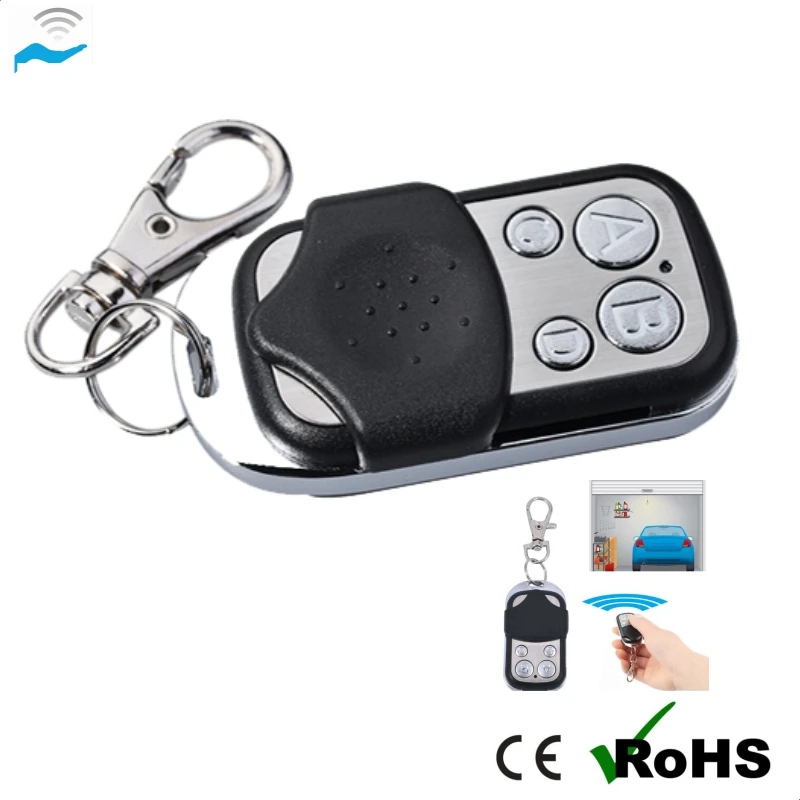

433.92Mhz Cloning Gate for Garage Door Remote Control Switch Portable Duplicator Key For Car For Chip 2260 2262

Product Overview

Description

433.92Mhz Cloning Gate for Garage Door Remote Control Switch Portable Duplicator Key For Car For Chip 2260 2262















Specification

Buttons Sum	4 keys
Operating Voltage	CR2032 3V
Operating Current	≤8mA
Code Type	face-face copy
Modulation	ASK
Operating Frequency	280MHZ ~868MHZ
Transmitting Power	≤10MW
Transmitting Distance	50~100m
Ambient Temperature	‘-20°C ~ +60°C



Operating Instructions:



1, Clear : Pressing Arming key and disarming key at the same time , after 2s LED light flashing 3 times ,then don’t loose Arming key , but loose Disarming key and press Disarming key for 3 times ,then flashing fast , it shows clearing successfully .



2, Duplicating: Left hand handling the original remote control, right hand handling the duplicating remote control, keeping the two close, at the same time pressing the Arming key of the two control, after 3s LED light flashing 3 times, then flashing fast, it shows that the original control of the Arming key code has been copied in to the duplicating remote control. The other three keys are the same operation.



3, Resume : If you clear code of duplicating remote control incautiously , you can press starting key and muting key , after 3s , LED light flashing 3 times , now flashing fast, it shows the code of duplicating remote control is resumed .



4.Recover: If you meet misoperation and cancle useful codes, before re-copy, you can press the below two keys at the same time for 2 seconds and release when the lights flash quickly, then the control will be recovered.

5. Notes:This copy of the remote control can not copy a computer code and rolling code , the device can only copy fixed code or learn codes.





Key features

·         Prevents loss and replaces your old remote controls

·         Self learning remote control

·         Used in car alarms, home alarms, panic buttons, garage doors, rolling curtains and more

·         Copies most radio frequency fixed code remote controls

·         Learning face to face in second









Application:
Vehicle monitoring, remote control, home security systems, wireless meter reading, access control systems, paging, industrial data acquisition system, radio tags, identification, RF contactless smart cards, small wireless data terminals, fire safety systems, wireless remote control system, biological signals acquisition, hydrological and meteorological monitoring, robot control and other areas.
Automobile, motorcycle alarm home burglar alarm variety of remote control: electric curtains, roller shutter doors, garage Road illustrates control
