#109 lcd MAX7219 dot matrix board control module display module finished product lcd display dot matrix module
- Category: >>>
- Supplier: Shenzhen Hairuixing Technology Co. Ltd.
Share on (62573856708):
Product Overview
Description
Product Description
#109 lcd MAX7219 dot matrix board control module display module finished product lcd display dot matrix module
Product Parameters:
The MAX7219 is an integrated serial input / output common cathode display driver. It is connected to a microprocessor and an 8-digit 7-segment digital LED display. It can also be connected to a bar graph display or 64 independent LEDs. It includes an on-chip B-type BCD encoder, multi-channel scanning loop, segment word driver, and an 8 * 8 static RAM for storing each data. Only one external register is used to set the segment current of each LED.
A convenient four-wire serial interface can be connected to all general-purpose microprocessors. Each data can be addressed without updating all displays during update. The MAX7219 also allows users to choose whether to encode or not encode each data.
The entire device includes a 150μA low-power shutdown mode, analog and digital brightness control, a scan limit register that allows users to display 1-8 bits of data, and a detection mode that allows all LEDs to emit light.
Only 3 IO ports are needed to drive 1 dot matrix! No flashing during dot matrix display! Support cascading!
Module parameters:

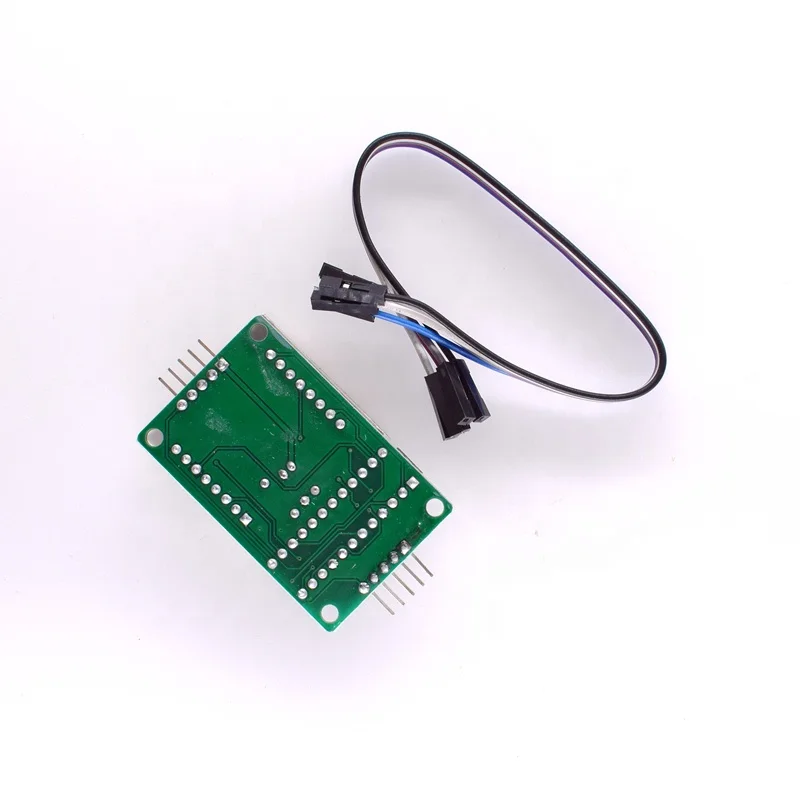

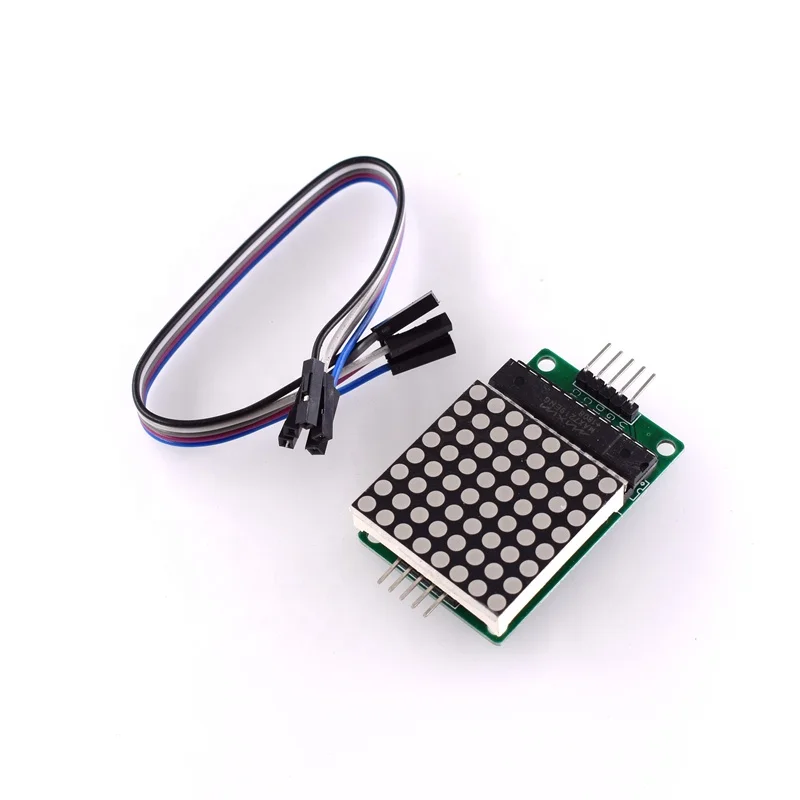

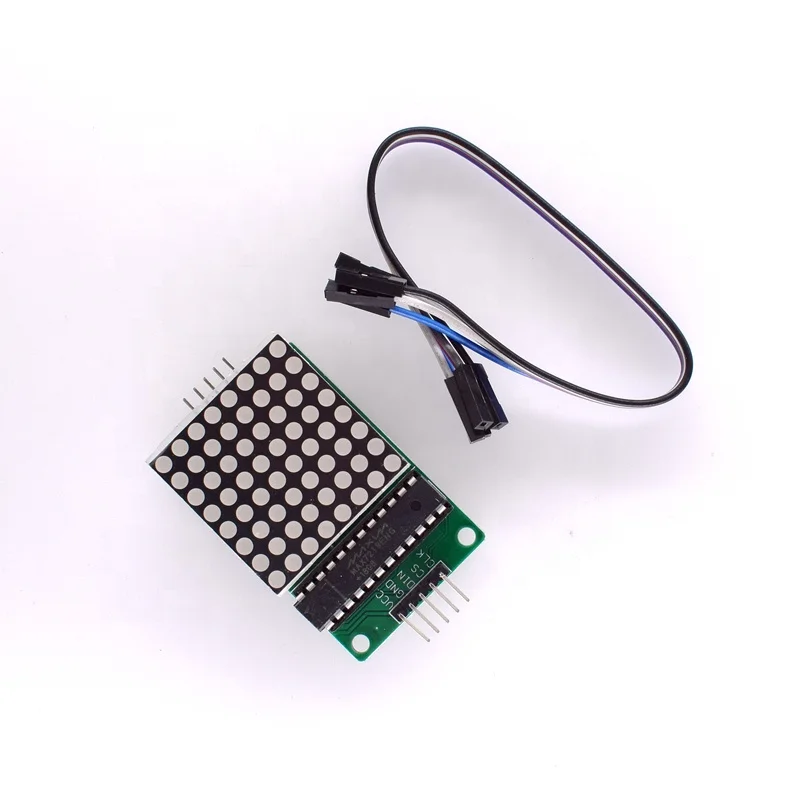

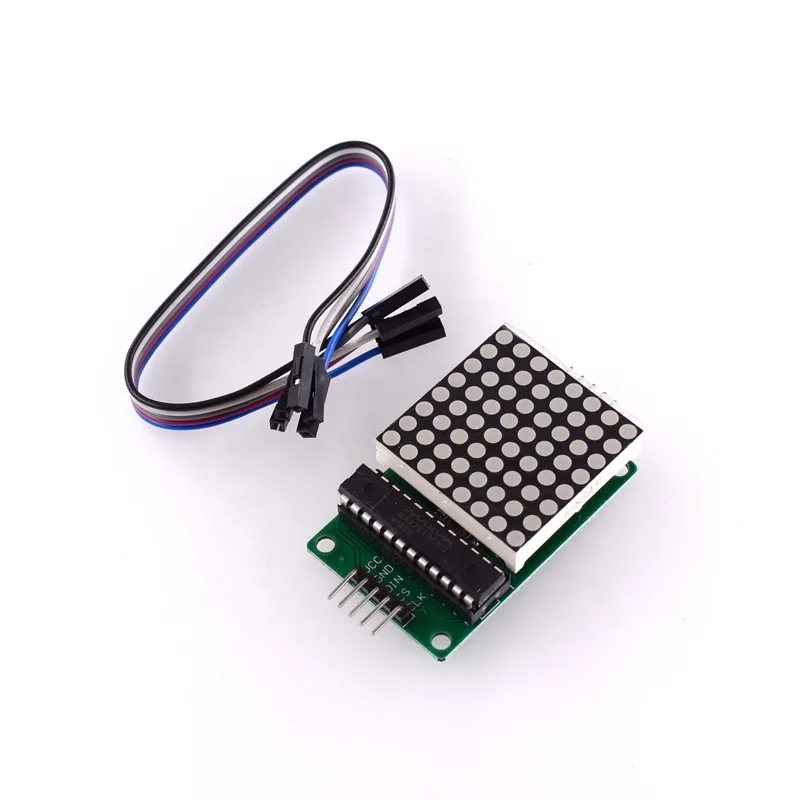

1. A single module can drive an 8 * 8 common negative dot matrix 2. Module working voltage: 5V 3. Module size: length 5 cm X width 3.2 cm X height 1.5 cm 4. With 4 fixing screw holes, with a hole diameter of 3mm, can be fixed using our M3 copper column 5. Module with input and output interface, support multiple modules cascade |
Wiring instructions:
1. The left side of the module is the input port, and the right side is the output port. 2. When controlling a single module, only need to connect the input port to the CPU 3. When multiple modules are cascaded, the input of the first module is connected to the CPU, the output is connected to the input of the second module, the output of the second module is connected to the input of the third module, and so on. |
Take 51 microcontroller as an example:
VCC → 5V
GND → GND
DIN → P22
CS → P21
CLK → P20
Product details:
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
