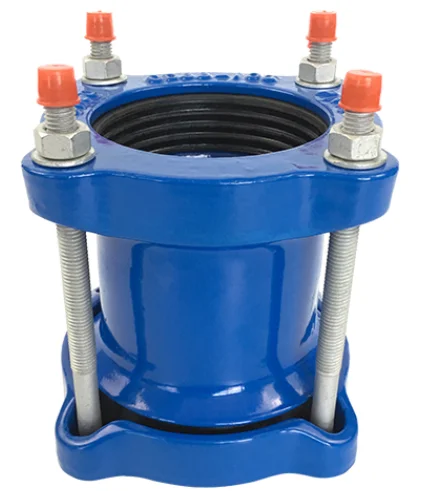

Ductile iron pipe fitting flexible restrainted joint DN200 PN16 universal coupling ductile iron

Product Overview

Description

Ductile iron pipe fitting flexible restrainted joint DN200 PN16 universal coupling ductile iron



These products are used to join two pipes or tube spigot ends. Couplings are designed to be connected to pipes of different materials, or for use with one material only. UltraLink multi-materials couplings with very broad tolerance. This range of couplings is available for continuous lengths of pipe with exterior diameters between DE 49 mm and DE 348 mm, and a PFA of 16 bar. The angular deflection is approximately 6° per joint (12° between two pipes).



Ductile Iron GGG50,GJS500-7,GGG40

Size: DN40-DN600
Pressure: PN10,PN16,PN25,PN40,230psi
Pressure Test: 15Bar, 24Bar, 37.5Bar, 350psi
EPDM, NBR Rubber Seals to EN681 & ASTM D2000.
Painting: RAL5017 FBE coated, Min., Coating Thickness 200μm.
Flanged End: EN 1092 PN10/PN16,ANSI 150,Table D/E
Connected Pipe: DI Pipe
