Dental Endodontic Microscope/ Dental Operating Microscope /endodontic microscope
- Category: >>>
- Supplier: Xinhuaguang Medical Technology Group Co. Ltd
Share on (62574149583):
Product Overview
Description
Product Description
Product Name: | Dental Operating Microscope | Brand Name: | Zhoek |
Model Number: | DOM-500 | Warranty: | 1 year |
After-sale Service: | Online Technical Support | Illumination: | LED |
magnification: | 3.8X，6.3X，10X | Eyepiece: | Wide Field WF12.5X/18B |
binocular tube: | 45 degree | Usage: | Dentist Working Partner |
Detailed Images
Treatment of dental pulp disease，Periodontal disease， restorative dentistry
Zhoek professional surgery microscope, you see a fashionable, smooth lines, beautiful shape with a sense of modern design of
high-end microscope, and modern consulting room perfect fit. Under the fashionable appearance is full of excellent optical quality, you have upgraded to a higher level of clinical treatment,bringing you a higher quality, more efficient work experience.Zhoek operating microscope allows users to easily adjust the focal length without changing the sitting position or opening and moving the lens. Easier operation to prevent prolonged strain of cervical and lumbar spine.
Zhoek high performance microscope is the perfect combination of excellent optical quality and comfortable handling.
Convenient positioning, Angle adjustment, comfortable feel.
Multi-layer optical lens, multi-layer nano-optical coating,3 magnification, eyepiece with 12.5x/10x wide-angle eyepiece, can
provide a wide field of view and 3D stereo imaging. Special refractive compensation adjustment (+6- 6D) is suitable for the operator who wears glasses.
Convenient positioning, Angle adjustment, comfortable feel.
Multi-layer optical lens, multi-layer nano-optical coating,3 magnification, eyepiece with 12.5x/10x wide-angle eyepiece, can
provide a wide field of view and 3D stereo imaging. Special refractive compensation adjustment (+6- 6D) is suitable for the operator who wears glasses.
Product Paramenters
Model | DOM500 | ||||||
Function | Dental Operating Microscope | ||||||
Electrical data | |||||||
Power socket | 220v(+10%/-15%) 50HZ/110V(+10%/-15%) 60HZ | ||||||
Power consumption | 40VA | ||||||
Safety class | class I | ||||||
microscope | |||||||
Tube | 45°binocular tube +30°Wedge splitter | ||||||
Magnification | manual 3-step changer, ratio 0.6，1.0，1.6 , total magnification 3.8x, 6.3x，10x ( F 250mm) | ||||||
Objectives | F=250mm(180-300mm) | ||||||
Objective focusing | 15mm | ||||||
Eyepiece | 12.5x/ 18B(10x/18B for optional) | ||||||
Diopter adjustment | +6D ~ -6D | ||||||
Feild of veiw | 3 steps: Φ53.3 mm, Φ32 mm, Φ20 mm | ||||||
ILLUMINATION | |||||||
Light source | LED cold light with life time >100000 hours, brightness >50000 lux CRI>90 | ||||||
Banlance arm | 120° Banlance arm with damping | ||||||
Filter | standard spot, small spot, green filter, yellow filter. | ||||||
Power supply | AC 110V/220V - 220W | ||||||

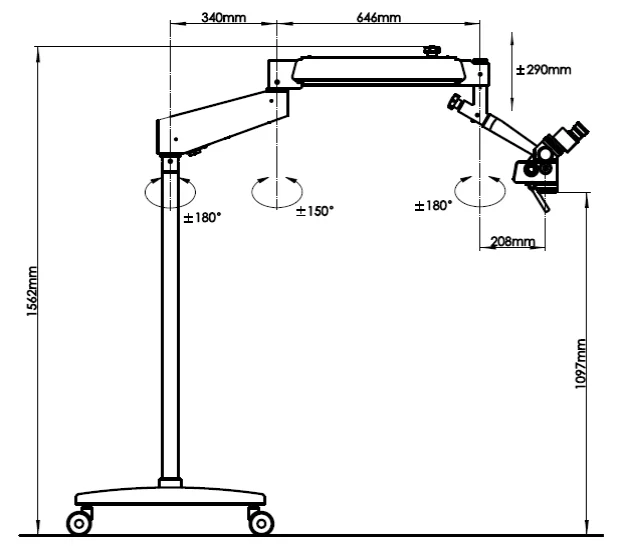

Stands | |||||||
Max extension range | 1100mm | ||||||
Base | 625mm × 610 mm | ||||||
Rotation angle | 270 degree | ||||||
Movable floor stand frame | Including base, column, big cross arm(340mm),small cross arm(650mm) and so on. height:1800mm, The range of up-down≥350mm | ||||||
Brake system | Fine adjustable mechanical brakes for all rotation axes with detachable brake | ||||||
System weight | 65 kg | ||||||

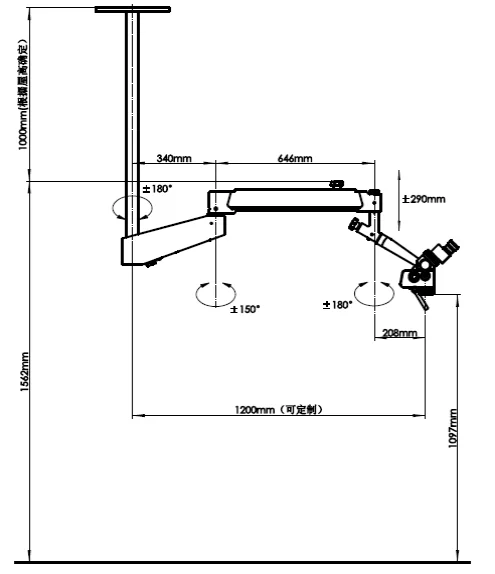

Stand options | Ceiling mount,Wall mount,Floor stand,desktop mount | ||||||
