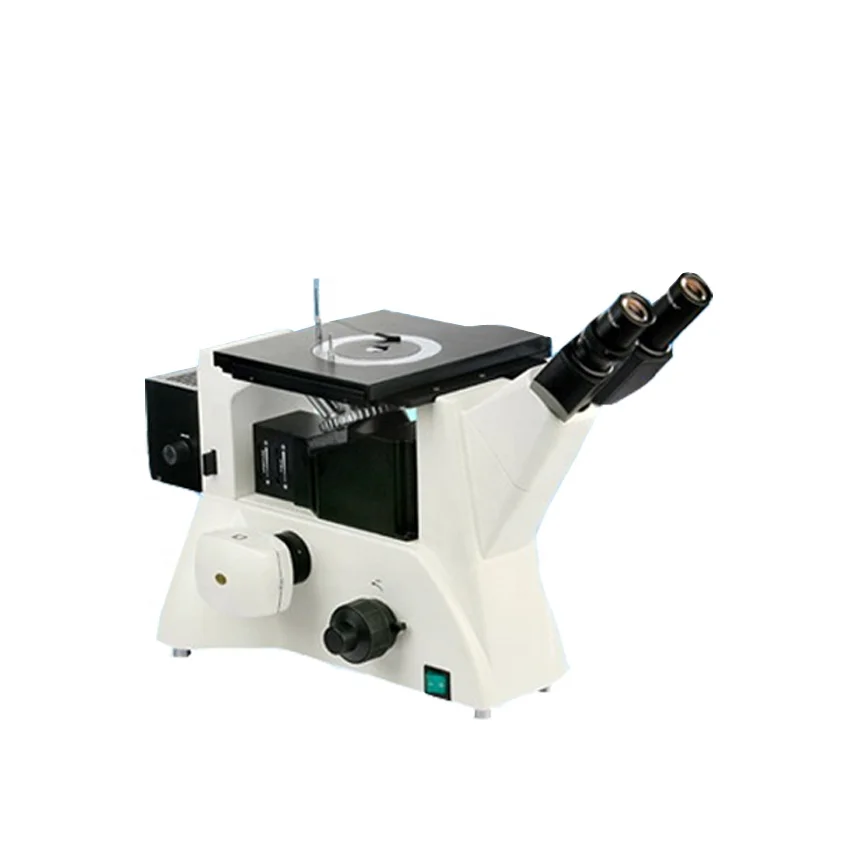

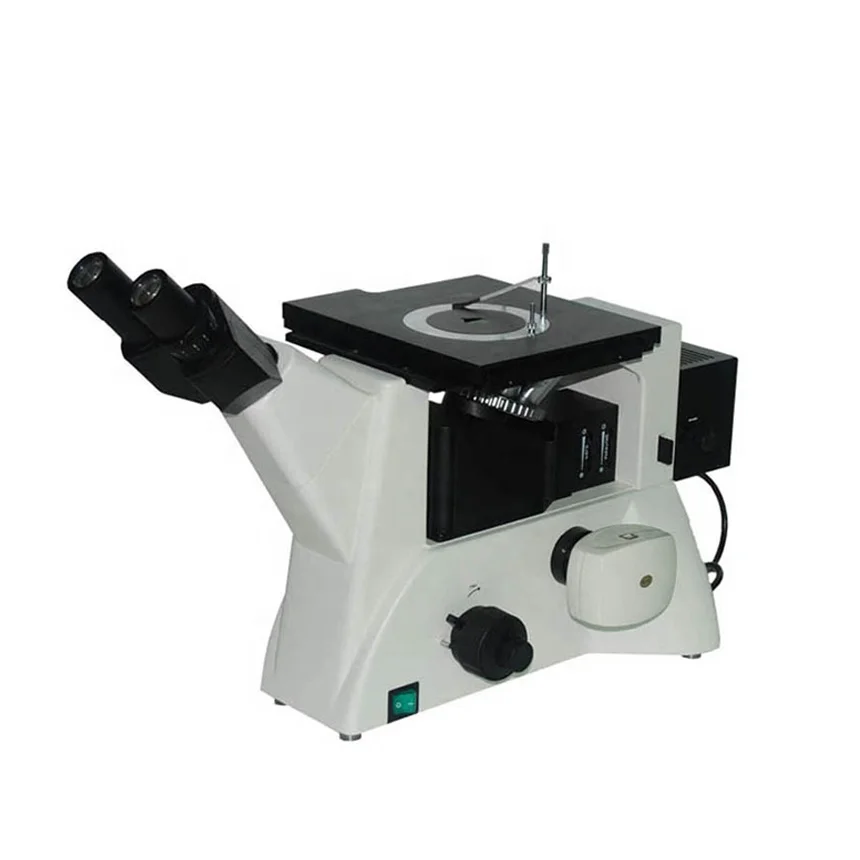

FD2320 Electric trinocular metallurgical microscopes
Description
FD2320 series Darkfield Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Optical Parameter
| Name | FD2320 Electric trinocular metallurgical microscopes |
| Head | Inclination angle is 45 degree and interpupillary distance is 53~75mm |
| Eyepiece | WF10X/22mm Wide Field |

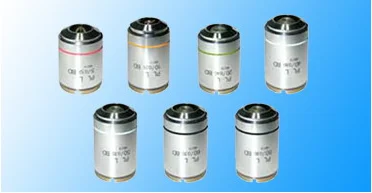

| Infinity Plan Achromatic Objective | PL L10X/0.25 BF WD=:20.2 mm (Bright Field) |
| PL L20X/0.40 BF WD=8.80 mm (Bright Field) | |
| PL L50X/0.70 BF WD=3.68 mm(Bright Field) | |
| PL L100X/0.85 BF WD=0.4 mm (Bright Field) | |
| Nosepiece | Quintuple (Backward ball bearing inner locating) |
| Stage | Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm. |
| Rotundity and rotatable stage size: maximal measurement is 130mm and minimal clear aperture is less then 12mm | |
| Focus System | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 2μm. |
| Illumination System | 6V30W halogen and brightness enable control |
| Integrated field diaphragm , aperture diaphragm and puller type polarizer | |
| Equipped with frosted glass and yellow ,green and blue filters | |
Optional Accessory of FD2320 Electric trinocular metallurgical microscopes | |
| Name of Parts | |
| Eyepiece | Dividing eyepiece(field number:Φ22mm) 0.10mm/Div |
| Objective | PL L5X/0.12 BF WD=26.1 mm (Bright Field) |
| PL L40X/0.60 BF WD=3.98 mm (Bright Field) | |
| PL L60X/0.70BF WD=3.18 mm (Bright Field) | |
| PL L80X/0.80 BF WD=1.28mm (Bright Field) | |
| PL L40X/0.6 BD WD=3.0 mm (Bright & Dark Field) | |
| PL L60X/0.75 BD WD=1.90 mm(Bright & Dark Field) | |
| PL L80X/0.80 BD WD=0.8mm(Bright & Dark Field) | |
| PL L100X/0.85 BD WD=0.4 mm(Bright & Dark Field) | |
| CCD adapter | 0.5X |
| 1X | |
| 0.5X with dividing 0.1mm/Div | |
| Digital camera adapter | Canon(EF),NIKON(F) |
Details

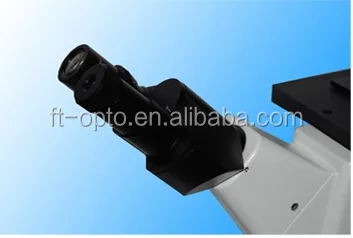

| Observation system The gemel mode binocular is inclined 45 degree. The operator cervix and shoulder are released from tired in period of time keeping bow or head-up . The eyepiece field of view number is 22mm and eyepatch can be added . |

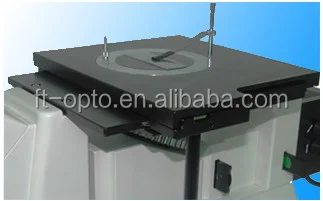

 | Mechanical Stage The circular chromeplate substage is located in the center of mechanical stage so that enable rotate the specimen in the polarization observation. The abnormity observation vindow is suit for different size specimen . |

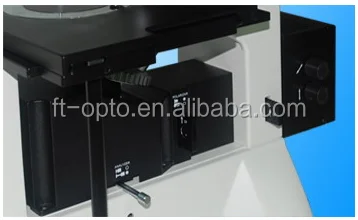

 | Illuminator System Integrated illumination can make up the difference of halogens by adjusting the spacial position. The illumination mode is "Kohler illumination" and the adjustment of field and aperture diaphragm is achieved by turning the control plate, the adjustment node is smooth and comfort . Fully taken into account the cooling effect of illumination system so that the surface temperature of lamp house is lower, the operation is safer . Simpler and quicker way to replace the bulb without any tools . |
 | Dark field Observation (for FD2320BD) Equip high quality bright and dark field objectives and dark field illumination device. Avoid the stray light of illumination system and improve the image quality in the dark field . |

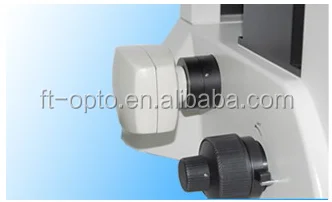

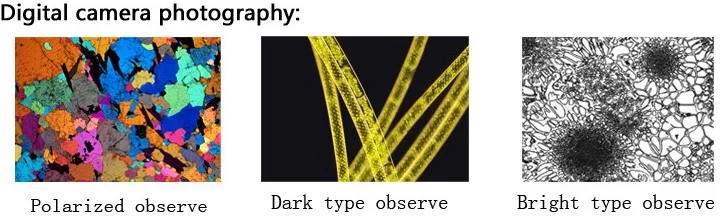

 | Photography Unit The photographic observation output is seting up on the back of main body frame, so that the accessories of camera don't cause interference so eyepiece observation . Microphotography in 100% light flux, suits for low illuminance microphotography . |

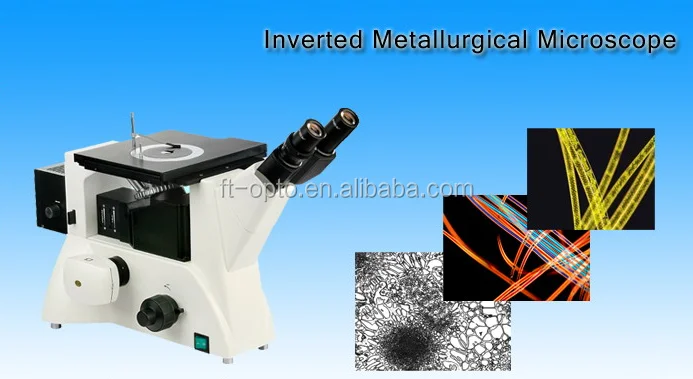

FD2320BD Optical Industry Inspection Darkfield Inverted Metallurgical Microscope
Drawings

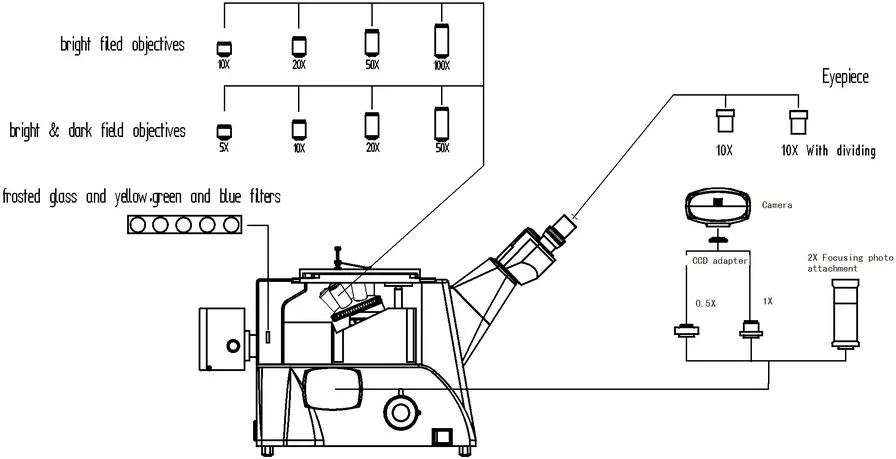

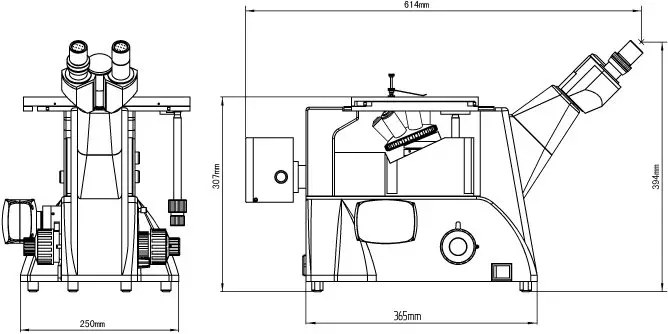

FD2320 Electric trinocular metallurgical microscopes Drawing
