Diesel Engine Powered Mini 3 10m Width Asphalt Slip Form Concrete Paver YC219D For Sale
- Category: >>>
- Supplier: Shandong Ecan Machinery Manufacturing Co. Ltd.
Share on (62574362482):
Product Overview
Description
Product Description
Introduction of Diesel Engine Powered Mini 3-10m Width Asphalt Slip Form Concrete Paver YC219D For Sale
Features of FRP219D concrete roller paver:
With diesel engine and generator to supply the power.
- Optional Auger for spreading concrete available.
- Electrical power operation (Option Engine Driven also available).
- Advanced steel strike tube with excitation force of 5.52Kn.
- Strike tube leaves aggregate at the surface for more durable slab.
- Minimum labour required.
- Available in sizes to 4, 5, 6, 7, 8 & 9mtrs.
- Performs up to 10,000 sq. ft. per hour.
- Multiple passes in both forward & reverse direction.
- Rides on forms or existing slab or outer channels / tubes.
- Works with low concrete slumps.
- Meets strict flatness and levelness specifications.
- Unobstructed view of the work area for operator.
- Pneumatic tires on height adjustable jacks for easy movement/access around job site .
- Plastic treated for, anti-rust, anti-corrosion and durability.
Parameters of Diesel Engine Powered Mini 3-10m Width Asphalt Slip Form Concrete Paver YC219D For Sale
| Model | YC219D |
| Paving Width(mtr) | 3--10 |
| Vibrating Frequency(Hz) | 40 |
| Excitation Force(Kn) | 5.52 |
| Travel Speed(m/min) | 8.4 |
| Roller Diameter-3Rollers(mm) | 219each |
| Paving Thickness(mm) | 300 |
| Auger Rotation Speed(mm) | 200 |
| Strike Tube Rotation Speed Max(rpm) | 300 |
| Drive Tube Motor Rating(Kw) | 7.5 |
| Strike Tube Motor Rating(Kw) | 3 |
| Diesel engine output(hp) | 30 |
| Generator Power(kw) | 24 |
| Operating Weight(Kg) | 1600 |
| Dimensions(LxWxH mm) | Lx1803x815 |

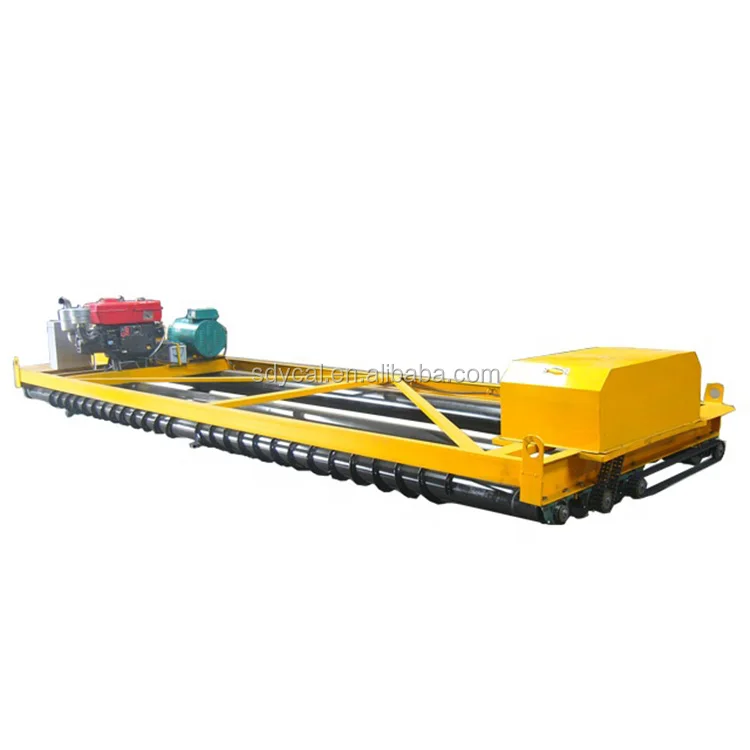

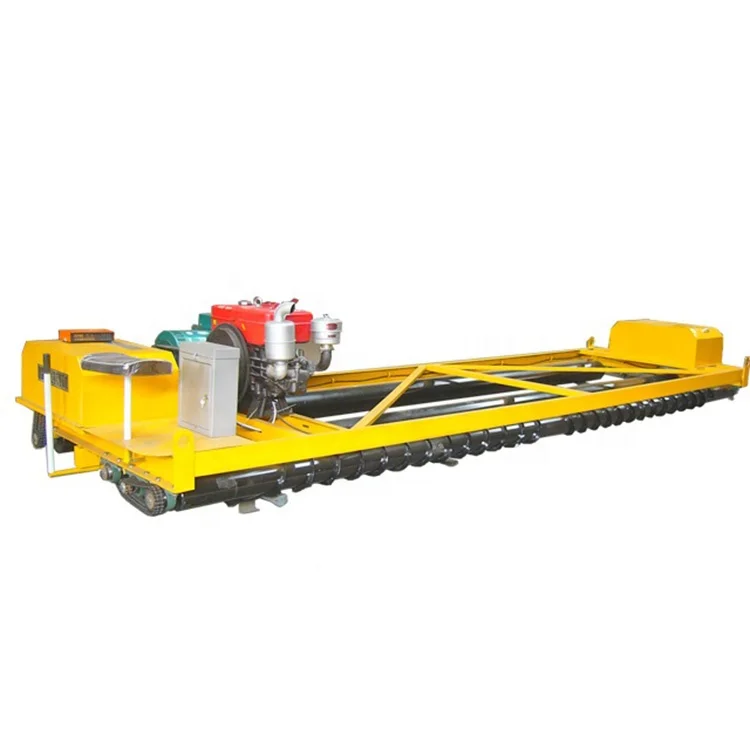

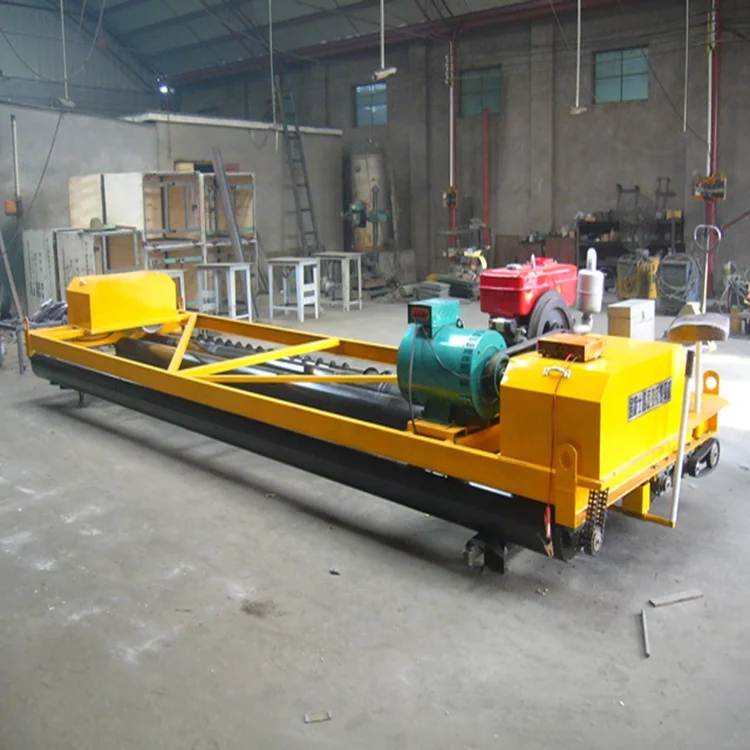

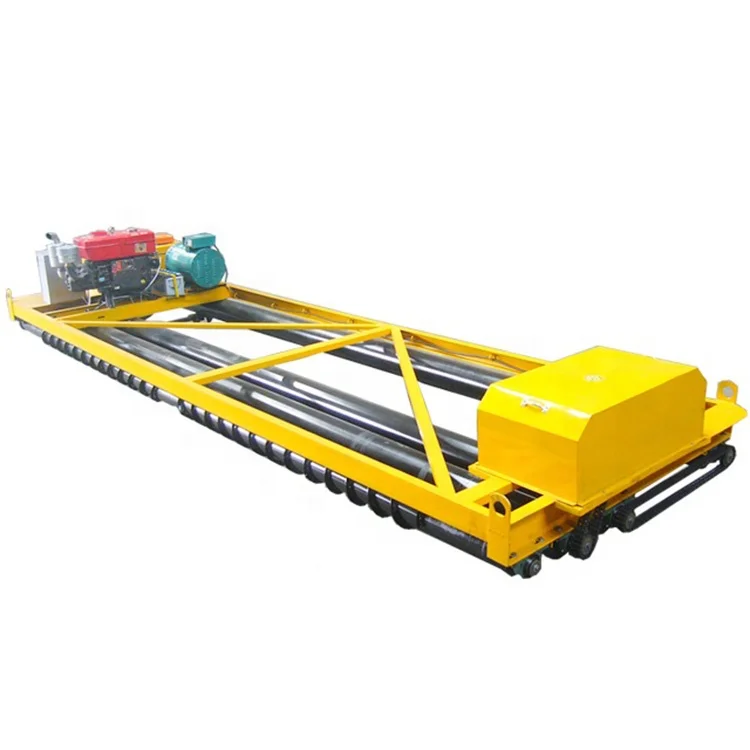

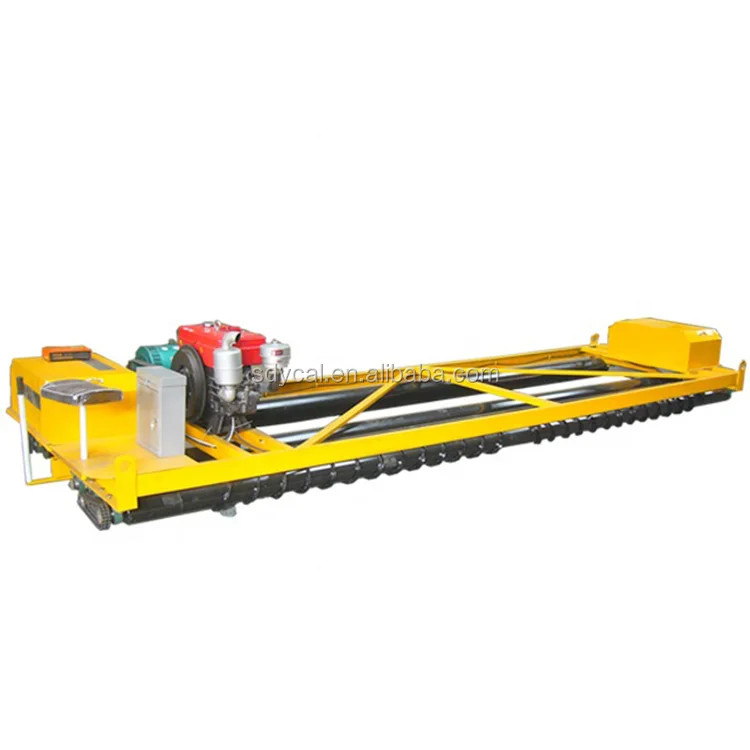

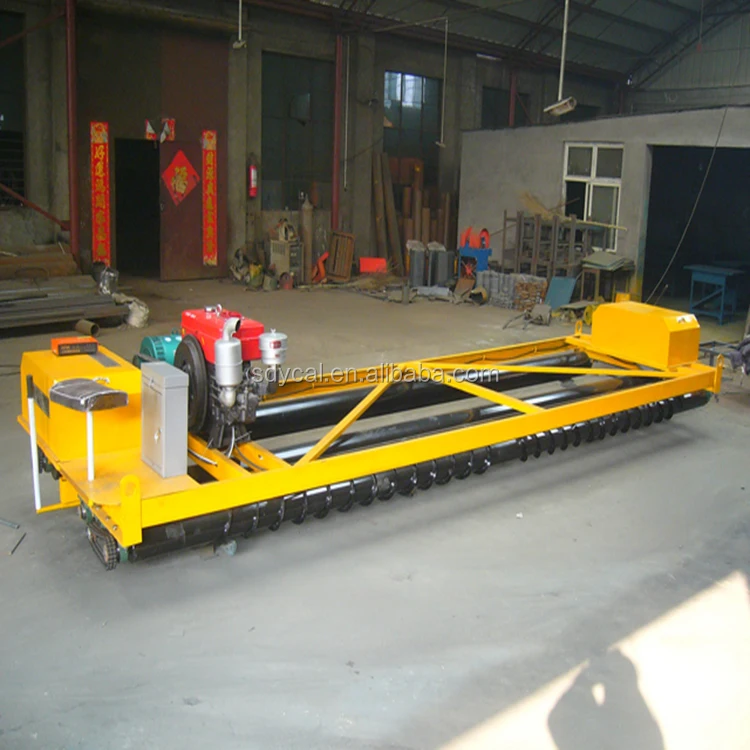

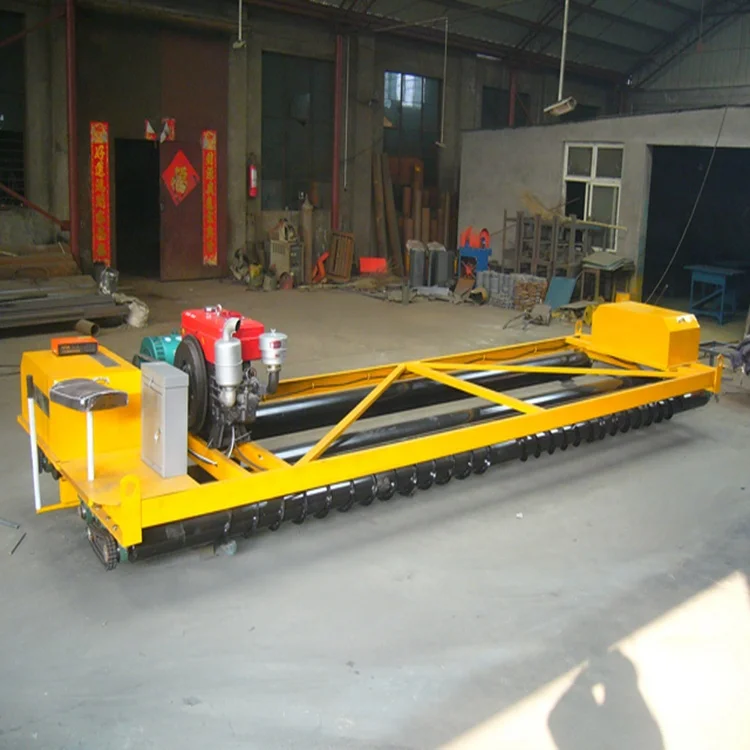

Images of Diesel Engine Powered Mini 3-10m Width Asphalt Slip Form Concrete Paver YC219D For Sale
