CE Complete Plywood Production Running Manufacturing Line
Hanvy Machinery is the original plywood machine manufacturer,who supplies a complete range of machinery ,systems and technology for the production of plywood and veneer including log cutting, debarking, veneer peeling, clipping,drying, gluing, panel pressing, sawing, and sanding.
CE Complete Plywood Production Running Manufacturing Line
Step 1: Log Debarker for wood veneer peeling production line
Hanvy Machinery,supplies various types of log debarker machine,such as 8ft,6ft and 4ft,it could be equipped with carrier roller to protect small diameter log falling down.
Model | HBP1600 | HBP2000 | HBP2700 |
Working diameter | φ140-500 mm | φ140-500 mm | φ140-500 mm |
Working length | 1400 mm | 2000 mm | 2600 mm |
Rotary speed | 47 m/min | 47 m/min | 47 m/min |
Total motor power | 24 kw | 33.5 kw | 35.5 kw |
Knife size | 140x12.7x1600 | 140x12.7x2000 | 140x12.7x2700 |
Overall dimensions | 3650x2155x1700 mm | 4550x2155x1700 mm | 5482x2155x1700 mm |
Weight | 5875 kg | 6000 kg | 7600 kg |

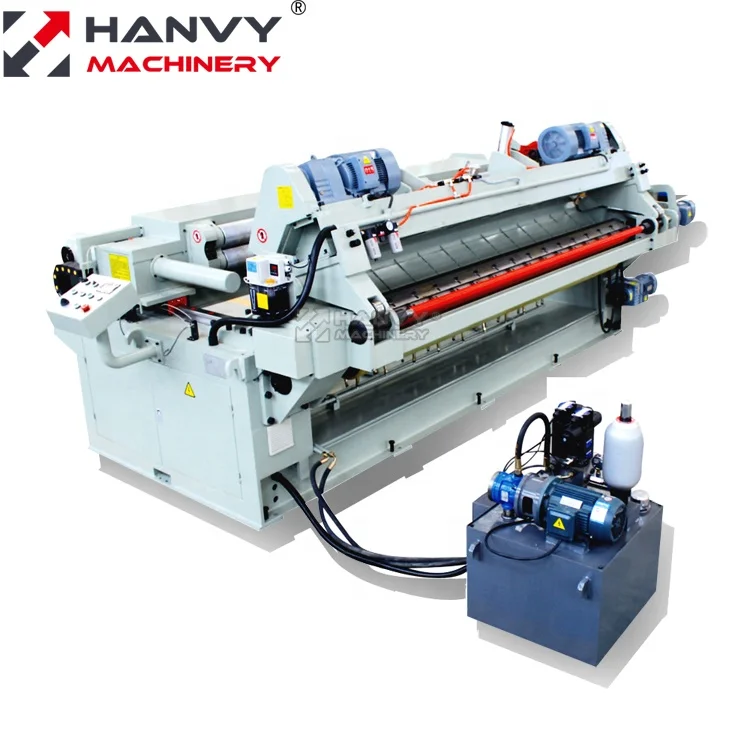

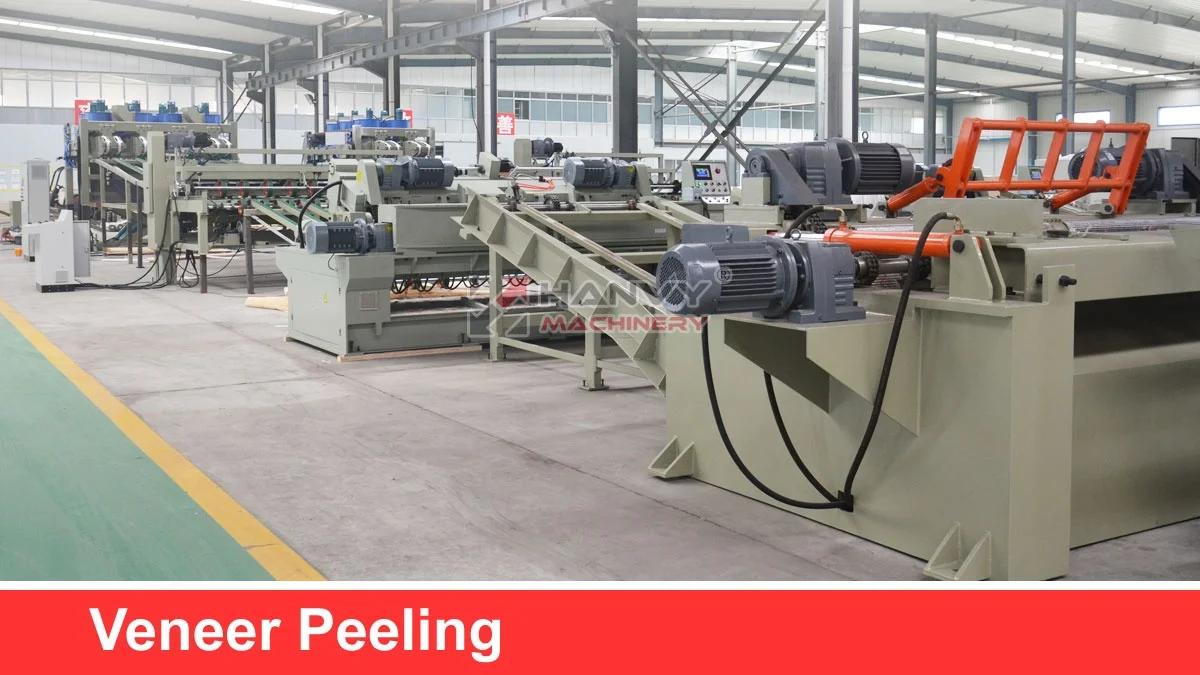

Step 2: Veneer Peeling machine for veneer peeling line
Main Features

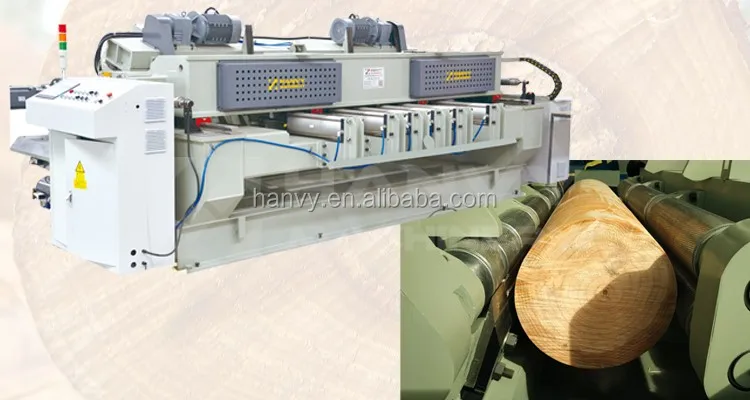

Spindleless Veneer Peeling Machine for Plywood
option: CNC Control , servo motor Siemens system - Pneumatic press knife Knife gap automatic adjustment Knife angle automatic adjustment High speed & precision.
peel log from diameter 500mm to 40mm,and improves log utilization.

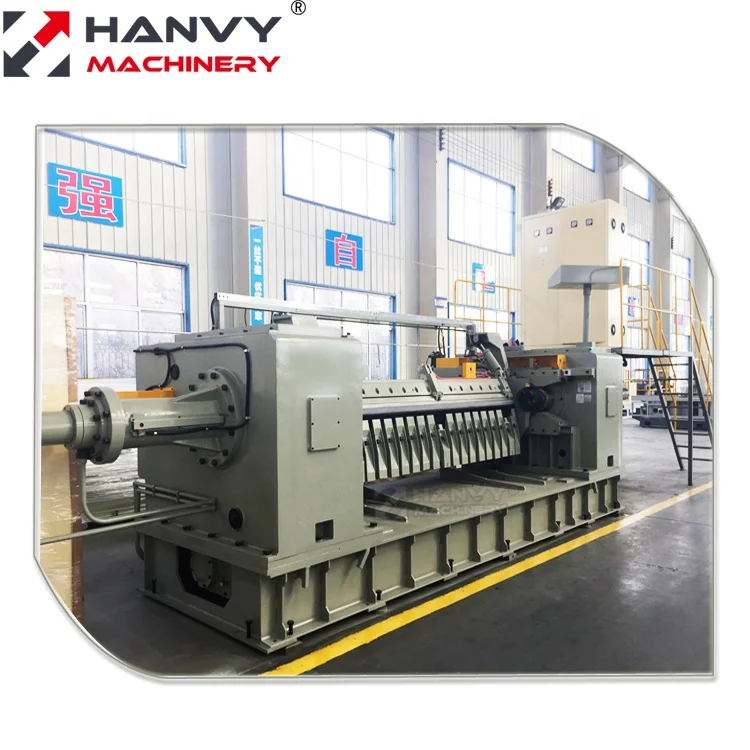

Hanvy also supplies spindle veneer peeling lathe (below left picture) for log diameter 600mm,800mm,1100mm,1500mm,1800mm,2000mm.
Spindleless veneer peeling with clipper 2 in 1,good for max.log diameter 480mm (below right picture)
Model | BQ1226/8E1 | HXQ2700 | BQ1226/15 |
Working diameter | Φ 170- Φ800 mm | Φ 500mm | Φ 200- Φ1500 mm |
Working length | 2150-2700 mm | 2600 mm | 1900-2700 mm |
Veneer thickness | 0.35-3.9 mm | 0.5-3.0 mm | 0.35-3.9 mm |
Chuck diameter | Φ100 mm | - | Φ160 mm |
Chuck speed | 0-160 rpm | Peeling speed 100m/min | 0-160 rpm |
Main motor power | 75 kw | 52 kw | 98 kw |
Grinding angle of tool carriage | 18° -22° | - | 18° -22° |
Total motor power | 90.25 kw | 52 kw | 119.25 kw |

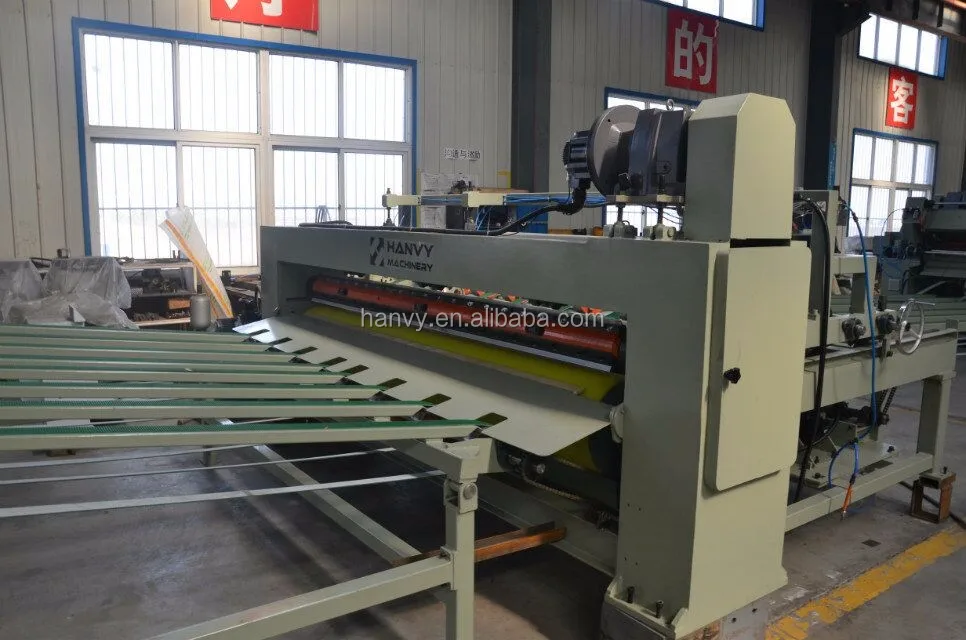

Step 3: Veneer Clipping Machine
Veneer clipping machine for plywood making machinery
Fast cutting speed,100m/min;Equipped with Japan system;Front and back conveyor,roller diameter 398mm.Max.working width could be 8ft,6ft,4ft or customized size.

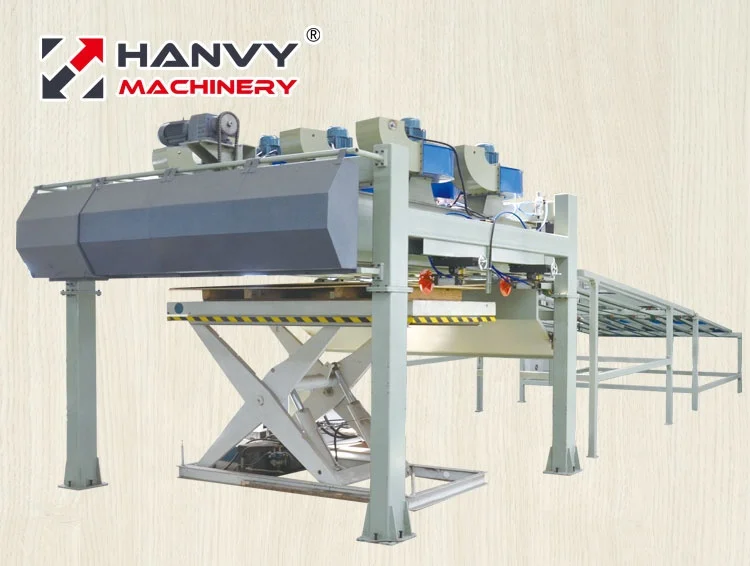

Step 4: Veneer Stacker
Veneer stacker machine for plywood production line
Vacuum type automatic veneer stacking machine.Veneer thickness 1.0-3.0mm.It could be single stack,double stacks or customized type. Max.stackign height 1000mm

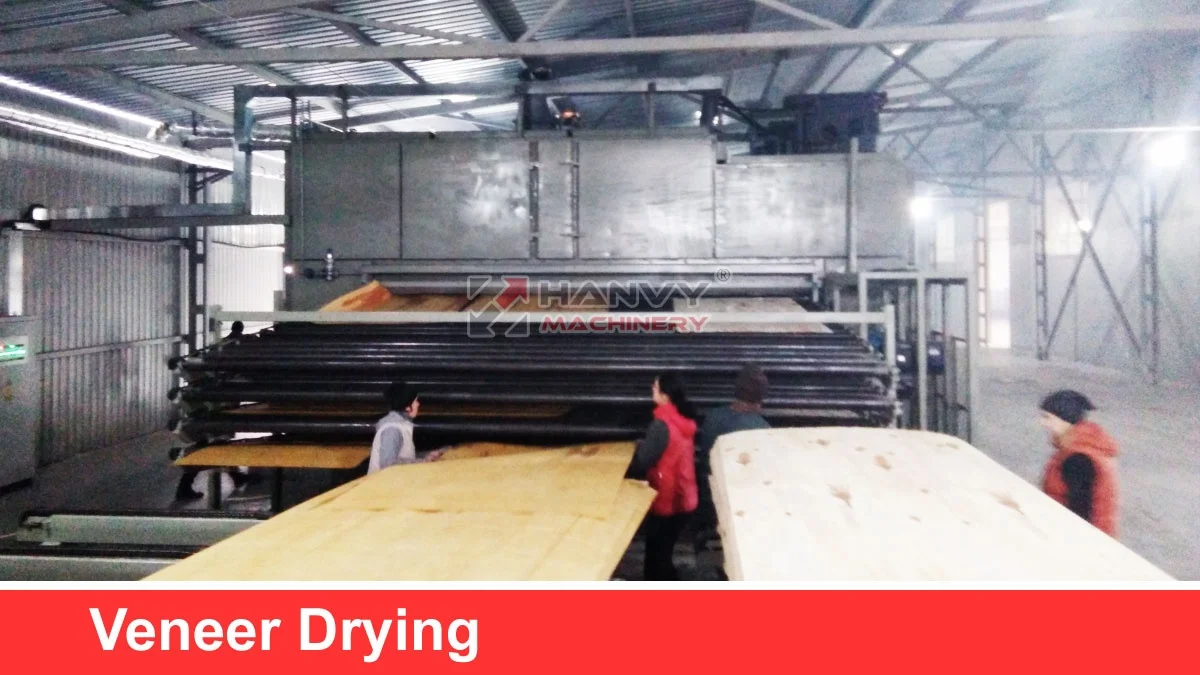

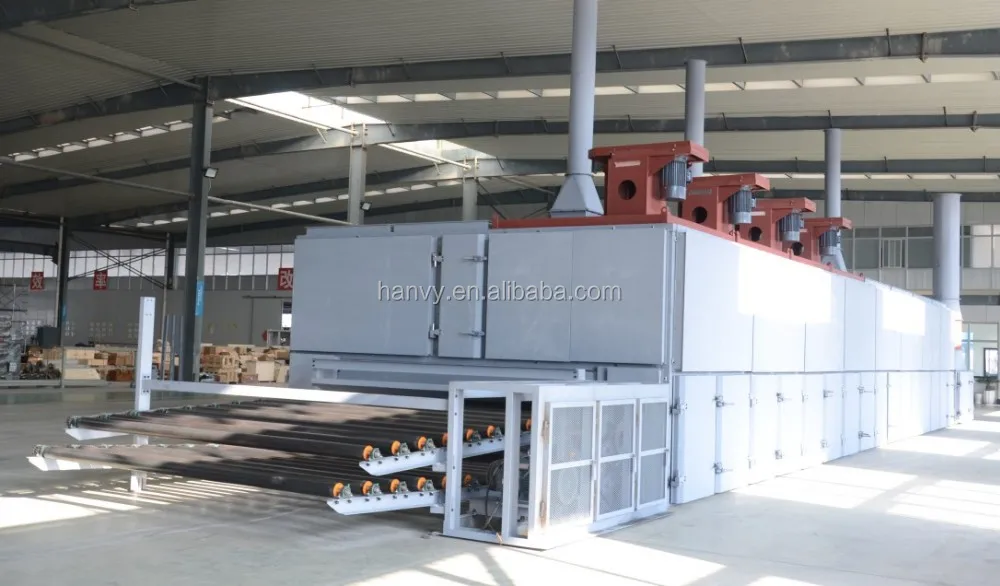

Step 5: Veneer Dryer
Two types for veneer dryer,veneer pressing dryer and mesh/roller jet veneer dryer.
Pressing dryer takes small space,it suits exhausted moisture and flatting of the veneer.
Model | HDR2-8 | HDN3-10 | HDN1R2-13 |
Veneer thickness | 1.5 mm | 0.6 mm | Net 0.6 mm Roller 1.5 mm |
Moisture | 80% | 80% | 80% |
Working width | 2800 mm | 2650 mm | Net 2650 mm Roller 2800 mm |
Deck number | 2 | 3 | 3 |
Heating section | 2000×8 mm | 2000×10 = 200000 | 2000×13 = 260000 |
Cooling section | 2000×1 mm | 2000×1 mm | 2000×1 mm |
Transmission speed | 1.5 ~ 15 m/min | 3 ~ 36 m/min | Net 3 ~ 32 m/min Roller 1.5 ~ 15 m/min |
Drying capacity | 2.1 m³/h | 4.5 m³/h | Net 1.9 m³/h Roller 3.7 m³/h |
Steam consumption | 1800 kg/h | 2600 kg/h | 3580 kg/h |

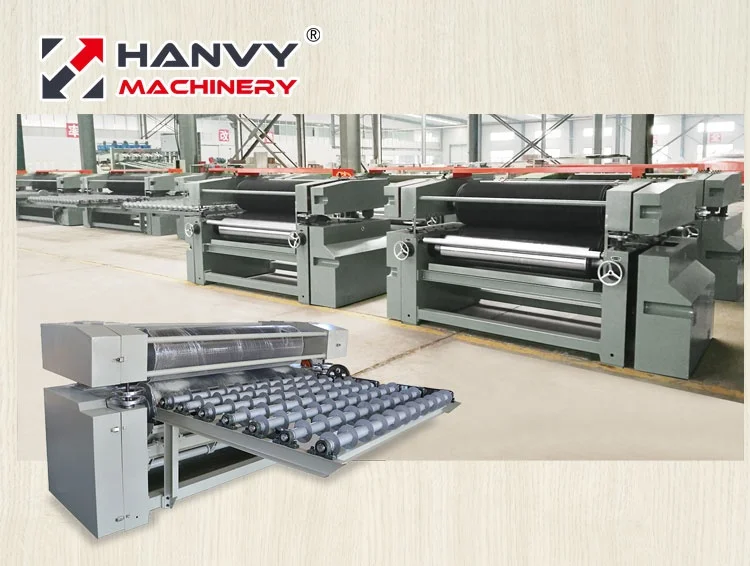

Step 6: Veneer Glue Spreader
The glue spreader is used to spray the adhesive on the veneer surface averagely.
Two types:
OLD type-Parallel rollers,with glue tray underneath;
NEW type-Cross rollers "Z" type,save glue.
Features:
1.Two rubber rollers and two polishing steel rollers,"Z" type layout\t
2.Newdesinged structure,more steady perfromance,spray gule even and save glue\t
3.With automatic feeding out conveyor

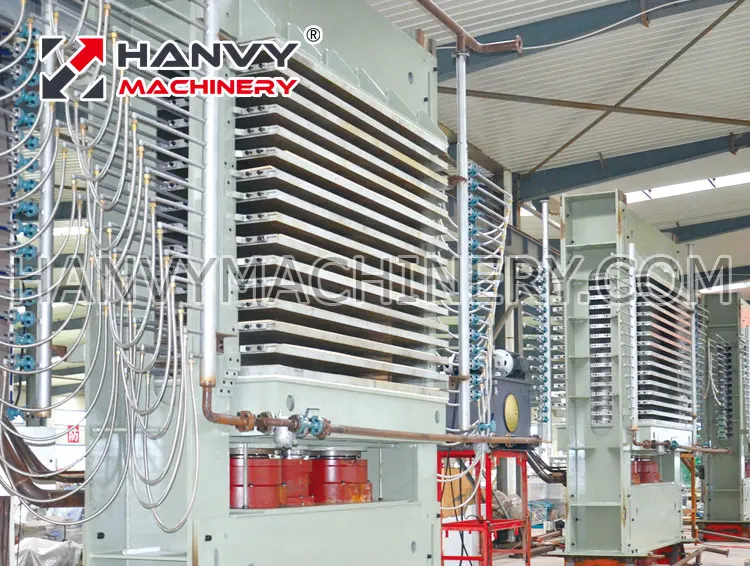

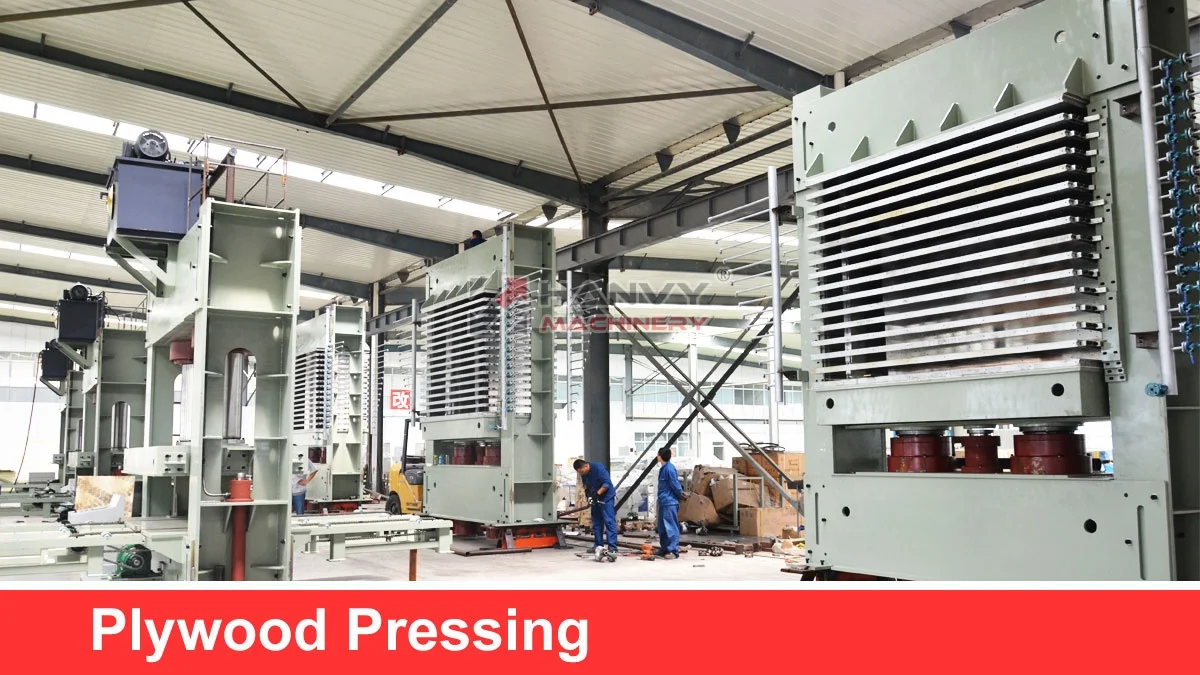

Step 7: Plywood cold press & Hot press

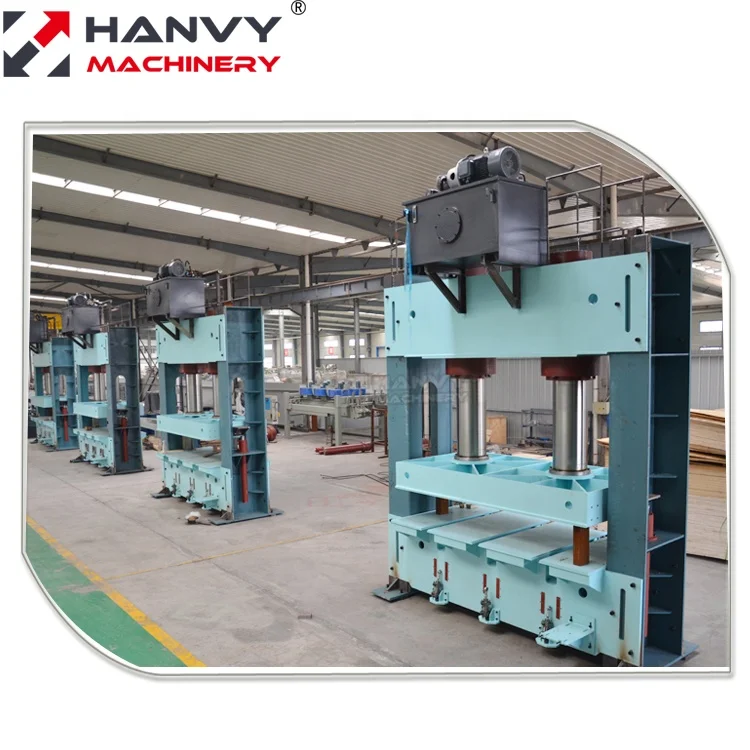

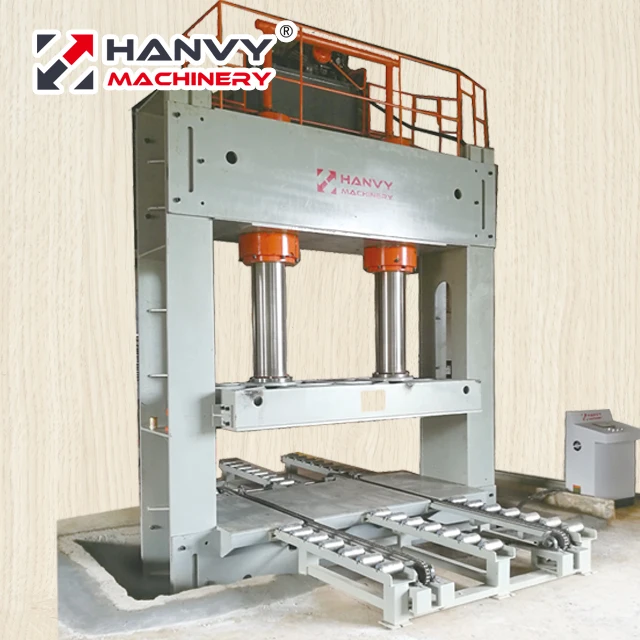

Cold Press is necessary equipment for processing plywood ,suitable for 3'x7',4'x8' plwood.

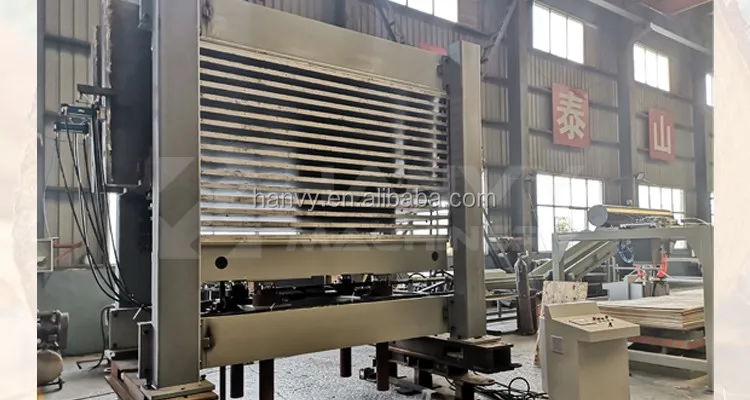

Hot press,SIEMENS PLC system :five different pressure controls, six modes data for high quality plywood.
Certifications
Hanvy Plywood Machinery,has got CE,ISO certifications for main plywood/veneer machines.Which could meet high European and American standards.
About Us
Hanvy Plywood Machinery
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.
Hanvy plywood machines are widely sold to over 60 countries so far,such as Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Packing & Delivery
Packaging | ||
Size | 40HQ | |
Weight | 12800kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
