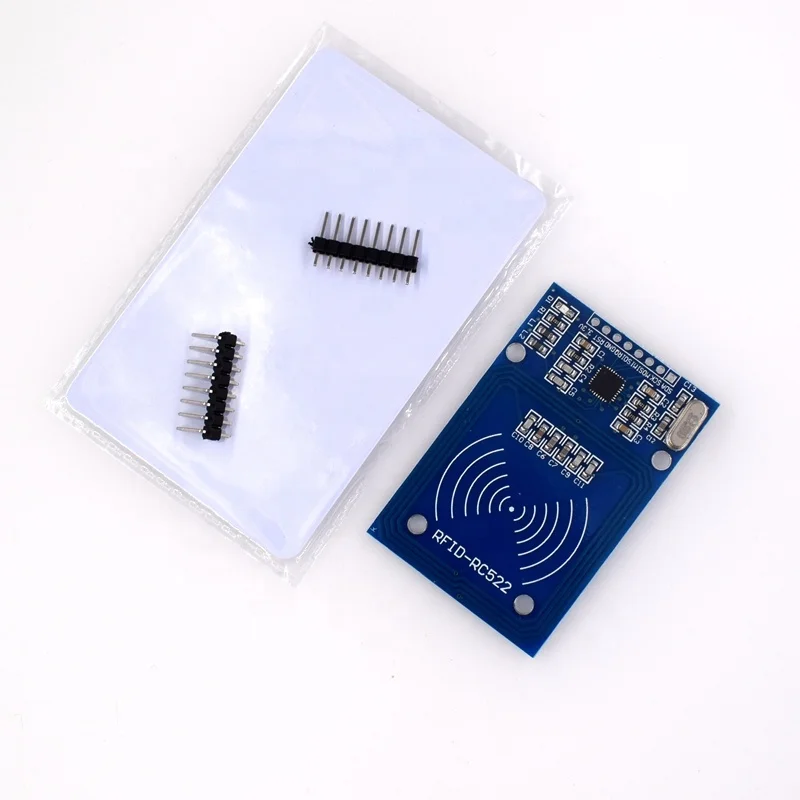

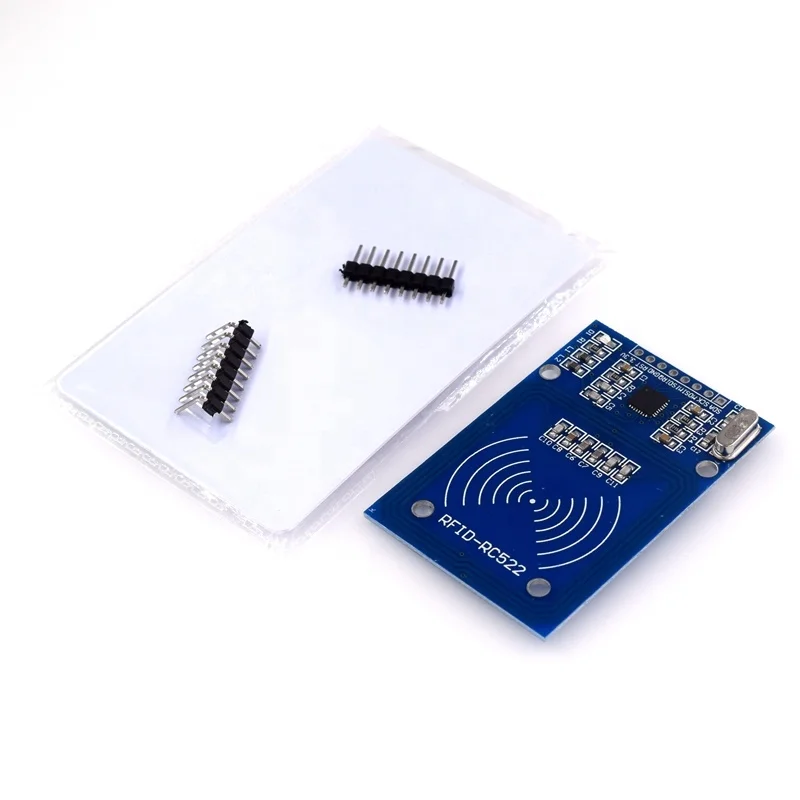

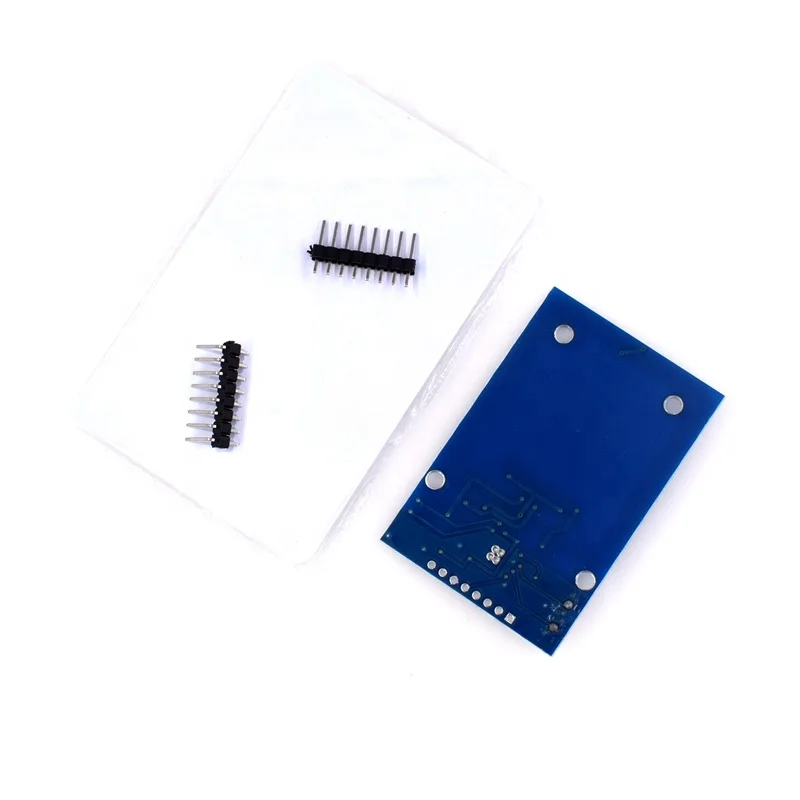

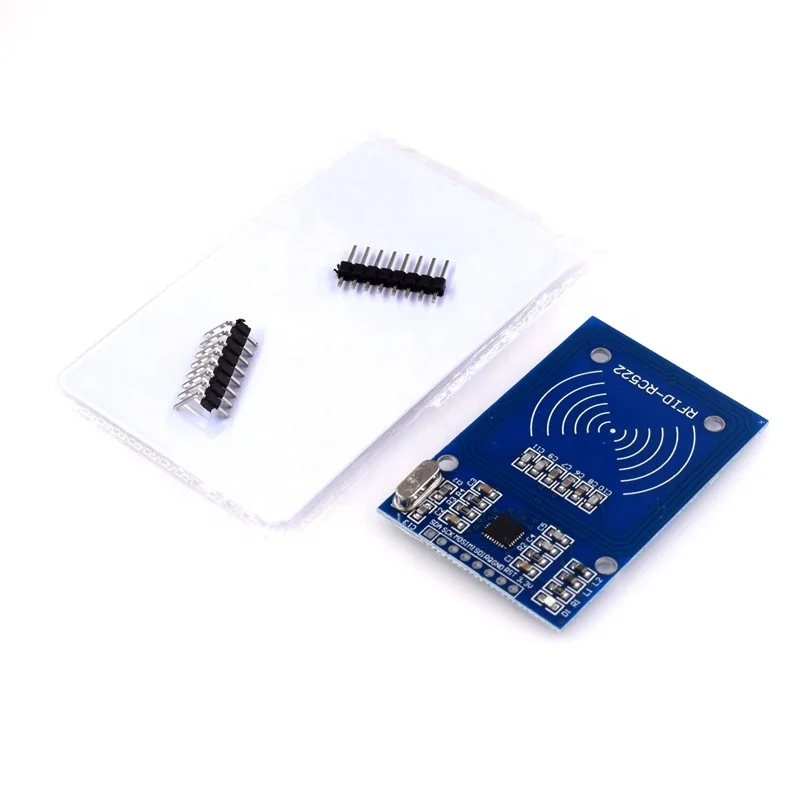

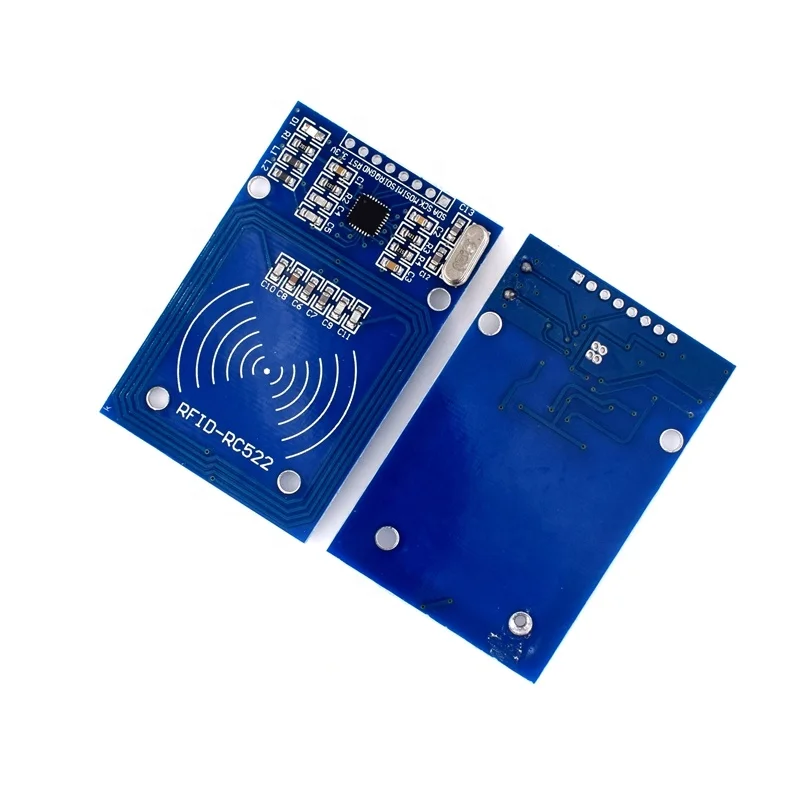

#126C RC522 RFID IC card reader sensor module read write card with a white card and MFRC522 Pin
- Category: Access Control Card Reader >>>
- Supplier: Shenzhen Hairuixing Technology Co. Ltd.
Share on (62574806590):
Product Overview
Description
Product Description
Product details:
* Working current: 13-26mA / DC 3.3V
* Idle current: 10-13mA / DC 3.3V
* Sleep current: <80uA
* Peak current: <30mA
* Working frequency: 13.56MHz
* Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
* Product physical characteristics: size: 40mm × 60mm
* Environmental working temperature: -20-80 degrees Celsius
* Environmental storage temperature: -40-85 degrees Celsius
* Environmental relative humidity: relative humidity 5% -95%
Advantages:
* RC522 utilizes advanced modulation and demodulation concepts and fully integrates all types of passive contactless communication methods and protocols at 13.56MHz.
* Support 14443A compatible transponder signals. The digital part handles ISO14443A frames and error detection.
* In addition, it also supports the fast CRYPTO1 encryption algorithm and verifies the MIFARE series of products.
* MFRC522 supports higher-speed contactless communication of MIFARE series, with bidirectional data transmission rate up to 424kbit / s.
* As a new member of the 13.56MHz high-integration read-write card series chip family, MF RC522 has many similarities with MFRC500 and MFRC530, but also has many features and differences.
* The communication between it and the host adopts SPI mode, which is beneficial to reduce the connection, reduce the volume of the PCB board, and reduce the cost.
* Working current: 13-26mA / DC 3.3V
* Idle current: 10-13mA / DC 3.3V
* Sleep current: <80uA
* Peak current: <30mA
* Working frequency: 13.56MHz
* Supported card types: mifare1 S50, mifare1 S70, mifare UltraLight, mifare Pro, mifare Desfire
* Product physical characteristics: size: 40mm × 60mm
* Environmental working temperature: -20-80 degrees Celsius
* Environmental storage temperature: -40-85 degrees Celsius
* Environmental relative humidity: relative humidity 5% -95%
Advantages:
* RC522 utilizes advanced modulation and demodulation concepts and fully integrates all types of passive contactless communication methods and protocols at 13.56MHz.
* Support 14443A compatible transponder signals. The digital part handles ISO14443A frames and error detection.
* In addition, it also supports the fast CRYPTO1 encryption algorithm and verifies the MIFARE series of products.
* MFRC522 supports higher-speed contactless communication of MIFARE series, with bidirectional data transmission rate up to 424kbit / s.
* As a new member of the 13.56MHz high-integration read-write card series chip family, MF RC522 has many similarities with MFRC500 and MFRC530, but also has many features and differences.
* The communication between it and the host adopts SPI mode, which is beneficial to reduce the connection, reduce the volume of the PCB board, and reduce the cost.
Company Introduction
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
