Chinese Greenhouse orchard machinary tractors 40 HP 4WD farm tractor tractors prices
- Category: >>>
- Supplier: Taian Taishan Guotai Tractor Manufacturing Co. Ltd.
Share on (62574931350):
Product Overview
Description
Chinese Greenhouse orchard machinary tractors 40 HP 4WD
Product Description
Taishan Guotai Tractor Advantages :
1. The streamline design makes it an elegant appearance.
2. The tires are made of multi-ply natural rubber which ensures its wear resistance performance.
3. Front axel is strong and robust. Well-known brand Carraro is at your option.
4. Our high quality diesel engine is powerful and environmental friendly. Also, perkins engine is optional.
5. Independent hydraulic fuel system reduces maintenance cost.

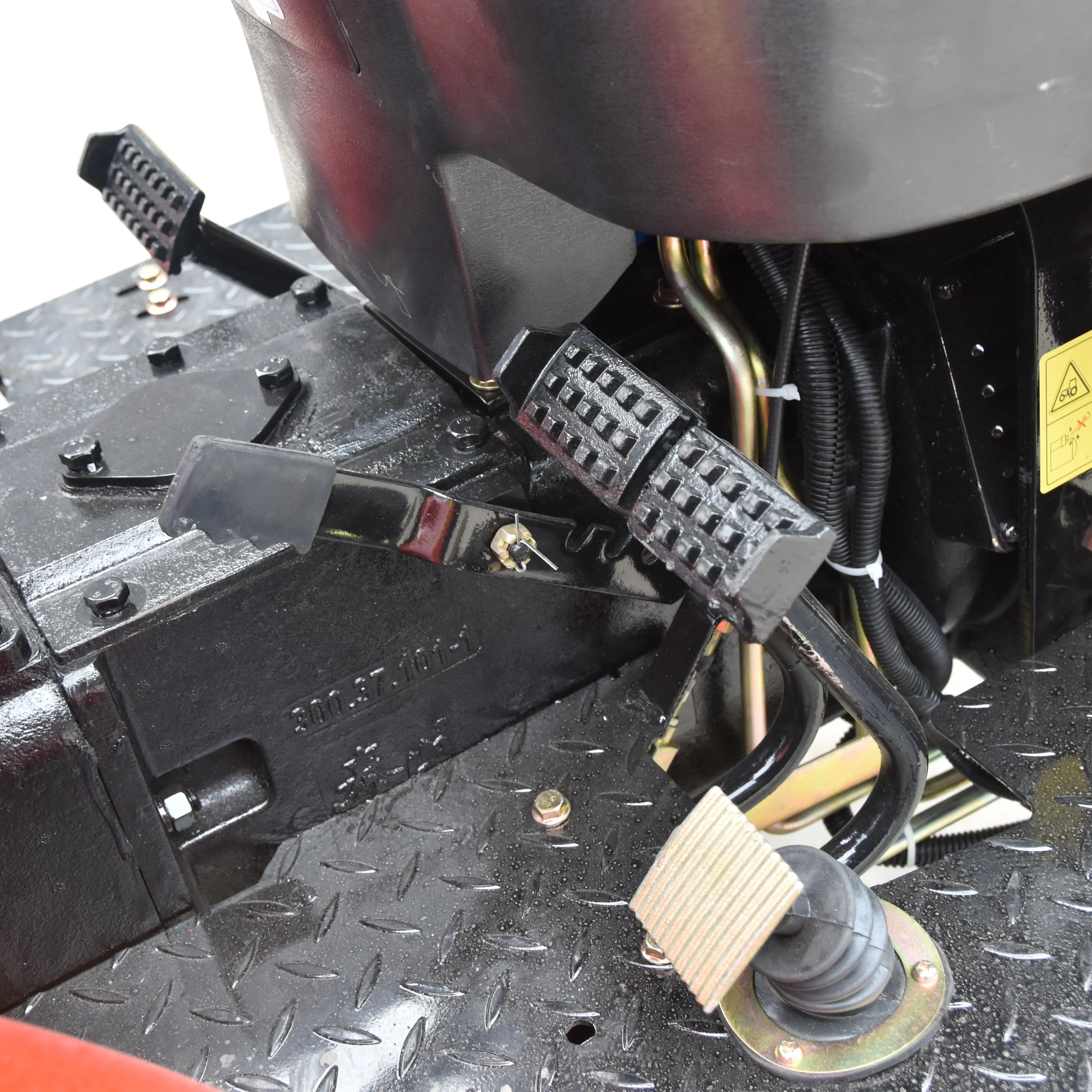

6. Both clutch and brakes system are light and easy to control.
7. Reinforced chassis greatly increases pulling force.
8. Well-sealed cabin with low noise.
9. A comprehensive production line consists of casting, forging, CNC machining and final assembling.
10. The replacements are within your reach for more than ten years.
11. Quality control processes are in place to ensure all our parts are made up to high standards.
12. Our tractor evolves rapidly with time and it is your best choice for performance and reliability.
Wheel Parameter:
| Model | TAISHAN-404D |
| Drive type | 4X4 four-Wheel Drive |
| Dimension of The Tractor | |
| The whole machine size mm | 3250*1350*1450 |
| Min. Operation mass (kg) | 1530 |
| Wheel base mm | 1750 |
| Minimum ground clearance (mm) | 255 |
| Front/ Rear wheel tread | 1050/1050 |
| Tyre size(front/rear) | 7.00-12/13.6-16 |
| Braking and steering | |
| Braking system | Mechanical-shoe type |
| Steering type | Hydraulic steering |
| Working device | |
| Three-point-linkage: | Yes |
| PTO/PTO Speed | 540/760 |
| (610mm) kn/Lifting Capacity | 8.4KN |
| Tillage depth adjustment | Comprehensive |
| Hydraulic system | |
| Hydraulic output valve | 2 groups |
| Transmission system | |
| Clutch | dry type, single action |
| (F+R) No. Of gears | 8 F+2R |
| Shift method | (4+1) x 2 |
| Max. speed | 27.93km/h |
| Gear Position | Right-hand side |
| Engine | |
| Engine Type | SIDA,Emission Stage II. |
| ( L ) Displacement | 2.772 |
| Fuel tank capacity (L) | 32 |
| ( g/kw.h) Fuel consumption @ nominal power | ≤255 |
| Air intake type | Naturally- Aspirated |
| Air Filter | Three stage oil bath |
| Diesel Engine Specification | |
| Type | In-line, vertical, water cooled,four-stroke |
| Combustion chamber type | Direct-Injection |
| Number of cylinders | 4 |
| Bore(mm) | 93 |
| Stroke(mm) | 102 |
| Total displacement(L) | 2.772 |
| Compression ratio | 17.5 |
| Firing order | Electric starting |
| Rated output(kW) | 34 |
| Rated speed(r/min) | 2400 |
| Direction of rotation of crankshaft(view from flywheel end) | Counterclockwise |
| Method of cooling | Forced water cooling |
| Method of lubrication | Combination of pressure and splash |
| Method of starting | Electric |
