fast laser cut machine servo motor

Product Overview

Description

fast laser cut machine servo motor









Aplication



Application material

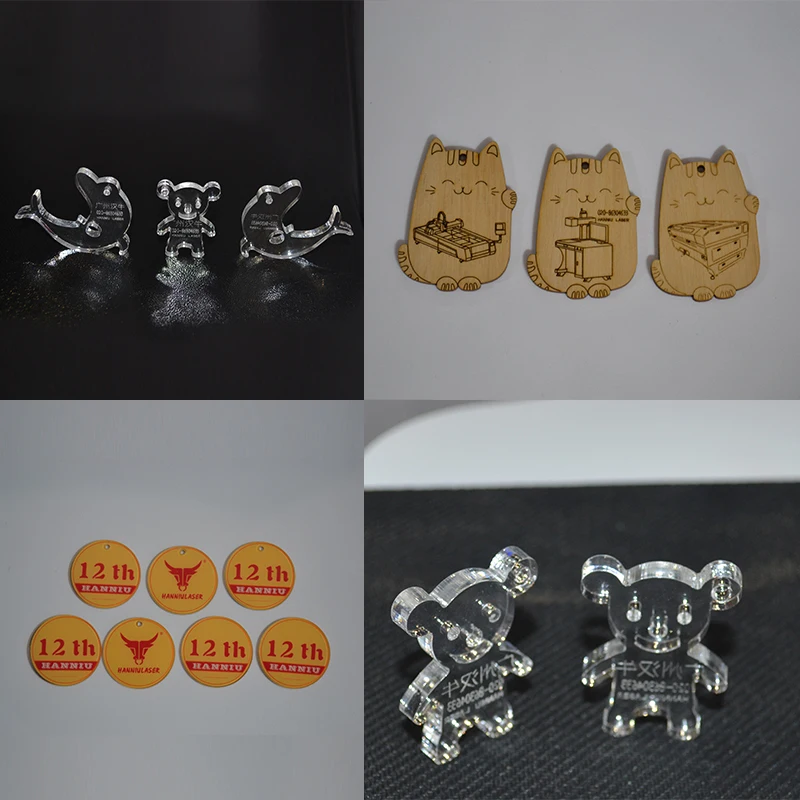

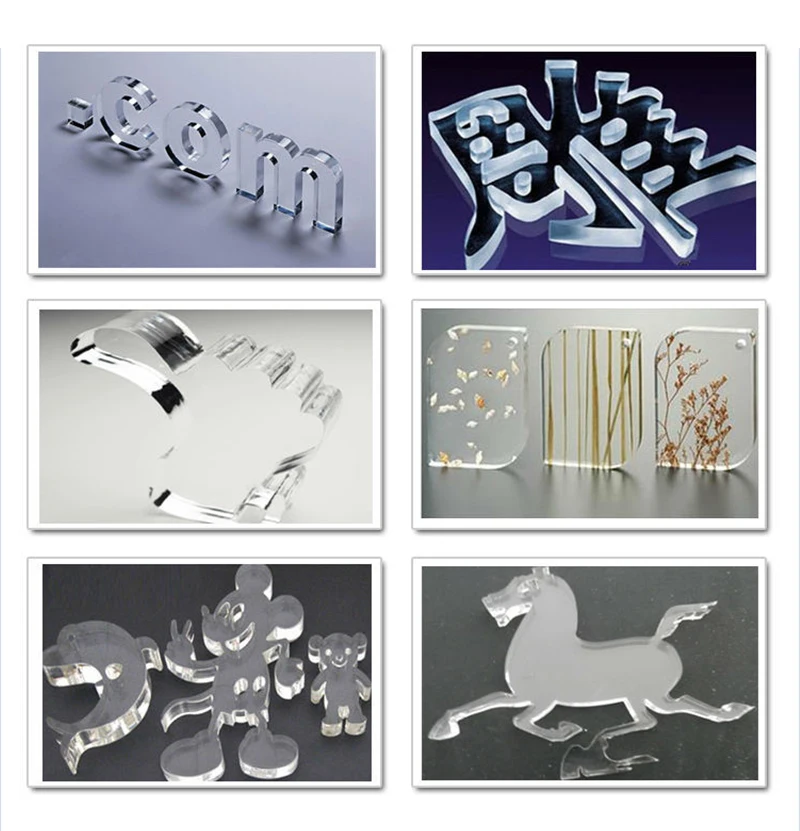

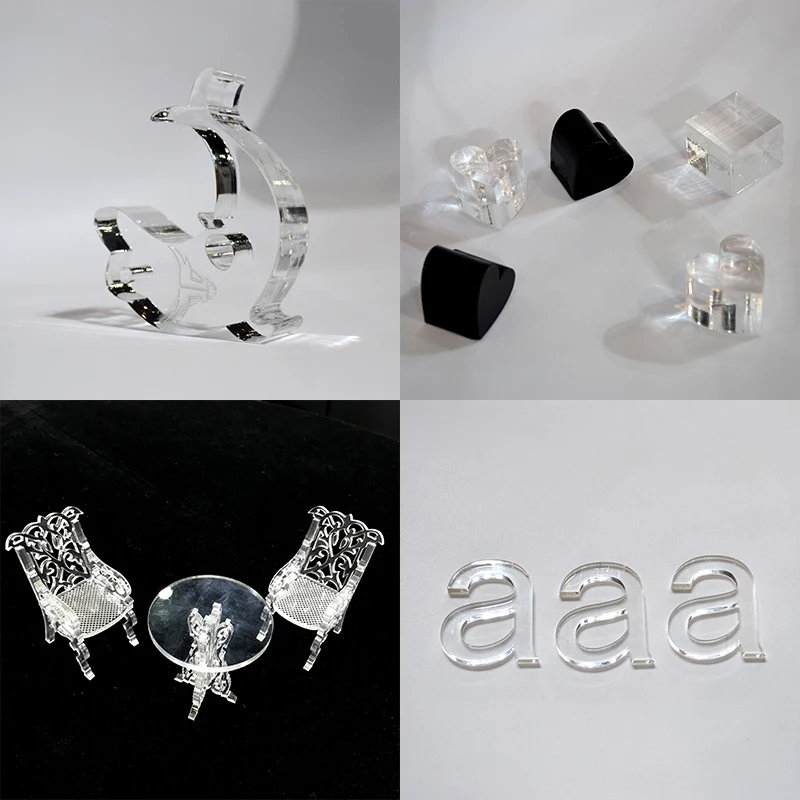

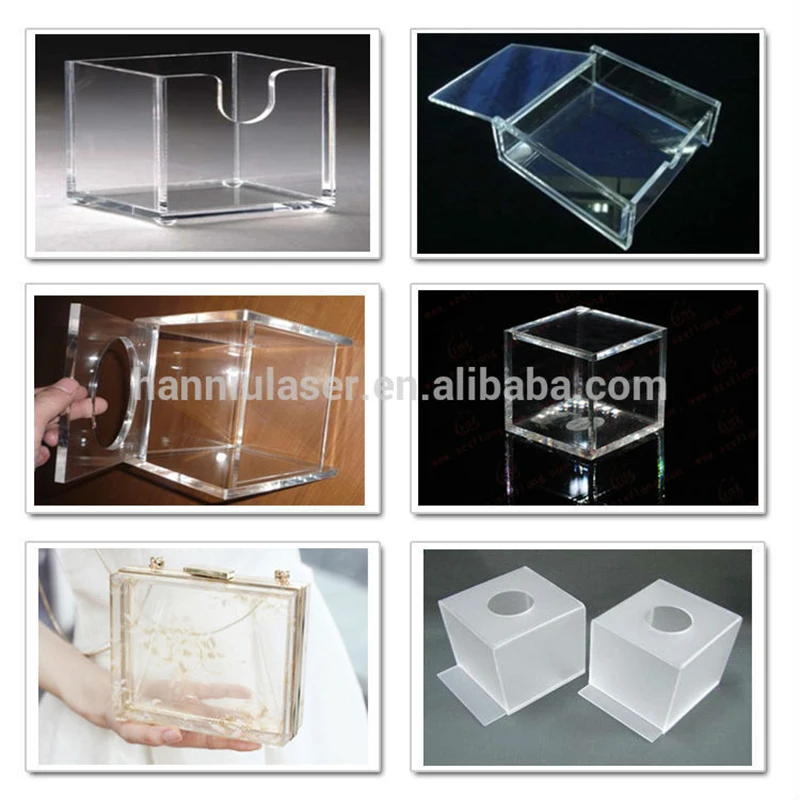

This laser cutting machine suitable for fabric,leather,plexiglass,acrylic,plastic,rubber,tile,wood

products,bamboo products,wool,paper materials,ceramics and non-metallic materials.

Application industry

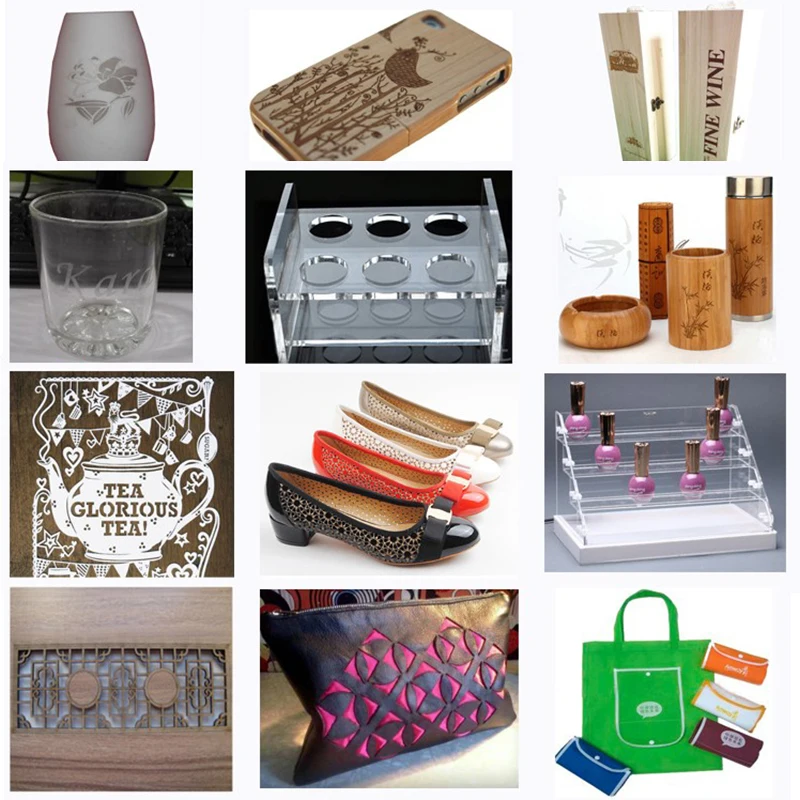

This laser cutting machine is widely used in clothing,footwear,luggage,computerized embroidery

and clipping,model,electronic appliance,toys,furniture,advertisement decoration,packaging,

printing,paper products,handicrafts and other industries.



Machine configuration

The machine comes with one water chiller, one exhaust fan and one air pumb. For the chiller

we have CW3000 and CW5200, customer can choose according to their need. Normally, the

laser tube is less than 80W with a CW3000, more than 80W with a CW5200.



Details of Machine

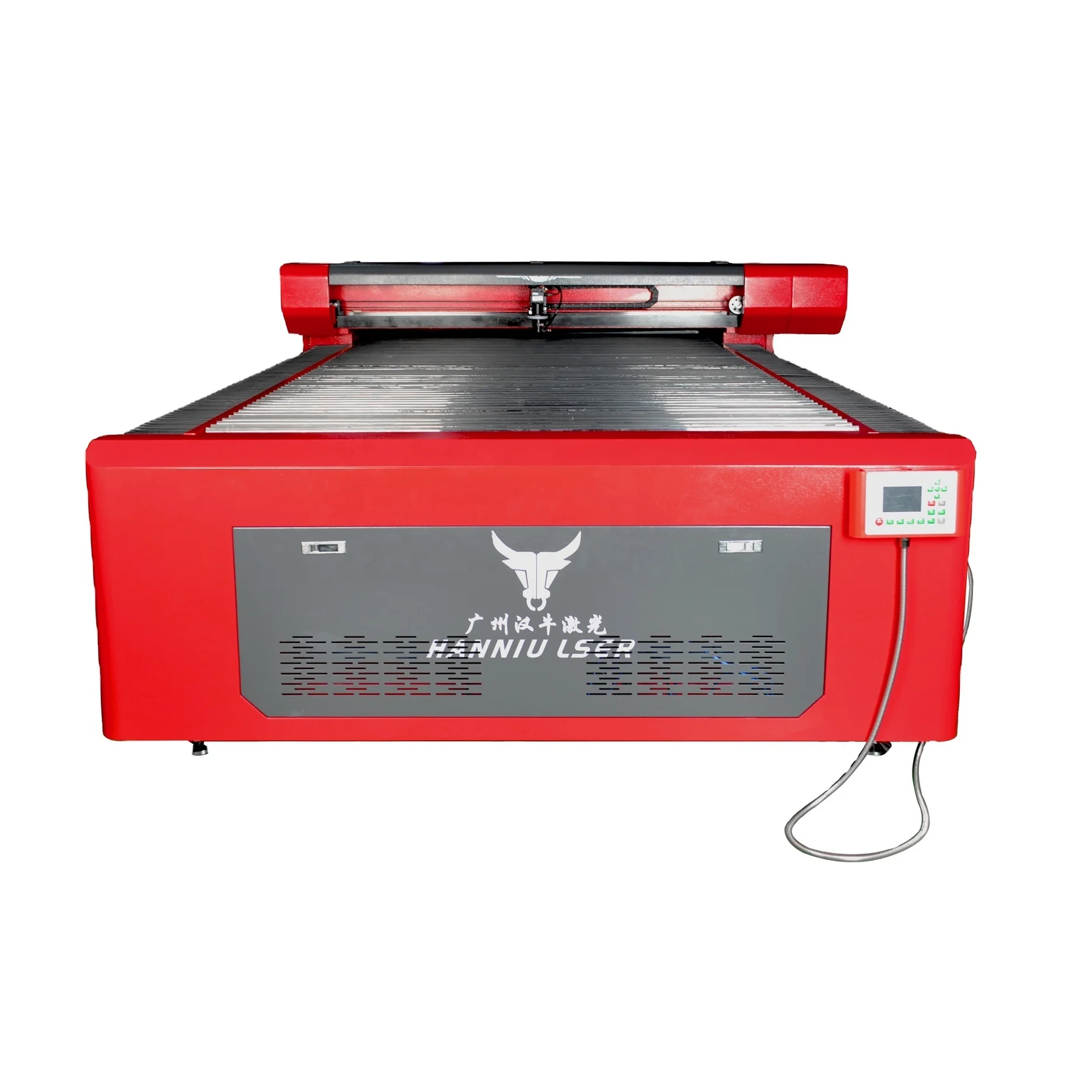

K series laser cutting machine, we use the higher quality parts for the machine, which

make the machine more stable.

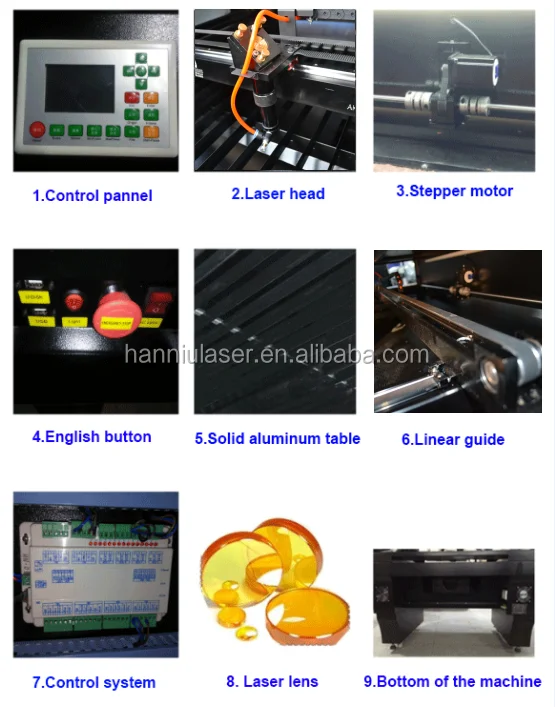

1:Control panel:New English operation interface, easy to operate.

2:Laser head:Our laser machine head use the high quality metal, which make the laser

head more strong and not easy to be broken by the smell and the fire.

3:Motor:Stepping motor with instant start and rapid stop the superior characteristics.

4.English button:Clear, simple and easy to operate.

5:Solid aluminum table:Apply to acrylic, wood and other hard materials, all solid

aluminum, durable.

6:Linear guide:High precise.

7:Control system:RD newest system. Working more stable, Rd system has the mamory

of 1Gb which can remember 800 pieces pictures that youworked.

8. Laser lens:Laser lens and mirror is from signgapore, the back side off the mirror we

use the copper, which make the mirror temperature low down fast.

9.Bottom of the machine: The machine design is more professonal, because we use

two fan for the power supplier and the motherboard, which let the machine can work in

the long time, and no worry about the high temperature. The bottom of the machine can

be put the exhaust fan, air pump and tools, saving space.





Technical Parameter

Machine model	K-1325
Cutting area	1300*2500mm
Laser power	80W/100W/120W/150W
Cutting speed	0-64000mm/min
Resolution	0.025mm
Minimum shaping character	Chinese character:2mm  Letter:1mm
Resetting positioning accuracy	±0.01mm
Transmission	Linear guide
Operating temperature	0-45°C
Operating humidity	5%-95%(free of condensed water)
Graphic format supported	BMP.GIF.JPG.TGA.TIFF.PLT.CDR.DWG.DXF
Power supply	AC220V±10%.50Hz/60Hz
Cooling system	Water cooling
Cutting thickness	≤30mm(acrylic), ≤18mm(wood)
Control system	RD control system
Gross power	<1250W
Net weight	900KG
Dimension	3400*2200*800mm





CO2 laser cutting machine passed the test for INTERTAKE and CE. we focus the high quality

machine. We make the machine according to customer's country electric requirements.



Inner quality control system:

In order to show you our best quality ,please allow me to introduce our quality control system as follows:
1.In the processing of production, our professional technical engineers inspect the processing

to ensure the quality of products

2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3.18 months guarantee of the whole machine.
4. Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
5.Lifetime maintenance free of charge.
6.We will provide the consumable parts at an agency price when you need replacement.
7.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.









1.Standard plywood case, no need to steam, can export directly.

2.car-lift machine up and down loading. more safe for machine.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 3-5 days after received your payment.





Hanniu laser machinery CO.,LTD. was built in 2006. its has more than 10 years history for

making the laser machine, the main work is special for laser marking machine, laser welding

machine and laser cutting machine,etc. The company has more than 50 enployees. Each year,

Hanniu laser will atten different exhibition. For customer can find and fix the machine problem.











1:We have different on line software, which make the strong after-sell service.

2:First we fix the problem in the wechat or whatsapp, or viber. We will make the video show you how to fix.

3:If can ot fix it we will go through the team viver software, we can control your machine computer.

4:Through the internet still problem can not fix, we can send the person to customer's country and fix the problem.

5:We have 20 engineers who can speak english, which make our after sell service more stronger.
