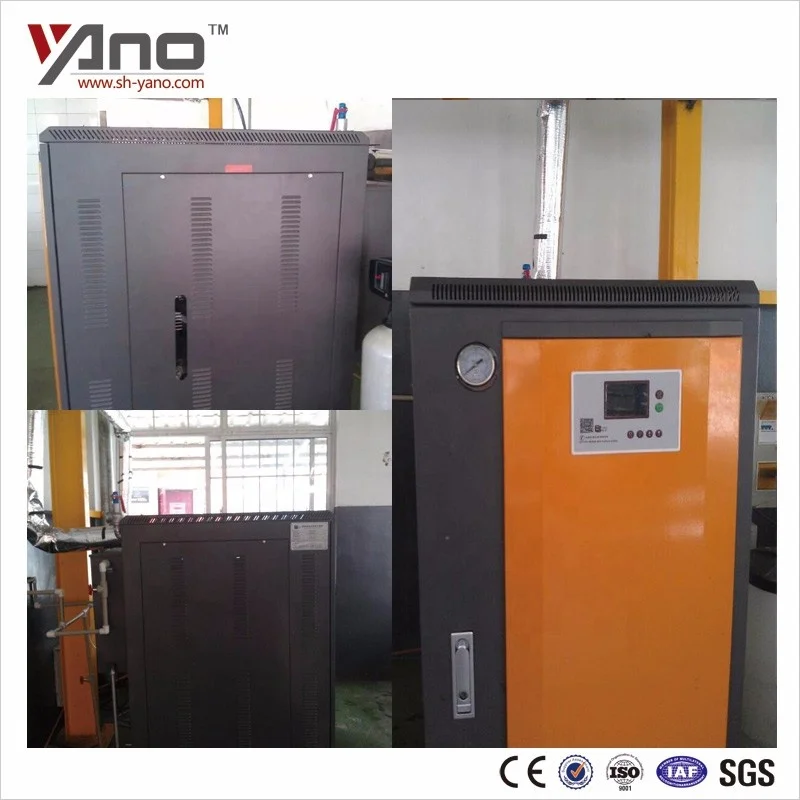

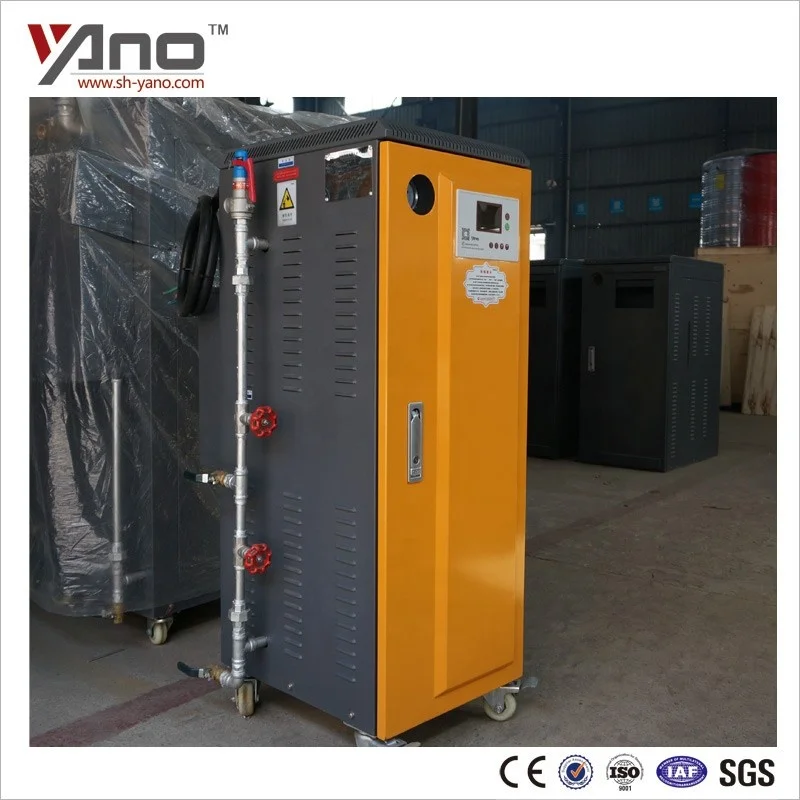

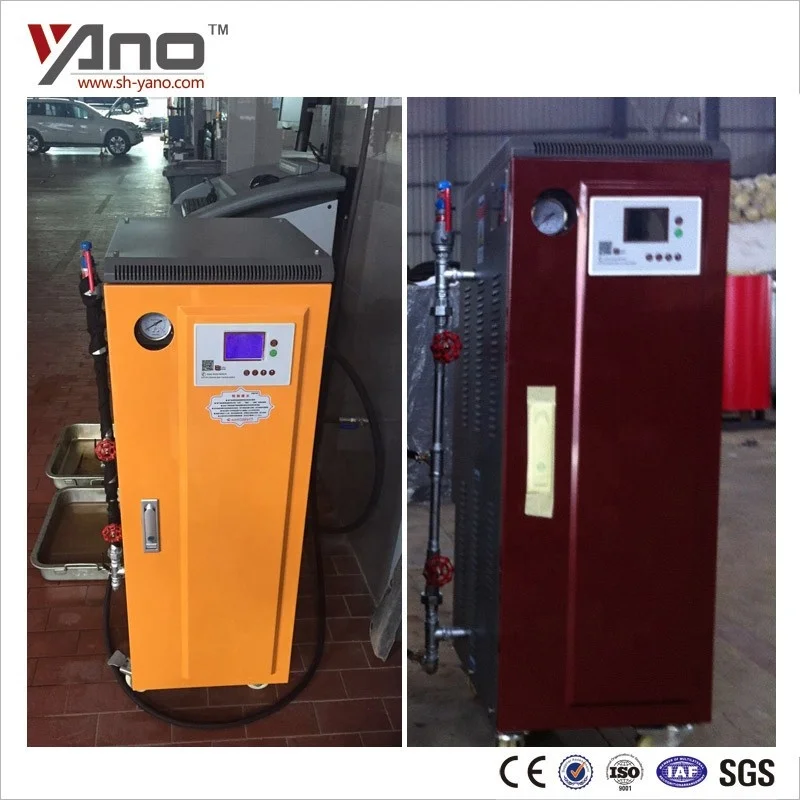

China Shanghai YANO Boiler Electric Steam Boiler Power 50 kw Steam 70 kg/h Used for Oil pipeline filter cleaning.
- Category: >>>
- Supplier: Shanghai Yano Boiler Manufacturing Co. Ltd.
Share on (62574955855):
Product Overview
Description
Products Description
Specification | LDR 0.07-0.8 |
Electric power(KW) | 50 |
rated evaporation(Kg/h) | 70 |
source voltage(V) | 380 |
rated pressure(MPa) | 0.8 |
steam temperature(℃) | 175 |
power wire(mm2) | 25 |
dimension(mm)L*W*H | 1035*550*1420 |
steam caliber(mm) | DN20 |
drain outlet caliber(mm) | DN20 |
water inlet caliber(mm) | DN15 |
weight(kg) | 190 |
Our Advantages

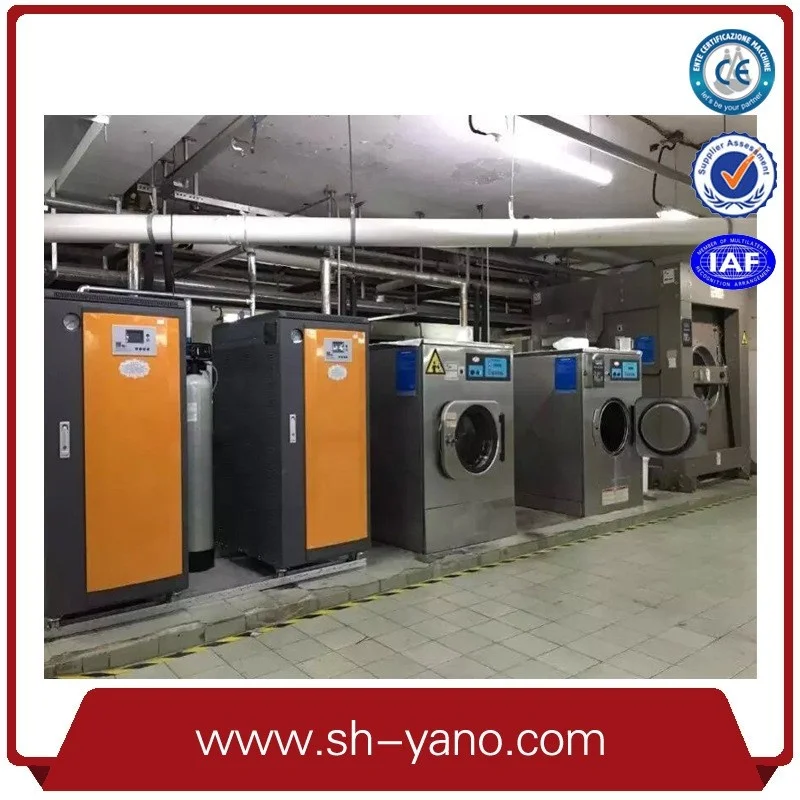

Automatic Steam Generator Product Application
Control System
2. The Use of High-quality Core Components-Electric Heating Pipe
3. Use High-quality Components
4. Multiple Safety Interlock Protection
5.Putting Reasonable Electric Load into Use Could Save Energy and Extend Life Cycle
6. Extremely Easy to Install and Use
7. Scientific Design and Attractive Appearance
8. Use Electricity Is More Environmentally Friendly and More Economical.

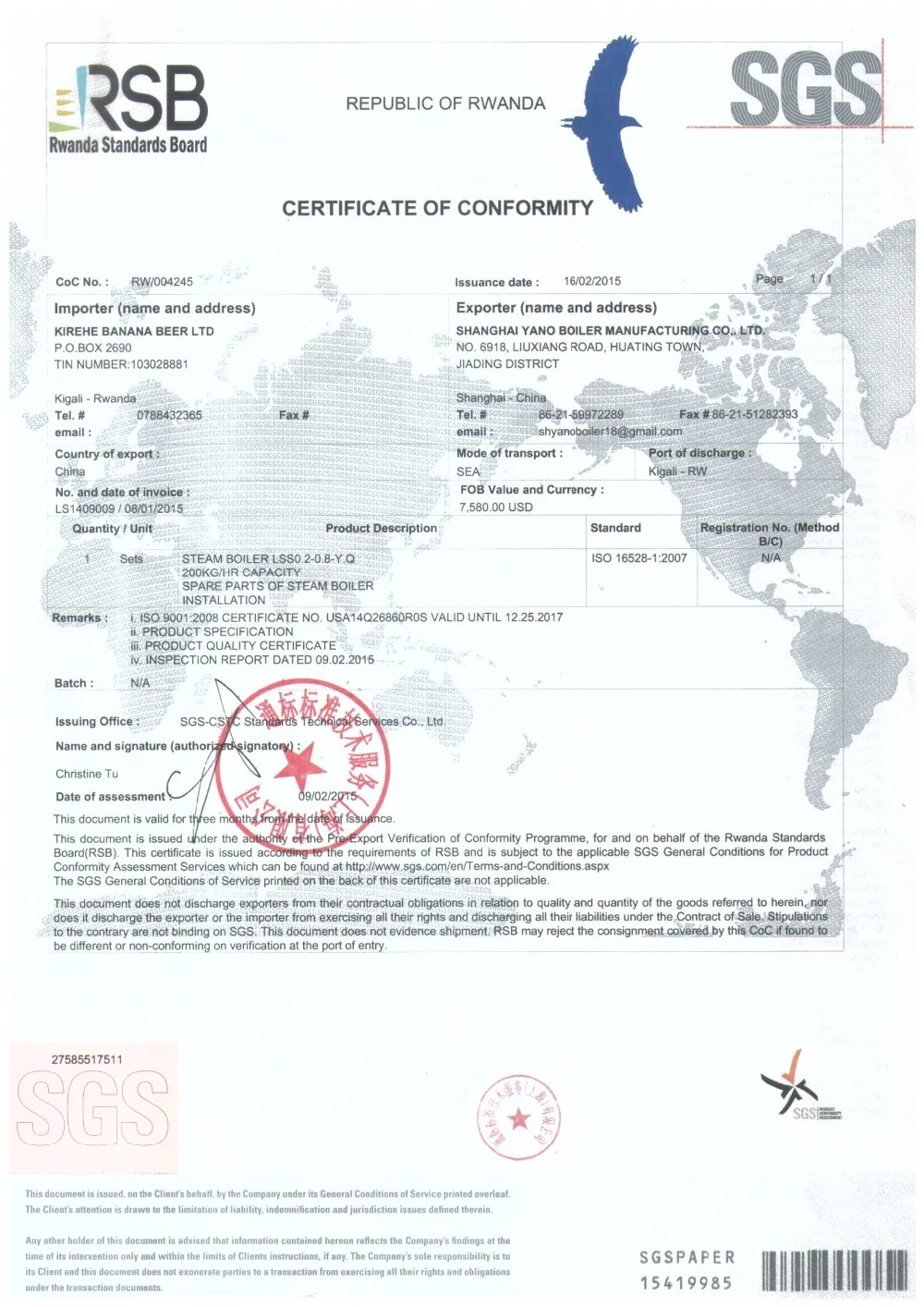

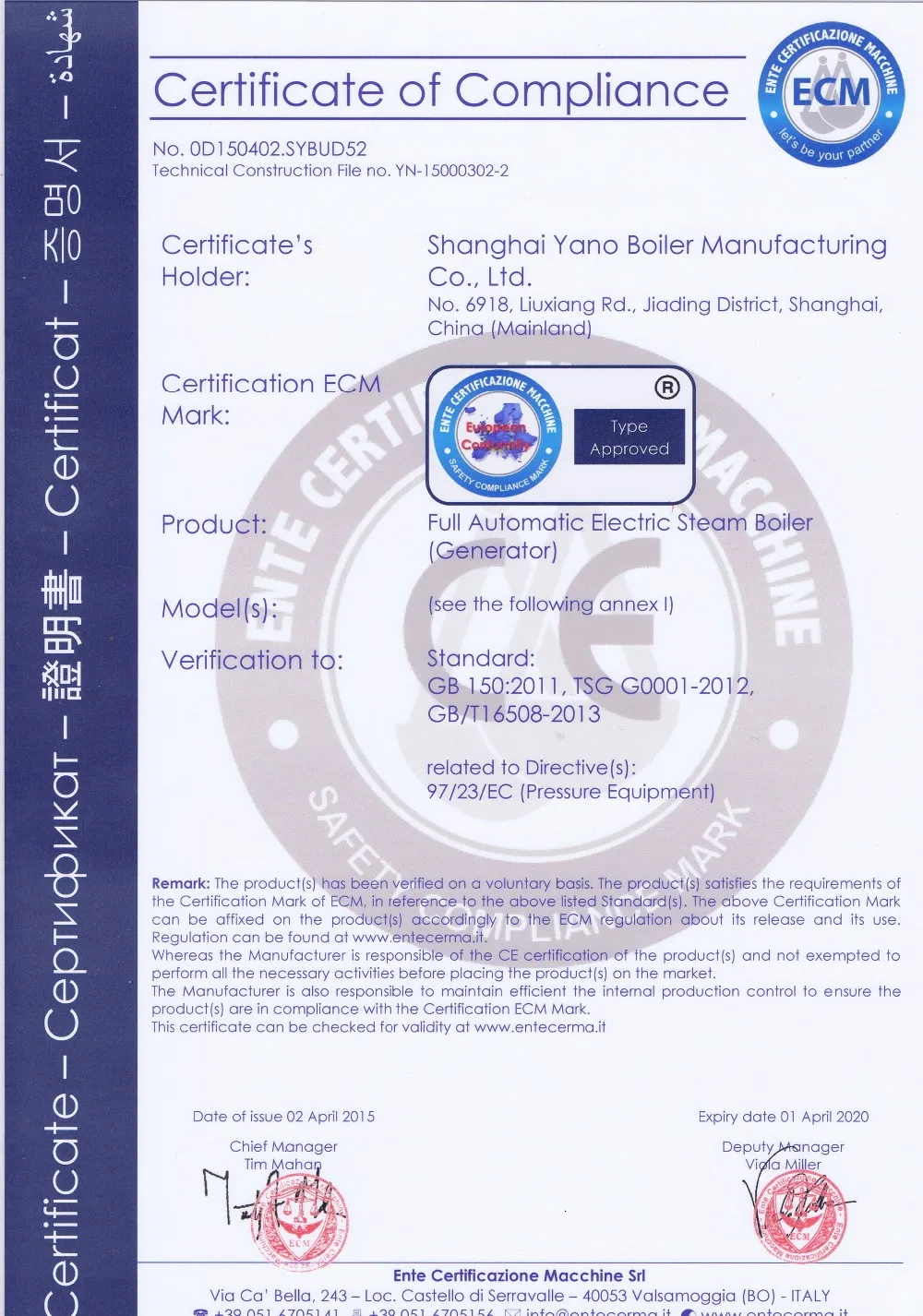

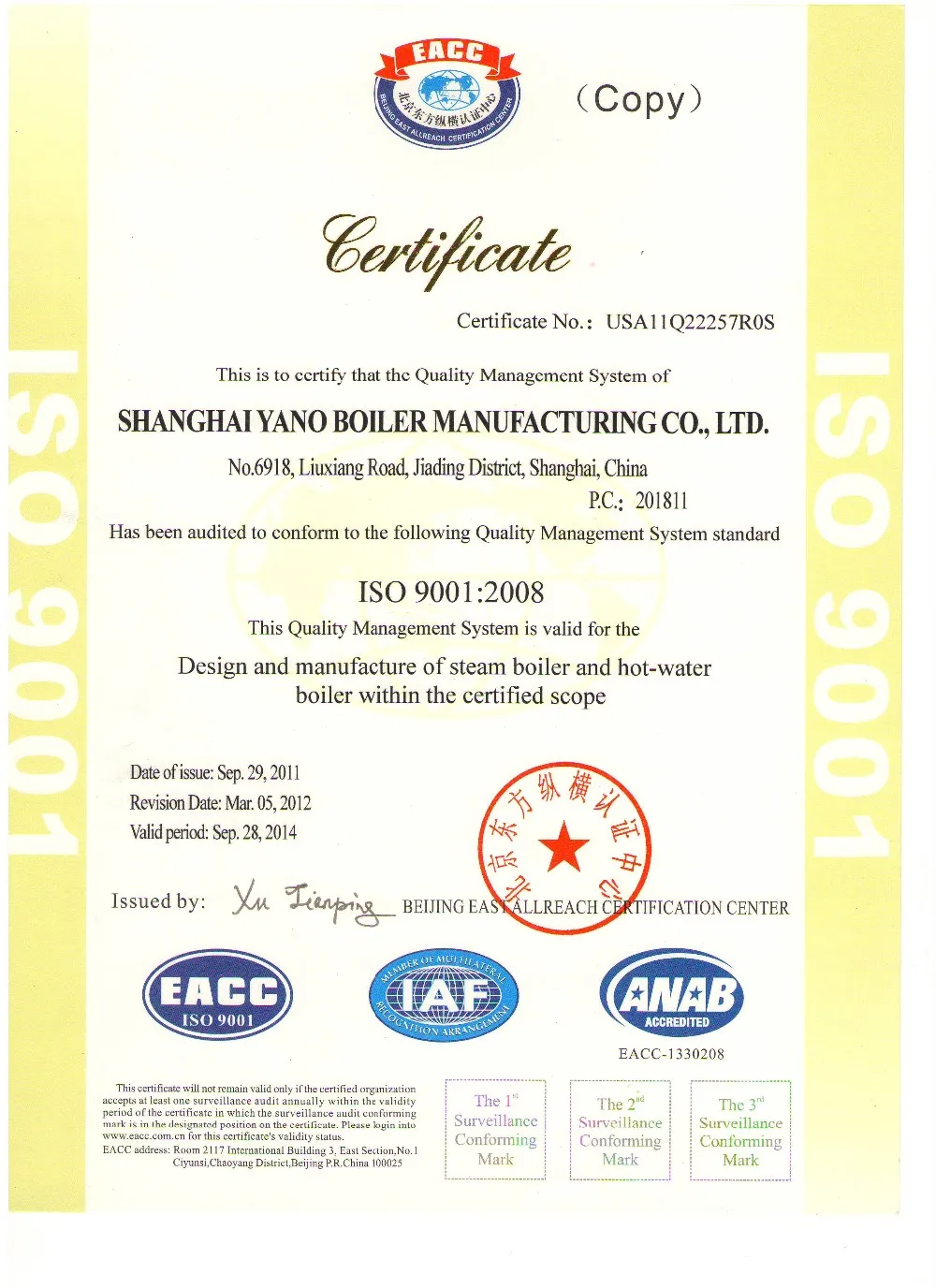

Certifications
Professional qualification certification, YANO is trustworthy
We have always positioned product quality as the core of the company to participate in the market competition. It is this
successful positioning and the strong product quality consciousness of all employees that make YANO quickly become a well-known
enterprise in the boiler industry of China!
successful positioning and the strong product quality consciousness of all employees that make YANO quickly become a well-known
enterprise in the boiler industry of China!

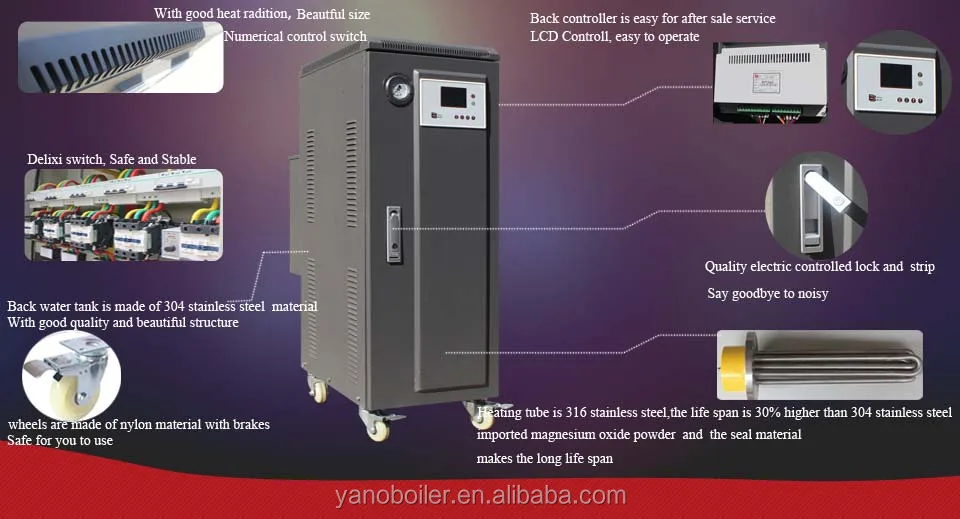

Detailed Images
LCD Intelligent Controller
1. Brand: Yano Brand
2. Original: China
3. Advantage:
Computer Welding Technology is more Stable than Traditional Manual Welding.
Four Time Periods Can be Set, Can use the Off-Peak Electricity easily.
2. Original: China
3. Advantage:
Computer Welding Technology is more Stable than Traditional Manual Welding.
Four Time Periods Can be Set, Can use the Off-Peak Electricity easily.
Quality Electric Heating Tube
1. Material:Thick 316L Stainless Steel Pipes
2. Surface Load <11W Ensure the Lifespan of the Heating Tube.
3. Lifespan is 30% Higher than Normal 304 Stainless Steel.
5.Temperature Resistance Reached at highest 900 Degrees.
2. Surface Load <11W Ensure the Lifespan of the Heating Tube.
3. Lifespan is 30% Higher than Normal 304 Stainless Steel.
5.Temperature Resistance Reached at highest 900 Degrees.
CNC Cutting
1.Boiler Shell With CNC Ventilation Holes.
2.Smooth Lines Easy to Disassemble.
3.CNC Ventilation Holes Ensure the Effective Heat Radiation, Protect the Internal Electric.
2.Smooth Lines Easy to Disassemble.
3.CNC Ventilation Holes Ensure the Effective Heat Radiation, Protect the Internal Electric.
