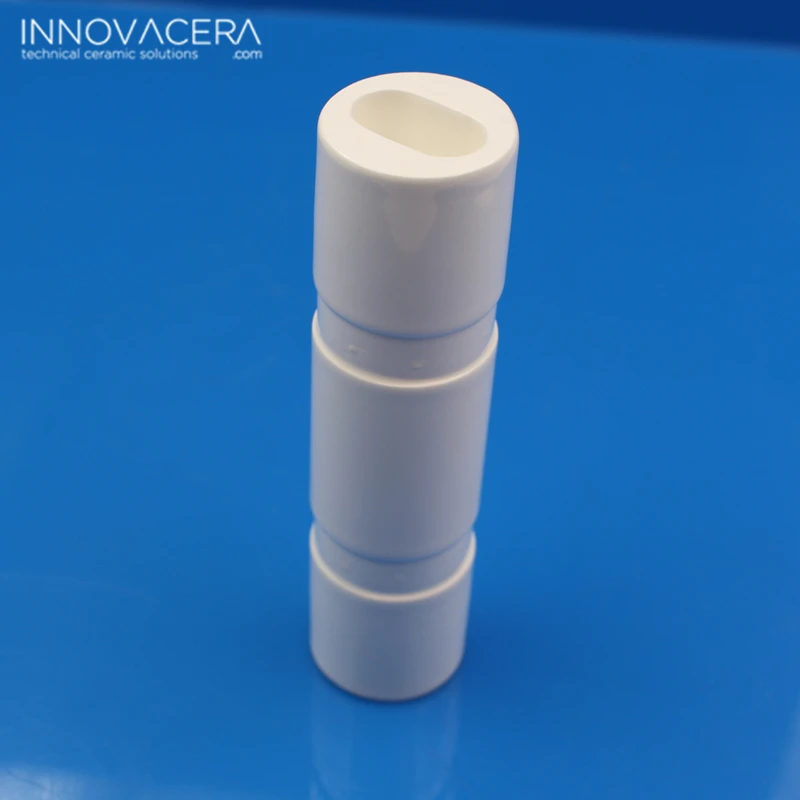

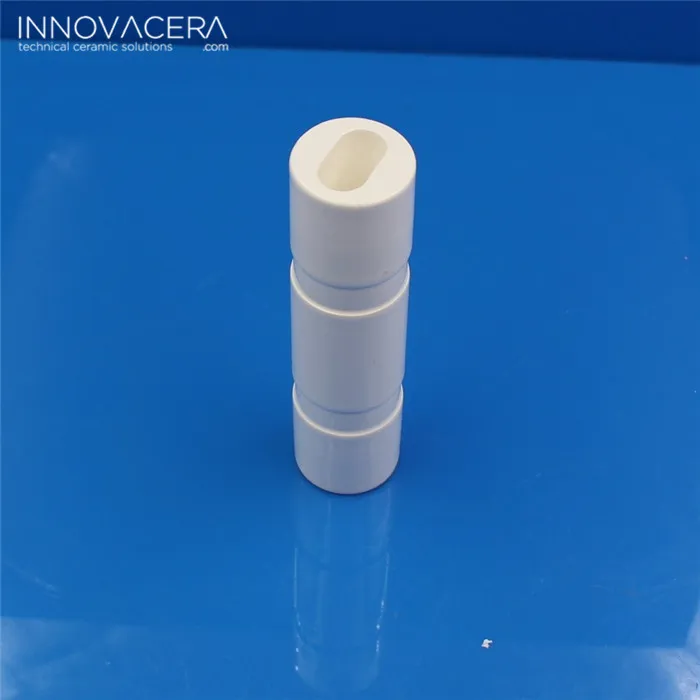

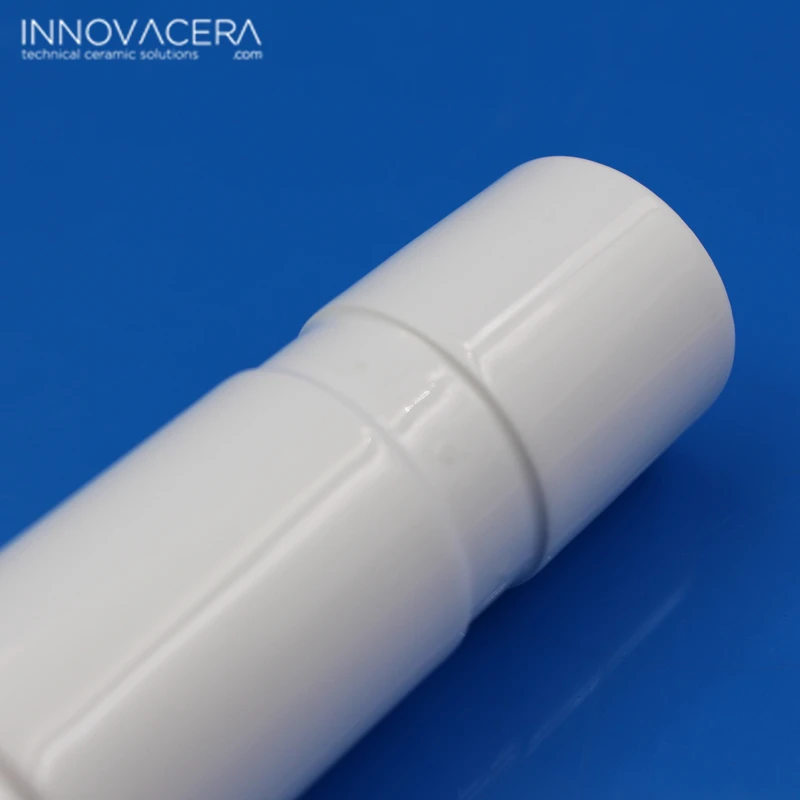

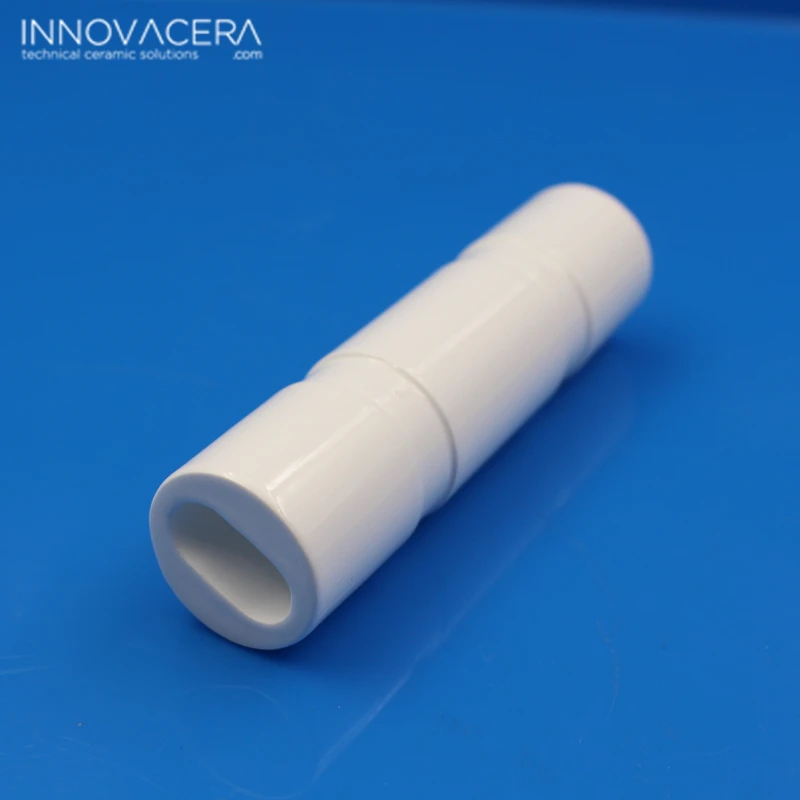

Алюминиевый Керамический лазерный отражатель INNOVACERA диаметром 97 мм для медицинского оборудования или ухода за кожей
- Category: Laser Equipment Parts >>>
- Supplier: Xiamen Innovacera Advanced Materials Co. Ltd.
Share on (62574979796):
Product Overview
Description
Ceramic Reflector Information:

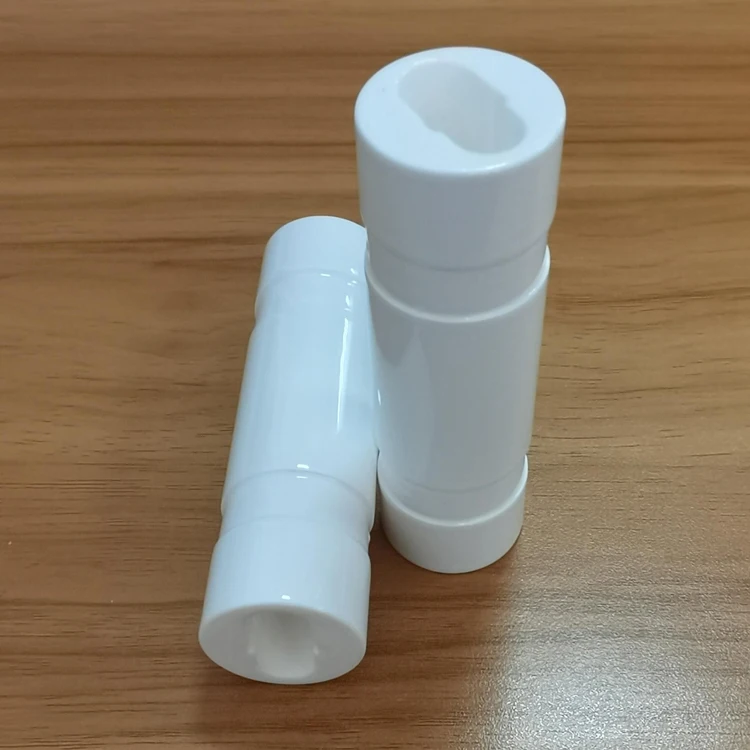

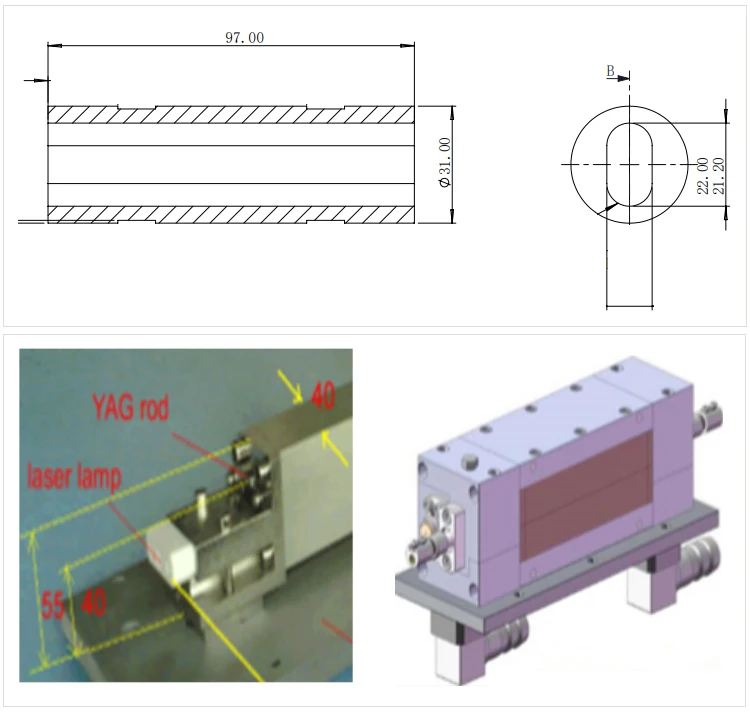

Alumina Ceramic Reflectors For Lamp-pumped Solid-state LasersLamp-pumped Solid-state Lasers ceramic reflectors have many shapes,such as round; elliptic, irregular;rectangular but one side is concave; rectangular; triangular and so on. This ceramic reflector is glazed and cylinder shape, it is widely used for single lamp & single rod lamp-pumped solid-state lasers.Innovacera Production capabilities:
1.Components up to 250mm long and 80mm wide/diameter manufactured as standard
2.Larger components manufactured to development contracts
3.One-piece or split-cavity designs
4.Prototype, batch and volume production.
2.Larger components manufactured to development contracts
3.One-piece or split-cavity designs
4.Prototype, batch and volume production.
Ceramic Reflector material properties:
> Bulk density (fired): 3.1 g/cm3
> Porosity (apparent), nominal: 22%
> Flexural strength (ASTM C1161, 3-point): 170 MPa
> Thermal expansion coefficient:
> 200-500℃, 7.9*10-6/C
> 200-1000℃, 9.0*10-6/C
> Bulk density (fired): 3.1 g/cm3
> Porosity (apparent), nominal: 22%
> Flexural strength (ASTM C1161, 3-point): 170 MPa
> Thermal expansion coefficient:
> 200-500℃, 7.9*10-6/C
> 200-1000℃, 9.0*10-6/C

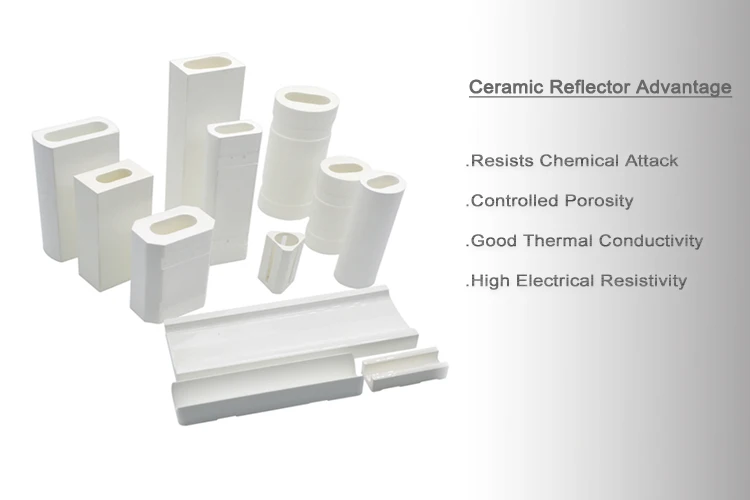

Ceramic Reflector features:
Compared to metal reflectors, ceramic units offer higher reflectivity and therefore enhanced laser power.
Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk reflectivity
1.Resists chemical attack
2.Controlled porosity
3.Has high strength
4.Good thermal conductivity
5.High electrical resistivity
Compared to metal reflectors, ceramic units offer higher reflectivity and therefore enhanced laser power.
Surfaces can be sealed and coated with a solarization-resistant glaze to give high bulk reflectivity
1.Resists chemical attack
2.Controlled porosity
3.Has high strength
4.Good thermal conductivity
5.High electrical resistivity
Alumina | |||||
Datasheet | 92% | 96% | 99.8% | ||
Density (g/cm3) | 3.6 | 3.7 | 3.92 | ||
Color | White | White | Ivory | ||
Water Absorption (%) | 0 | 0 | 0 | ||
Vickers Hardness (Gpa) | 9.5 | 11.5 | 15 | ||
Flexural Strength (Mpa） | 300 | 358 | 400 | ||
Thermal Conductivity （W/m.k) | 16 | 24.8 | 30 | ||
Thermal Shock | 300 | 250 | 200 | ||
Max Use （℃） | 1400 | 1600 | 1700 | ||
Main features include:
1, the surface of the glaze to obtain the maximum reflectivity and easy to clean2, the wavelength of 600-1000nm at the reflectivity of 98%
3, in the 400-1200nm spectral range of reflectivity of more than 96%
4, the body has the appropriate porous and high strength characteristics
Our ceramic laser reflectors can be found in a wide range of applications including:
1.Industrial lasers for use with cutting, welding and marking
2.Medical lasers used in ophthalmic and surgical applications
3.Intense Pulse Lamp (IPL) systems for use with hair and tattoo removal
4.DPSS lasers for use in scientific and medical applications plus range finders
2.Medical lasers used in ophthalmic and surgical applications
3.Intense Pulse Lamp (IPL) systems for use with hair and tattoo removal
4.DPSS lasers for use in scientific and medical applications plus range finders
Company Profile
---
INNOVACERA is a professional high-tech enterprise, cooperate with Chinese University in advanced materials, many products are awarded as high-tech products and obtain patents.Xiamen INNOVACERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina,Zirconia, Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes, we supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request.
INNOVACERA engages in R&D, manufacturing and selling the products of advanced ceramic materials, including Alumina, Zirconia,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic and other advanced materials. Through different manufacturing processes,we supply metallized ceramic components, alumina heater, ceramic pump components and other ceramic components as request. Ourproducts are mainly used in Aerospace, Research, Food Processing, Fluid Handling, Scientific, Automotive, Defense, Thermal Processing, Electronic and Electrical, Process Control, Textile, Pulp and Paper, Mechanical, Glass Processing, Mineral Processing and other Industrial. INNOVACERA is a professional high-tech enterprise, cooperate with Chinese University in advanced materials,many products are awarded as high-tech products and obtain patents. Our aim is to offer the ideal advanced material solution for any application.
EXHIBITION
---
>>> Our Products are Alumina Ceramic, Zirconia Ceramic, Boron Nitride Ceramic,Porous Ceramic, Silicon Nitride Ceramic, Machinable Glass Ceramic, Beryllia Ceramic, Aluminum Nitride, Metallized Ceramic Components, Alumina Ceramic Heater, Ceramic Metering Pump And so on.
>>> Our aim is to offer ideal advanced material solution for any application.
>>> We delivery the order on time, competitive price, high quality and long service to our customers.
>>> We delivery the order on time, competitive price, high quality and long service to our customers.

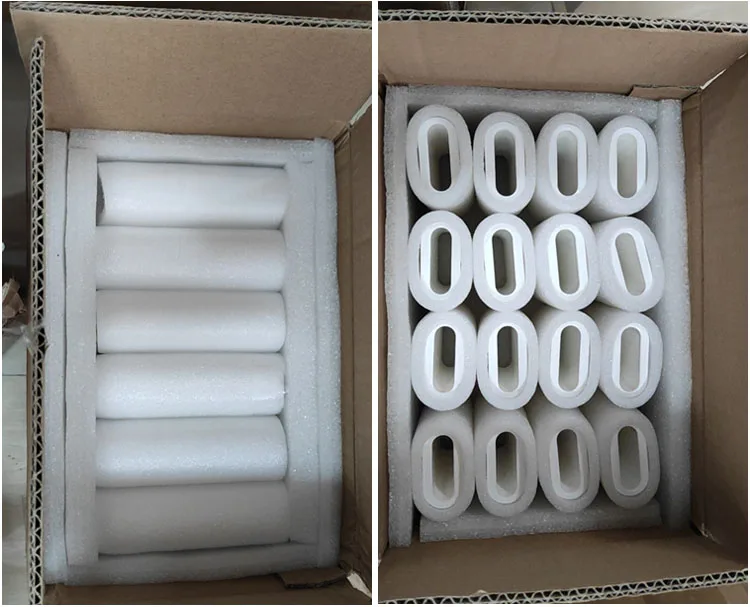

We can use different kinds of transportation if you like
FAQ
---
Q1: How to send an inquiryYou can send your drawing with technology requiremens,and infrom your purchase quantity .If you can,pls inform what is your part used in .We will confirm what is the most suitable materials and quote our best price to you in 24 hour
Q2:Can you provide the free samples ?
Yes,we can provide the sample free of charge if we have the stock product as customer's required,but the courier fee be collected.
Q3:How long will it take for you to send me a quote?
This depends on the complexity of your requirements. For simple items such as plates and rods, we can generally supply a quotation within 24 hours.
Q4:What's the delivery time?
For the standard products, like ceramic substrate and insulating rods, delivery time is normally 7 working days. For hot pressed boron nitride and machinable glass ceramic, it's about 10 working days. For customized products made of alumina, zirconia, boron carbide and silicon nitride, total producing time is about 30-45 working days.
Q5:How to contact us ?
You can send the email to sales@innovacera.com
Call to +86 0592-5589730
Q6:More detail company information ?
www.innovacera.com
You can send the email to sales@innovacera.com
Call to +86 0592-5589730
Q6:More detail company information ?
www.innovacera.com
If you are interested in our products, please click here to send me an inquiry, and I will reply you within 8 hours
