5 part diff Auto hematology analyzer WBC hematology analyzer ZK MR BC 5000
- Category: Clinical Analytical Instruments >>>
- Supplier: Borzonk (Shenzhen) Technology Co. Ltd.
Share on (62575161846):
Product Overview
Description
Products Description
Features
· Whole blood mode, Capillary whole blood mode and Prediluted mode
· Tri-angle Laser scatter + Chemical dye + Flow cytometry technology
· Dedicated optical counting channel for Basophil measurement
· Powerful capability of flagging abnormal cells

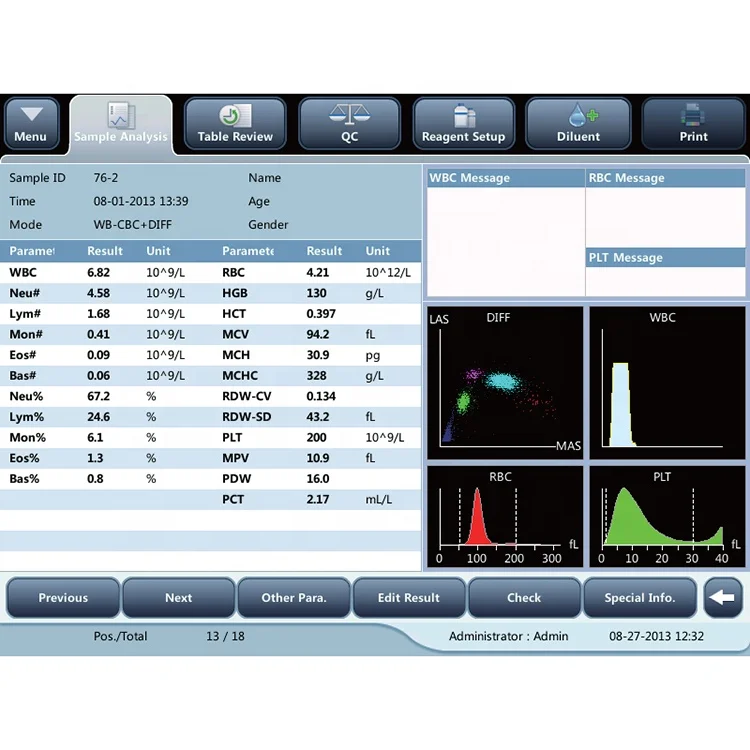

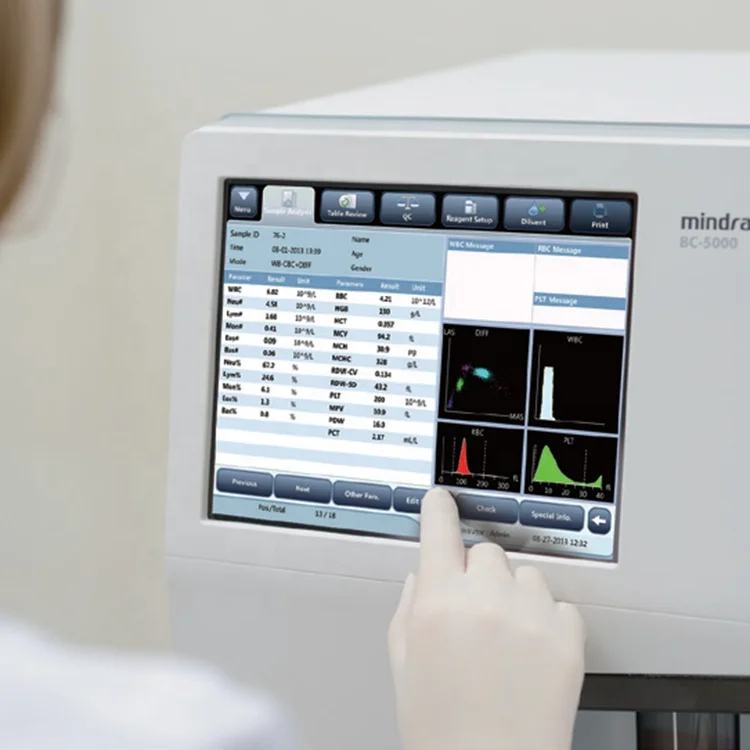

· 10.4 inch large TFT touch screen with user-friendly software
· Large storage capacity: up to 20,000 samples
· Throughput: 40 samples per hour
· Sample volume is only 15μL which is ideal for pediatrics

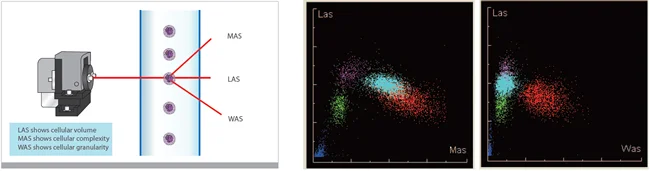

Tri-angle laser scatter + focused flow + chemical dye, creating the possibility for a better 5-part WBC differentiationeven on samples with high Eosinophil
Technical Specifications
Principles | Impedance method for RBC and PLT counting Cyanide free reagent for hemoglobin test Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical dye method for WBC 5-part analysis and WBC counting | ||||||
Reagent | M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser | ||||||
Performance | Parameter | Linearity Range | Precision | Carryover | |||
WBC | 0-100×109/L | ≤2% (4-15×109/L) | ≤0.5％ | ||||
RBC | 0-8×10¹²/L | ≤1.5% (3.5-6.0×10¹²/L) | ≤0.5％ | ||||
HGB | 0-250g/L | ≤1.5% (110-180g/L) | ≤0.6％ | ||||
PLT | 0-1000×109/L | ≤4.0% (100-500×109/L) | ≤1.0％ | ||||
Parameters | 23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-CV, RDW-SD, PLT, MPV, PDW, PCT 3 histograms for WBC, RBC and PLT 3 scattergrams for WBC differential | ||||||
Sample Volume | Prediluted mode ：20 μL Whole blood mode ：15 μL Capillary whole blood mode：15μL | ||||||
Throughput | 40 samples per hour | ||||||
Display | 10.4 inch TFT Touch Screen | ||||||
Multi-language | Chinese, English, Spanish, Portuguese, Russian, French, Bahasa Indonesia | ||||||
Data Storage Capacity | Up to 20,000 results including numeric and graphical information | ||||||
Communication | LAN port supports HL7 protocol | ||||||

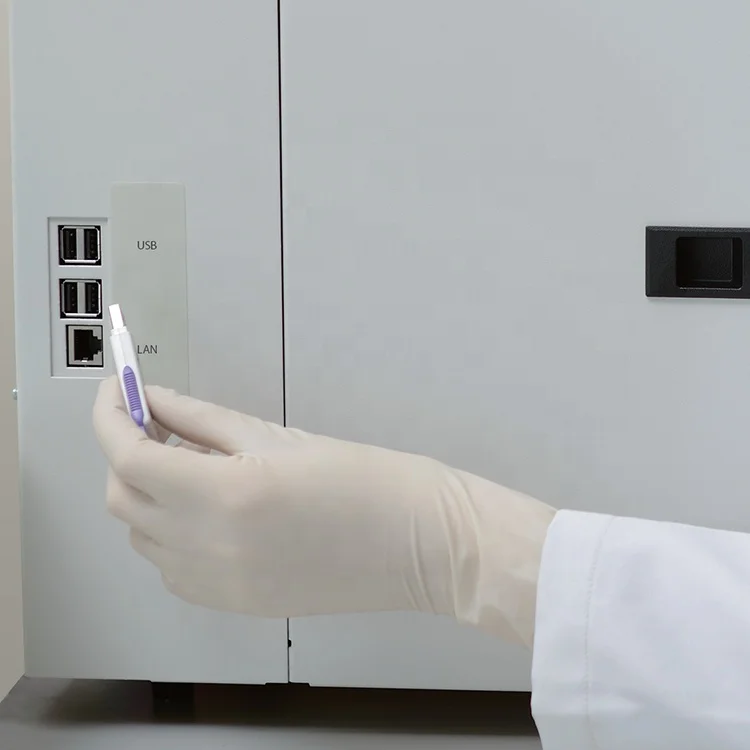

Interface | USB, LAN Support bi-directional LIS | ||||||
Printout | External Thermal printer / Laser printer / Inkjet printer, various | ||||||
Operating Environment | Temperature: 10°C~30°C Humidity: 20%~85% Air pressure：70 kPa~106 kPa | ||||||
Power requirement | 100V-240V 50Hz/60Hz | ||||||
Dimension and Weight | Depth(400 mm) x width(320 mm) x height(410 mm) Weight :24kg | ||||||
