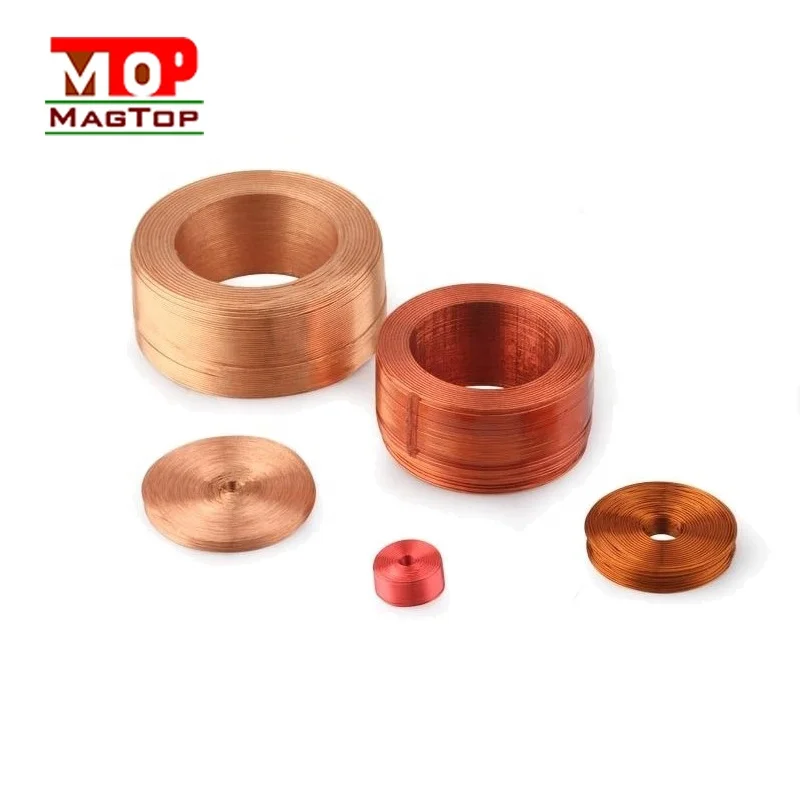

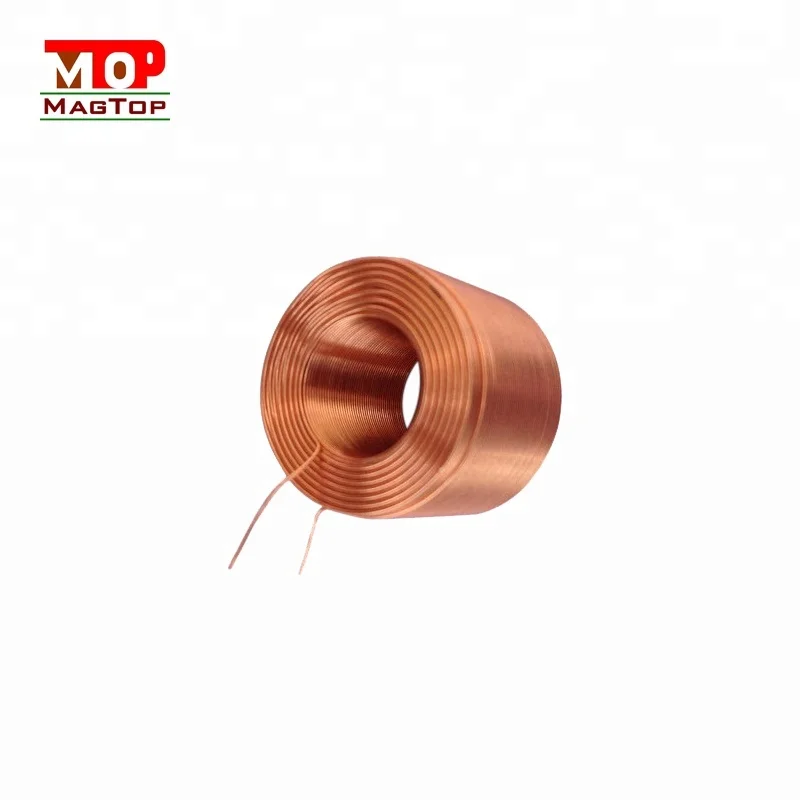

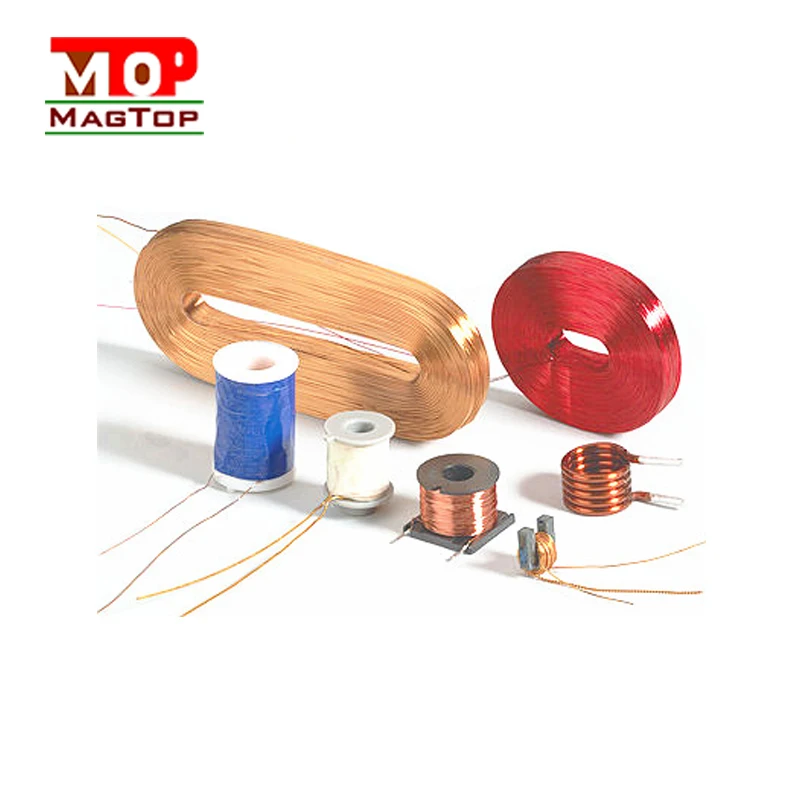

Fixed Low cost self bonding copper wire air core coil inductor

Product Overview

Description





 Feature:

1. OEM Variable Spiral winding induction coil of wireless charger module

2. Temperature choice from normal 130°c to 220°c

3. All material are RoHS compliant.

4. Winding capability from Φ0.016~Φ3.0mm.

5. Most Competitive Price in best Quality.

6. OEM, ODM capability for Customer Request.

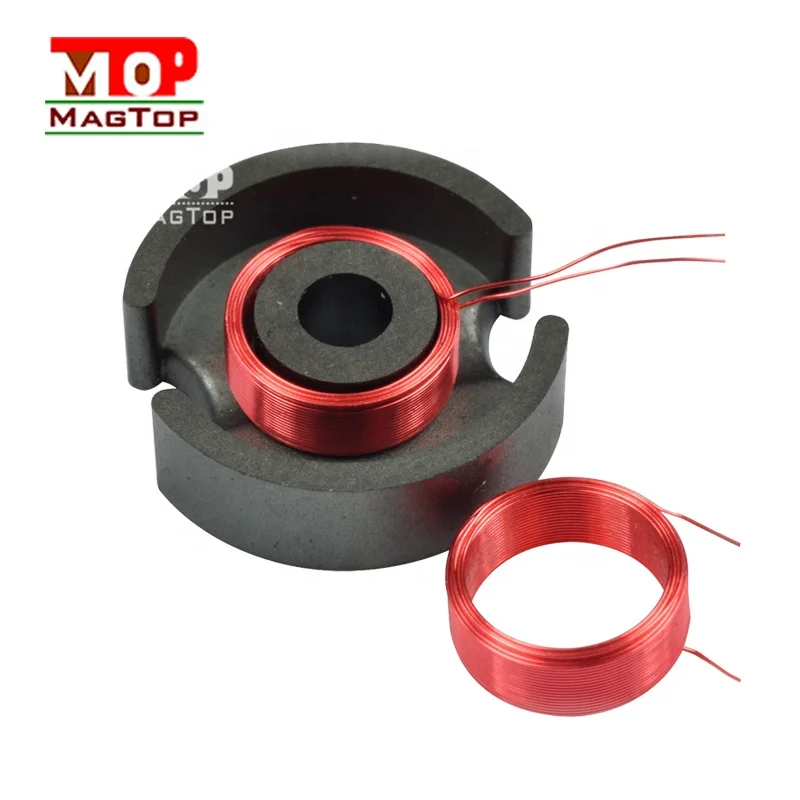

7. QI Charging Inductor Wireless Charger Coil With Ferrite Shield , Self-bonding copper wire Square or round,Customized lead length accepted



Applications:

1.Compact fluorescent lamp.

2.Television receiver.

3.Radio cassette player.

4. PC power supply.

5.Monitor,audio,VCD,DCD.

6.UPS.

7.The electronic apparatus.

8.The noise rejection.

9. Induction cooker,etc.



Specifications:

1.Various structures meet customer specification

2.Wide inductance range

3.Good for high frequency applications

4.Good for high temperature condition

5.Multilayers structure

6.Self-bondable wires available

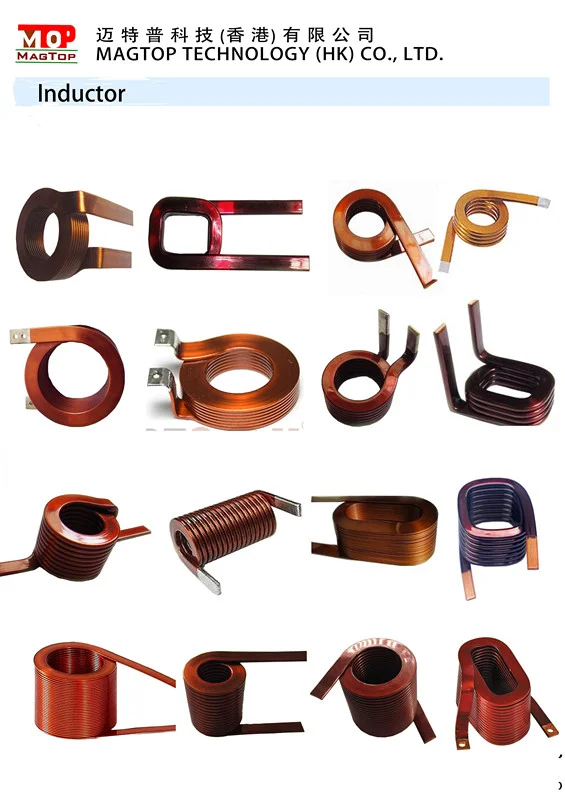

Related products:

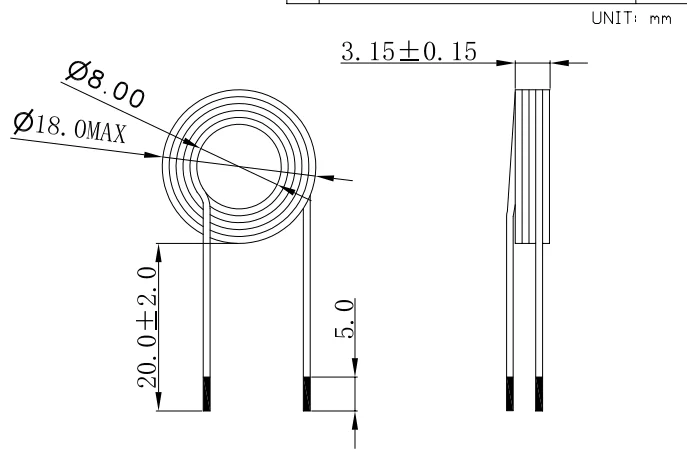

Reference Shape and Dimensions:



Electronical characteristics:
1.INDUCTANCE	30.0uH±10%@1.0KHZ,0.25V
2.DC RESISTENCE	340.0mΩ MAX@25℃
3.Wire::	∅0.40 2UEW 53TS REF











FAQ:



Q1. Are you trading company or manufacturer?
A: We are factory.

Q2. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock, or it is 15-20 days after your order, if the goods are not in stock,

     it is according to quantity.

Q3. Your magnetic rubber inductance is better?
A: Yes, rubber magnetic inductance is ferrite magnetic core, a coil around, after coating a layer of glue,

     have good shielding effect, it is not easy to produce noise,

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q5. How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them.

If you have any other questions please contact with us or leave a message, we will reply you ASAP.
