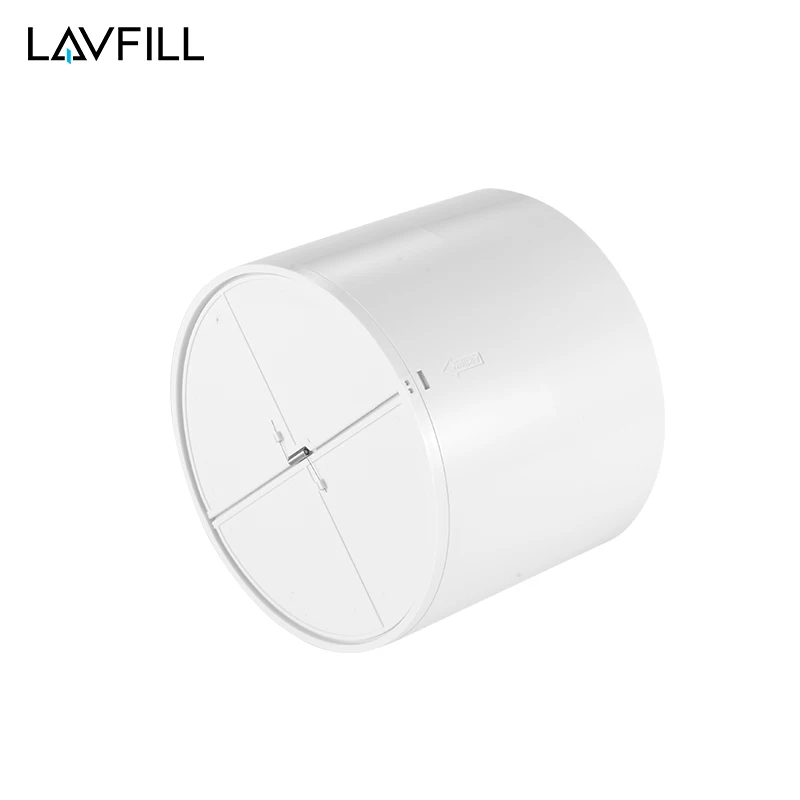

Duct fan booster 4 inch
- Category: Industrial Machinery >>>
- Supplier: Wenzhou Yudong Electrical Appliance & Sanitary Ware Co. Ltd.
Share on (62575437611):
Product Overview
Description
Product Description

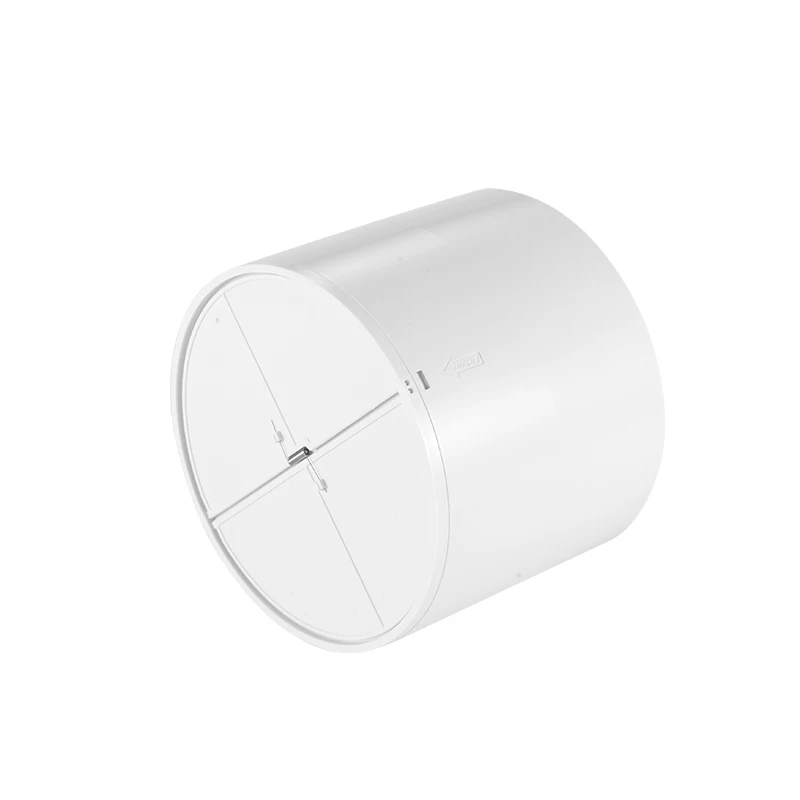

Duct fan booster 4 inch
Product Features
- The fan is suitable for inline duct mounting in suspended ceiling
- Flexible inline installation booster
- Shaded pole motor with thermo cut-off
- Ball bearing motor to reduce friction for long life operation
- Operating temperature range -10°C~ 40°C
- Safety design based on IEC requirements
- Approved by SAA TUV SASO CE RoHS
Specification

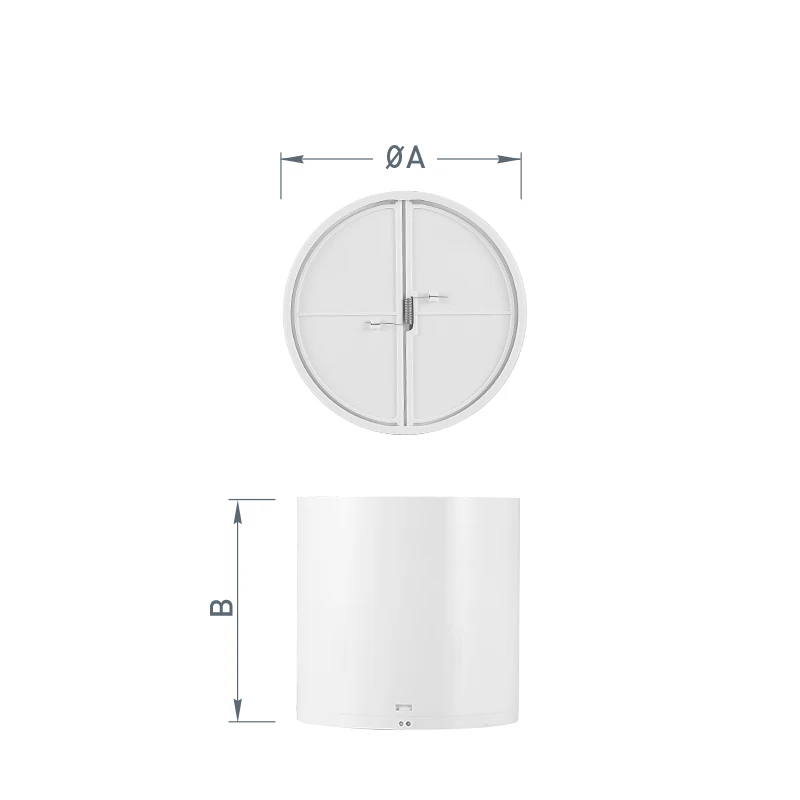

Dimension
Unit: mm
| Article No. | A | B |
LFI-09SI | φ99 | 98 |
| LFI-13SI | φ149 | 118 |
Technical Parameter
| Article No. | Category | Rated Voltage | Rated Voltage | Power | Air Volume | Noise |
LFI-09SI | Inline ducted Fan | 12V~ 110V~ 220-240V~ | 50/60Hz | 12W | 130m³/h | 34dB |
| LFI-13SI | 18W | 320m³/h | 35dB | |||
| LFI-09S | 12W | 130m³/h | 34dB | |||
| LFI-11S | 16W | 240m³/h | 34dB | |||
| LFI-13S | 18W | 320m³/h | 35dB |

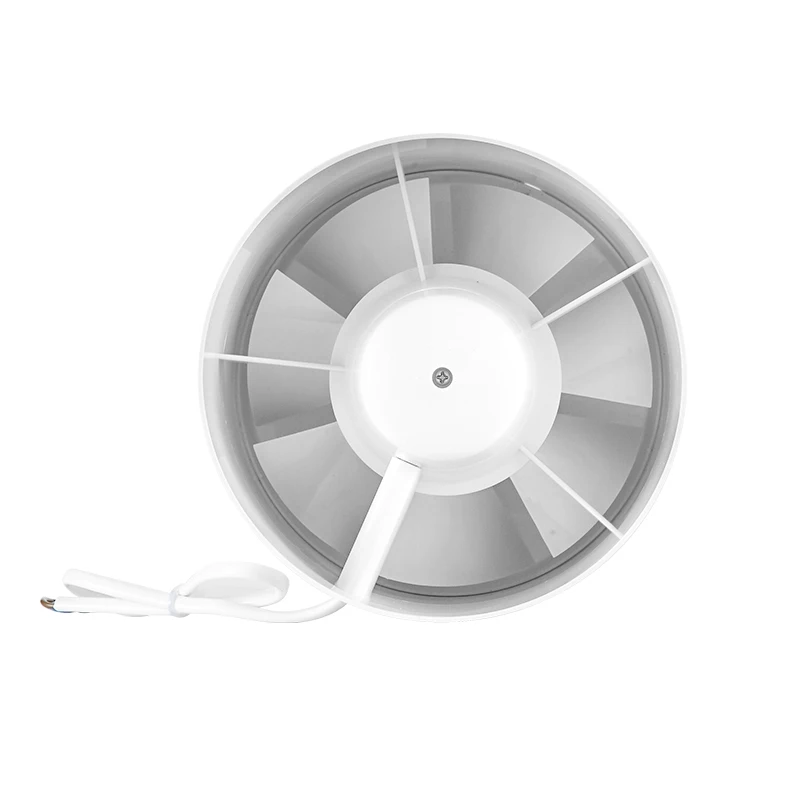

Product Display

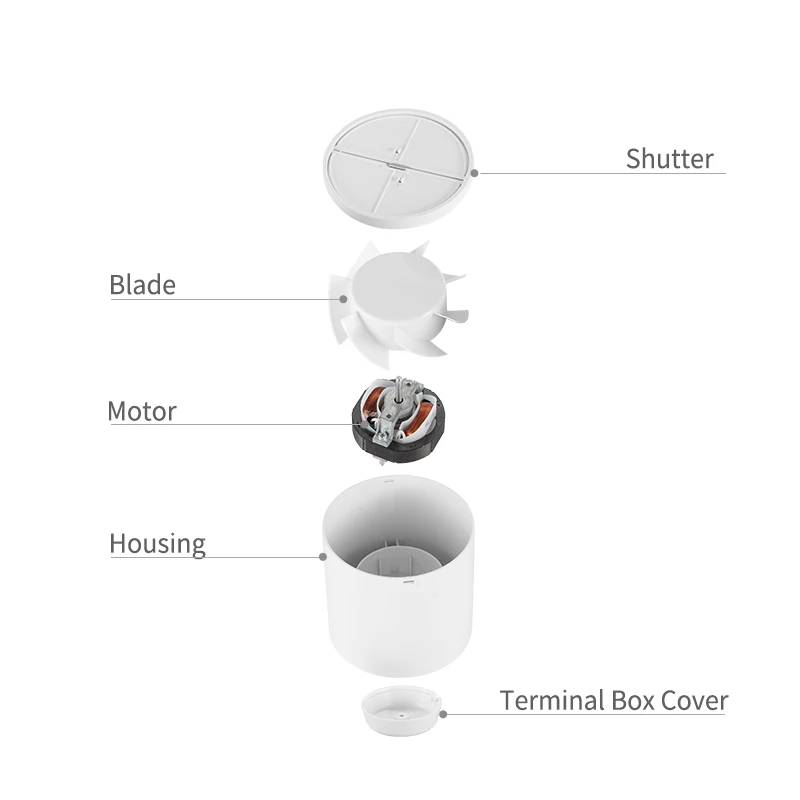

Exploded View

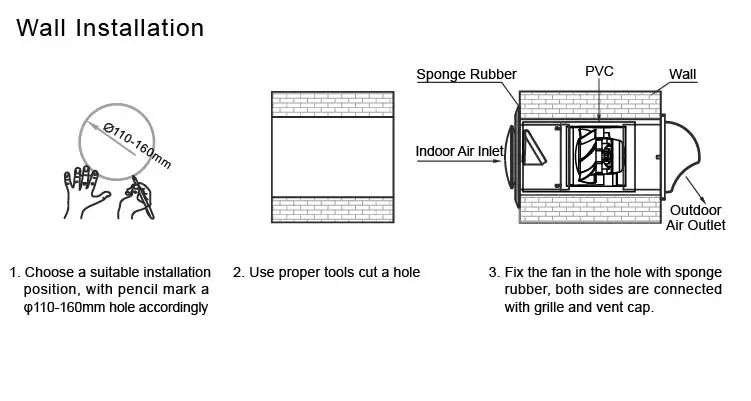

INSTALLATION

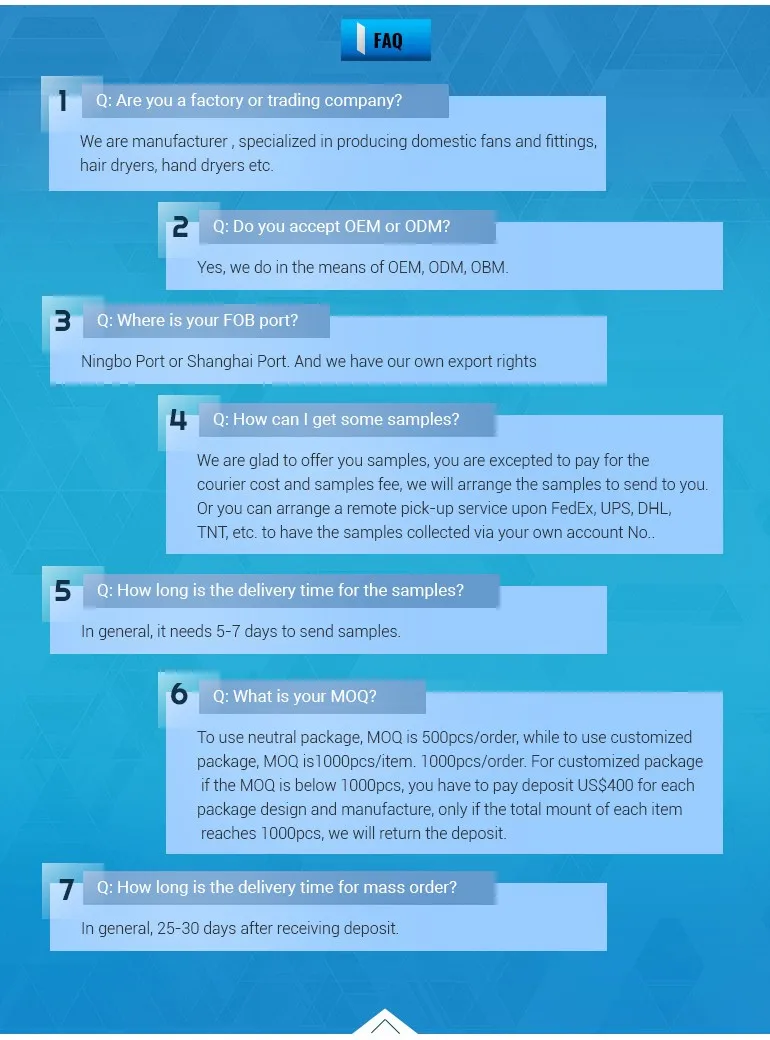

FAQ
