Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service
Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service

Mechanical Gaming Keyboard Printed Circuit Board Assembly PCB Manufacturer with PCBA Service

Share on (62575464766):


Price:

Quantity:


Product Overview

Description


Process Capability
\t
Layer
\t
1~30 Layers
\t
Material
\t
FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic, FR1, FR2, 94V0, Aluminum
\t
Production Capacity
\t
30000 ㎡/months
\t
Board shape
\t
Rectangular, Round, Slots, Cutouts, Complex Irregular
\t
Board cutting
\t
Shear, V-Score, Tab-Routed, Counter Sunk
\t
Board thickness
\t
0.2~8.0mm, Flex 0.1-0.25mm
\t
Copper weight
\t
0.5oZ~12oZ
\t
Solder Mask
\t
Double-sided Green LPI, Red, White, Yellow, Blue, Black, Purple etc.Solder mask
\t
Silk screen
\t
Double-Sided or Single-Sided in White, Yellow, Black etc
\t
Min line width/space
\t
0.08mm/3mil
\t
Max board dimensions
\t
25.6inch*43.3inch or 650mm*1100mm
\t
Min drill hole diameter
\t
0.1mm
\t
Min Laser Drill hole diameter
\t
0.075mm
\t
Surface finish
\t
HASL, ENIG, Immersion Tin, Immersion Silver, OSP,ENEPIG etc
\t
Board thickness toleranc
\t
± 10%
\t
Min slot width
\t
0.12",3.0mm,or 120mils
\t
V-score depth
\t
20-25% of board thickness
\t
PTH Wall Thickness
\t
>0.025mm
\t
PTH Hole Dia Tolerance
\t
±0.076mm
\t
Non PTH Hole Dia Tolerance
\t
±0.05mm
\t
Hole Position Deviation
\t
±0.076mm
\t
Sink holes
\t
Yes
\t
Quality Standard
\t
IPC-A600F/MIL-STD-105D
\t
Design file format
\t
Gerber RS-274X, 274D, Eagle and AutoCAD'S DXF,DWG
\t\t\t\t\t\t\t\t\twhy us \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tAbout us \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t

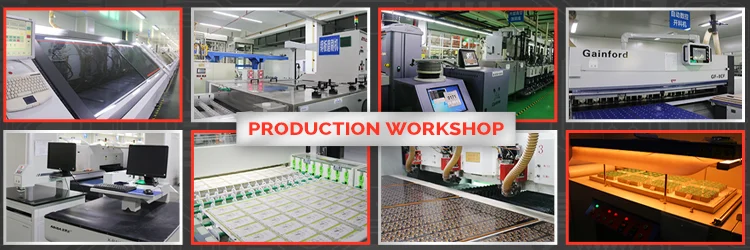

\t\t\t\t\t\t\t\t\tProduction Process \t\t\t\t\t\t\t
