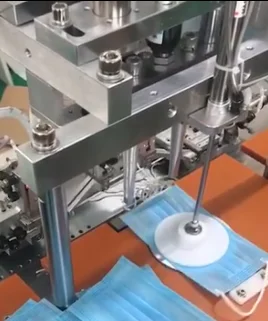

Semi automatic flat mask making machine
- Category: >>>
- Supplier: Shandong Oree Laser Technology Co. Ltd.
Share on (62575467178):
Product Overview
Description
Product Description
Technical Data
Title goes here.

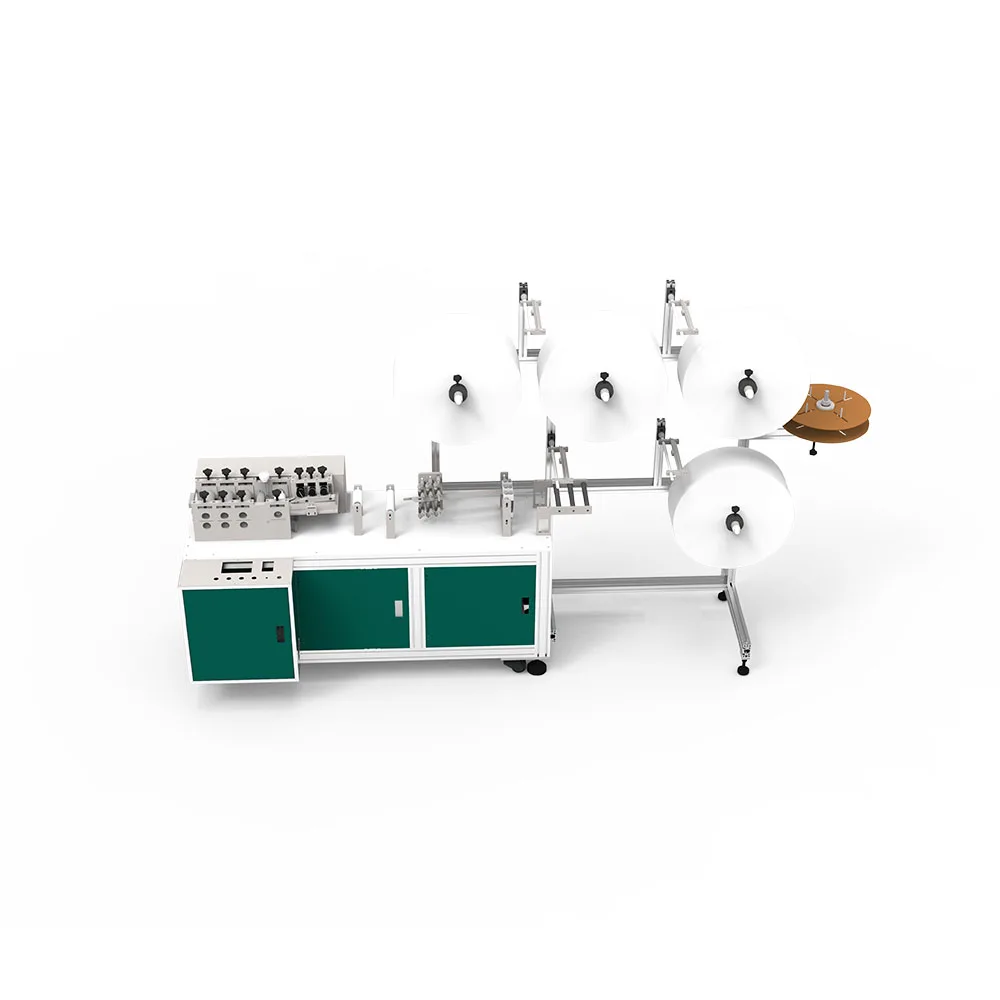

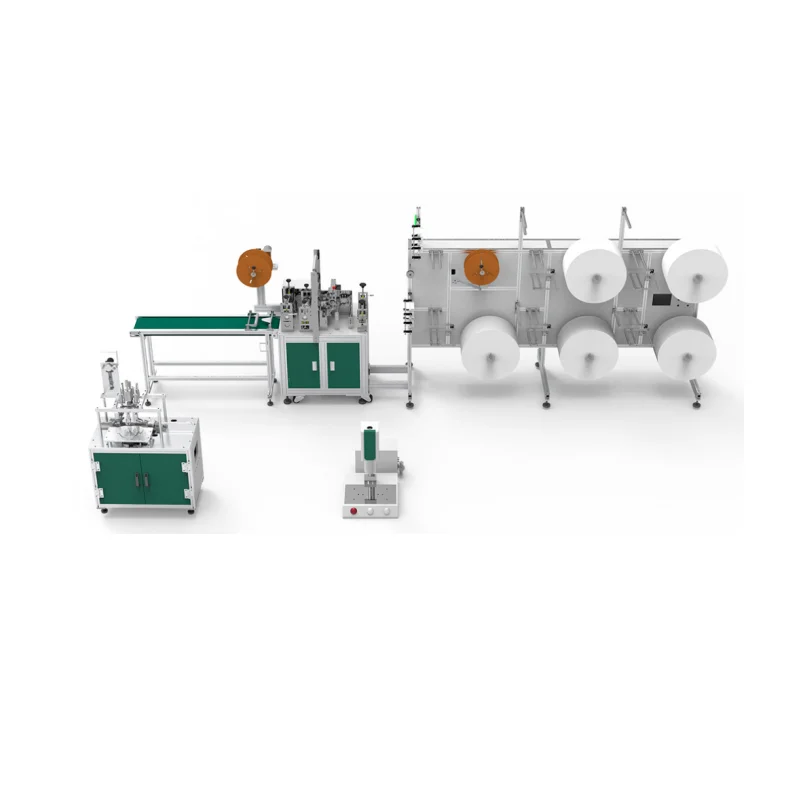

Mask machine production line
The mask machine processes multiple layers of non-woven fabric into various masks with filtering performance (including ordinary
flat masks and N95 masks) through hot compression molding, ultrasonic welding, scrap removal, and ear strap bridge welding. The
manufacture of masks requires the cooperation of the mask body machine and the ear strap welding machine to produce a complete
mask.
1. This production line is mainly used for the automatic forming of masks. After the whole roll of fabric is placed in the
designated position of the feeding rack, the fabric is imported into the hemming fabric through automatic folding, wrapping, nose
roll traction, and fixed-length cutting. Both sides are sealed by ultrasonic welding, and then passed through the ultrasonic side.
Sealing, cutting and shaping by cutting knife, automatic control throughout.
2. Whether the mask produced by this production line is medical or not has nothing to do with the machine. As long as the mask is
sterilized and analyzed, the mask produced by this production line can be used as a surgical mask.
3. The mask production line adopts aluminum alloy structure with good finish and no rust. It can produce multi-layer masks (3-5
layers).
The mask machine processes multiple layers of non-woven fabric into various masks with filtering performance (including ordinary
flat masks and N95 masks) through hot compression molding, ultrasonic welding, scrap removal, and ear strap bridge welding. The
manufacture of masks requires the cooperation of the mask body machine and the ear strap welding machine to produce a complete
mask.
1. This production line is mainly used for the automatic forming of masks. After the whole roll of fabric is placed in the
designated position of the feeding rack, the fabric is imported into the hemming fabric through automatic folding, wrapping, nose
roll traction, and fixed-length cutting. Both sides are sealed by ultrasonic welding, and then passed through the ultrasonic side.
Sealing, cutting and shaping by cutting knife, automatic control throughout.
2. Whether the mask produced by this production line is medical or not has nothing to do with the machine. As long as the mask is
sterilized and analyzed, the mask produced by this production line can be used as a surgical mask.
3. The mask production line adopts aluminum alloy structure with good finish and no rust. It can produce multi-layer masks (3-5
layers).
Equipment Size | 6500mm (L) × 4500mm (W) × 1900mm (H) |
Equipment weight | ≤5000kg, ground load ≤500KG / m2 |
Working power | equipment 220VAC ± 5 ﹪, 50HZ, rated power about 9KW |
Compressed air | 0.5 ～ 0.7 MPa, the use flow rate is about 300L / min |
Operating environment | temperature 10 ～ 35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust (Cleanliness is not less than 100,000) |
Total power | 8.5KW |
Volume of production | LMS-120-1 : 2500 pieces/hour LMS-120-2: 5000 pieces/hour |
Operator | 1 person [additional staff of 1-2 for temporary model] |
Our Advantages
Title goes here.
1. Aluminum alloy body, beautiful and firm
2. Photoelectric detection reduces the failure rate
3. Motor control, stable and reliable
4. PLC control, stable performance
5. Structure limit, easy to adjust
6. Pneumatic control, high efficiency and environmental protection7. The automatic intelligent design with fast speed, 100-120pcs/min
8. One person can operate multiple machines, improve production efficiency and reduce labor cost.
9. Three tension control for 3 layer fabric or more.
10. Fabric diameter less 1 meter.
11. Machine has alarm if material finished.
2. Photoelectric detection reduces the failure rate
3. Motor control, stable and reliable
4. PLC control, stable performance
5. Structure limit, easy to adjust
6. Pneumatic control, high efficiency and environmental protection7. The automatic intelligent design with fast speed, 100-120pcs/min
8. One person can operate multiple machines, improve production efficiency and reduce labor cost.
9. Three tension control for 3 layer fabric or more.
10. Fabric diameter less 1 meter.
11. Machine has alarm if material finished.

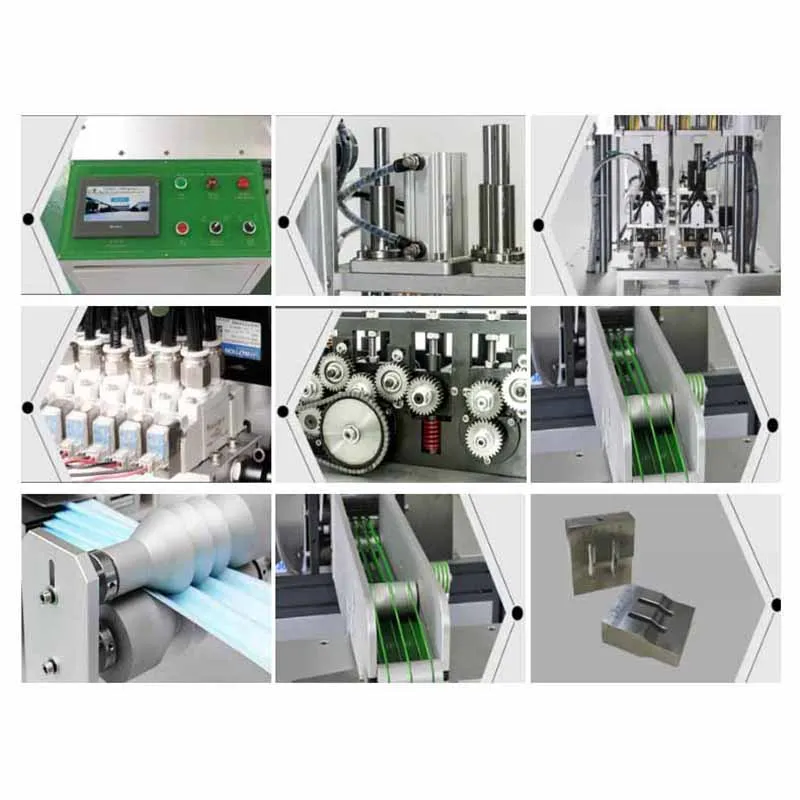

Details Images
