Custom lcd video wall display 49 inch, 40/42/46/49/50/55/58/65 inch ultra slim bezel lcd tv walls
- Category: >>>
- Supplier: Guangzhou Cenview Technology Co. Ltd.
Share on (62575610728):
Product Overview
Description
Product Paramenters
Detailed Parameters Of 49-Inch Double-Sided Stitching 3.5mm Ultra-Narrow Stitching Unit | ||||||
Product Name | 49-Inch splicing unit | |||||
Product Number | CV-S-49-JD-035 | |||||
Screen Size | 49-inch | |||||
Unit Size（mm） | 1079×609×72 | |||||
Bilateral Combined Seam（mm） | 3.5MM | |||||
Panel Type | TFT-LCD | Zoom | 16:9 | |||
Best Resolution | 1920×1080 | Color Gamut Color Temperature | 92% 10000K | |||
Brightness | 500cd/m² | Weight | 32KG | |||
Contrast | 5000:1 | Operating Temperature | 0~60℃ | |||
Response Time | 8ms | Working Humidity | 20~80℃ | |||
Dot Pitch | 0.1765×0.530mm | Power Supply | 100~240V，50/60HZ | |||
Viewing Angle | 178°/178° | Service Life | 60000H | |||
Display Color | 8BIT、16.7m | Rated Power Consumption | 180W (Up to 300W) | |||
Input Interface | VGA*1、HDMI*1、DVI*1、BNC*2、ISP*1、RS232*1 | |||||
Output Interface | Control Output RS232*2 | |||||
Operation Method | RS232 centralized control, network remote control | |||||
Support Format | NTSC、PAL、480I、480P、720P、1080I | |||||
Basic Skills | The same unit can display any one of the three types of input signals, the signal type is optional: RGB, VIDEO and component video | |||||
Continuous Working Time | 24 hours a day, 7 days a week | |||||

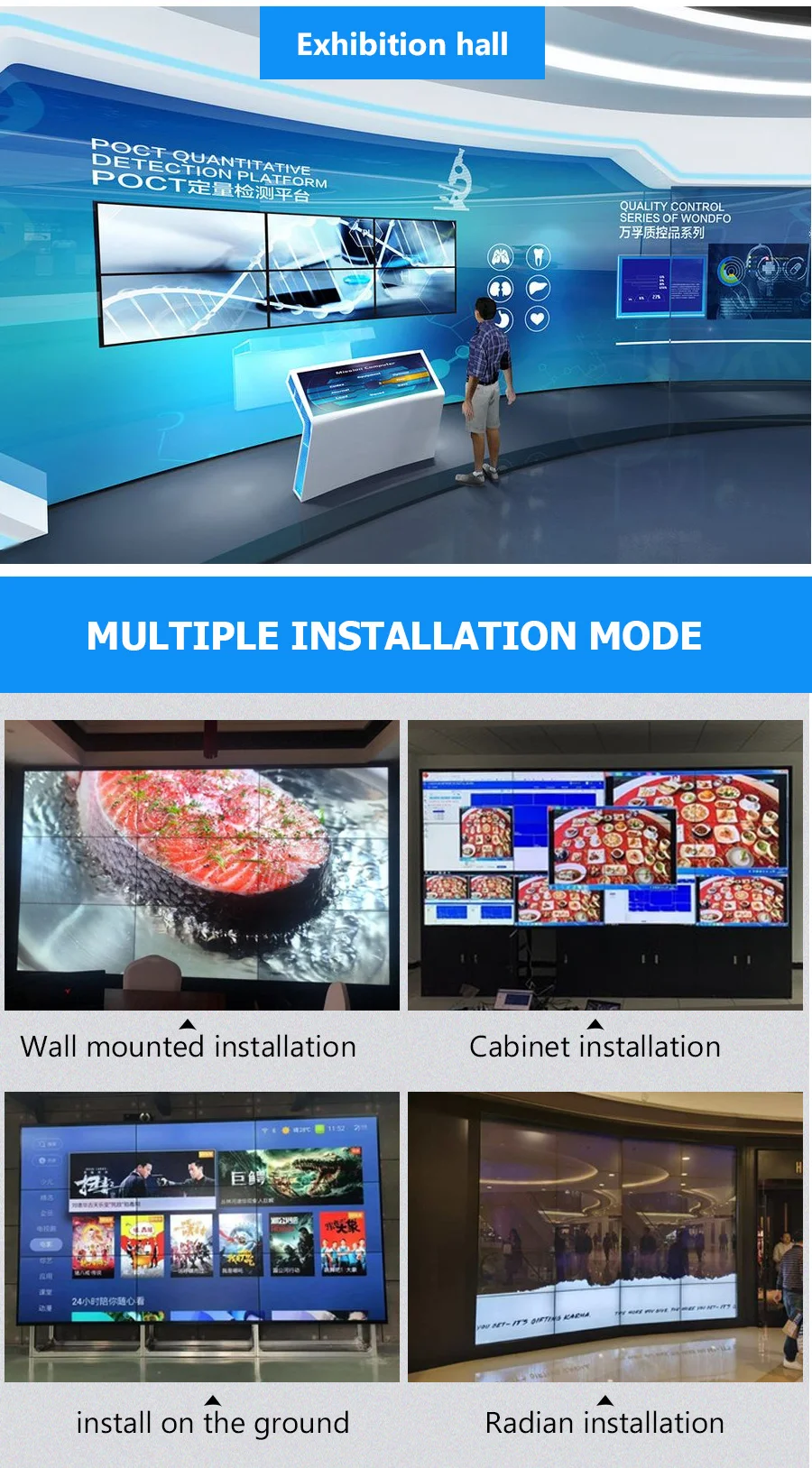

Installation Method (optional) | Wall-mounted, embedded wall-mounted, floor cabinet type, floor stand type | |||||
Products Description
