12v heat mat aluminum fabric electric heating mat bathroom warming undefloor heating mat

Share on (62575613064):


Price:

Quantity:


Product Overview

Description


12v heat mat aluminum fabric electric heating mat bathroom warming undefloor heating mat



Product Description


Winter Heater Electric Heating Mat For Foot Warmer





































Voltage220V
Power150w/m2
Heating ConductorAlloy Wire
InsulationFEP
ShieldAluminum foil + Copper wire
Outer SheathPVC
Max. Surface Temperature70℃
Max. Withstand Temperature120℃


Winter Heater Electric Heating Mat For Foot Warmer

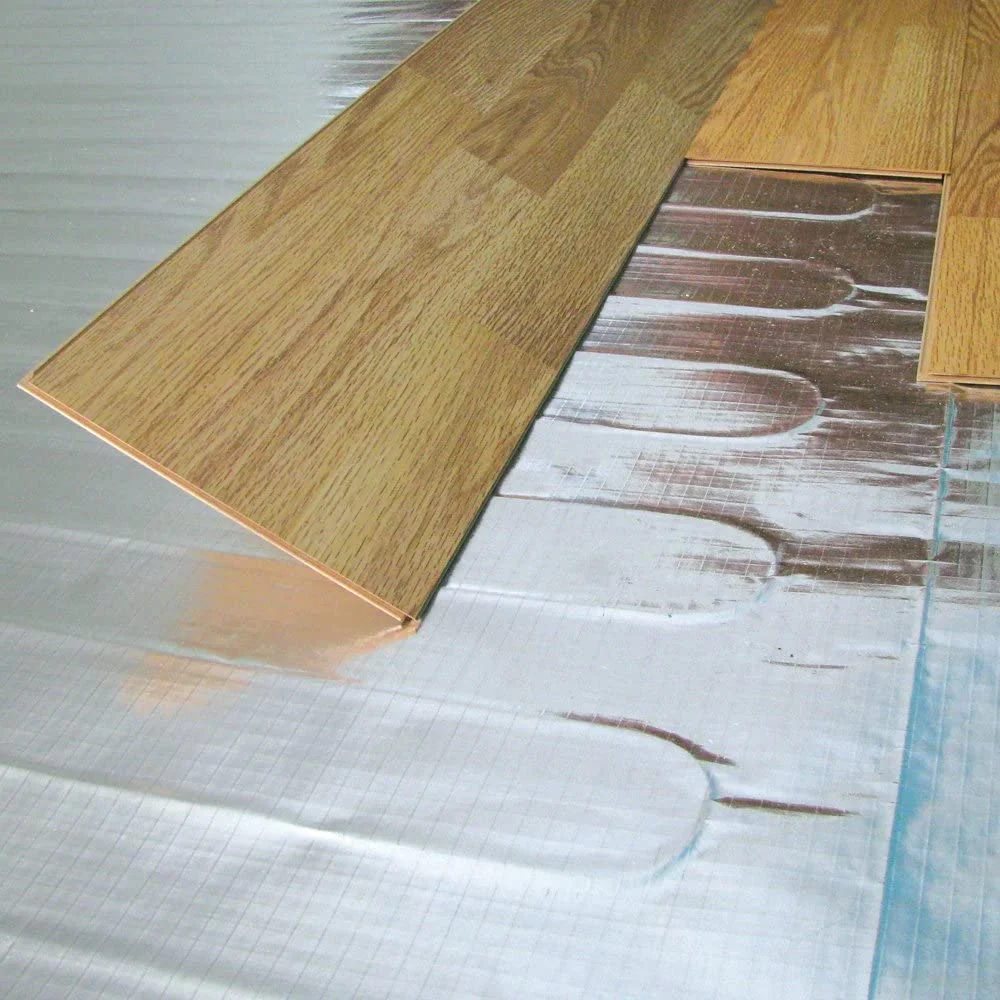

Indoor Underfloor Heating Mat



Heating mat is a good heating system. It is easy to install for a variety of floor coverings, whether concrete, wood or old tile or terrazzo. It is installed with tile adhesive and has almost no effect on the ground elevation. Heating mat can also be laid directly on the original ground without the need for other treatment of the original ground. In addition, the thin, pre-heated layer gives you the desired floor temperature in 20-30 minutes after starting the system, so this fast heating system is the best choice for home. Heating mat used for overall heating, comfortable heating, wall heating, Indoor high-level demanding and the second decoration. Heating mat are divided into single-conductor bathroom floor electric warm feet mat and twin conductor bathroom floor electric warm feet mat.


Winter Heater Electric Heating Mat For Foot Warmer






































































Structure



Single conductor heating mat



Twin conductor heating mat



Glass net



10*10mm


300 g/square meter Back double-sided tape



10*10mm


300 g/square meter Back double-sided tape



Thickness



4-4.5mm



3-5.5mm



Power output



100w/square meter,150 w/square meter



150 w/square meter



Rated voltage



220v(Customized)



220v(Customized )



Length



2*2m



1*2m



Cable construction



single conductor



twin conductor



Outside diameter



2.5mm



3mm



Insulation



Teflon(150℃ CFEP)



Teflon(150℃ CFEP)



Conductor



Teflon(150℃ CFEP)



Teflon(150℃ CFEP)



Shield



Aluminum foil + copper wire



Aluminum foil + copper wire



Max. Ambient Temp



120 ℃



120






Company Information


Winter Heater Electric Heating Mat For Foot Warmer





Client & Certificate


Winter Heater Electric Heating Mat For Foot WarmerWinter Heater Electric Heating Mat For Foot Warmer





FAQ




































































1. How much electricity is consumed per hour?
Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 .
In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2.
When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price.

2. Do I use insulation materials?
We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced.

3. Is it safe to use in a humid place?
Yes, our products are of high quality and have a grounding wire.

4.  How long is the warranty time?
25 years for heating cable & heating mat.
2 years for for constant wattage/self-regulating heating cable and thermostats.

5. Can I crop it?
Yes, you can crop the grid

6. What is the thickness of the cable?
The cable is 3.5mm thick.
