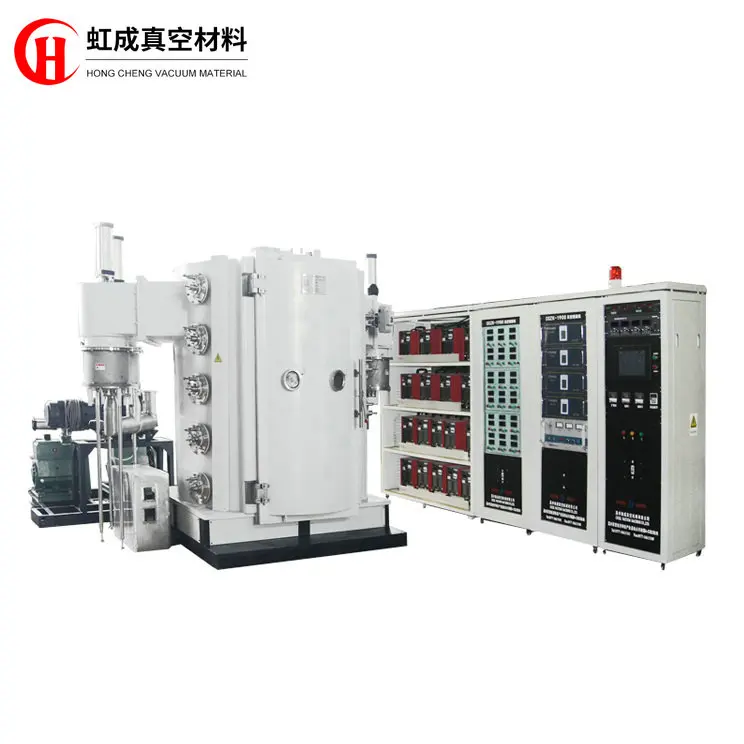

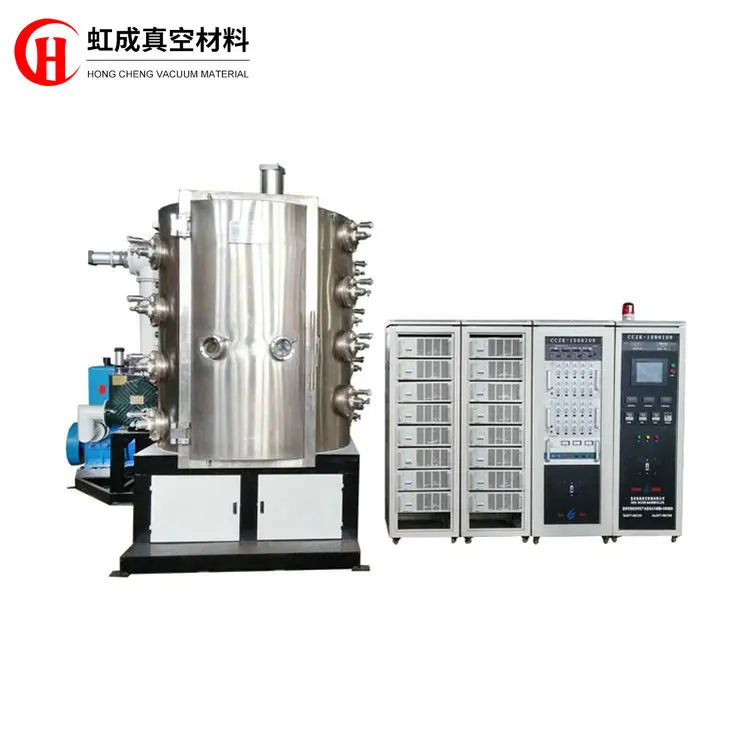

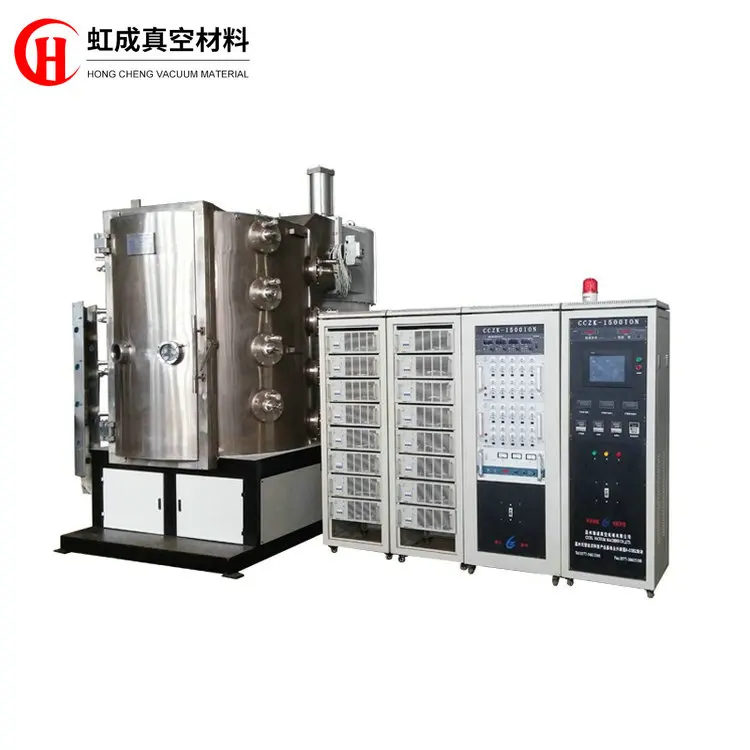

Technology Efficient Durable Stainless Steel PVD Vacuum Multi Arc Ion Coating Machine
- Category: Metal Coating Machinery >>>
- Supplier: Wenzhou Hongcheng Vacuum Coating Material Co. Ltd.
Share on (62575793579):
Product Overview
Description
Product Description
configuration Model |
HCZK-700-ION |
HCZK-1000-ION |
HCZK-1300-ION |
HCZK-1600-ION |
HCZK-1800-ION |
HCZK-2000-ION |
HCZK-2200-ION |
Chamber size(MM) |
D700*H700 |
D1000*H1200 |
D1300*H1500 |
D1600*H1800 |
D1800*H2000 |
D2000*H2400 |
D2200*H4000 |
Vacuum system |
Diffusion pump/Molecular pump + Roots pump + Double stage direct driver Rotary pump + Holding pump + Cryogenic pump(optional) | ||||||
Arc power supply | 7th generation 4sets | 7th generation 8sets | 7th generation 12sets | 7th generation 16sets | 7th generation 20sets | 7th generation 24sets | 7th generation 40sets |
Arc source | 7th generation 4sets | 7th generation 8sets | 7th generation 12sets | 7th generation 16sets | 7th generation 20sets | 7th generation 24sets | 7th generation 40sets |
Bias power supply |
12KW |
20KW |
30KW |
40KW |
60KW |
60KW |
80KW |
Gas MFC system | 4-way intake sys | 4-way intake sys | 4-way intake sys | 4-way intake sys | 4-way intake sys | 4-way intake sys | 4-way intake sys |
Baking system |
Up to 350C |
Up to 350C |
Up to 350C |
Up to 350C |
Up to 350C |
Up to 350C |
Up to 350C |
Control system |
IPC + PLC+HMI Full automatic + Remote control system ( optional) | ||||||
Ultimate vacuum |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
5.0*10-4pa |
Total power |
50KW |
75KW |
145KW |
190KW |
250KW |
305KW |
455KW |
Coating Cycle time |
Around 15 to 50 mins one cycle ( Depending on the coating film layer of different coating products) | ||||||
Delivery container size |
1set 20GP |
1set 20GP |
1set 20GP |
1set 40HQ |
1set 40HQ |
1set 20FR 1set 40GP |
1set 20FR 2sets 40HQ |
Machine installing time |
7days (1engineer) |
7days (1engineer) |
7days (1engineer) |
10days (2engineers) |
10days (2engineers) |
15days (2engineers) |
20days (2engineers) |
Customized Size is available |
Customized | ||||||
Every machine is customized by customers' detailed requirements,pls discuss your demands with me in order to help me to quote you the suitable quotation!
Application
Coating machine can be applied to coat different colors and film on all kinds of stainless steel, glass, ceramic products,such as bathroom hardware,stainless steel straps,jewelry,golf heads, stainless steel/ceramic tableware,etc.

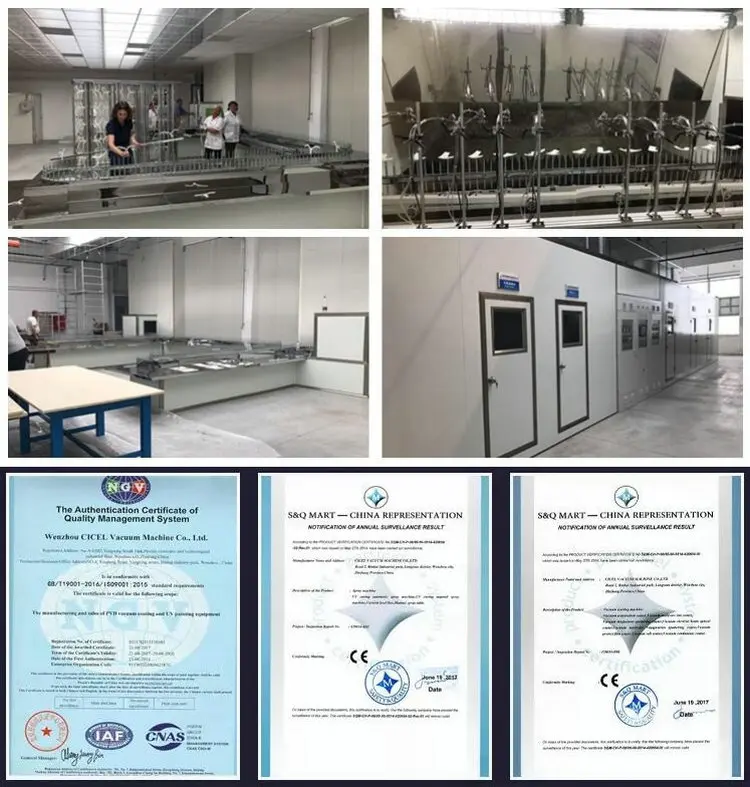

Company Information
FAQ
Q1: How about your company?
A1: We are a leading manufacturer and provider of total integrated supply chain solutions for vacuum coating machine.
Q2: How about the quality control about our products?
A2: We have the ISO9001 QMS-Quality Management System.
Q3: Do you provide after-sales service?
A3: After-sales problems shall be solved on line within 24 hours.
Long-term product solution and remote technical support is provided.
Q4: What about the payment terms?
A4: T/T and it is also flexible according to different types of machine.
Q5: About the package:
A5: nude packing or wooden case carton container.
Q6: Do you provide the second-hand machine?
A6: Yes. We also provide second-hand machine, you can provide your requirements to our salesman.
