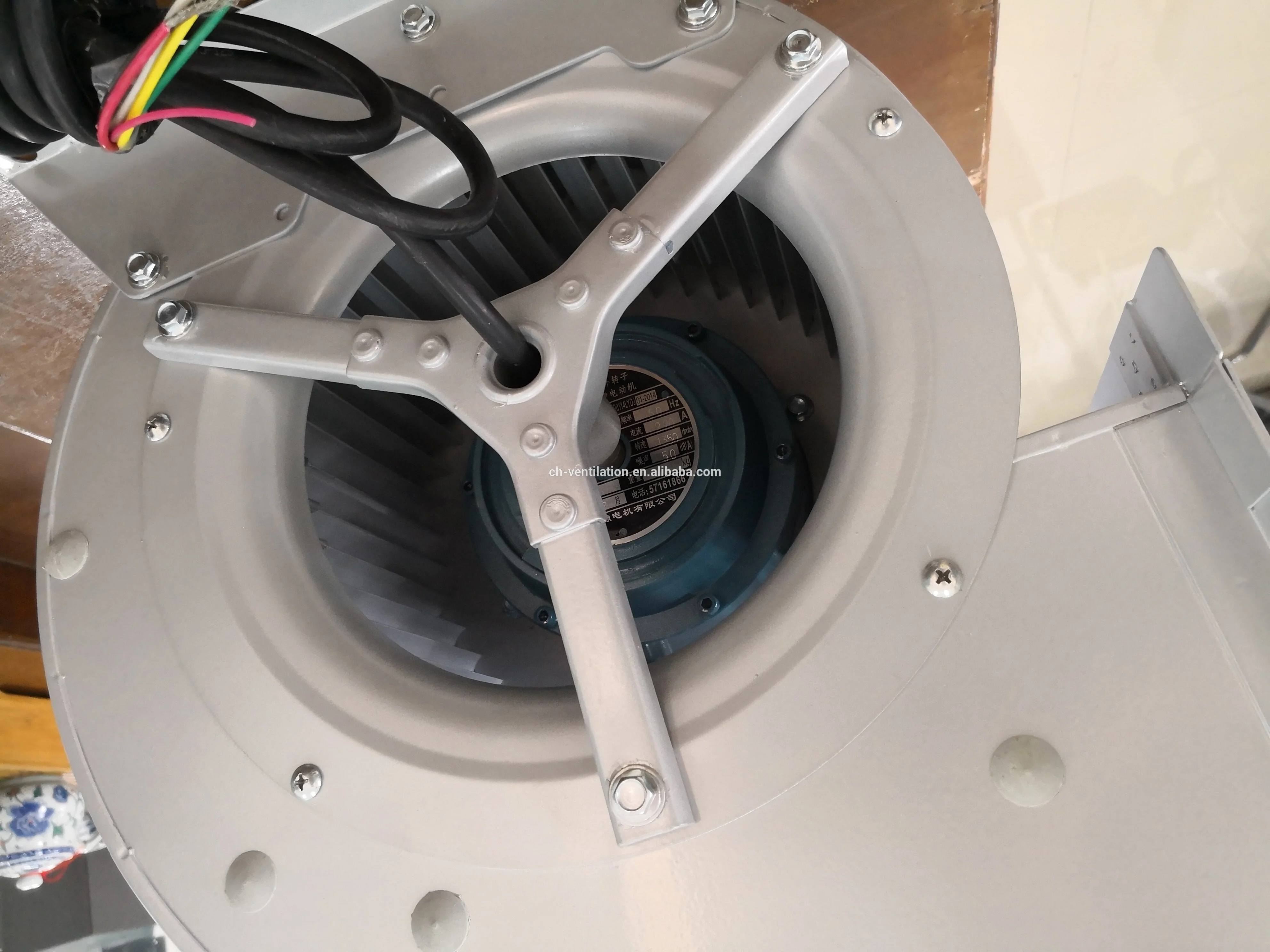

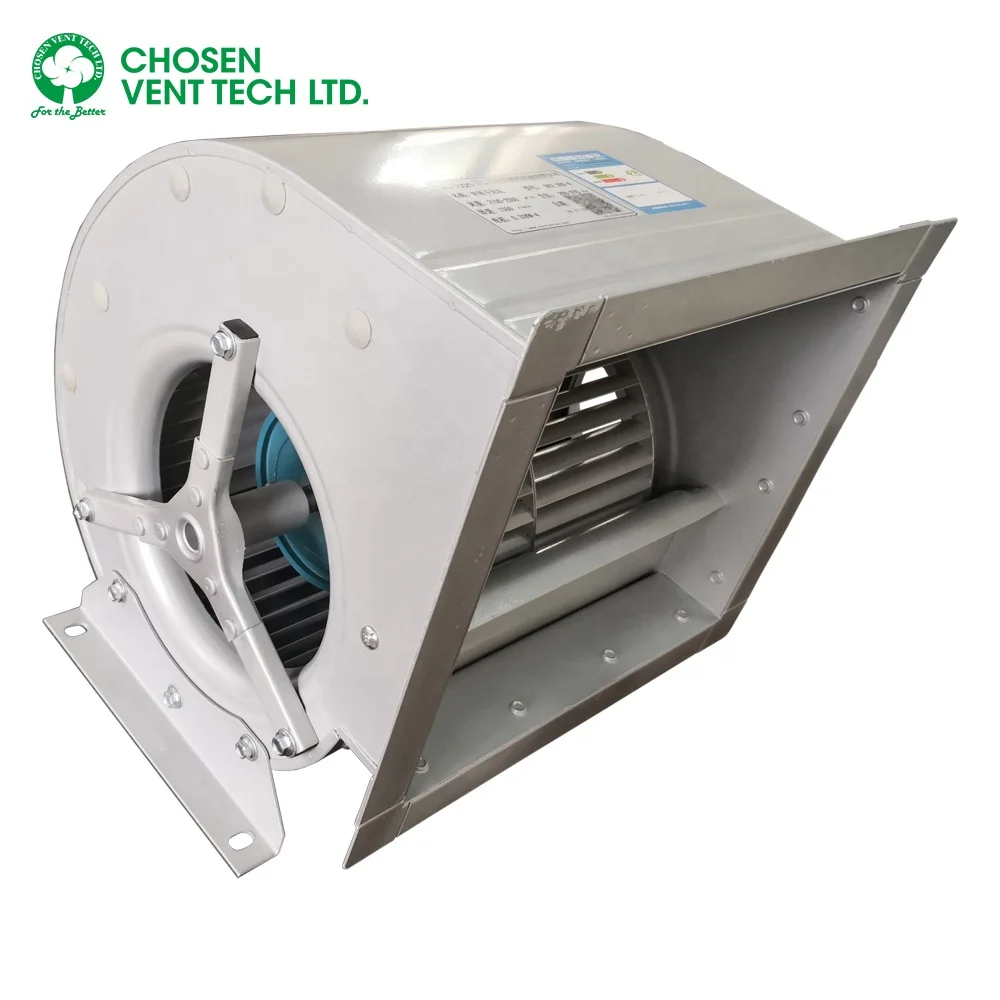

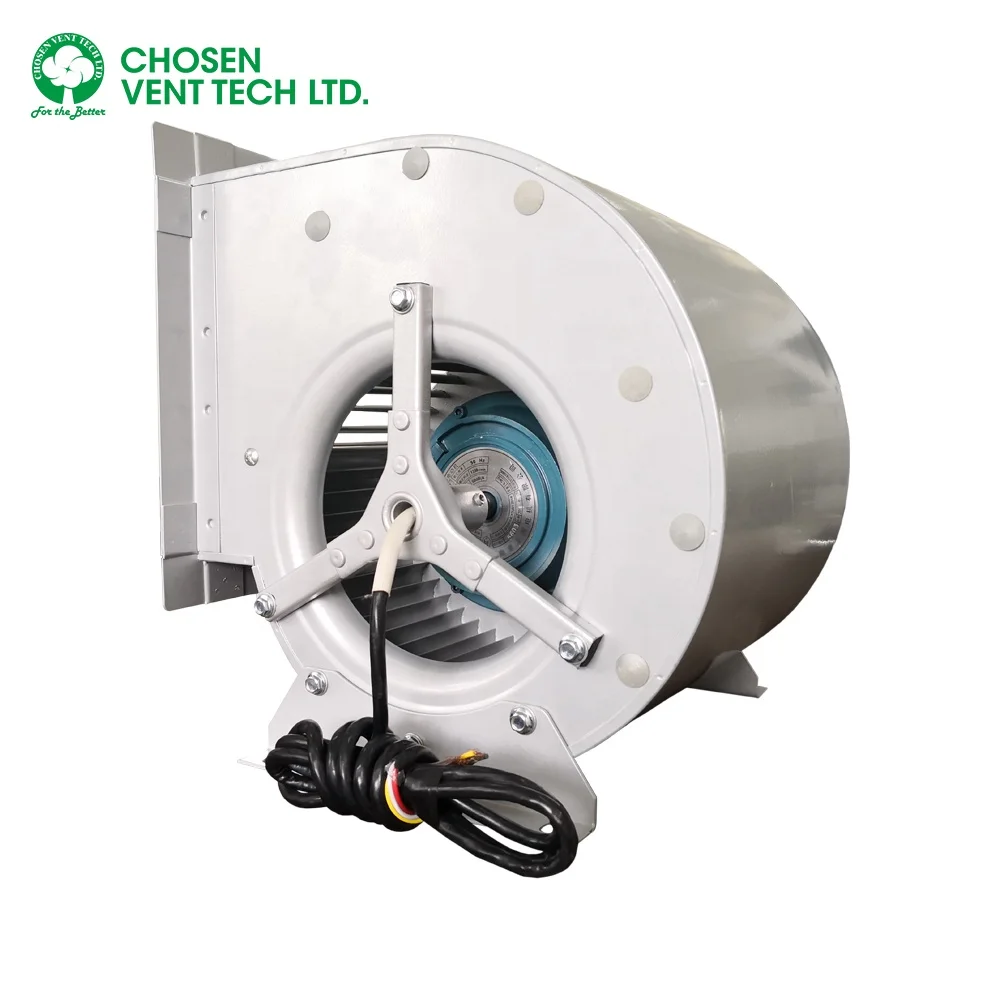

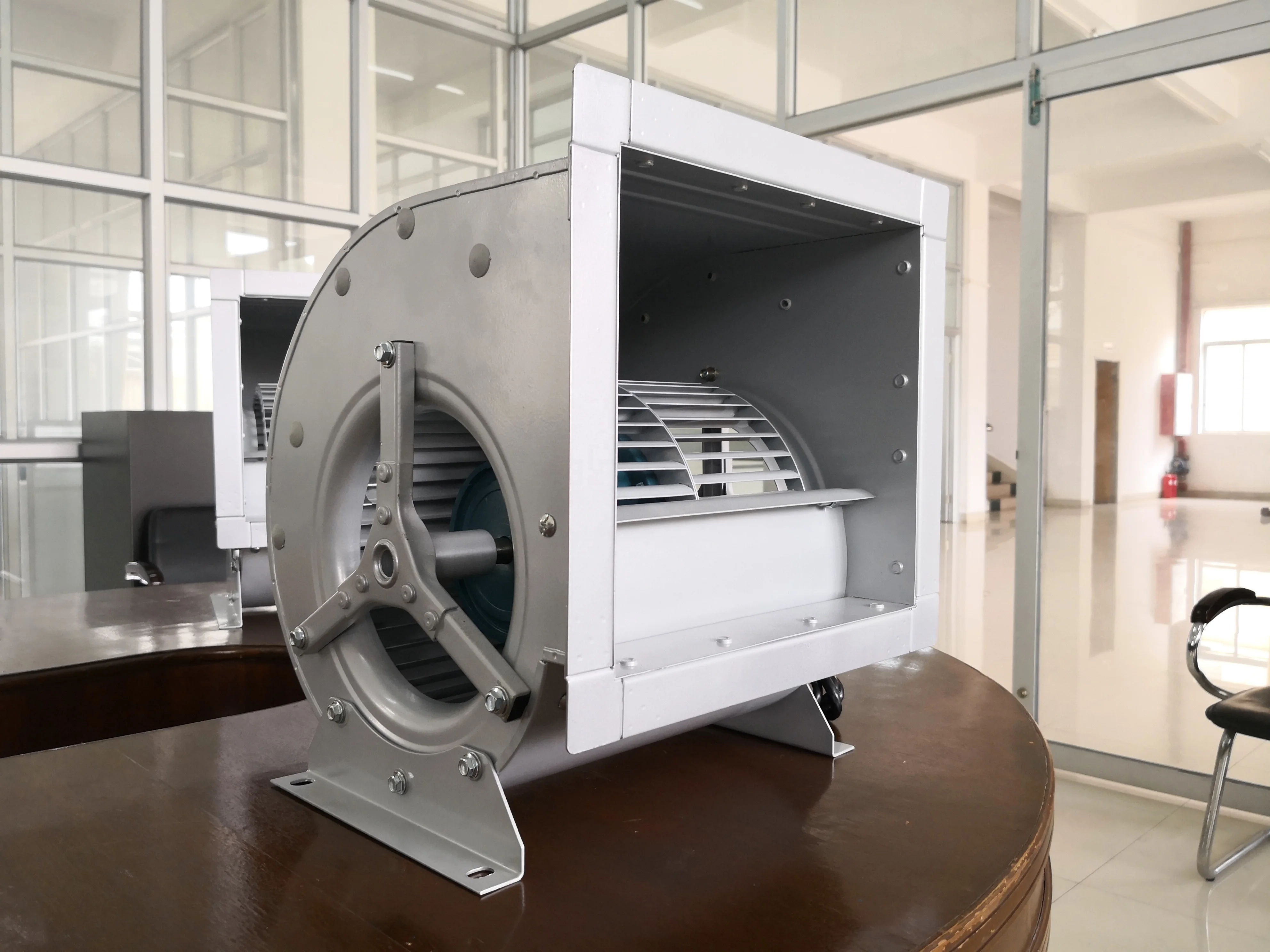

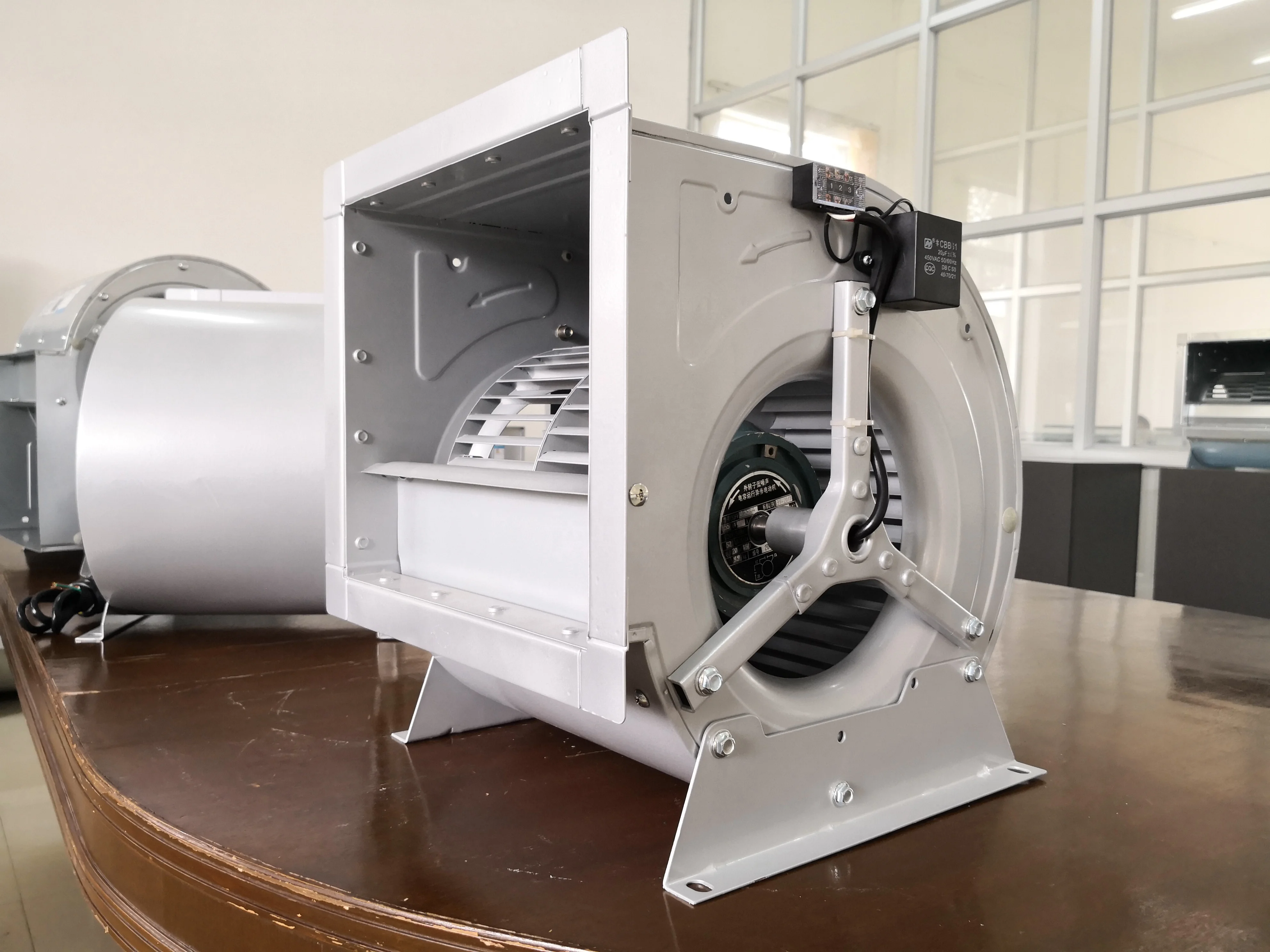

280mm Double Inlet Forward Curved Centrifugal Fan for Ventilation & air conditioner set
- Category: >>>
- Supplier: Foshan Chosen Vent Tech Ltd.
Share on (62576359424):
Product Overview
Description

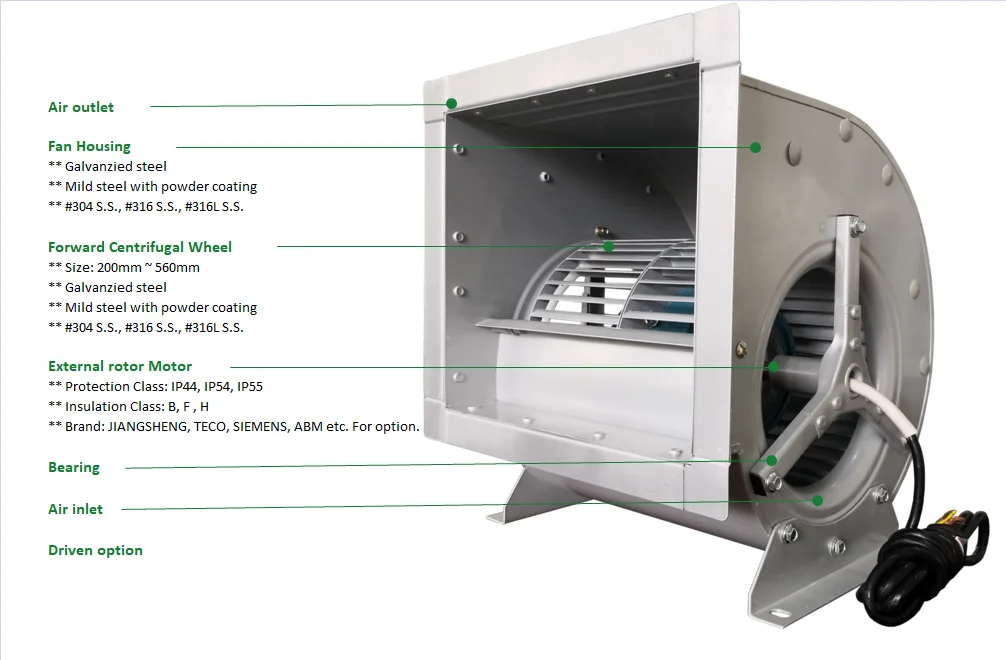

| AIR CONDITIONING KIT CENTRIFUGAL FAN - AKF | ||||
| Item | Air Flow | Total Pressure | Static Pressure | Power |
| m³/h | Pa | Pa | Kw | |
| AKF2.0D-6 | 633-1399 | 108-57 | 101-25 | 0.18 |
| AKF2.0D-4 | 711-1902 | 233-130 | 223-70 | 0.25 |
| AKF2.0D2-4 | 1346-2235 | 211-91 | 189-32 | 0.25 |
| AKF2.0S-6 | 368-996 | 107-86 | 99-31 | 0.18 |
| AKF2.0S-4 | 388-1517 | 247-171 | 239-42 | 0.25 |
| AKF2.3D1-4 | 1327-2071 | 374-336 | 351-280 | 0.32 |
| AKF2.3D2-6 | 1046-2654 | 168-111 | 156-50 | 0.18 |
| AKF2.3D2-4 | 1695-2517 | 331-294 | 298-240 | 0.32 |
| AKF2.3D2-4B | 1653-2700 | 390-356 | 359-293 | 0.37 |
| AKF2.3D3-4 | 2057-3000 | 324-274 | 297-215 | 0.45 |
| AKF2.3S-4 | 1396-2561 | 341-312 | 282-162 | 0.32 |
| AKF2.3S-4B | 1310-2448 | 435-411 | 392-274 | 0.37 |
| AKF2.5D1-6 | 1050-2335 | 174-102 | 163-53 | 0.25 |
| AKF2.5D1-4 | 1702-3054 | 383-247 | 345-164 | 0.55 |
| AKF2.5D1-4B | 1690-2984 | 445-351 | 404-272 | 0.55 |
| AKF2.5D2-6 | 1760-2907 | 192-135 | 169-71 | 0.32 |
| AKF2.5D2-4 | 1674-3312 | 415-290 | 381-207 | 0.55 |
| AKF2.5D2-4B | 2414-3968 | 415-279 | 371-159 | 0.75 |
| AKF2.5D3-6 | 2364-3267 | 176-116 | 144-54 | 0.37 |
| AKF2.5D3-4 | 2355-4041 | 368-217 | 335-121 | 0.75 |
| AKF2.5D3-4B | 3054-4223 | 427-294 | 372-189 | 0.75 |
| AKF2.5S1-4B | 771-2007 | 510-480 | 490-347 | 0.45 |
| AKF2.5S2-4B | 1435-2437 | 487-480 | 430-337 | 0.55 |
| AKF2.5S3-4B | 1592-3394 | 522-506 | 477-301 | 0.75 |
| AKF2.8D1-6 | 1994-3058 | 300-177 | 266-106 | 0.37 |
| AKF2.8D1-4 | 2272-4081 | 626-575 | 563-449 | 1 |
| AKF2.8D2-6 | 2588-4203 | 248-226 | 212-136 | 0.45 |
| AKF2.8D2-4A | 2159-5085 | 546-524 | 501-396 | 1.1 |
| AKF2.8D2-4 | 2400-5400 | 507-425 | 451-277 | 1.1 |
| AKF2.8D3-6 | 2712-4675 | 267-232 | 237-143 | 0.55 |
| AKF2.8D3-4 | 3874-6077 | 532-373 | 471-223 | 1.5 |
| AKF2.8S-6 | 1839-2689 | 267-255 | 200-113 | 0.37 |
| AKF2.8S-4 | 1572-2936 | 561-554 | 506-388 | 0.75 |
| AKF3.0D1-4 | 3708-5547 | 646-590 | 572-452 | 1.5 |
| AKF3.0D2-4 | 3871-5944 | 658-538 | 604-411 | 1.8 |
| AKF3.2D1-6 | 2623-4427 | 383-376 | 348-294 | 0.75 |
| AKF3.2D1-4 | 2939-6120 | 732-653 | 680-497 | 1.8 |
| AKF3.2D2-6 | 2986-5703 | 328-227 | 290-109 | 1.1 |
| AKF3.2D2-4 | 3235-7092 | 604-377 | 566-194 | 2.2 |
| AKF3.2S-6 | 2397-4148 | 371-328 | 286-93 | 0.75 |
| AKF3.2S-4 | 3464-6053 | 797-669 | 633-168 | 2.2 |
| AKF3.5D1-4 | 4084-6048 | 687-630 | 618-502 | 2.2 |
| AKF3.5D2-4 | 4706-8387 | 794-703 | 730-552 | 3 |
| AKF3.5S1-4 | 2945-5646 | 868-749 | 775-406 | 2.2 |
| AKF3.5S2-4 | 3726-7242 | 876-702 | 773-355 | 3 |
| AKF3.8D-6 | 5078-10153 | 584-518 | 512-308 | 2.2 |
| AKF3.8S-6 | 5385-8292 | 502-413 | 335-15 | 1.8 |
| AKF4.0D1-6 | 5738-8851 | 594-574 | 507-417 | 2.2 |
| AKF4.0D2-6 | 6240-11569 | 575-401 | 525-230 | 3 |
| AKF4.0S1-6 | 5208-8554 | 630-604 | 480-290 | 1.8 |
| AKF4.0S2-6 | 6548-10800 | 600-570 | 433-171 | 2.2 |
| AKF4.5D1-6 | 9127-13829 | 720-633 | 629-423 | 4 |
| AKF4.5D2-6 | 9923-16768 | 716-609 | 652-425 | 5.5 |
| AKF4.5D3-6 | 13210-20200 | 705-634 | 597-416 | 7.5 |
| AKF4.5S1-6 | 7997-14713 | 726-694 | 528-142 | 4 |
| AKF4.5S2-6 | 10966-16727 | 759-690 | 499-98 | 5.5 |
| AKF5.0D1-6 | 14122-23400 | 848-710 | 772-502 | 7.5 |
| AKF5.0D2-6 | 16596-25200 | 868-740 | 781-539 | 11 |
| AKF5.0S1-6 | 12182-21600 | 894-778 | 668-146 | 7.5 |
| AKF5.0S2-6 | 16929-24120 | 918-810 | 593-151 | 11 |
| AKF5.6D-6 | 15769-25533 | 959-835 | 854-622 | 11 |
| AKF5.6S-6 | 14768-23878 | 1011-1049 | 827-567 | 11 |
