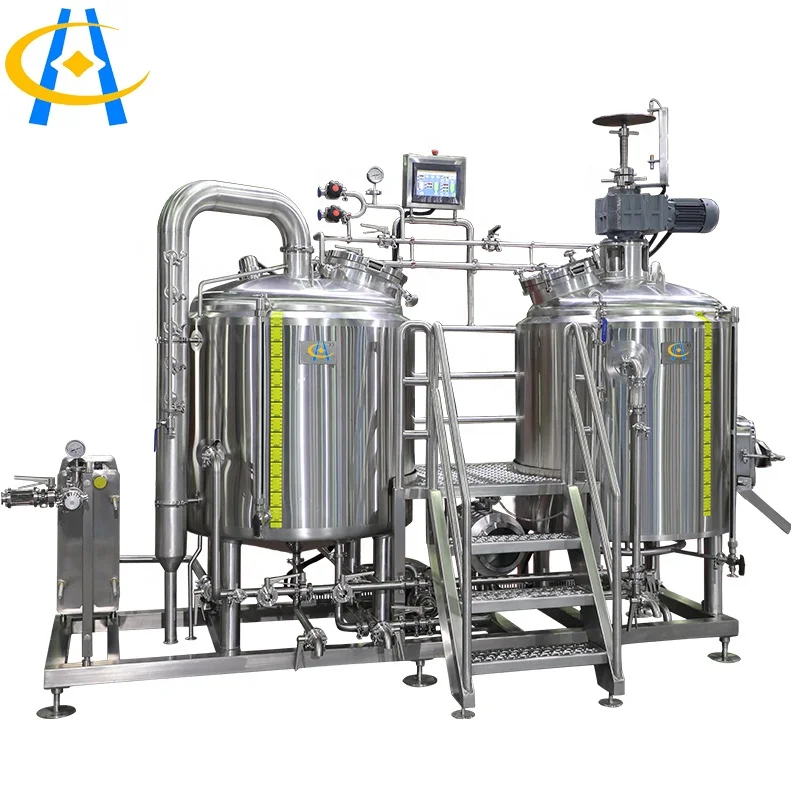

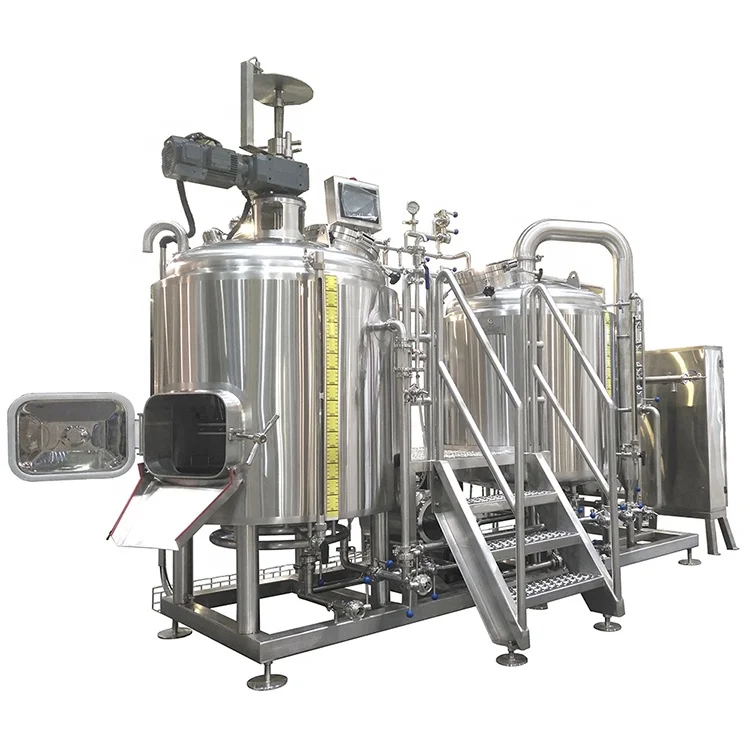

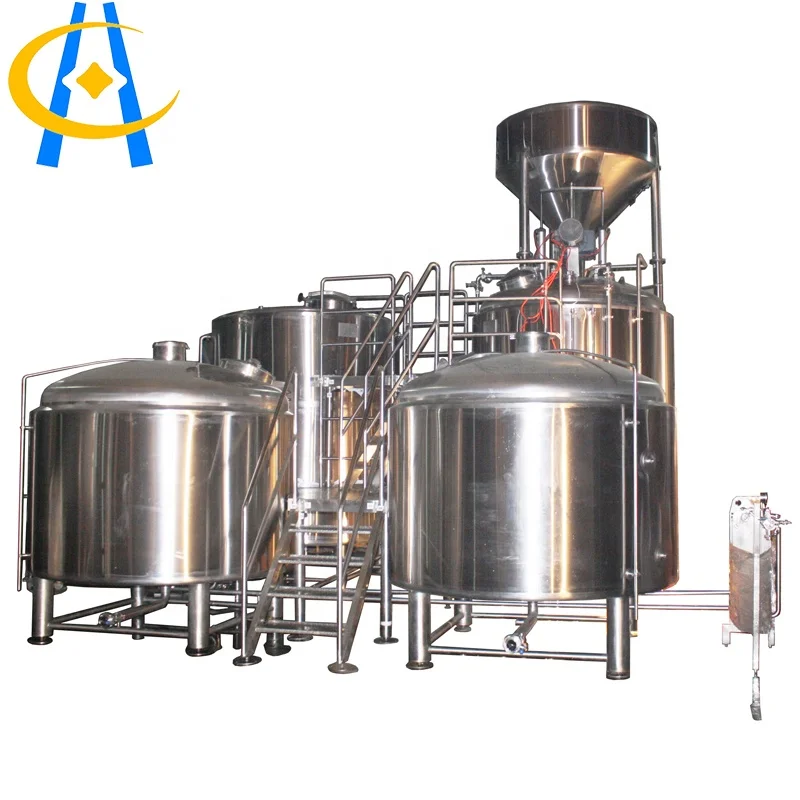

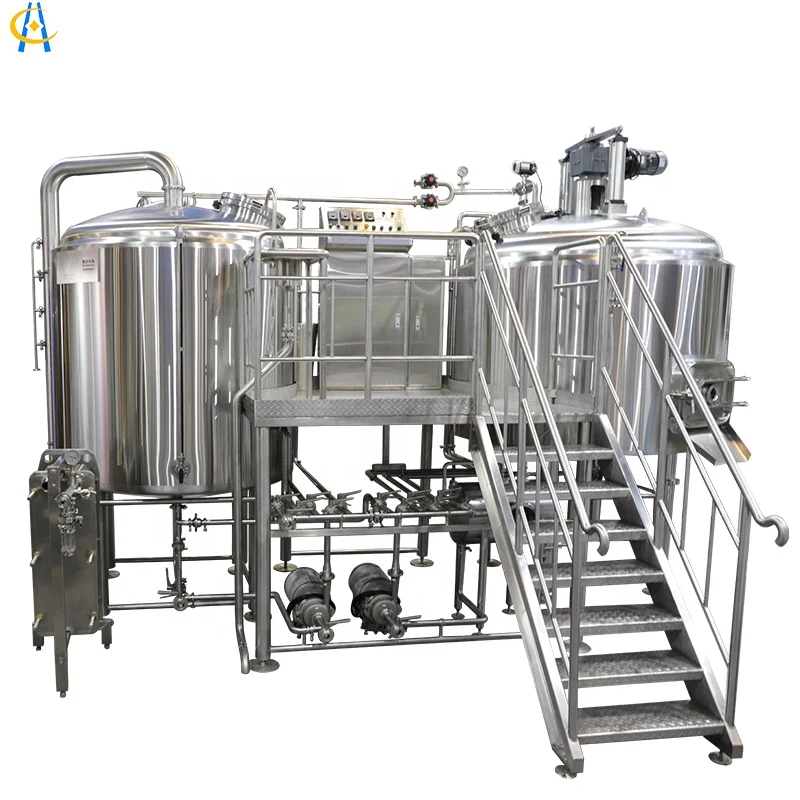

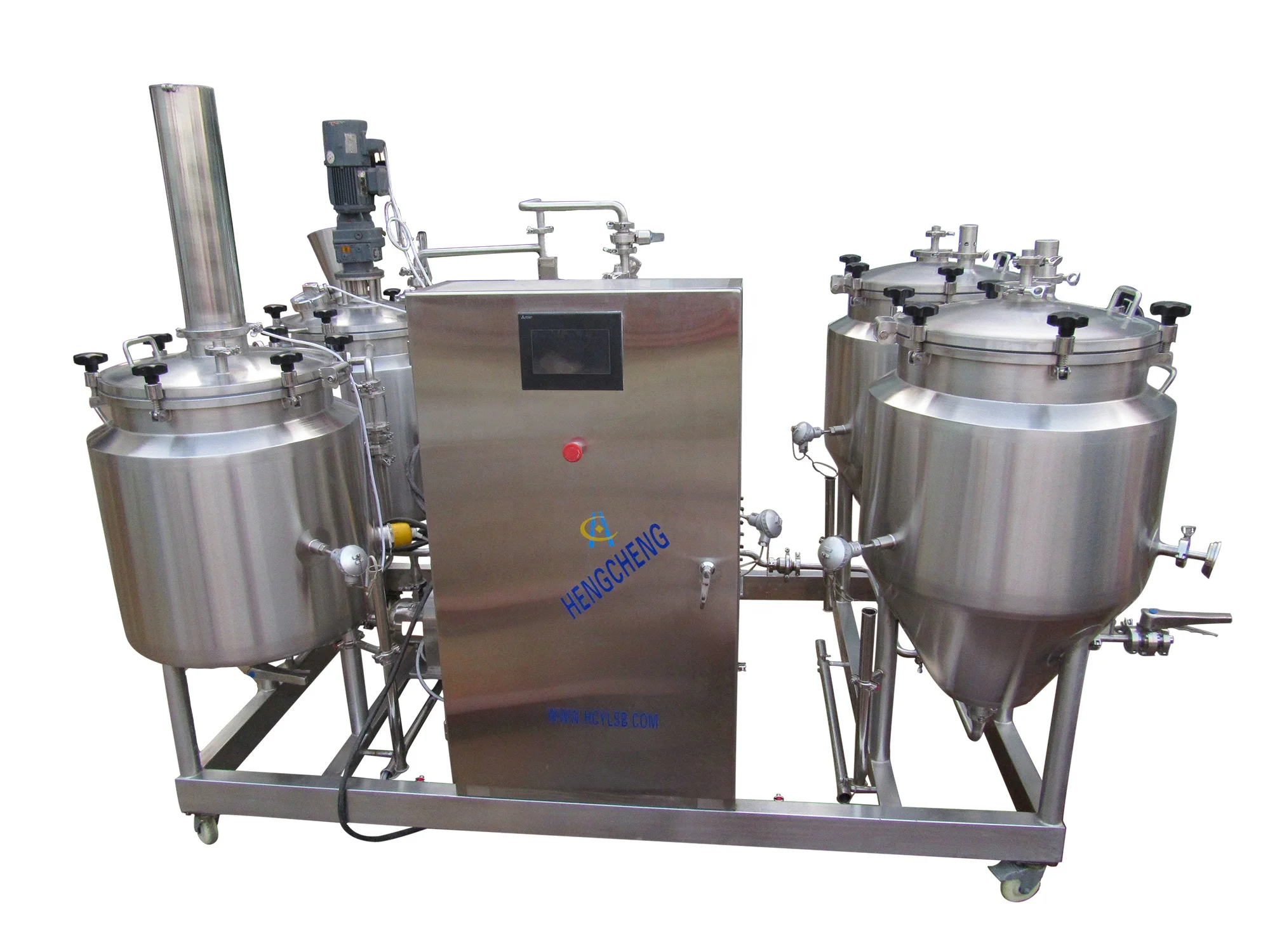

Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform
Craft beer small fast production stainless steel beer brewing equipment with operating platform

Craft beer small fast production stainless steel beer brewing equipment with operating platform

Share on (62576914017):


Price:$65,000.00

Quantity:


Product Overview

Description



Company Profile


About us
Shanghai Hengcheng Beverage Equipment Co., Ltd is located in Shanghai with convenient transportationaccess. We are professionally engaged in producing craft beer brewing system, fermenting equipment,bright beer tanks, CIP system, keg washer, stainless steel manways and relevant fittigs. All the productshave been proven excellent at domestic and abroad market due to its high quality and reasonable price.Our items have been sold to many overseas countries US, Sweden, Korea, UK, Australia, Chile, Russia,Vietnam and Ethiopia.The brewhouse equipment and beer fermenters have met the specific requirementof customers from US.


Products Description


Name
Components
Specification
Milling System
Miller
Double Roller：700rpm, 600rpm
Drive Power: 0.55kw
Output: 50kg/hr
Brewhouse System
Mash/Lauter tun
Grain mashing, Lautering
Brew Kettle/
Whirlpool Tank
Wort boiling and whirlpool
Hot Water Tank
Hot water supply
Heat exchanger
One stage and two stage
Fermentation System
Fermentation Tank
Top manway/Side manway
Drying hop port to brew IPA
Glycol Dimple jacket
Carbonation port to fill CO2
Yeast Adding Tank(option)
SUS304 Stainless Steel
Cooling System
Glycol tank
Equipped with PU level indicator
Glycol Chiller
Glycol water chilling (2HP)
Power supply: 3*220V/60Hz
Cleaning System
Cleaning, sanitizing and sterilization of vessels and pipes in the brewery
Control System
1.Control cabinet: for fermenting system and cooling system
2.Temperature degree display together
3.Siemens PLC control system
4.Control the power and temperature of the brew house&hot water tank
5.Control the variable frequencies of all the pumps automatically
6.Control the temperature of the fermentation tanks; control the temperature of the cooling system
7. Control wire and signal wire




Brewhouse System
Mash/Lauter Tun
Be made of food sanitary stainless steel. Brushed outer shell.
Thickness of insulating layer: 80mm, Thickness of inner body stainless steel: 3mm, outer shell is 2mm
Rake plow/ Grain out door, Milled sieve plate; Grain washing round pipe; CIP rotary spray device
Top mechanical agitation (Bauer), motor with CE UL certification.
Top mounted manway with full glass, manway handles material is stainless steel; Top decorative funnel; light fixture with LED;
thermowell;
Bi-mental thermometer and temperature probe;
Bottom wort collect
All valves are stainless steel, with tri-clamps; NPT connect ports etc
With all matched valves and accessories.

Brew kettle /Whirlpool Tank
1. Be made of of food sanitary stainless steel; Brushed outer shell;
2.. Steam jacket
3. With liquid meter
4. Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm
5. Top mounted manway with full glass; Light fixture with LED;
6. CIP rotary spray device; safety combination
7. Bi-metal thermometer and temperature probe
8. Tangential whirlpool line at the side
9. Outer and Inner plate protection , and ribbon polished on all welds
10. All valves are stainless steel, with tri-clamps; NPT connect ports



One-stop solution









>>> Click here to Auxiliary products page <<<



Our certificate


Click here for more information



Packing & shipping



1.With export standard film packaging, then for wooden case packaging for alone beer tanks and less brewery equipment LCLshipping.
2.If more tanks or complete set of brewery, with film packaging- FCL shipping.
3.By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
4.Buyers requirement on packaging and shipping, please tell us in advance.
5.Transportation method: By sea/Railway/Road/Air.


Our team




Our exhibition




Contact us & FAQ


No1. Is your company a factory or trading company?
Yes, HengCheng is a manufacture focuing on technology and quality. And welcome to Shanghai to visit our factory.
No2. Where is your factory?
Shanghai HengCheng Beverage Equipment Co., Ltd. is located in Fengxian District of Shanghai, China.
No3. About the production capacity.
The capacity is for per day prodcution, we can give you some suggestions about the quantities and capacity of
fermentation tank according to your daily product
No4. Can you produce as specific size?
Yes, most of our products can be customized. Your satisfaction is our biggest pursuit.
No5. About the packaging and shipping:
The beer equipment we use the bubble wrap,and wooden case,before shipping the equipment,we all take the packaging
pictures,and the equipment load on the container pictures to customers.
No6. What is the delivery time?
Usually the delivery time is within 10~40 working days after payment.beer fermenter
No7. How any years does your warranty ?
The tank body is for 3 years, auxiliary ones for 1 year.






———— CONTACT US ————





Our contact information
Website: https://www.brewerymachine.com/
Email: dora@hc-machinery.cn
Tel: 86-21-57521377
mob: 0086-18321613697
Fax: 86-21-57521311
>>>>>>>>Click here to send us an inquiry<<<<<<<<
