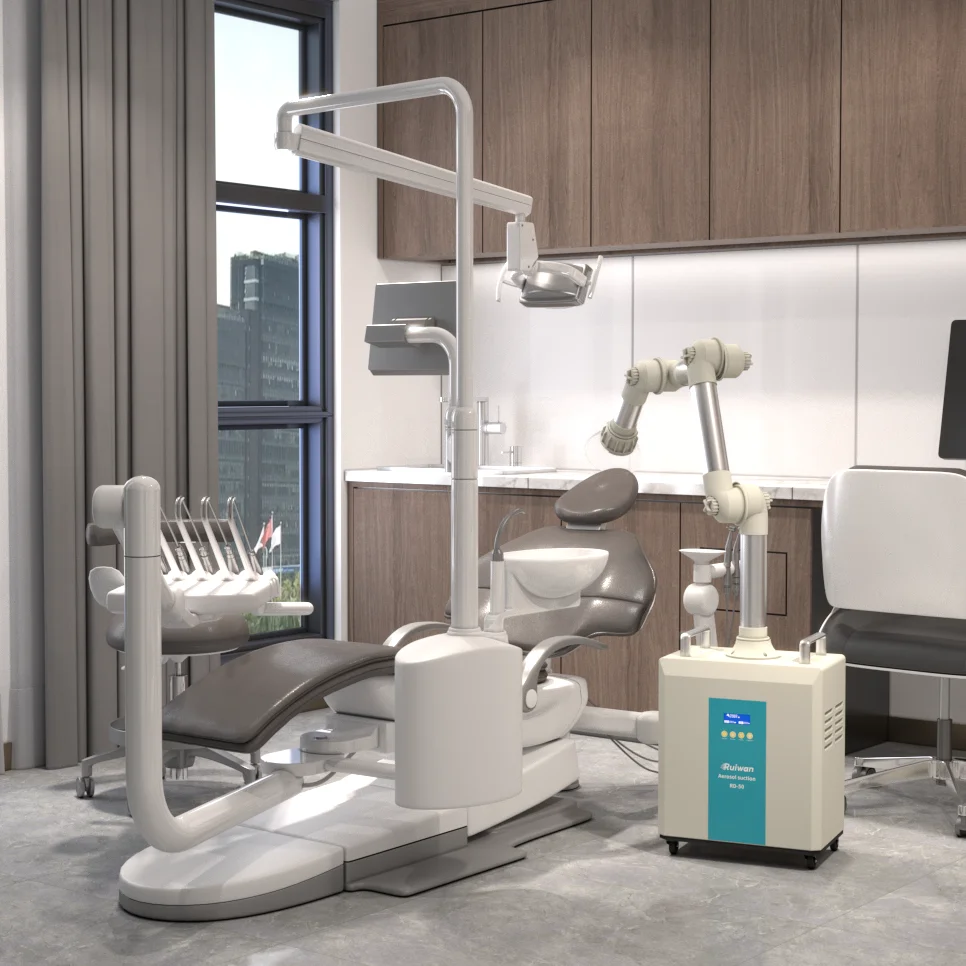

Стоматологический экстрактор для капель ruwang RD50
- Category: Cleaning & Filling Teeth Equipments >>>
- Supplier: Ruiwan (guangdong) Technology Co. ltd.
Share on (62576942833):
Product Overview
Description
Catalog
Product Description
Model | RD50 |
Voltage | 110v 60hz / 220v 60hz |
Noise | 36db |
Filtration Effect | 0.3μm 99.97% — 0.1μm 99.9999% （H13 - U16） |
Size | 400x255x545 mm |
Weight | 21kg |
Diameter of Flange | 75mm |
Filters | 3 layer + UV lamp |
Folding arm Length | 1.4 meter |
Folding Arm Diameter | 63mm |
Negative pressure | 2200pa |
Introduction to Sterilization and Filtration

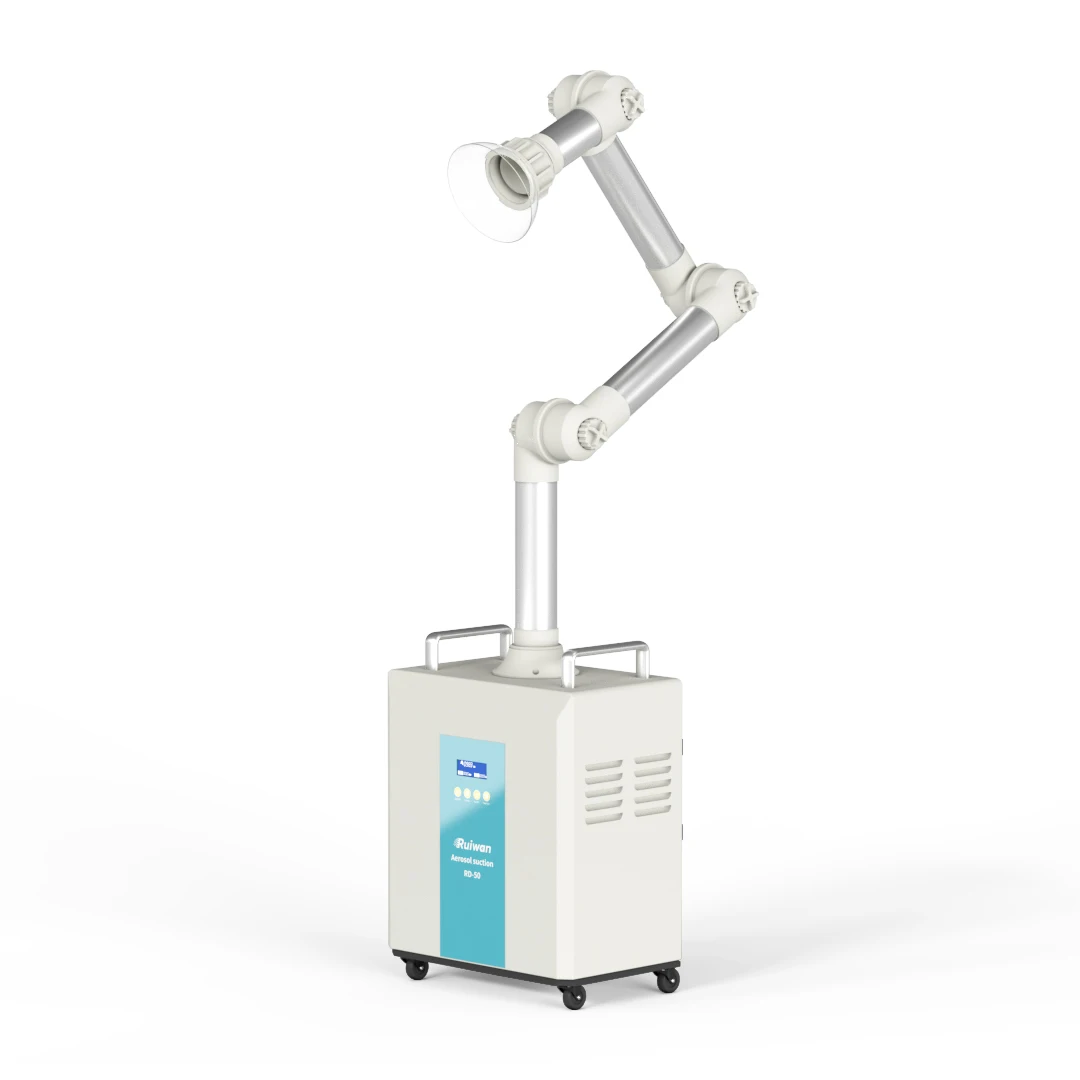

This product is a mobile extra-oral suction machine, which quickly filters spray, aerosol, bacteria, and other harmful substances during treatment, by utilizing the high negative pressure produced by a brushless direct current motor.
The first step to filtration is using a washable primary cotton filter and
secondary water vapor absorbing filter to effectively filter out the aerosol spray, thin blood, debris and other large particles during the treatment.
The second step is to filter out 99.97% of the aerosol and odor through our highly efficient customized H13 / H14 HEPA highly efficient filter and an active carbon filter.
The last step purifies through the UVC photo oxygen catalytic sterilization module, which sterilizes and exhausts air to the outside.The result - our tower - like filters to purify the air. In conclusion, this product can make the air clean and fresh to improve the cleanliness of the treatment environment,and reduce the rate of viral cross-infection. This achieves our goal of fighting infection.
The first step to filtration is using a washable primary cotton filter and
secondary water vapor absorbing filter to effectively filter out the aerosol spray, thin blood, debris and other large particles during the treatment.
The second step is to filter out 99.97% of the aerosol and odor through our highly efficient customized H13 / H14 HEPA highly efficient filter and an active carbon filter.
The last step purifies through the UVC photo oxygen catalytic sterilization module, which sterilizes and exhausts air to the outside.The result - our tower - like filters to purify the air. In conclusion, this product can make the air clean and fresh to improve the cleanliness of the treatment environment,and reduce the rate of viral cross-infection. This achieves our goal of fighting infection.
DISINFECTION OF THE FOLDING ARM / SELF-SUPPORTING ARM
Disinfection of the Self-supporting arm: After daily use, please turn on the machine continuously for 30 seconds and then turn it off.At this time, the droplets, liquid, and dust on the support arm can be minimized to the greatest extent.
When disinfecting regularly, please hold the support arm by hands,hold down the connection between the support arm and the machine, and pull the support arm out of the vertical direction of the device.Afterwards, twist the connection of the support arm clockwise and disassemble it.
Separate each section of the support arm, sterilize the inner tube wall, and then assemble it after more than 2 hours.
Disinfect the connection between the support arm and the machine:
Note that after spraying the disinfection liquid to the connecting part, wipe it as soon as possible and wait for 1 hour.
Note that after spraying the disinfection liquid to the connecting part, wipe it as soon as possible and wait for 1 hour.
DISINFECTION OF THE CASE
About the disinfection inside the chassis: Take out all the filter elements, and then spray disinfection water or other disinfection supplies into the chassis. After spraying, use a soft fabric to clean the inside, and just leave the case for more
than 2 hours without closing the case.
than 2 hours without closing the case.
Regarding the disinfection of the disinfection layer: The disinfection layer needs to open
the bottom cover, usually the disinfection compartment does not need to be disinfected, and a simple disinfection process can be performed when replacing the UV lamp. #It is forbidden to use organic solvents to sterilize the equipment. During the sterilization process, please bring a mask to prevent dust.
the bottom cover, usually the disinfection compartment does not need to be disinfected, and a simple disinfection process can be performed when replacing the UV lamp. #It is forbidden to use organic solvents to sterilize the equipment. During the sterilization process, please bring a mask to prevent dust.
Related Products
Packing&Shipping
1. Machine and accessories in the same carton.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton
3. Use a cable tie for final reinforcement.
2. Foam inside the carton, reinforced with Paper angle bead outside the carton
3. Use a cable tie for final reinforcement.
Company Introduction
Ruiwan （Guangdong）Technology Co., Ltd.
Ruiwan Tech Co., Ltd. is specialized in the area of the industry mechanical technology equipments such as fume extractor,dust collector and filter elements. It is one of the largest manufacturers of industrial fume extractor in China. Zhuhai Qizhou Industrial Co.,Ltd. is the overseas department and wholly owned subsidiary company of Ruiwan which is seamlessly connected with Ruiwan.Compare to the ordinary foregin trad company, it has the special advatages and the most convinient services for the customer , such as outsourcing services, OEM & ODM services; customized services.
Ruiwan Tech Co., Ltd. is specialized in the area of the industry mechanical technology equipments such as fume extractor,dust collector and filter elements. It is one of the largest manufacturers of industrial fume extractor in China. Zhuhai Qizhou Industrial Co.,Ltd. is the overseas department and wholly owned subsidiary company of Ruiwan which is seamlessly connected with Ruiwan.Compare to the ordinary foregin trad company, it has the special advatages and the most convinient services for the customer , such as outsourcing services, OEM & ODM services; customized services.
Our Services & Strength
1：OEM & ODM production ;
2：Capability of the Intelligent product development design ;
3：Prompt shipment services ;
4：Outsourcing assistance .
Contact Us
+86 13610499806（EN）
Whatsapp : +86 13610499806
Wechat ： c1029820185
Web ： www.ruiwanchina.com
Email ： Qizhoutrade@protonmail.com
Whatsapp : +86 13610499806
Wechat ： c1029820185
Web ： www.ruiwanchina.com
Email ： Qizhoutrade@protonmail.com
FAQ
Q: Are you original manufacture ?
A: Yes,we Ruiwan are an official leading manufature in air-cleaning machinery in China and we have the whole series products you need.
Q: What kind fo terms of payment can be accepted ?
A: Normally we can work on T/T trem ,VISA ,Mastercard ,West Union .
Q: What about the delivery time ?
A : Normally 7-15 days after receving the deposit.
Customized products 30-45days after receving the deposit.
Customized products 30-45days after receving the deposit.
Q: What about the Minimum Order Quantity ?
A: The MOQ is 1 pcs, sample order in small quantity is acceptable
Q: Can I visit your factory before order?
A: Yes, welcome to visit our factory. One hour near Shenzhen Airport.
